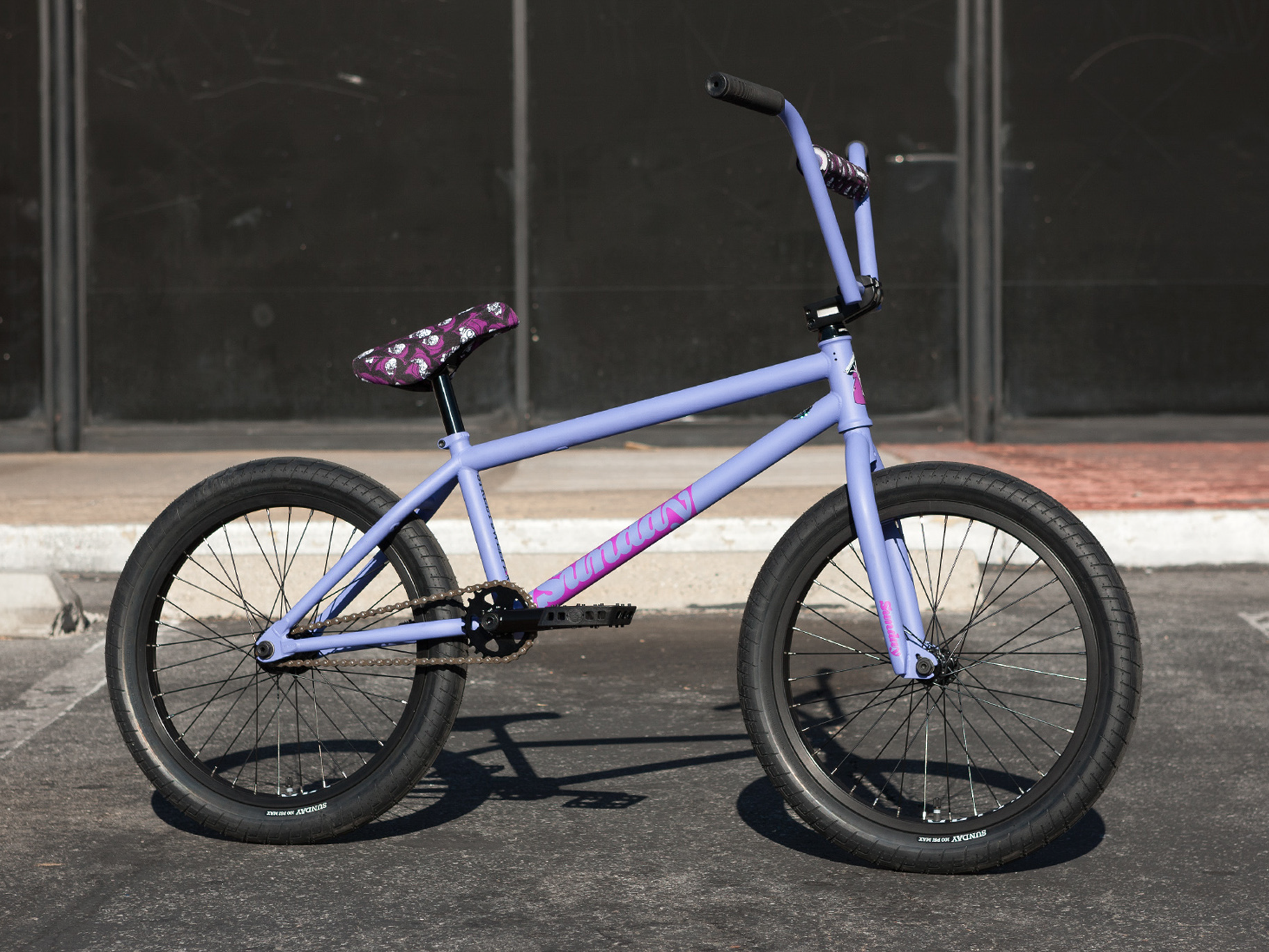

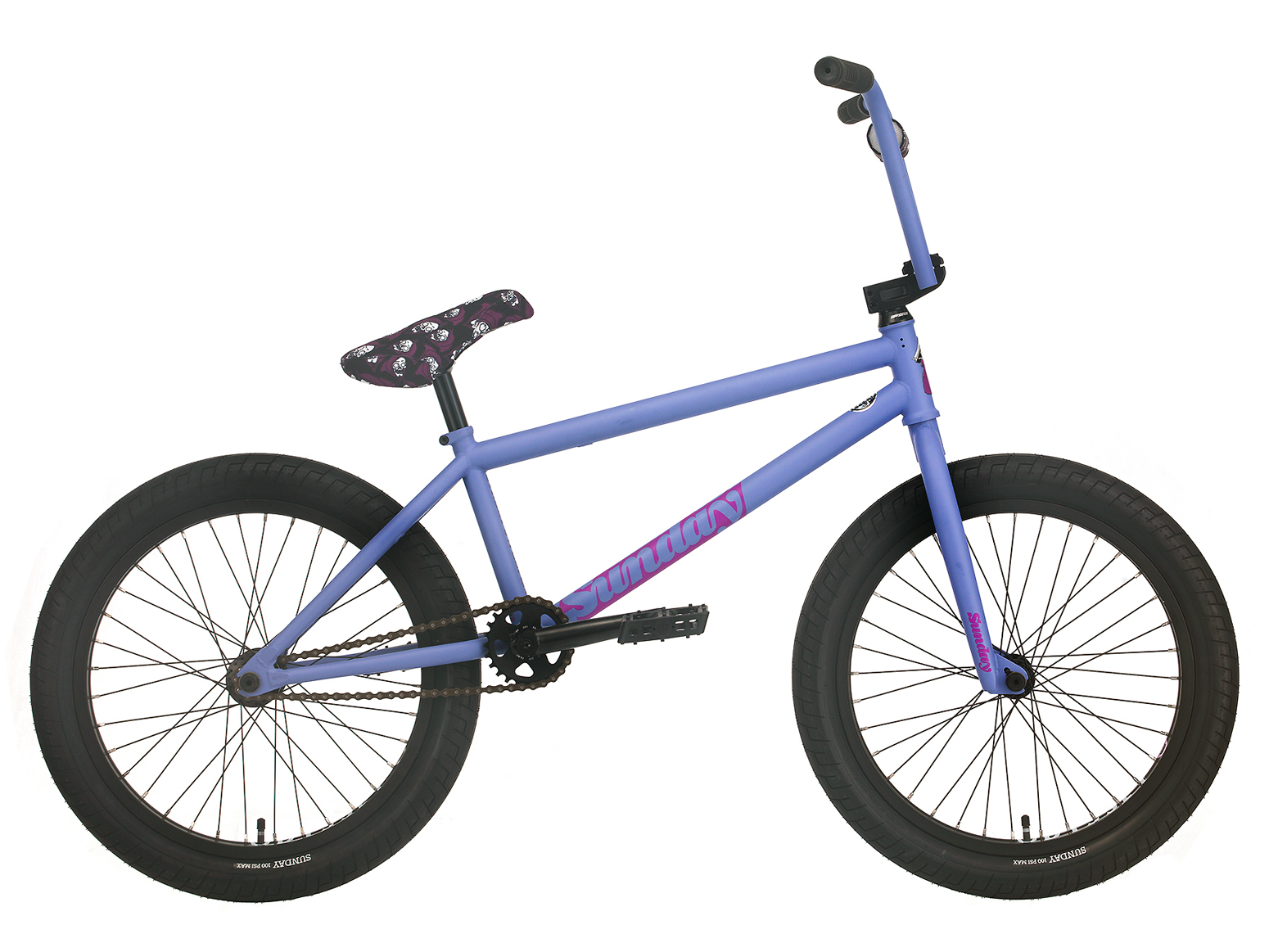

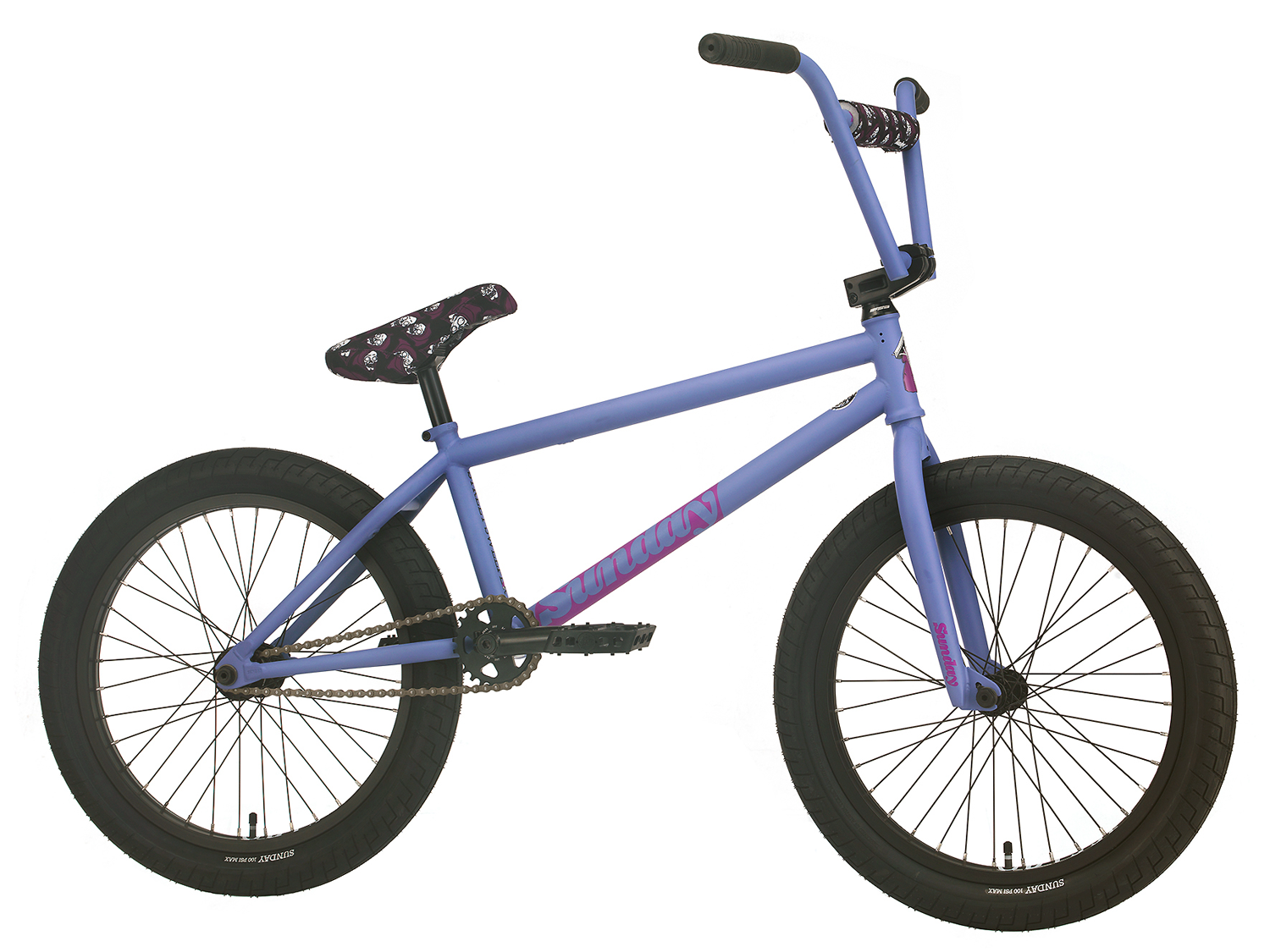

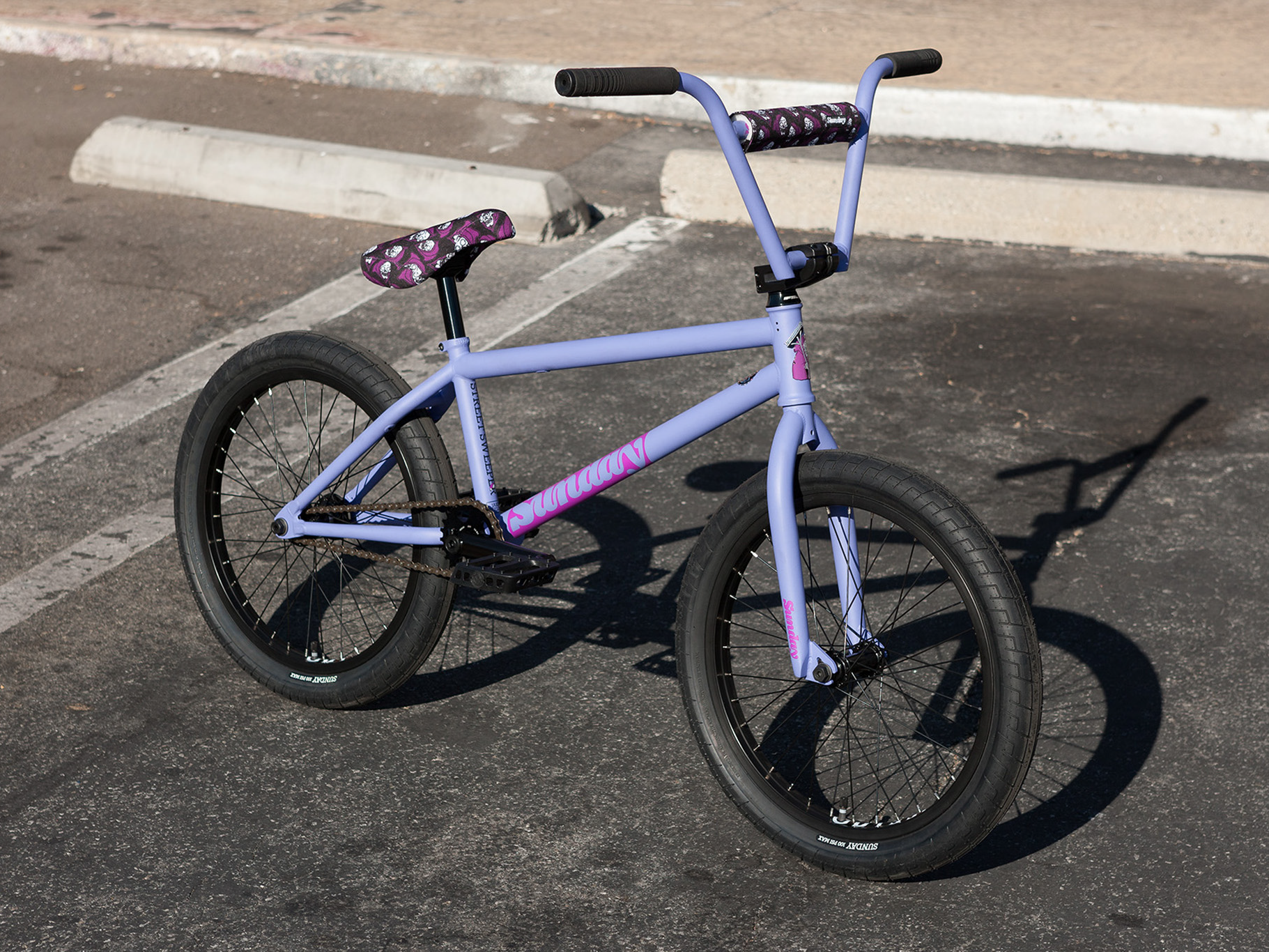

Sunday Street Sweeper Jake Seeley 20" BMX 2023 (Matt Blue/Lavender)
Regular price $1,599.99
Unit price per
SUNDAY 20" Street Sweeper (Jake Seeley) 2023 Bike
The Street Sweeper is designed with serious street riders in mind.
Built around Jake Seeley’s all-new chromoly aftermarket signature frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed Odyssey Clutch freecoaster and Sunday Street Sweeper tires, this is truly a pro-level bike. Follow @thejakeseeley.

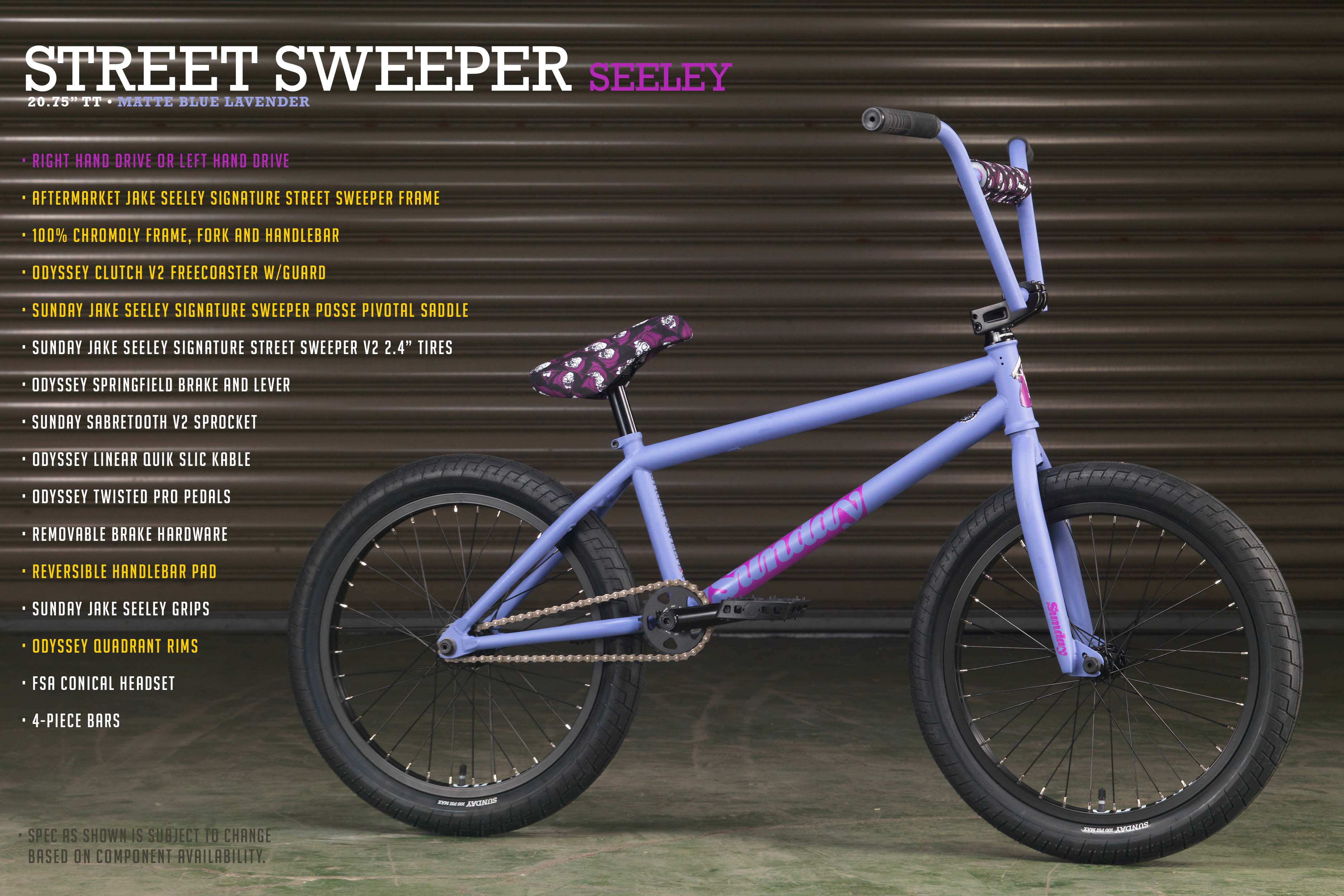

Features

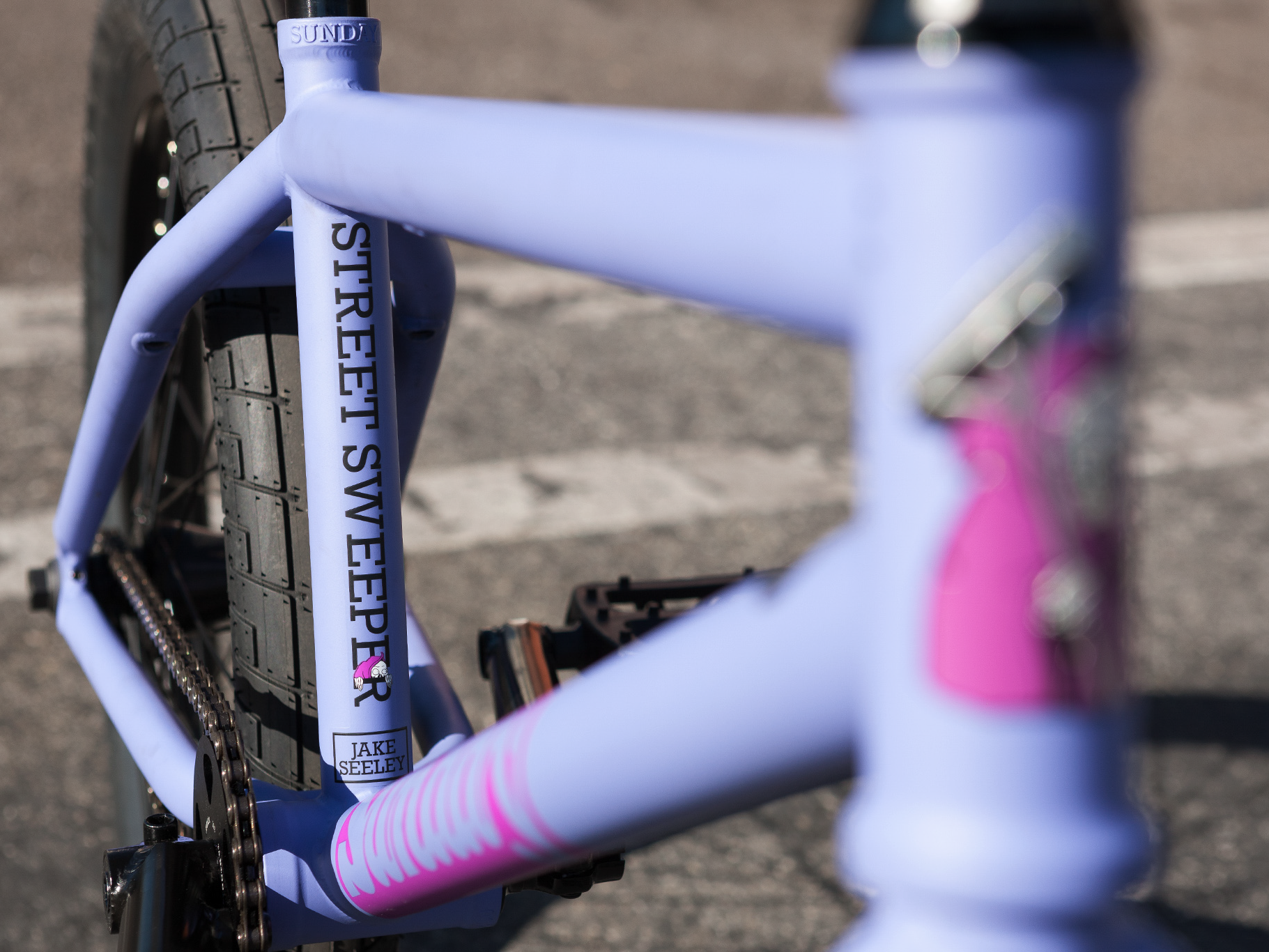

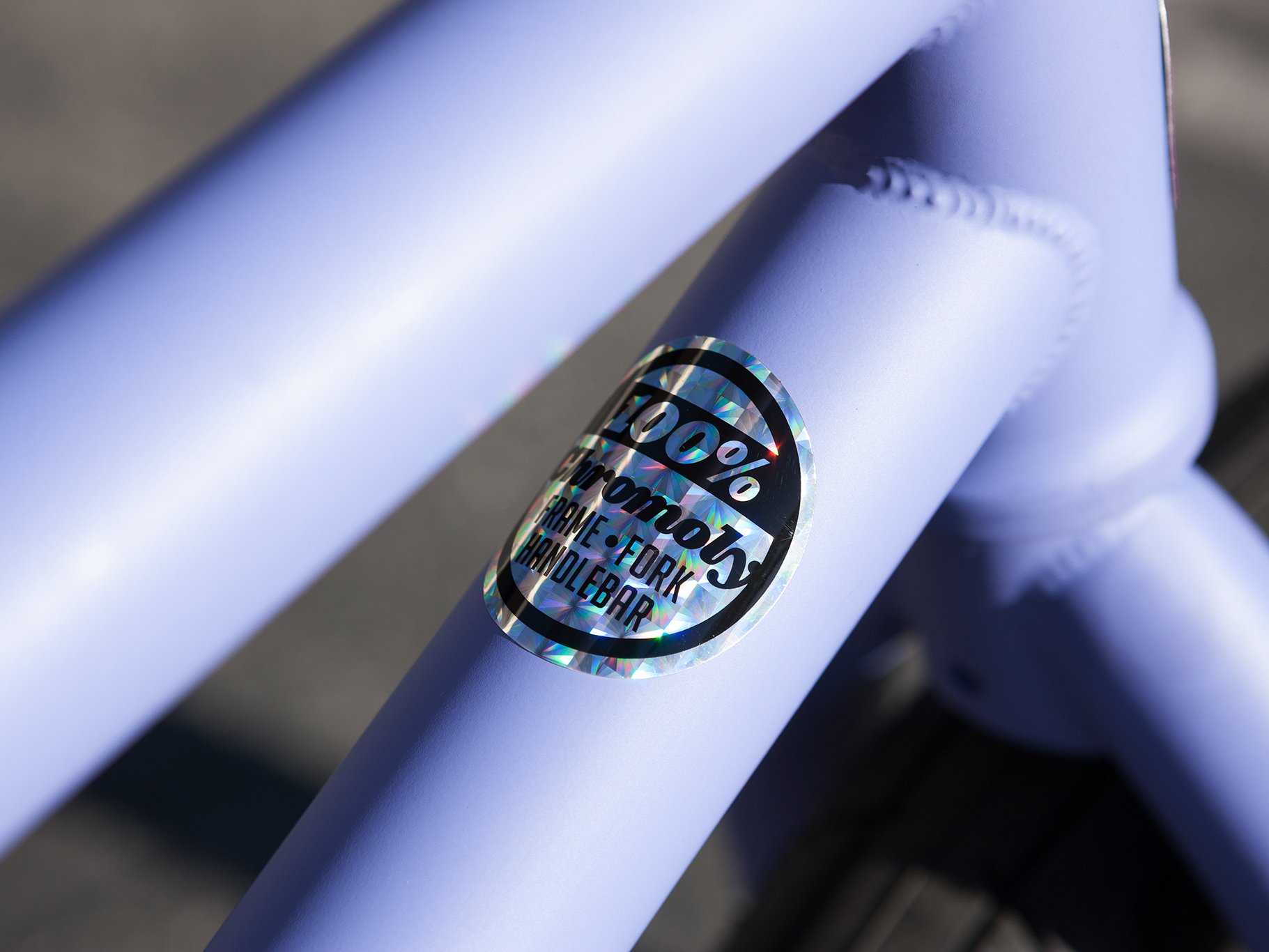

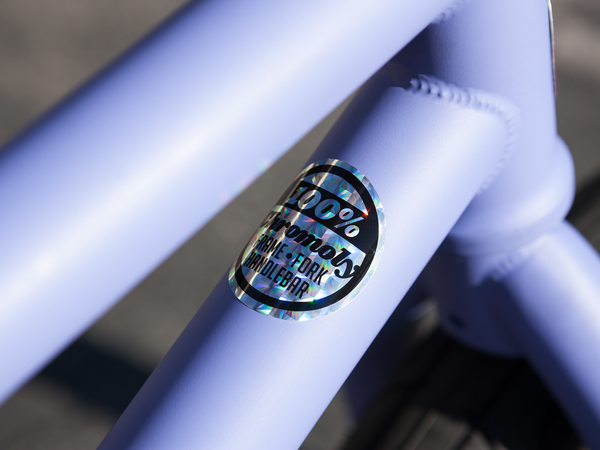

- Aftermarket Sunday Street Sweeper frame- 100% Chromoly Forks and 4-piece Bars
- Sunday Seeley Signature Grips
- Sunday Seeley Seat, Pivotal
- Odyssey Clutch v2 Freecoaster
- Odyssey Quadrant Rims
- FSA Conical Headset
- Right Hand or Left Hand Drive
- Sunday Street Sweeper 2.4" Tires
Specifications
Fork - Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset

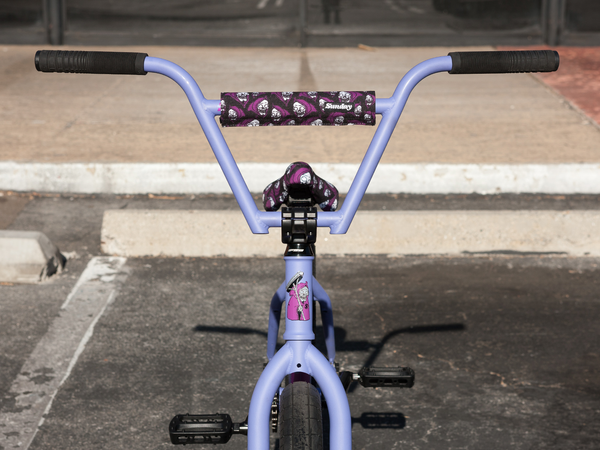

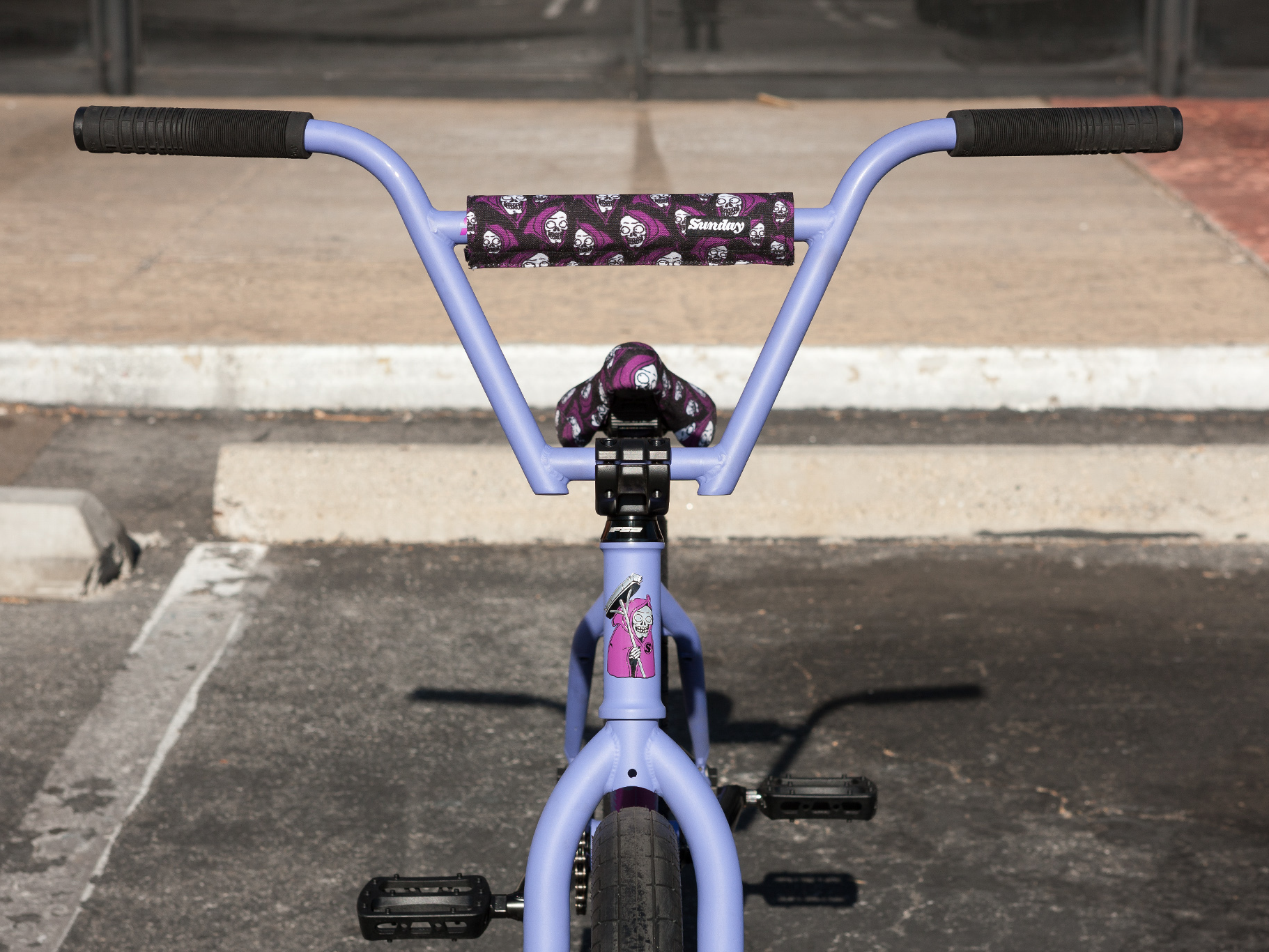

Handlebar - Sunday, 100% chromoly, 4-piece with bar pad

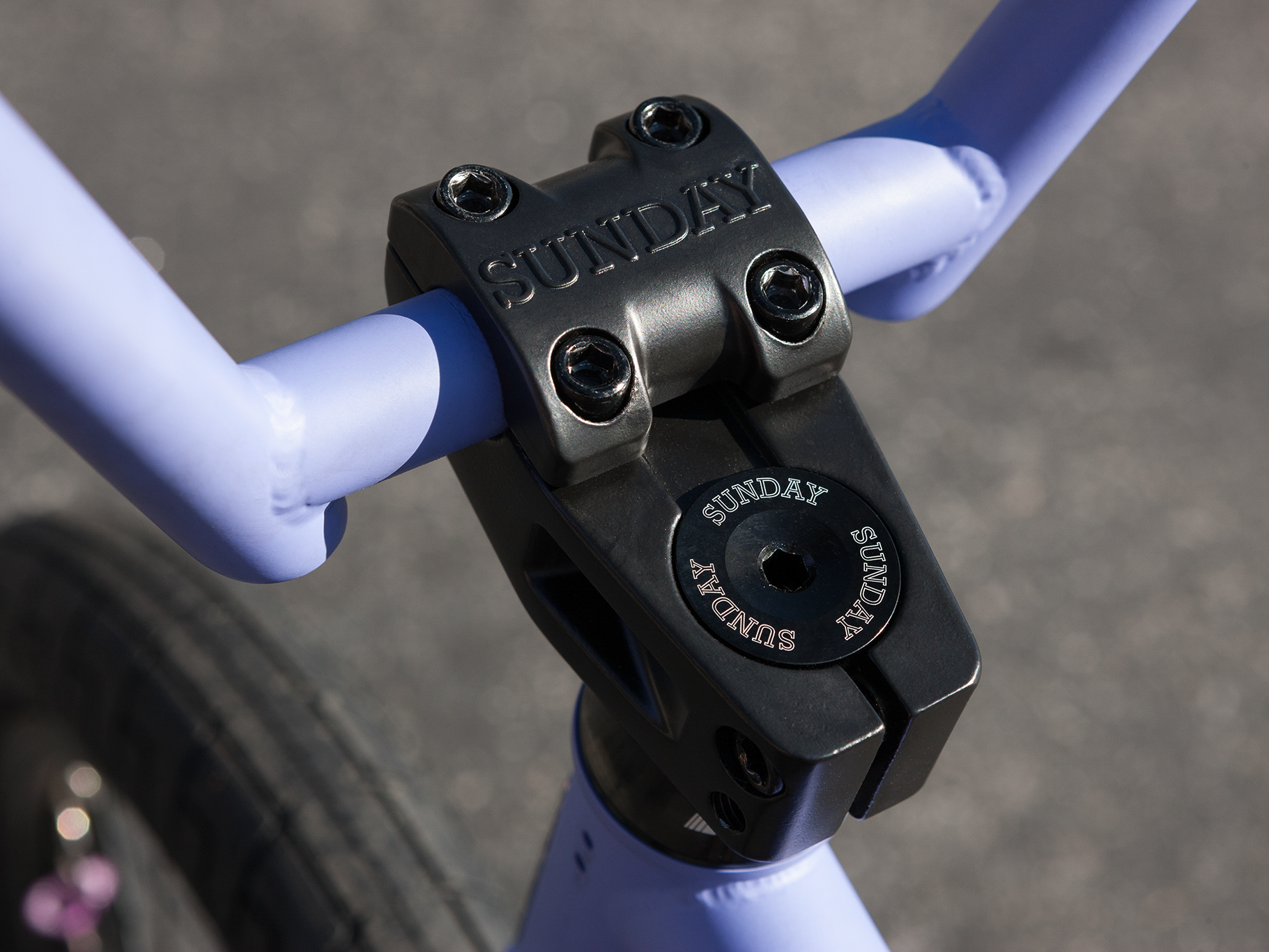

Stem - Sunday Freeze Top load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday M16, aluminum
Brake Lever - Odyssey Springfield
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic

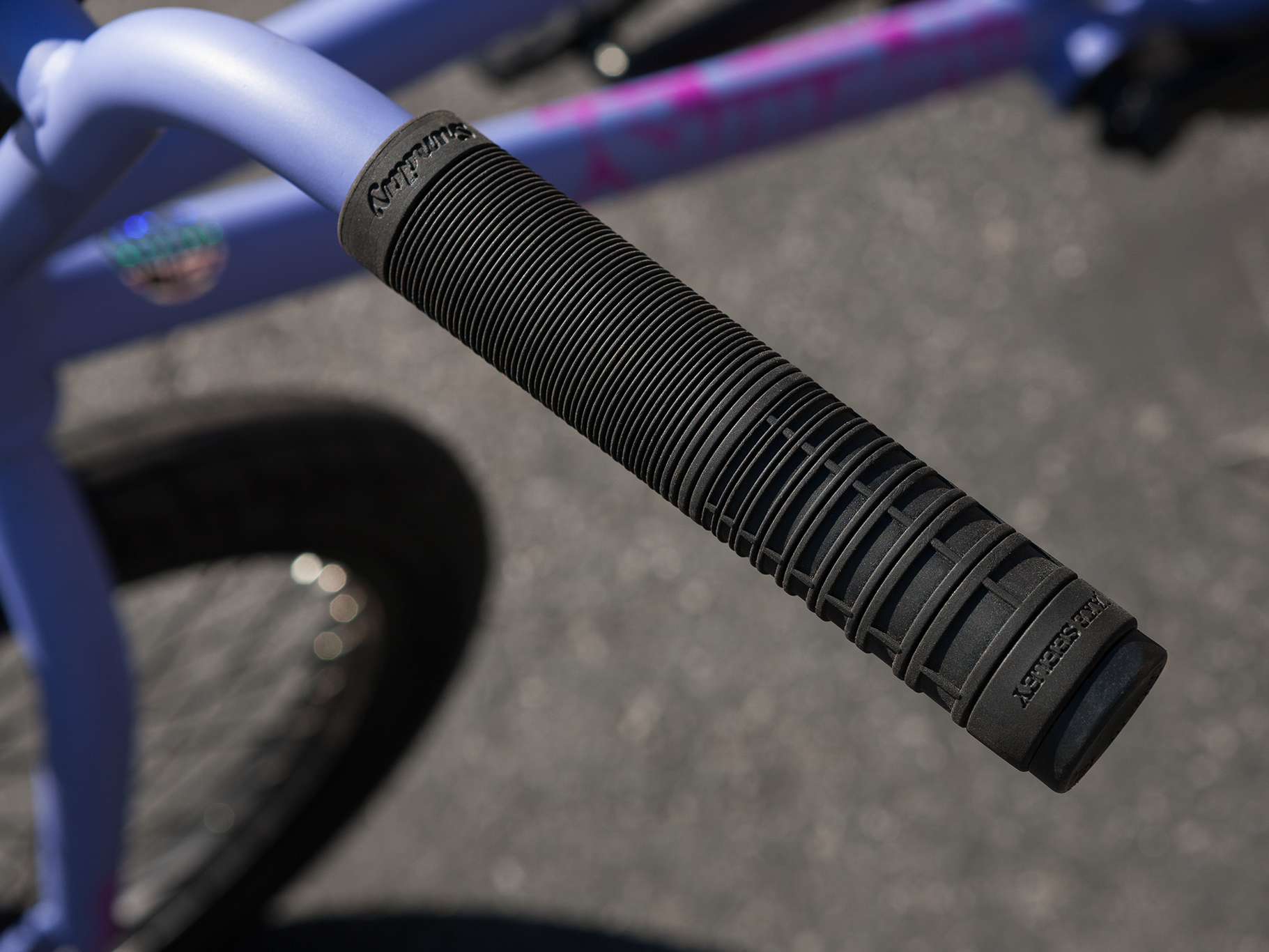

Grips - Sunday Jake Seeley

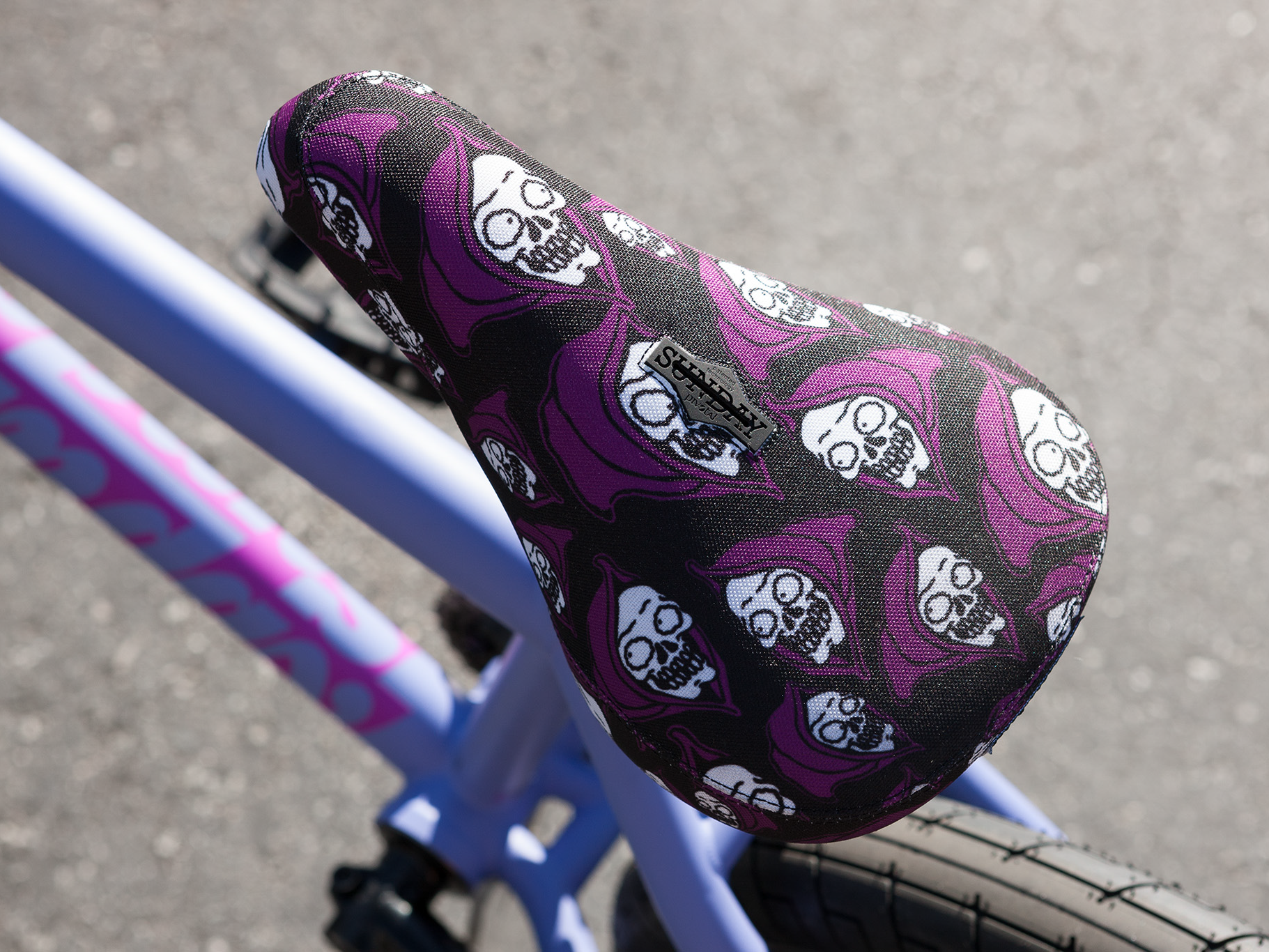

Seat - Sunday Seeley, Pivotal
Seat post - Sunday Pivotal
Seat Clamp - Integrated

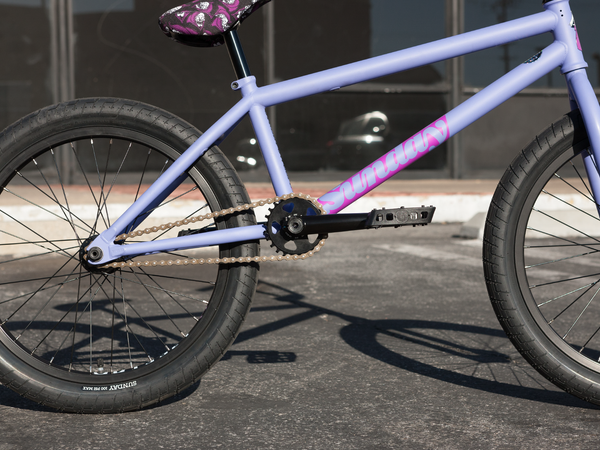

Sprocket - Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks - 160mm, 3-piece, chromoly
BB Parts - Sealed, Mid, 19mm
Pedals - Odyssey Twisted PC Pro

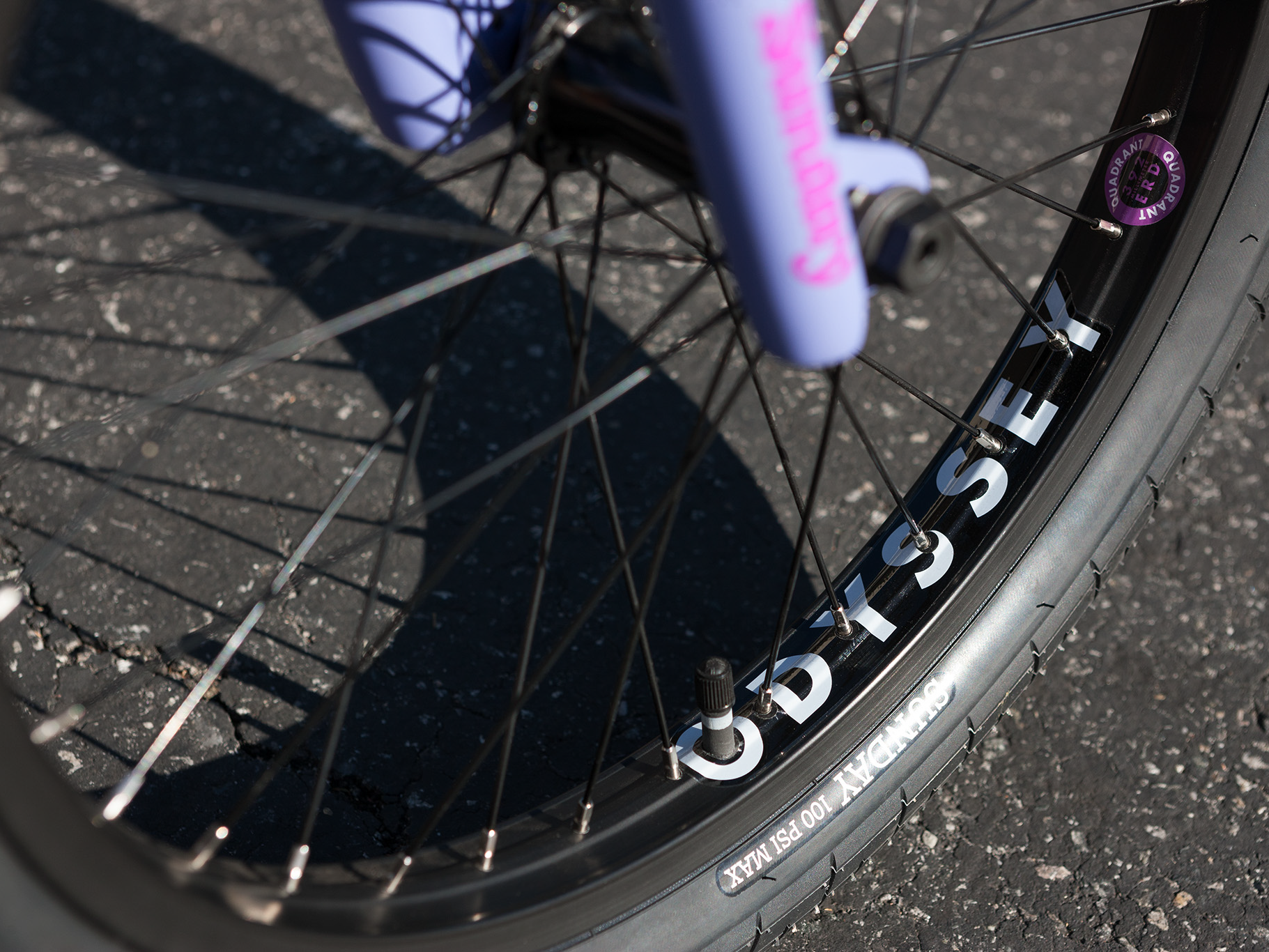

Rims - Odyssey Quadrant, 20", 36H

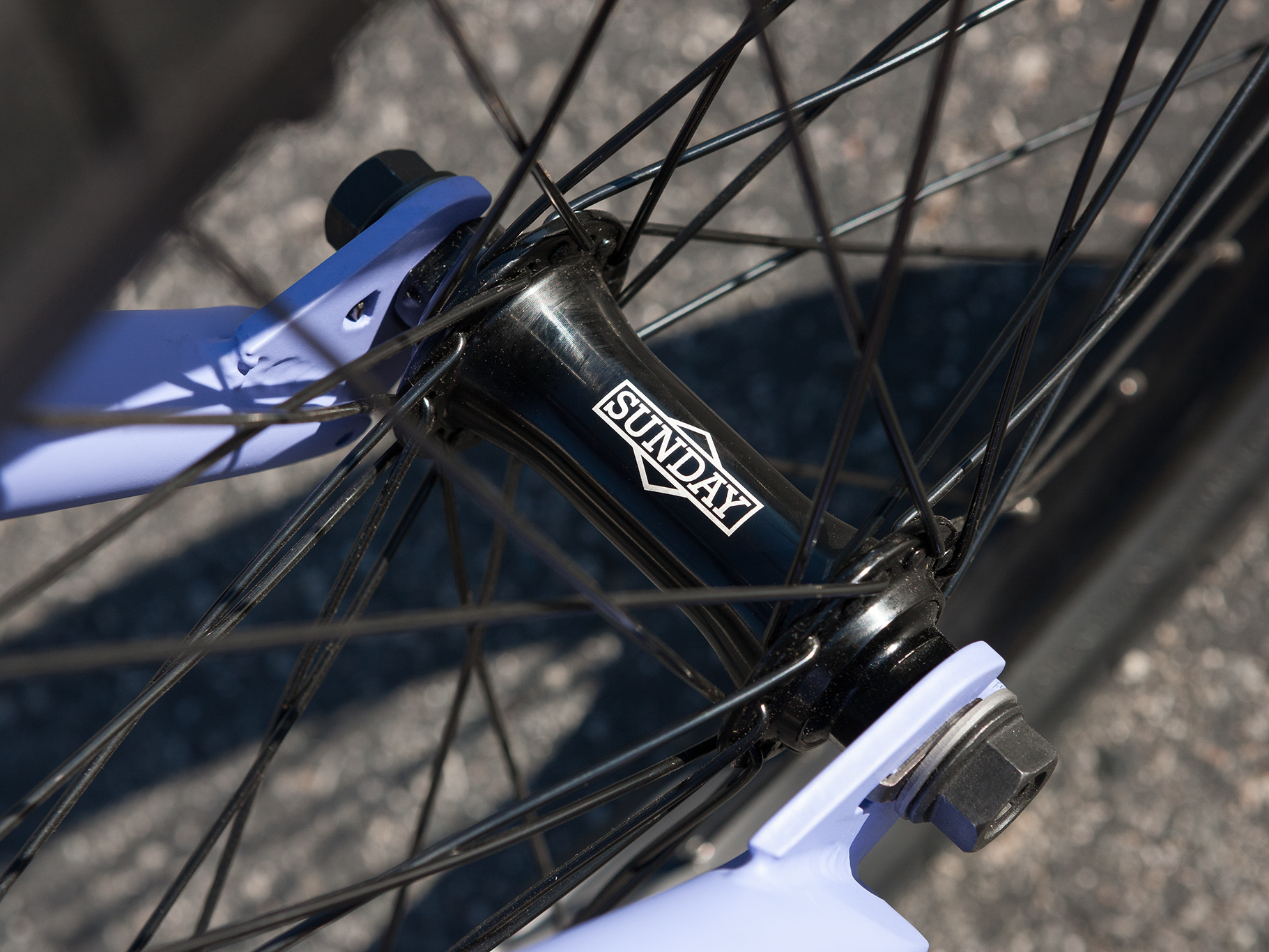

Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle

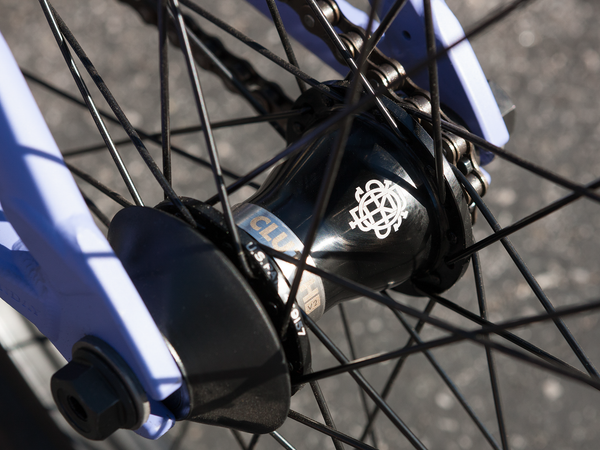

Rear Hub - Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive PC guard
Spokes - 14g steel, black
Tyres - Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 11.33kgs (brakeless)
Frame Geometry
Head Tube Angle - 75.25°
Seat Tube Angle - 71°
Chainstay Length - 12.7"-13”
Bottom Bracket Height - 11.7"
Headtube Length - 4.7"
Standover - 8.85”
Handlebar Geometry
Width - 29"
Backsweep - 12°
Upsweep - 3°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
