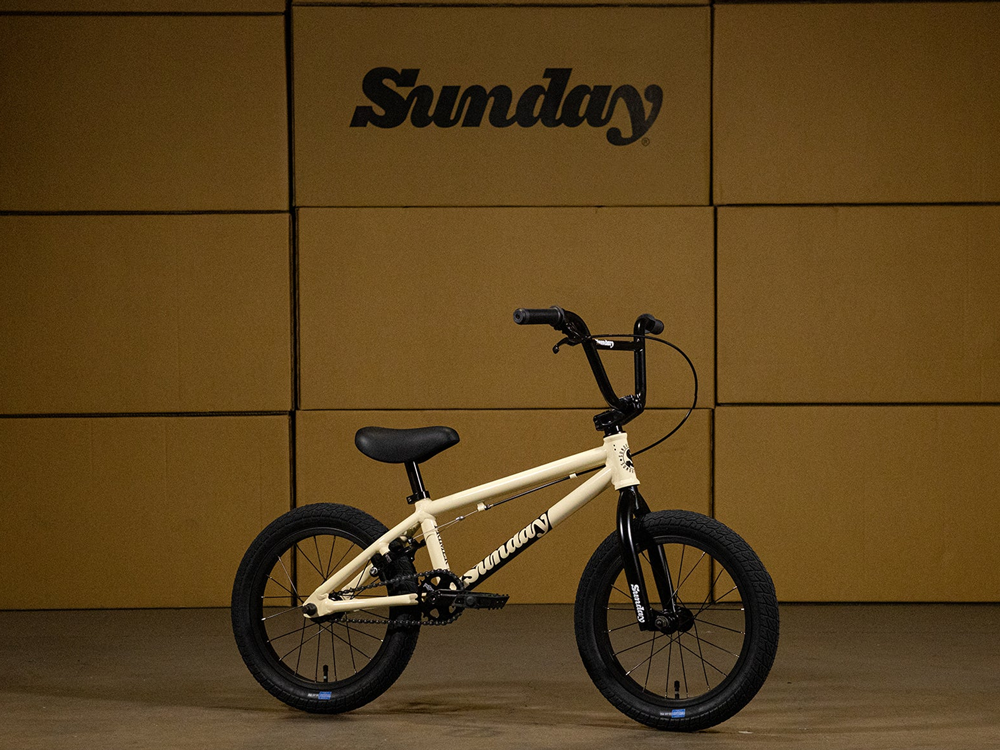

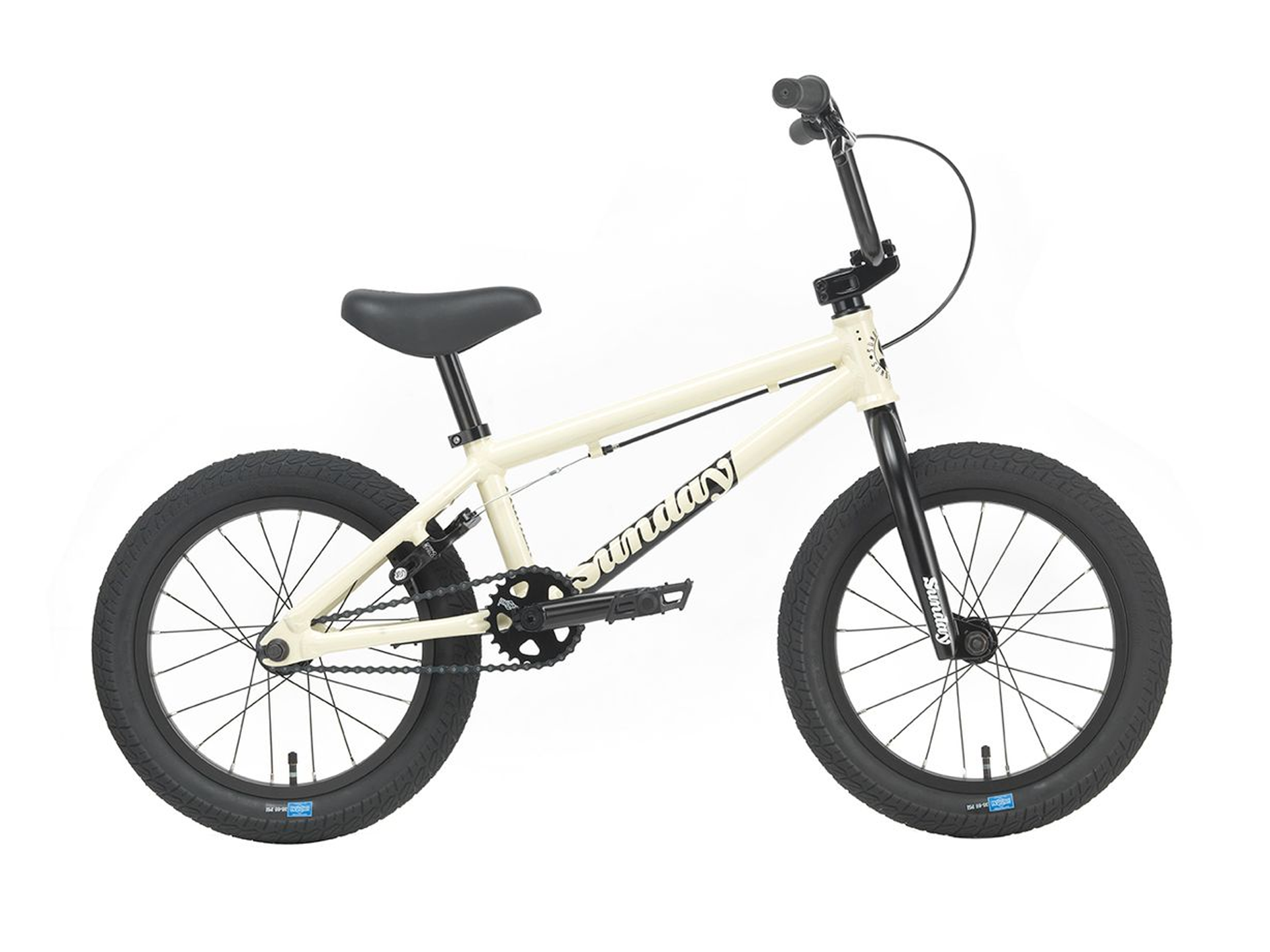

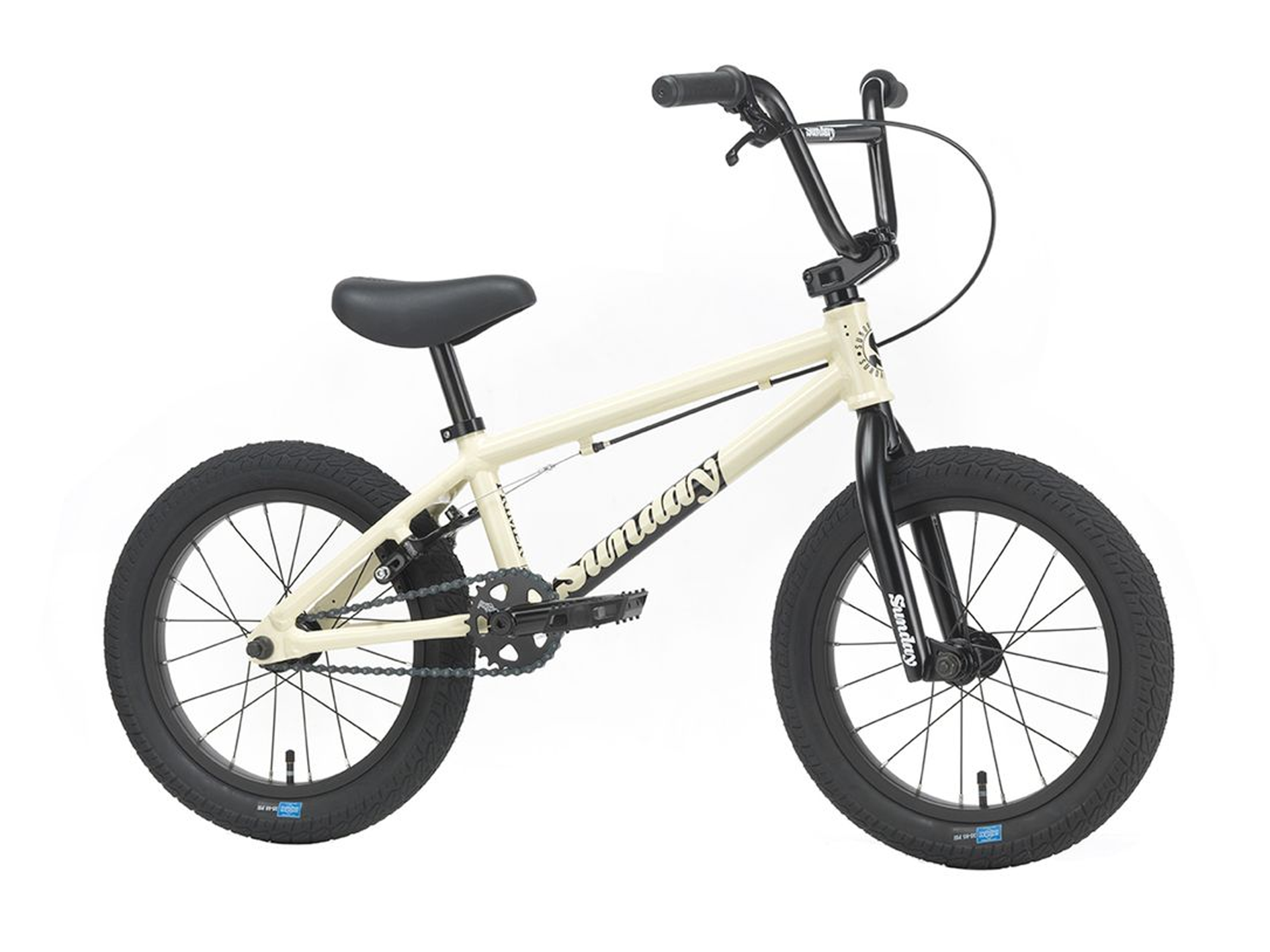

We're excited to introduce an updated Primer line of bikes for all the young riders out there. Sundays Primer 16" & 18" bikes are now built around a newly-designed lightweight aluminium frame, all while retaining a classic look and durability. The aluminium frame upgrade will be an added advantage to young riders who are just starting out, and the new seat/post combo provides a comfortable riding position.
Using Sunday's proven geometry, the Primer rides like a pro-level bike that has been scaled down to meet the needs of smaller riders. These bikes are packed with quality parts like Odyssey Springfield Brakes, cables and a fully sealed cassette hub for reliability that you can count on every time.
Key Features
- ALL NEW ALUMINUM FRAME
- 16" Pro-Style Geometry
- 40mm Top Load Stem
- FSA Headset
- KMC S1 Chain
- Sunday Badge Seat and Post Combo (new, more level position)
- Odyssey Springfield Brakes
- Sealed 10t Cassette Hub
- Sunday Current V1 16" Tires
Specifications

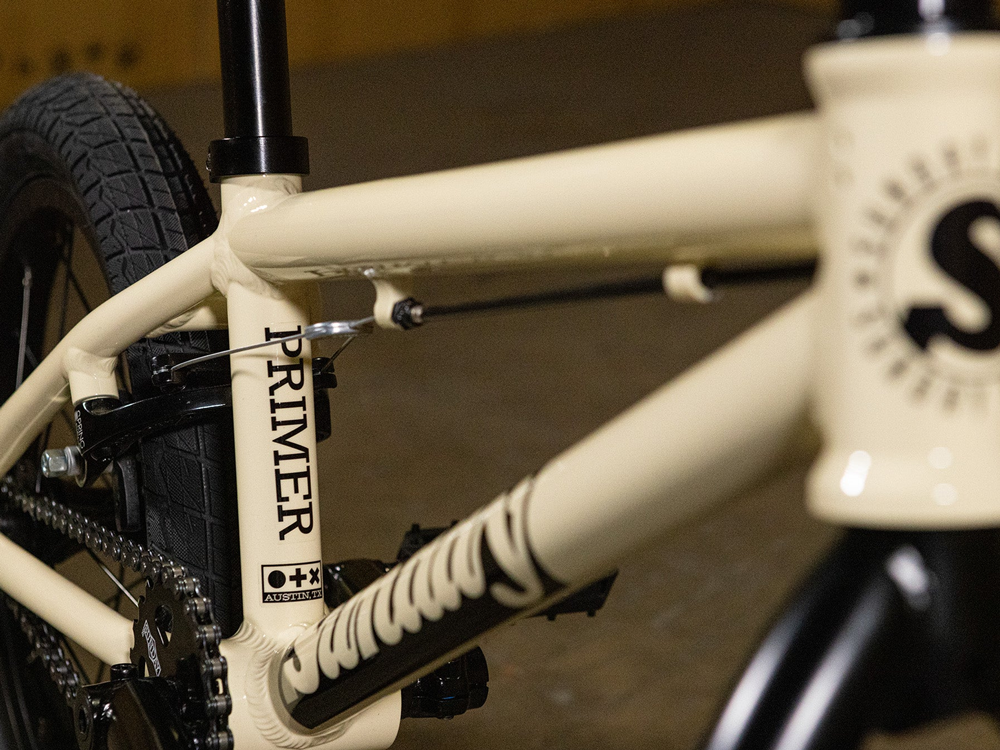

Frame: Sunday Primer Aluminum, 16.5" top tube, integrated 1-1/8" head tube
Fork: Sunday Primer, 16" fork w/ 2-piece steerer tube and welded pre-load

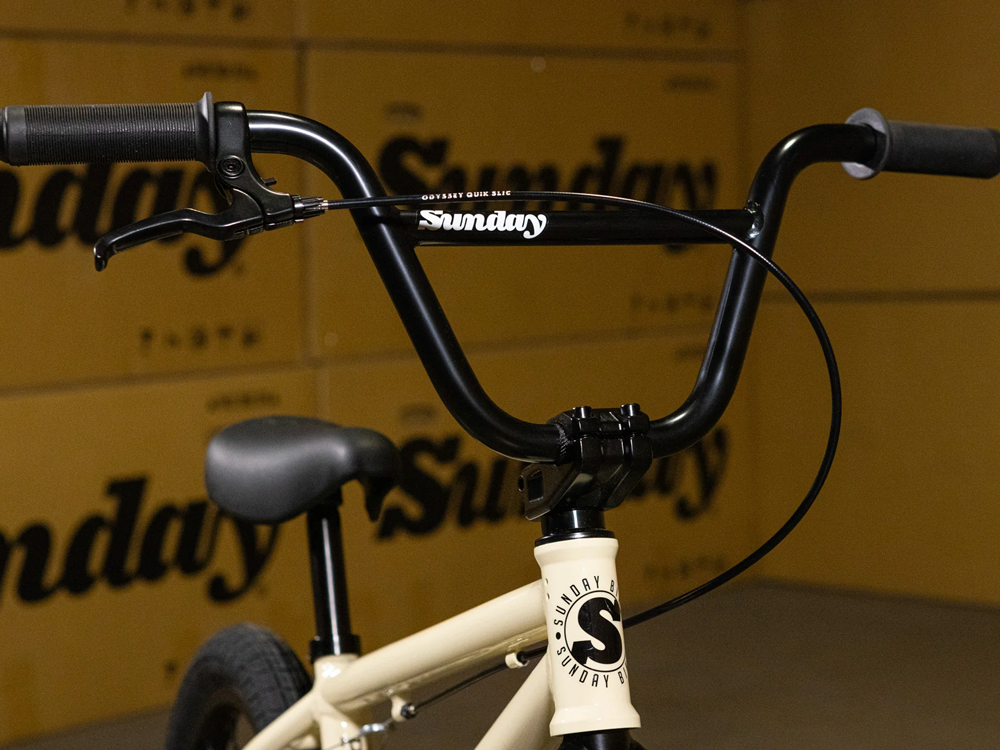

Handlebar: Sunday, 2-piece

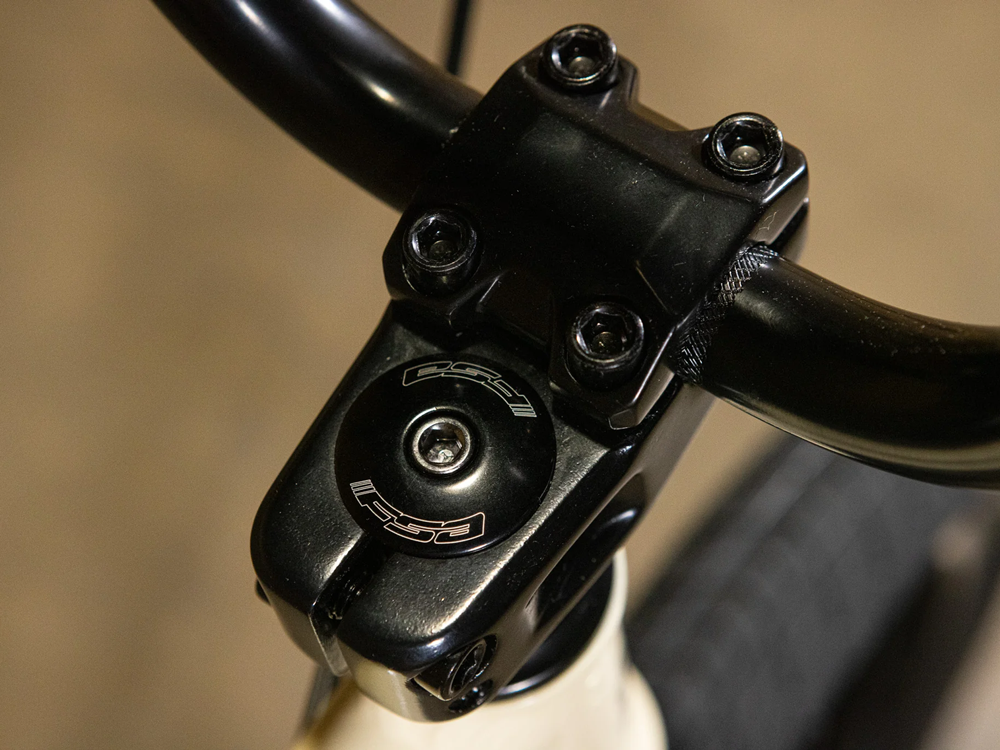

Stem: Top load, aluminium, 40mm
Headset: FSA integrated, 1-1/8"
Alloy Cap: FSA aluminium cap
Brake Lever: Junior Aluminium, U-brake compatible

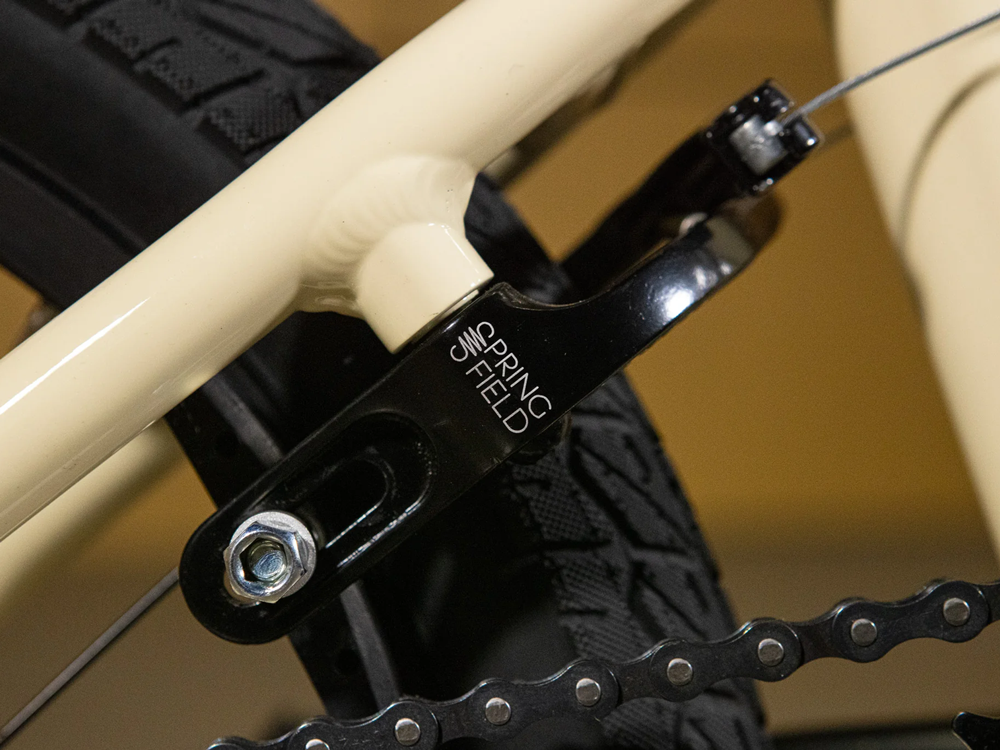

Brakes: Odyssey Springfield U-brake

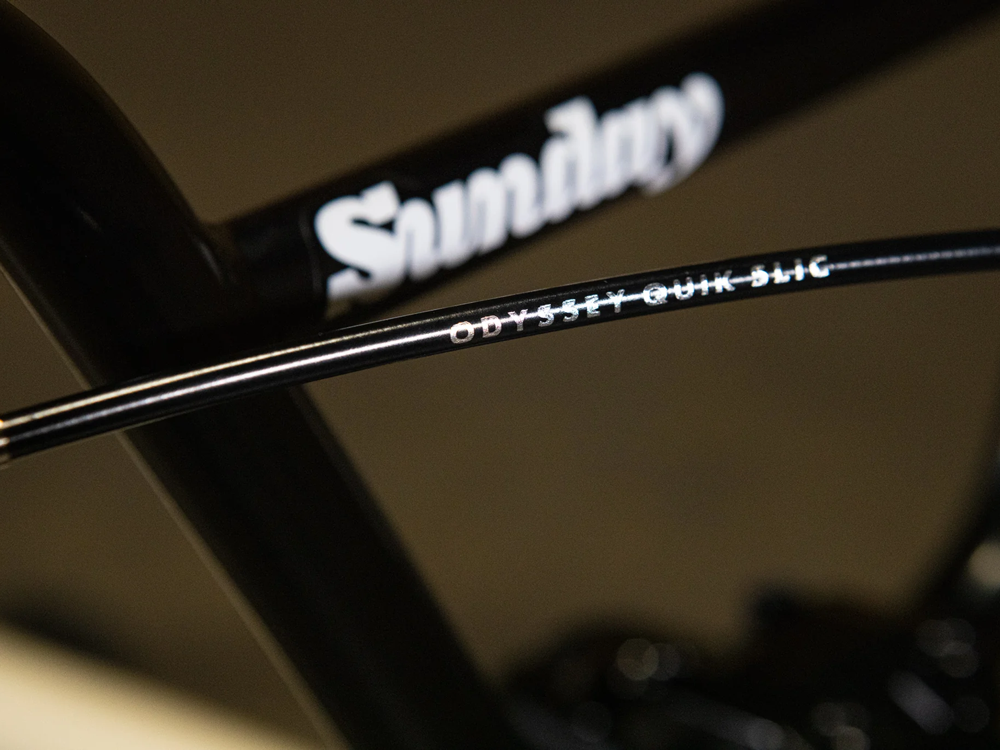

Brake Cable: Odyssey Quik Slic
Grips: Velo Junior

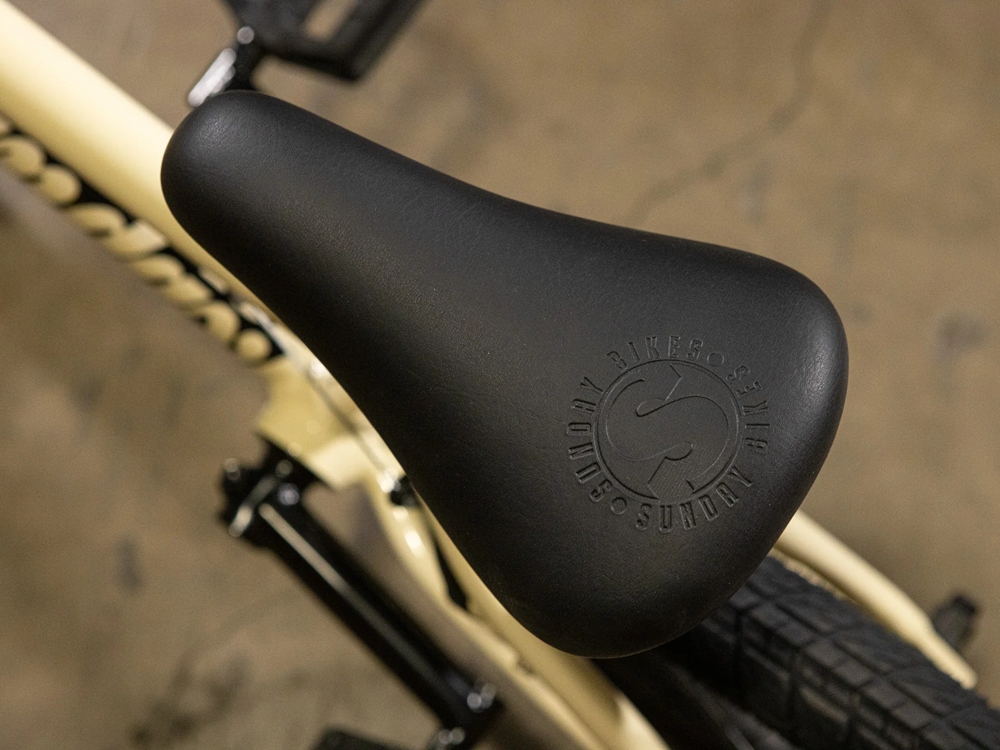

Seat: Sunday Badge, seat and post combo
Seat post: Integrated
Seat Clamp: Sunday

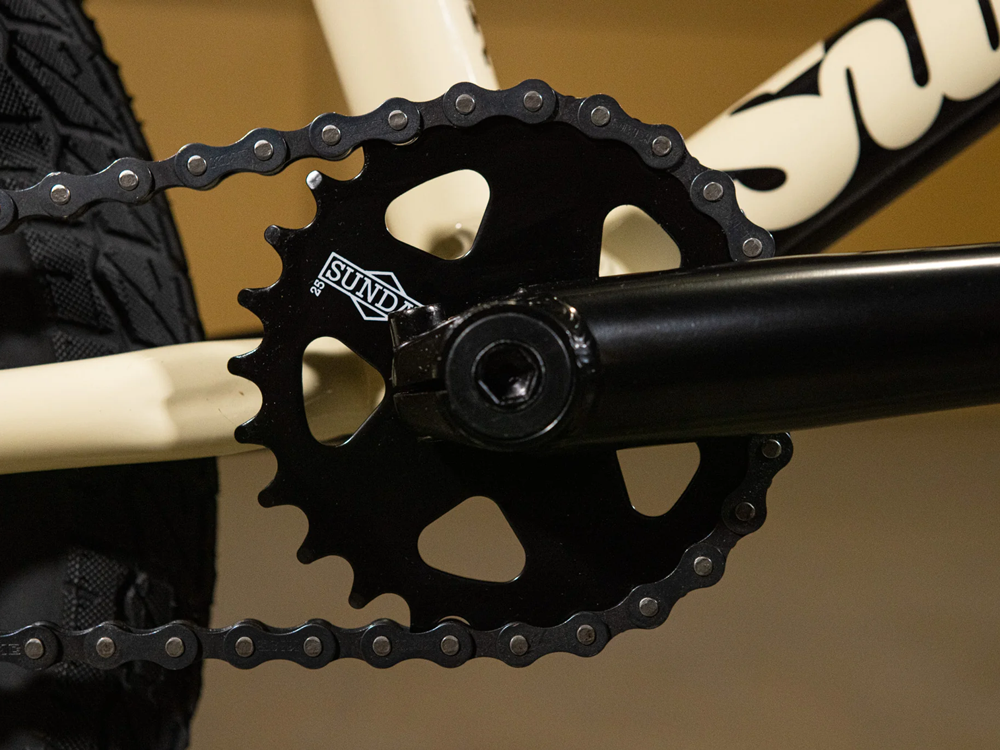

Sprocket: Sunday Sabertooth V2, 25T, steel
Cranks: 127mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

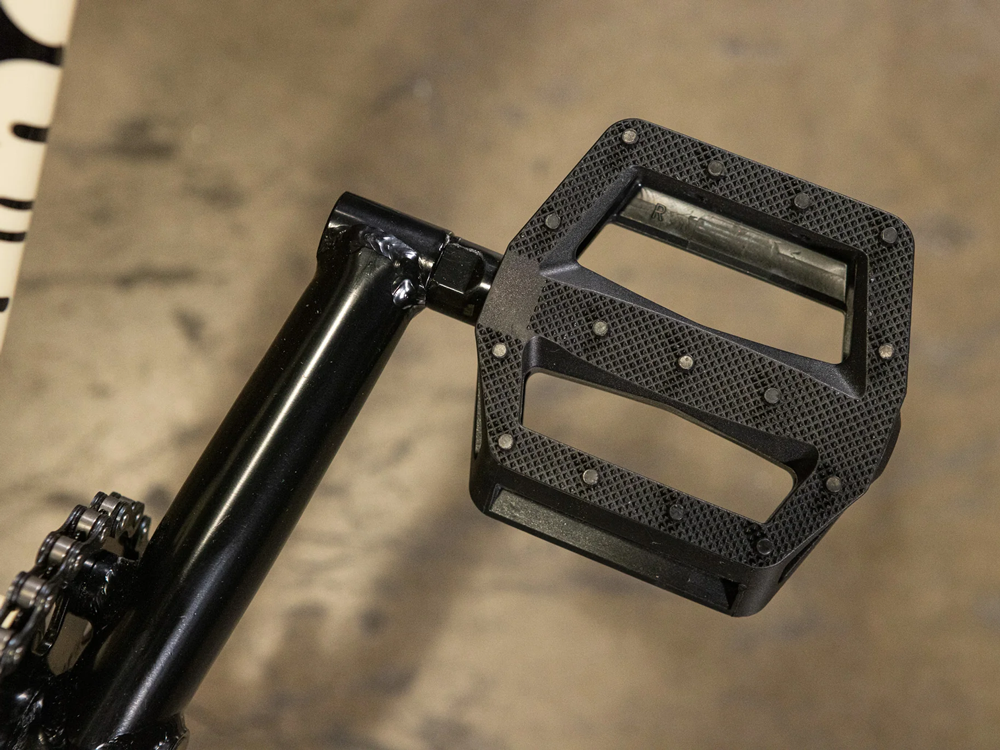

Pedals: FPD platform, plastic
Rims: P-7X aluminium, 16", 20H

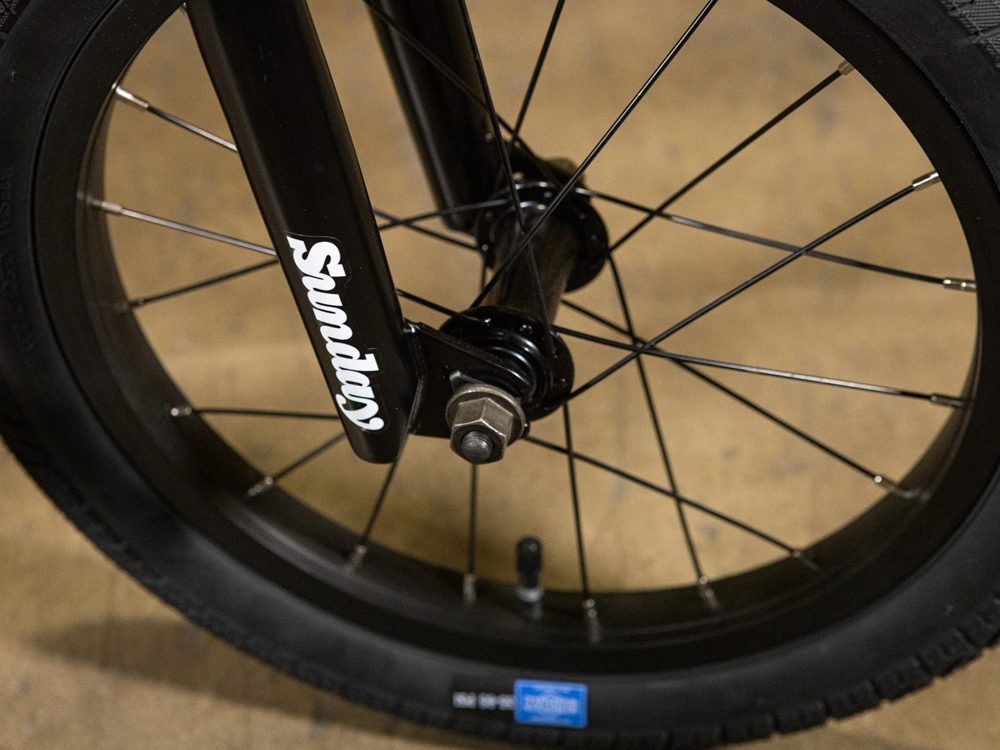

Front Hub: Sunday, 20H, low-flange, loose-ball, 3/8" axle
Rear Hub: Sunday, 20H, sealed, 14mm axle w/ 10T Driver
Spokes: 14g steel, black

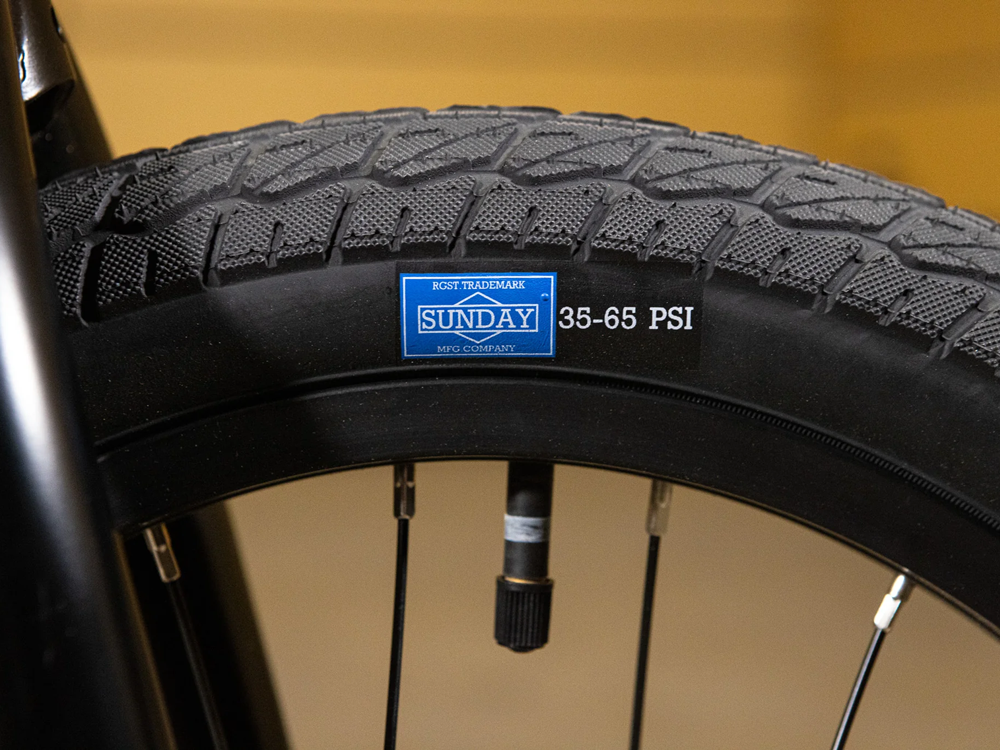

Tires: Sunday Current V1, 16 x 2.1" (F & R)
Chain: KMC S1
Approx. Weight: 23.3lbs (with brakes)
Frame Geometry
Top Tube Length: 16.5"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 10.6"-10.85”
Bottom Bracket Height: 9.25"
Standover: 6.9"
Handlebar Geometry
Rise: 6.75"
Width: 23"
Backsweep: 12°
Upsweep: 1°
