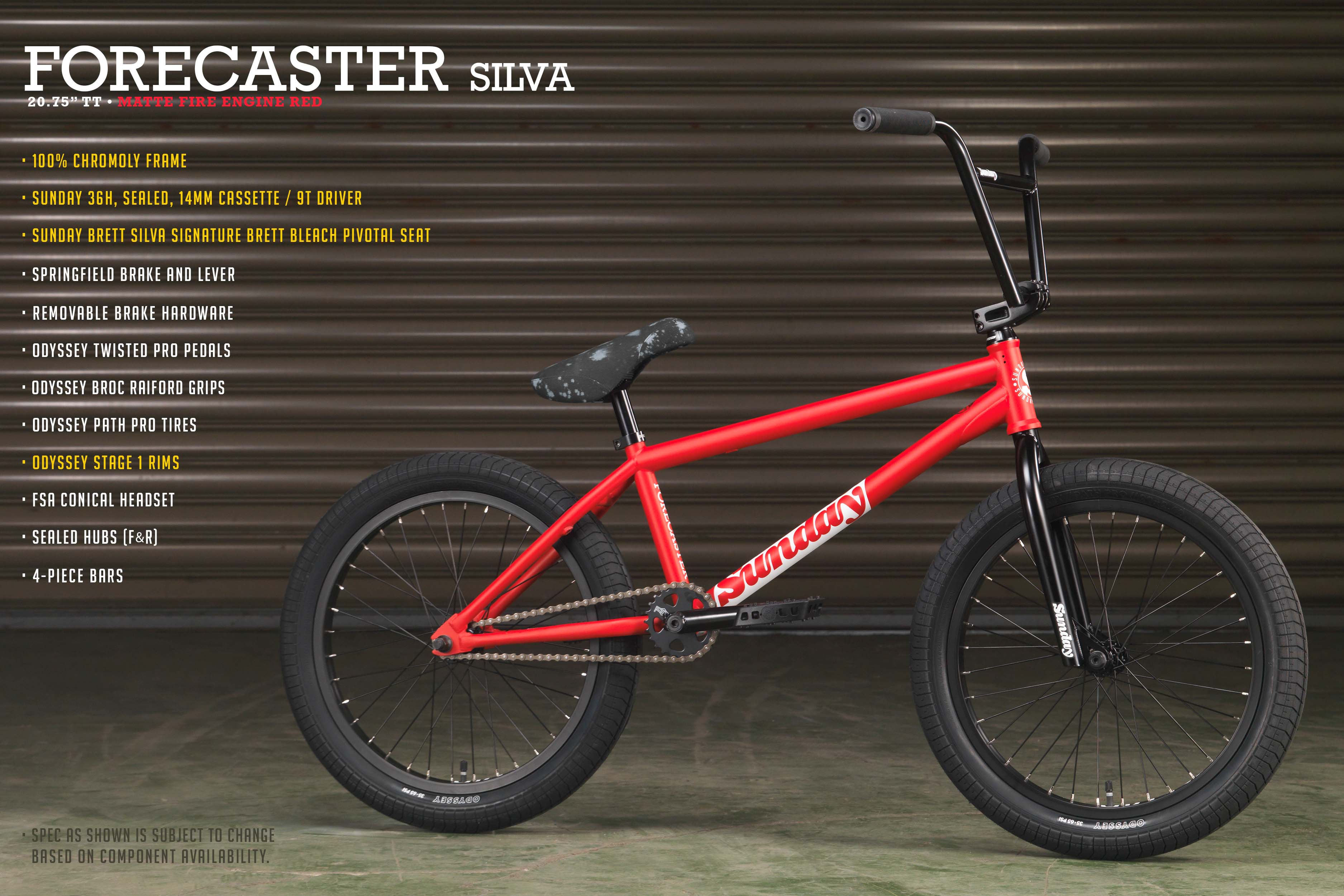

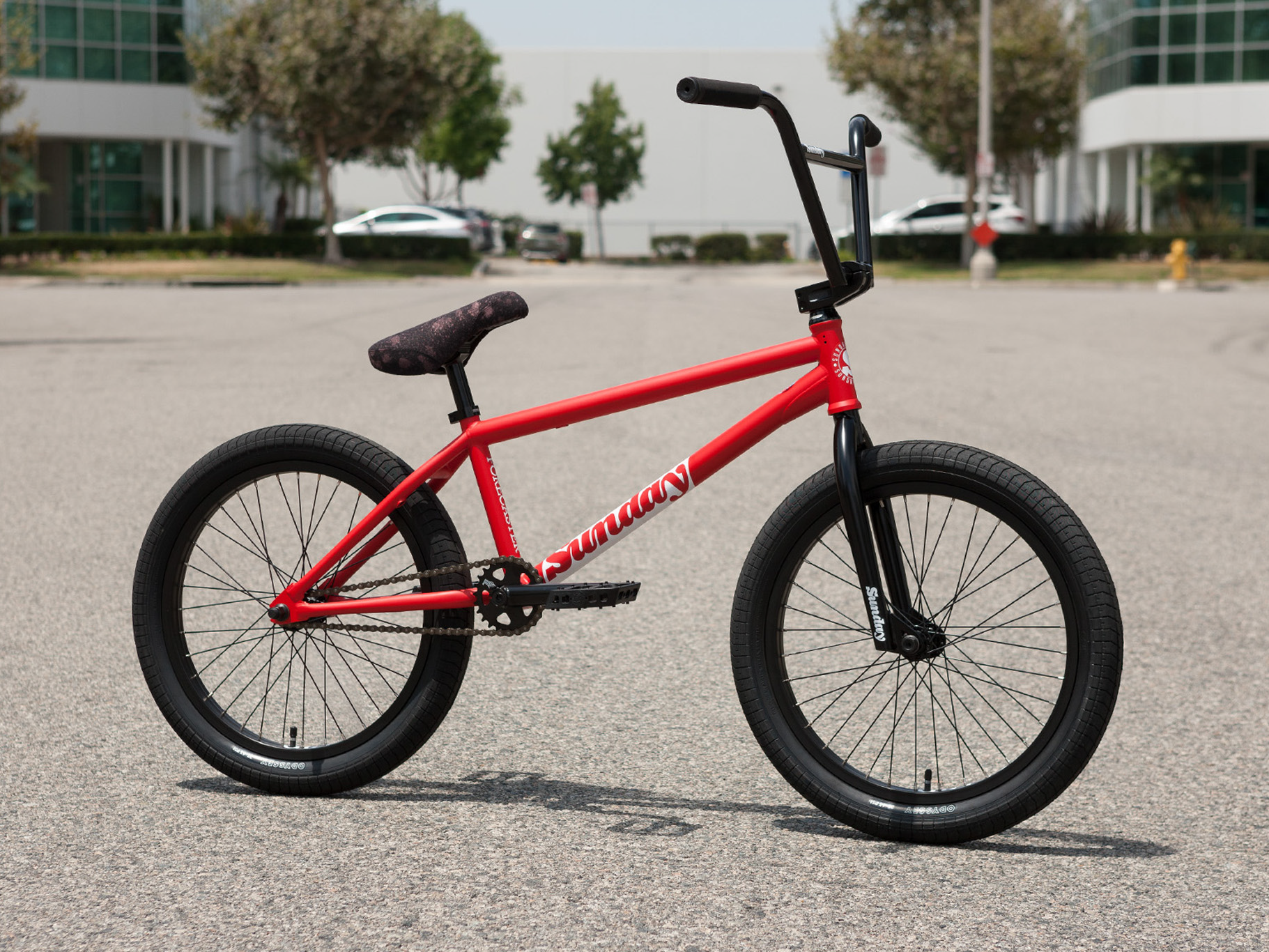

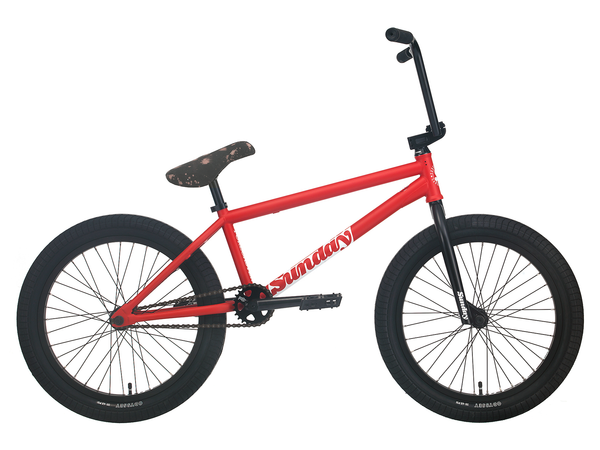

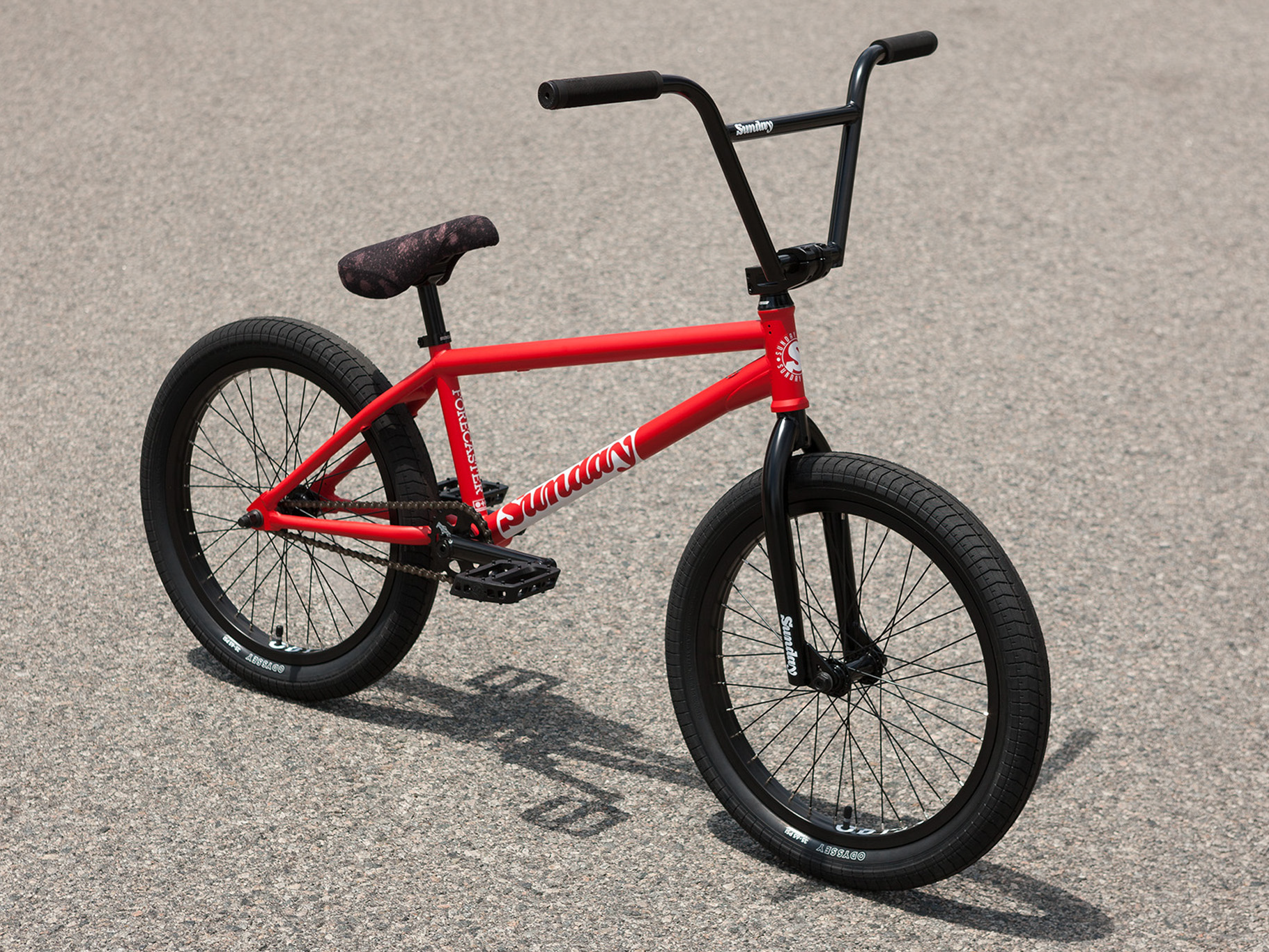

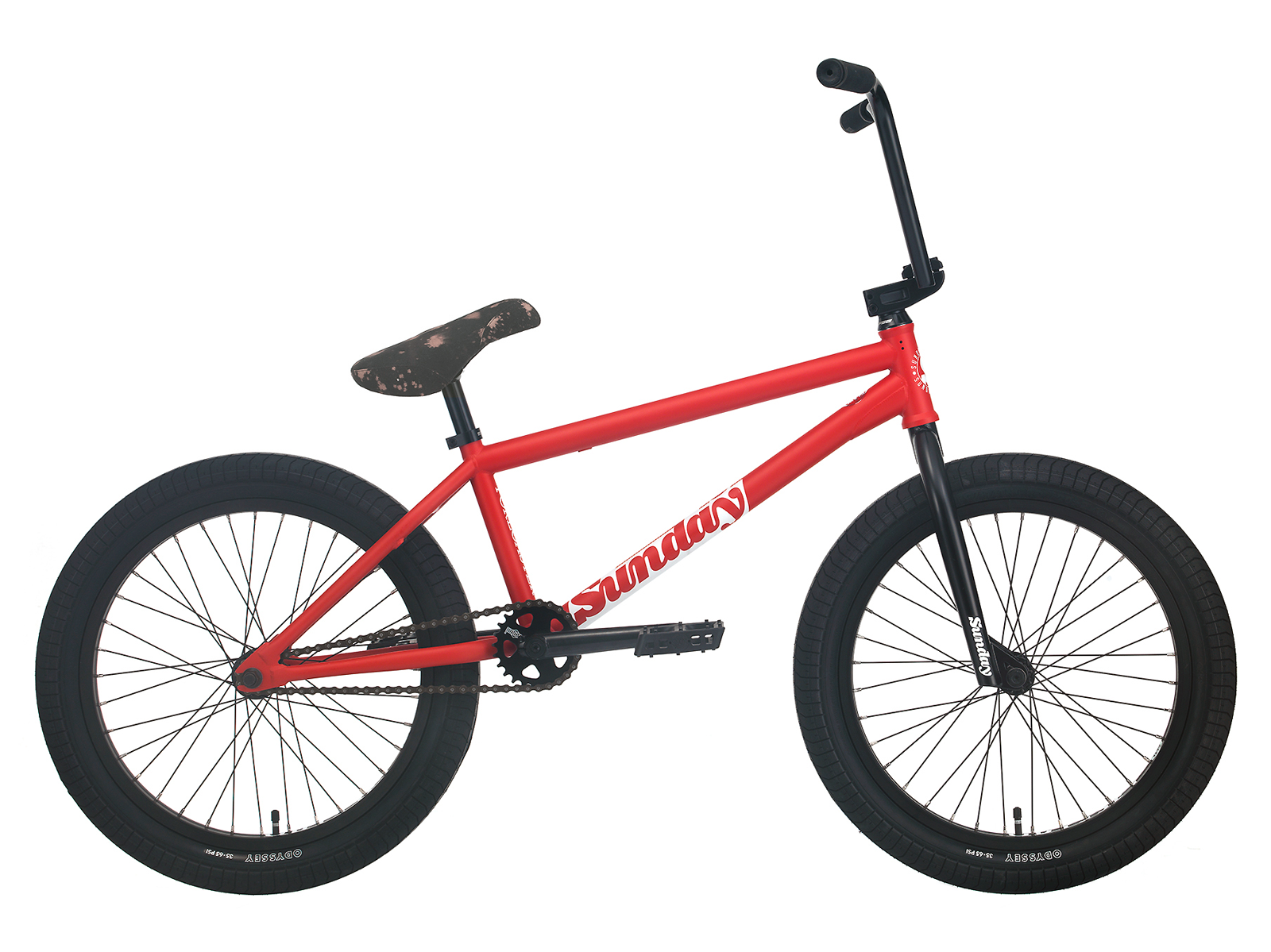

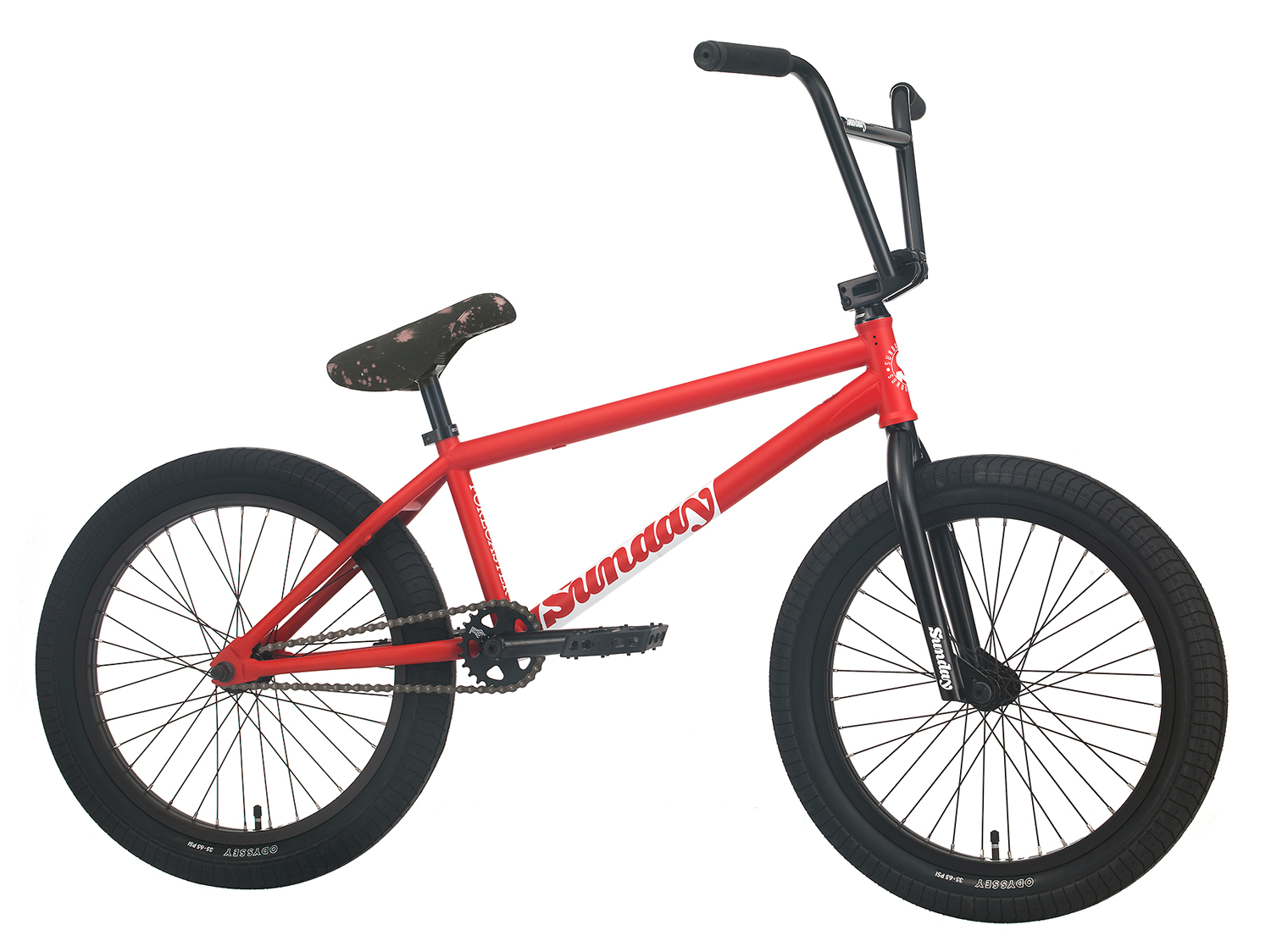

Sunday Forecaster Brett Silva 20" BMX 2023 (Matt Fire Engine Red)
Regular price $1,099.99
Unit price per
SUNDAY 20" Forecaster (Brett Silva) 2023 Bike

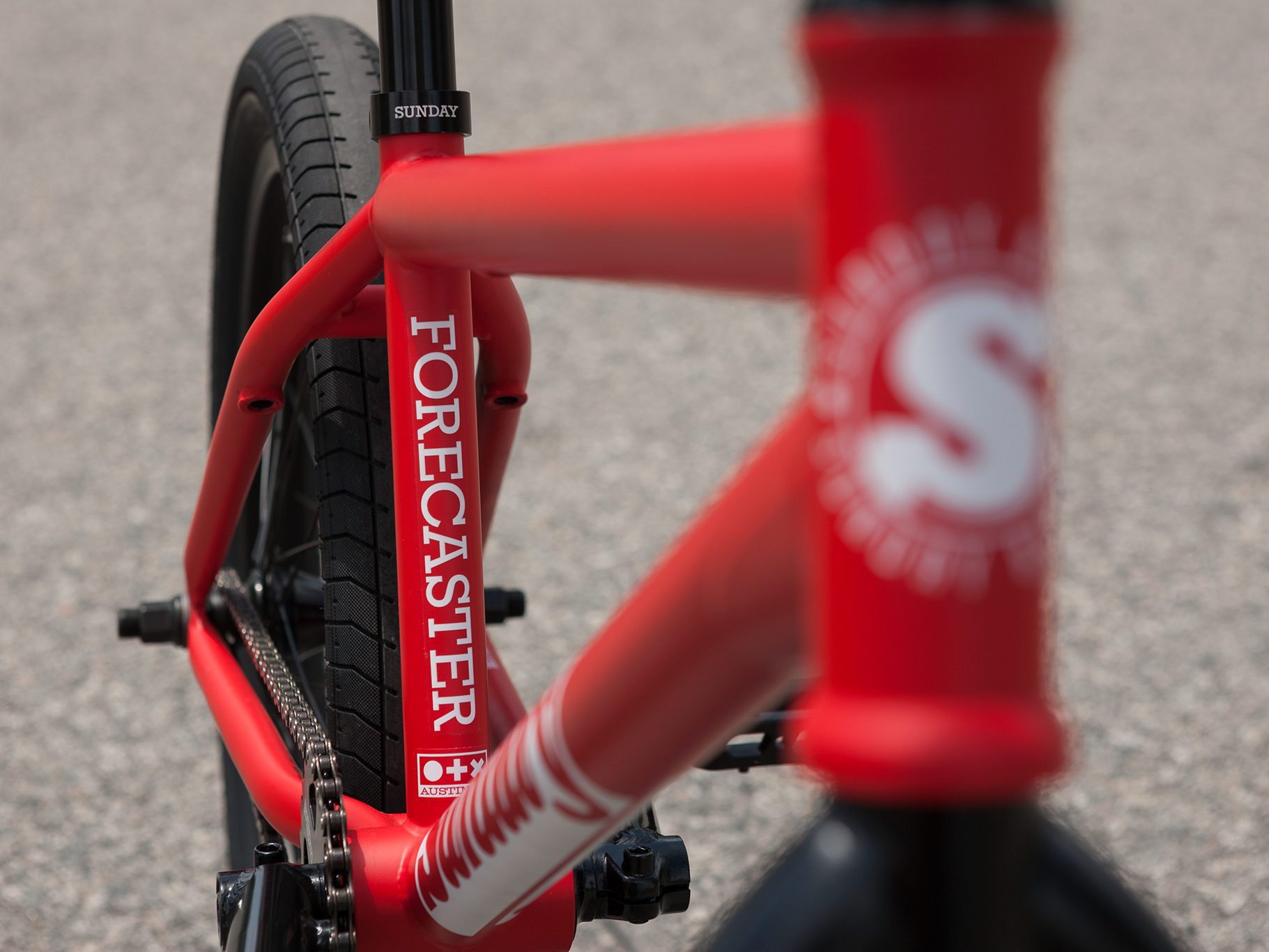

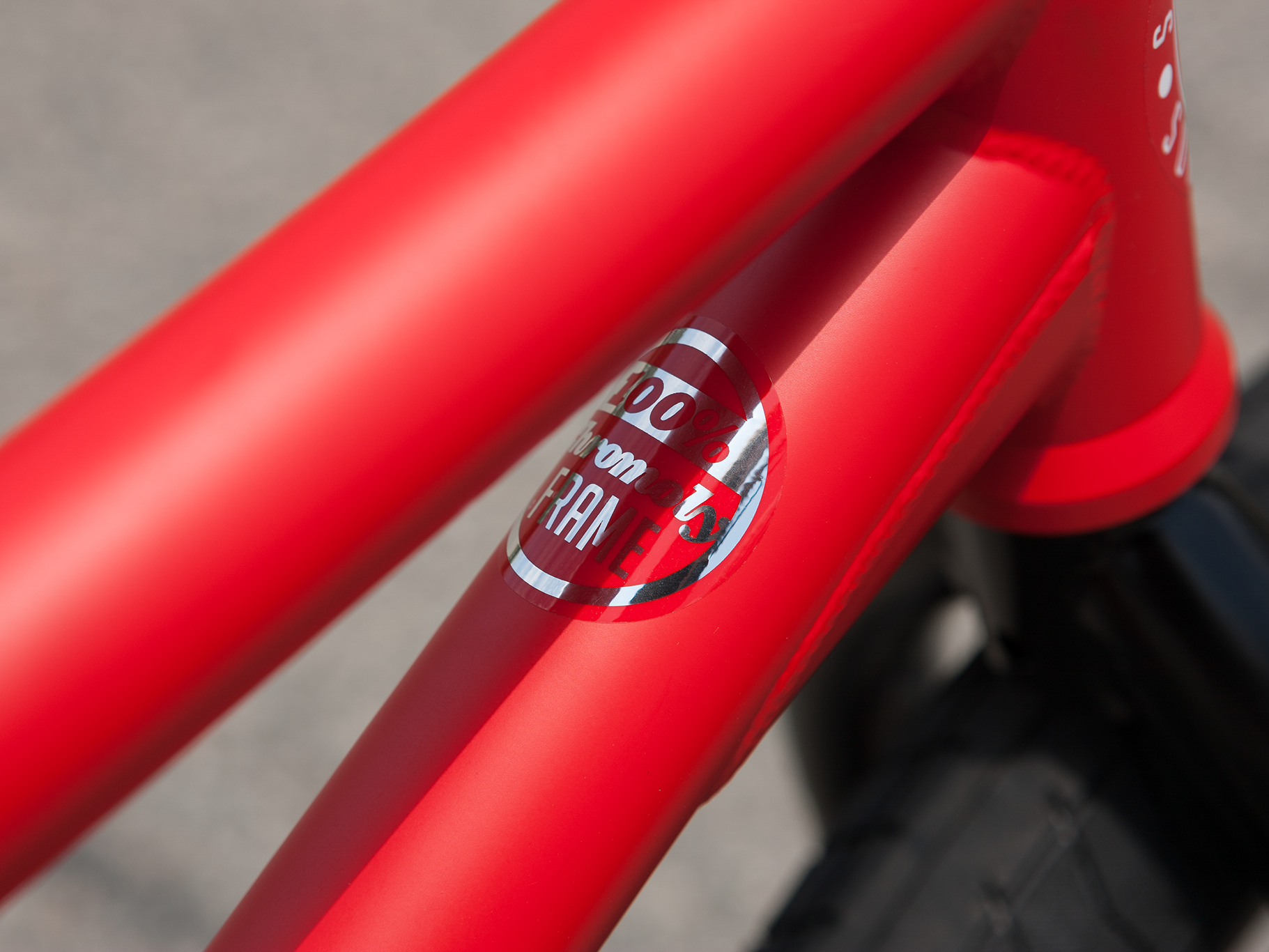

The Forecaster is a model that rides, feels and looks like a pro-level bike and for 2022, it's been upgraded to a full 100% chromoly frame.
This one being Brett Silva's signature model. You’ll find Signature spec’d design cues like the Odyssey Broc Signature Grips, combined with incredible parts like Odyssey Twisted Pro pedals, and Path Pro tires.
A truly dialed bike for every style of riding. Follow @brettsilva.
Features
- 100% Chromoly Frame- Sealed Front and Rear Hubs
- Odyssey Stage 1 Rims
- Removable Brake Hardware
- Sunday Seeley Signature Grips
- Odyssey Twisted Pro Pedals
- Sunday Freeze Top Load Stem
- Odyssey Springfield Brakes and Lever
- Odyssey Path Pro OEM 2.40" Tires
- Sunday Silva Pivotal Seat
- FSA Conical Headset
Specifications
Fork - Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar - Sunday, 2-piece

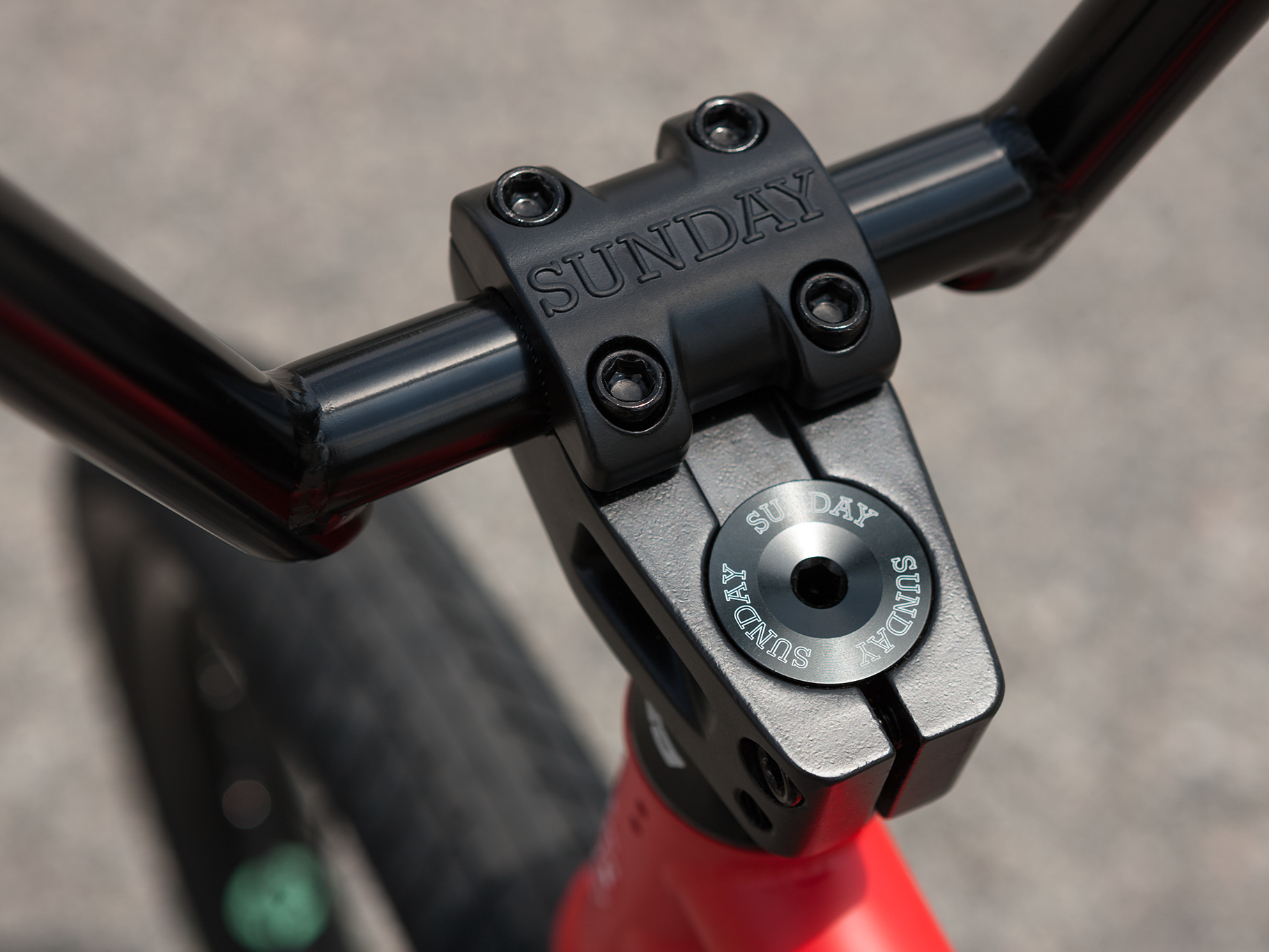

Stem - Sunday Freeze front load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday M16, aluminum
Brake Lever - Odyssey Springfield
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic

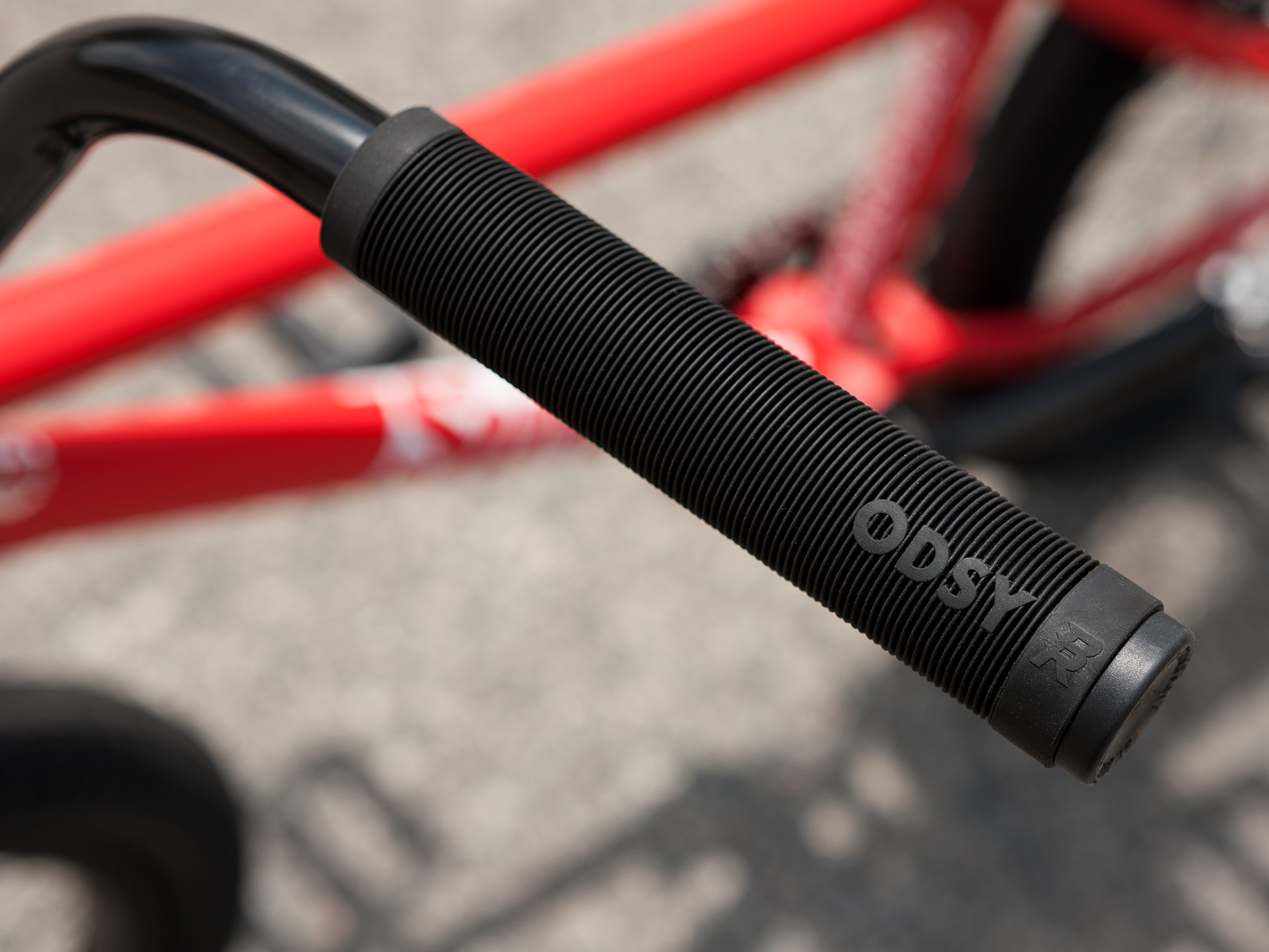

Grips - Odyssey Broc Raiford

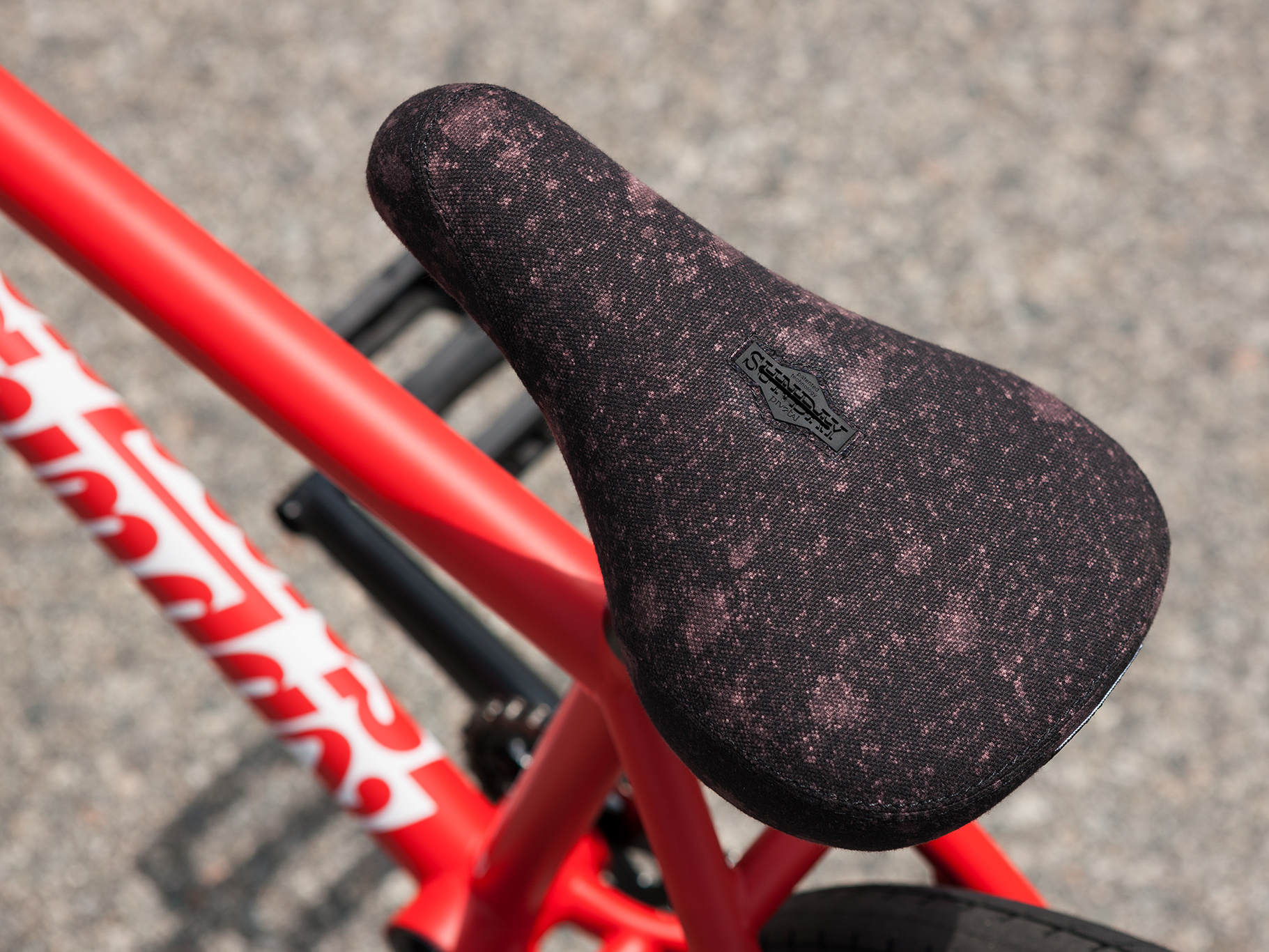

Seat - Sunday Silva, Pivotal
Seat post - Sunday Pivotal
Seat Clamp - Sunday

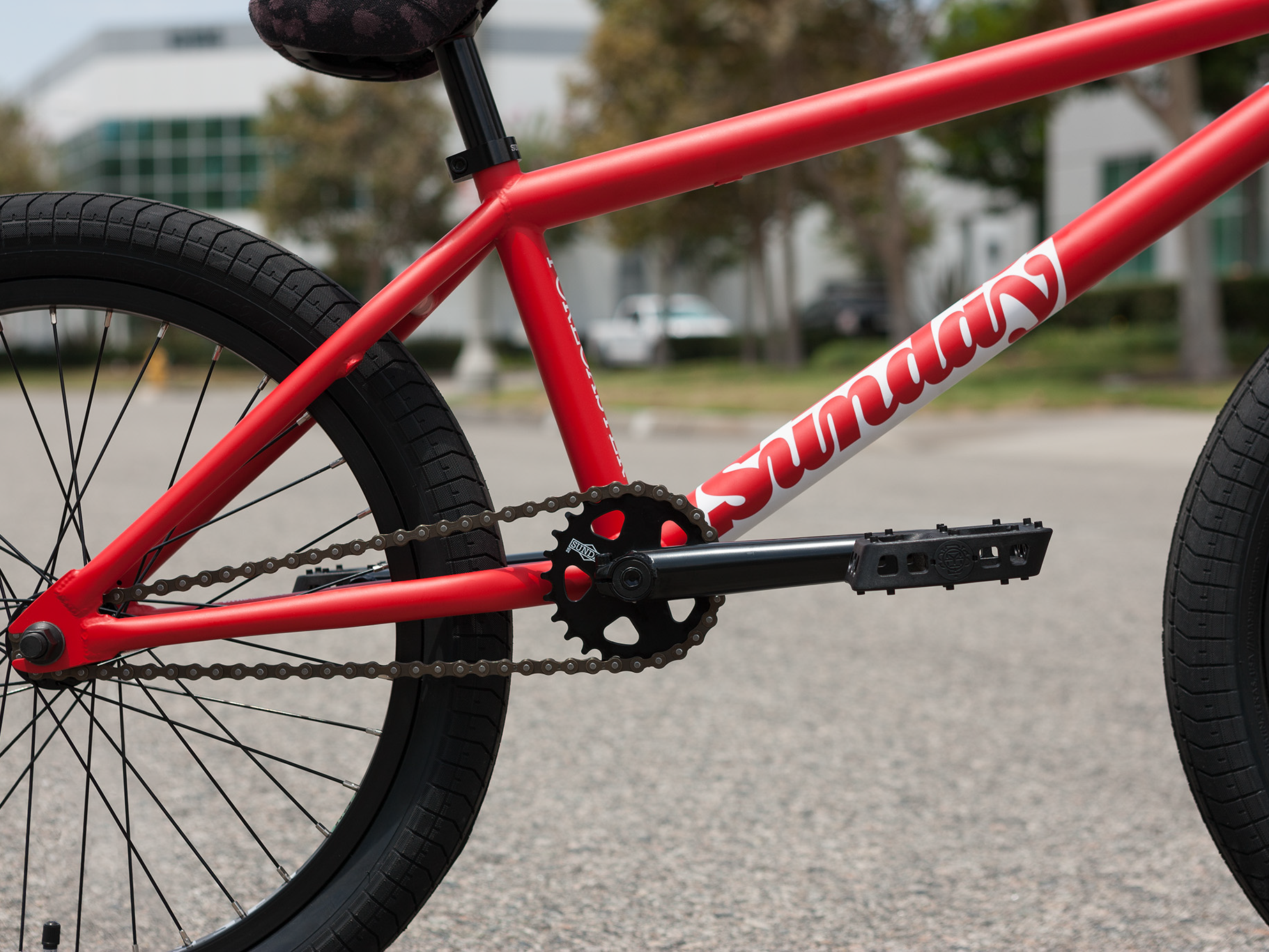

Sprocket - Sunday Sabertooth v2, 25T, steel
Cranks - 170mm, 3-piece, chromoly
BB Parts - Sealed, Mid, 19mm
Pedals - Odyssey Twisted PC Pro

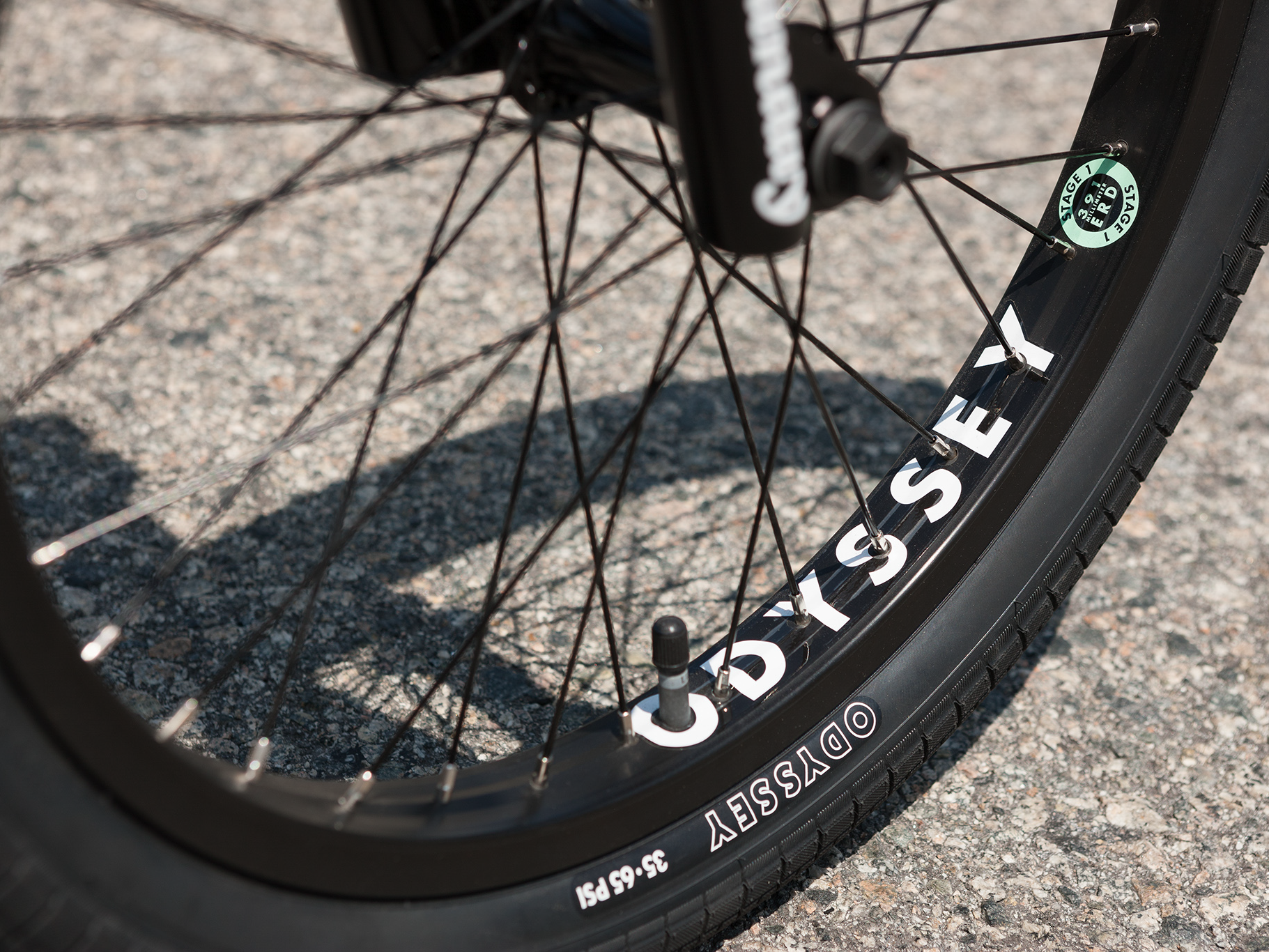

Rims - Odyssey Stage 1, 20", 36H

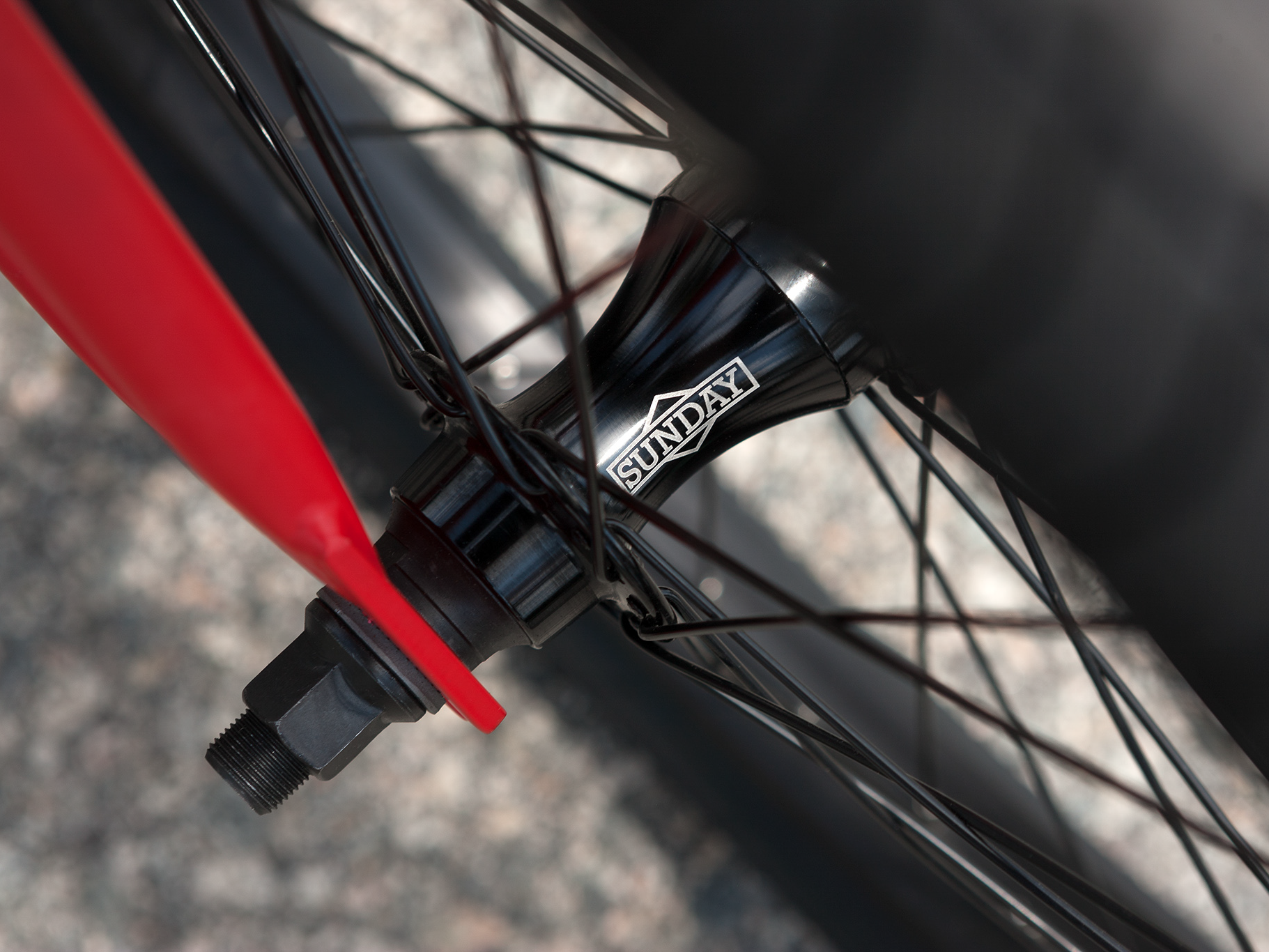

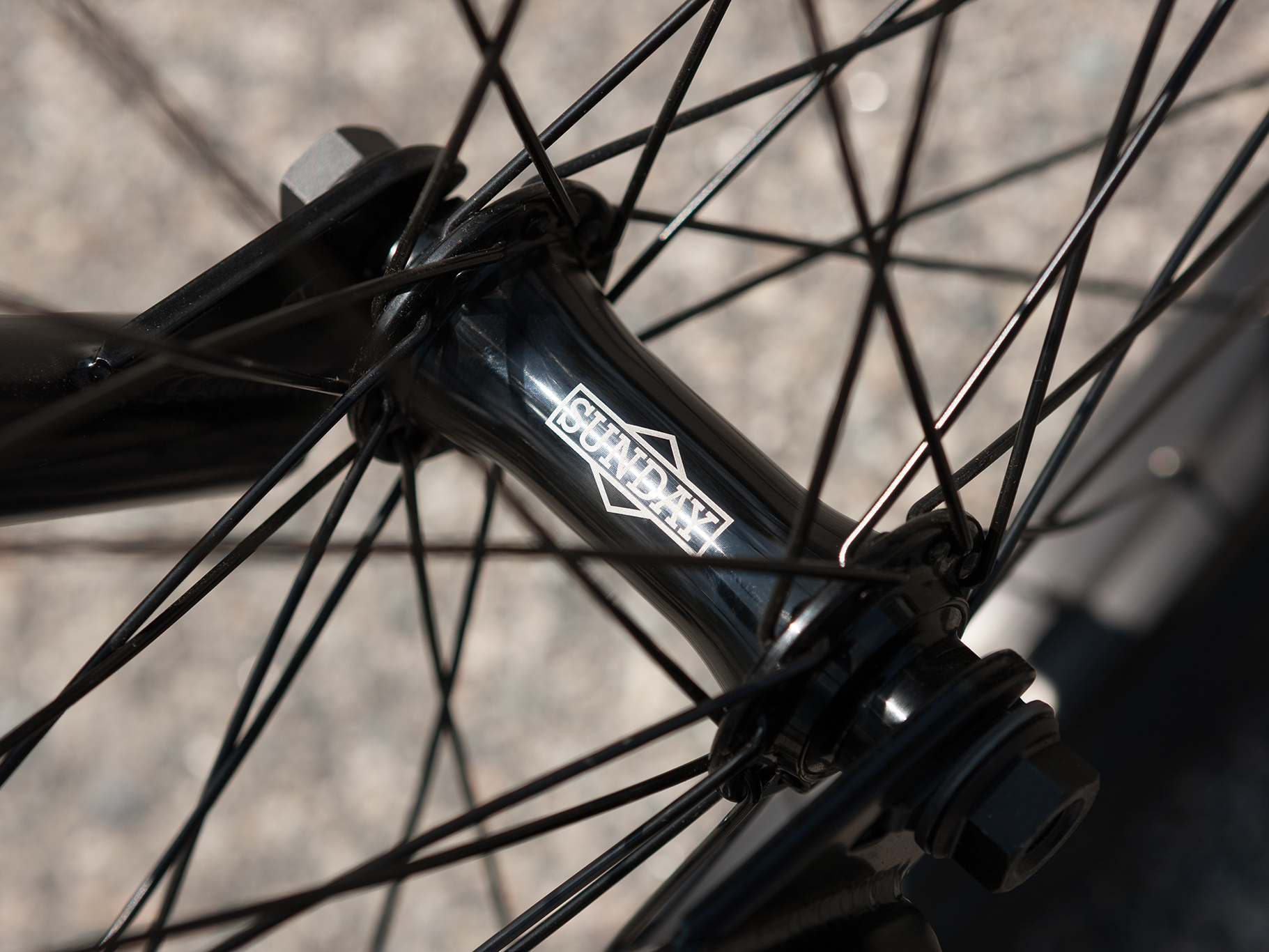

Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub - Sunday 36H, sealed, 14mm male axle w/ 9T Driver
Spokes - 14g steel, black
Tyres - Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 12.14kgs (with brakes)
Frame Geometry
Head Tube Angle - 75.5°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.7"
Standover - 9"

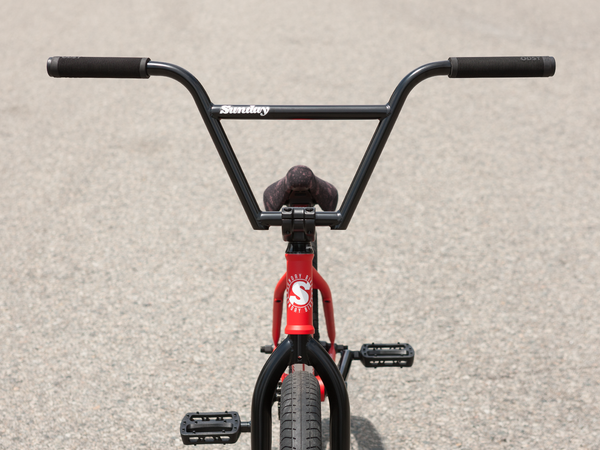

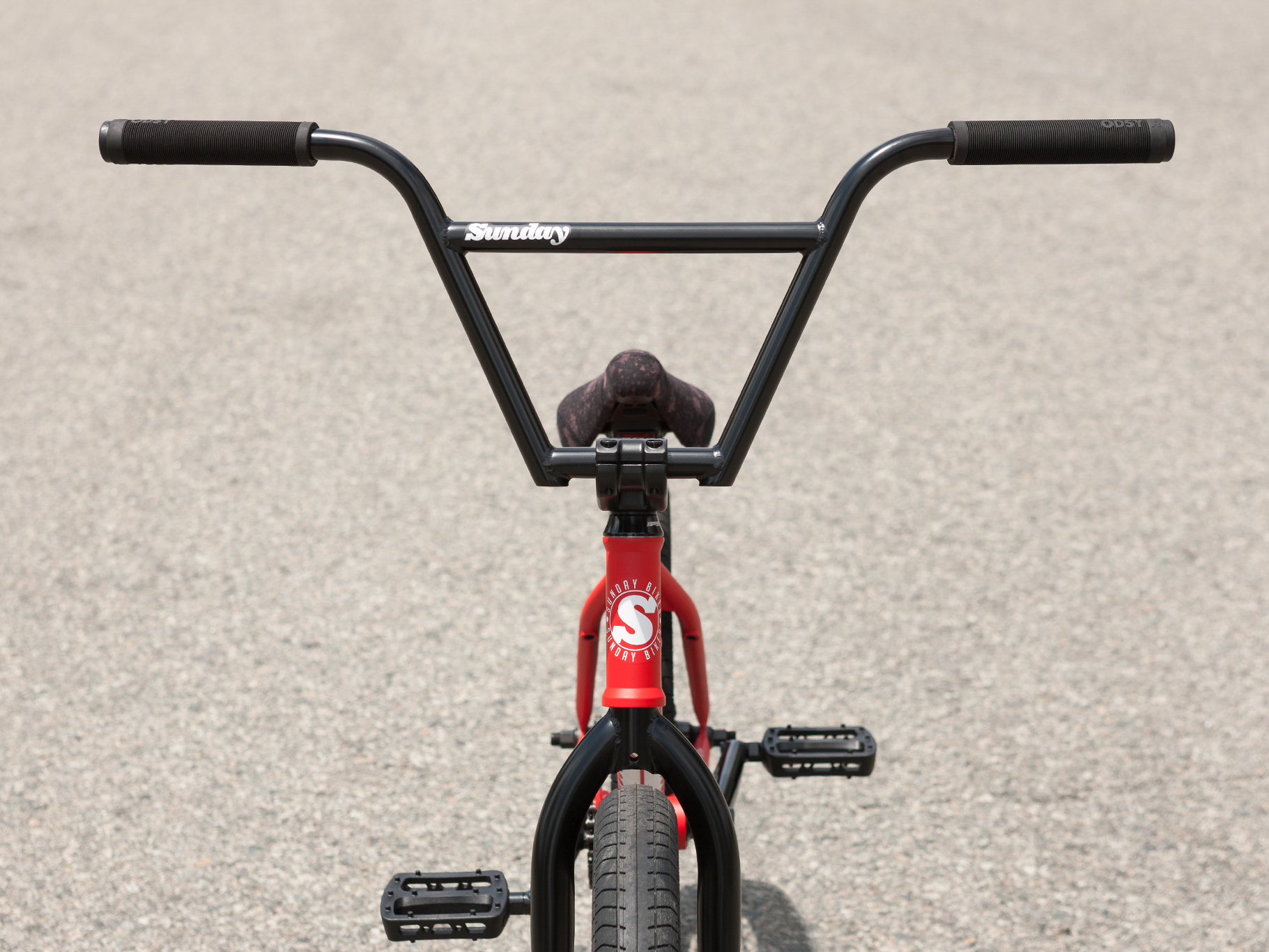

Handlebar Geometry
Rise - 9"
Width - 28.5"
Backsweep - 12°
Upsweep - 4°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
