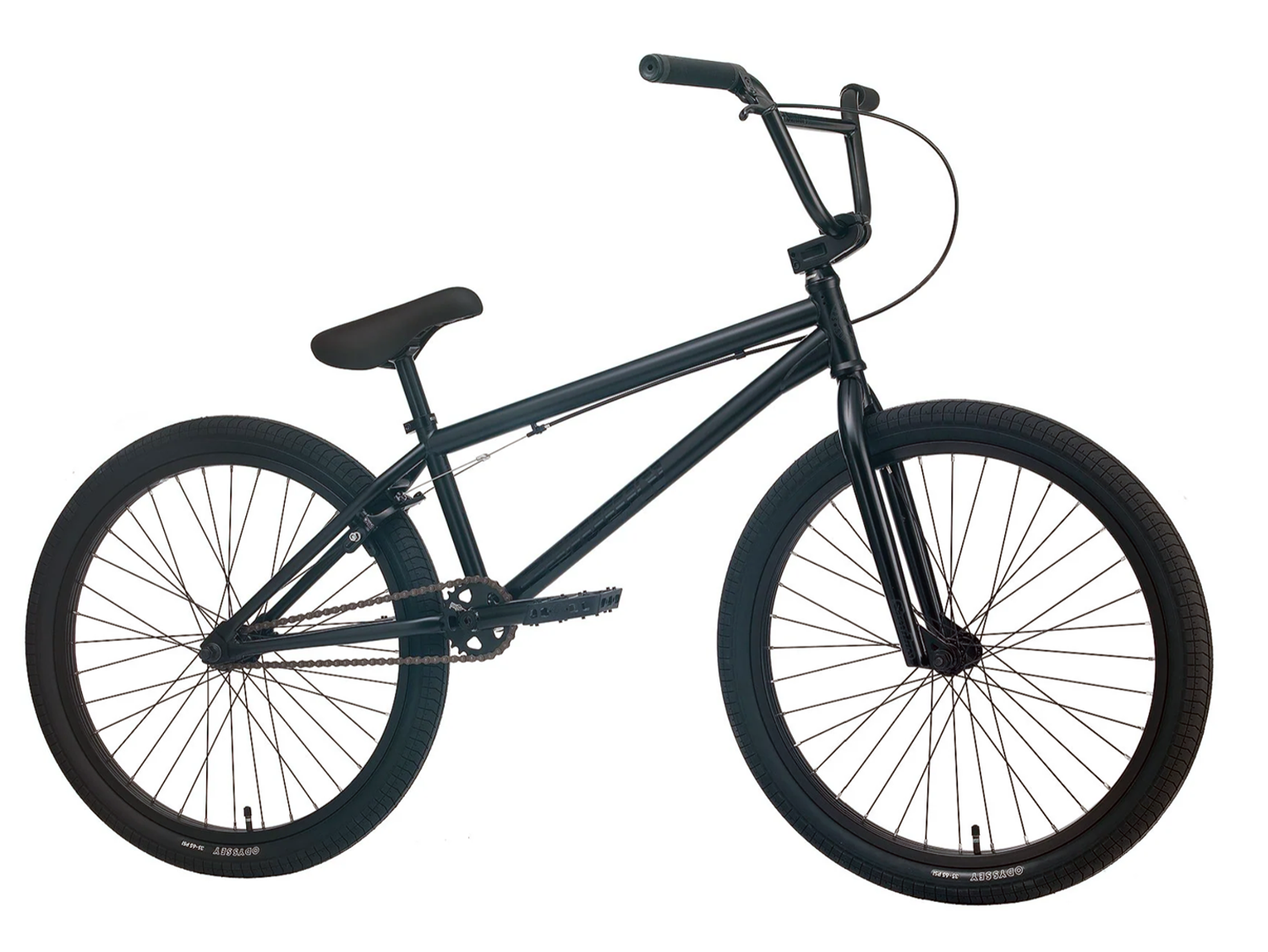

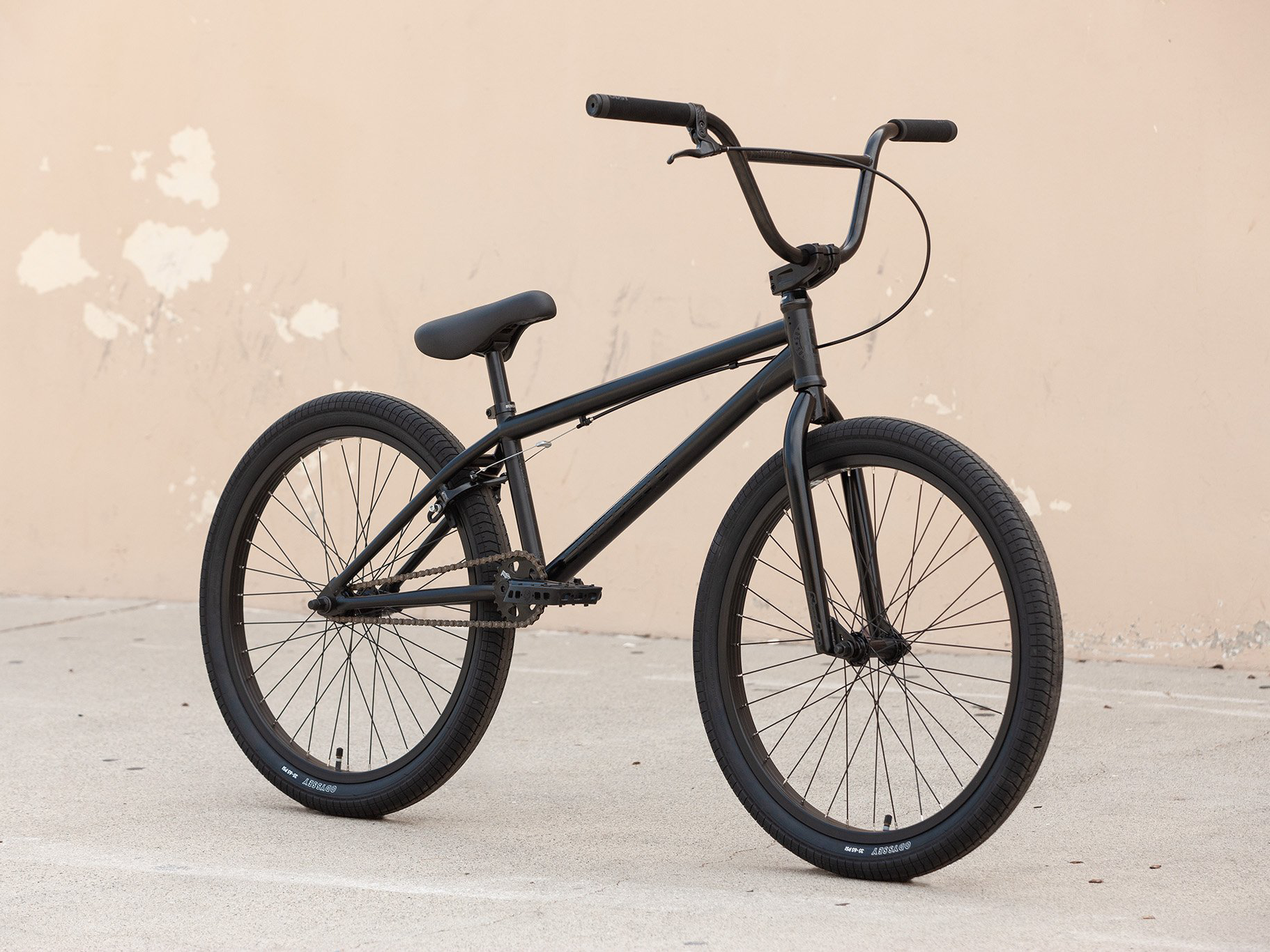

Sunday 24" Model C 2022 BMX (Matte Black)
Regular price $999.99
Unit price per
Sunday 24" Model C 2022 Bike
- 24" Pro-Style geometry
- Odyssey Broc Raiford grips
- Odyssey Springfield brakes
- Odyssey Twisted PC Pro pedals
- Odyssey Monogram seat
- FSA conical headset
- Sunday Lightning rims
- Odyssey Pursuit OEM tyres
- Sealed front & rear hubs
Specifications
Frame - 22" top tube, integrated 1-1/8" head tube, chromoly downtube and dropouts
Fork - Sunday Model-C, 24" fork w/ 2-piece chromoly steerer tube and welded pre-load

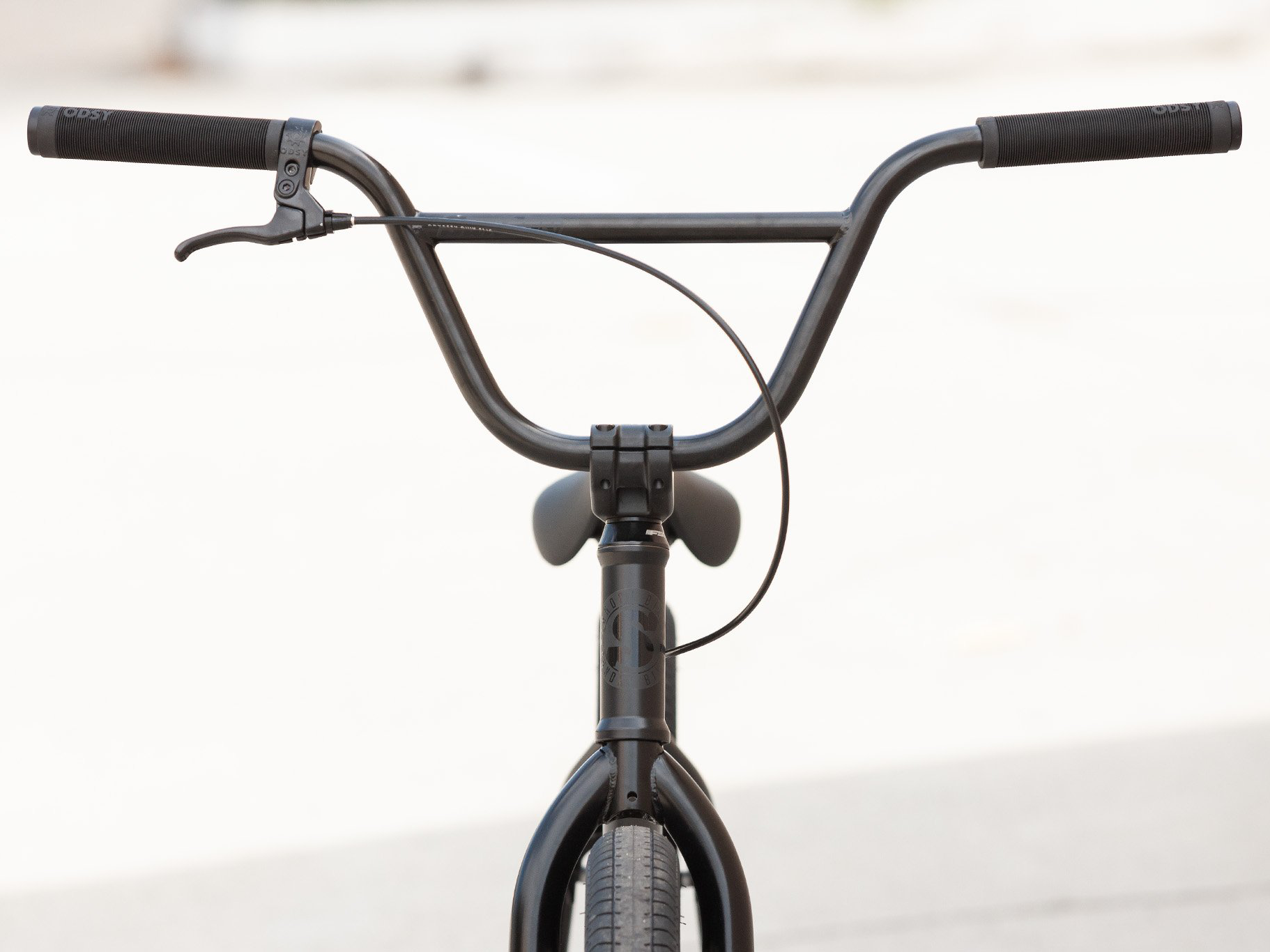

Handlebar - Sunday 24umph XL OEM, 2-piece
Stem - Sunday Freeze top load, 48mm

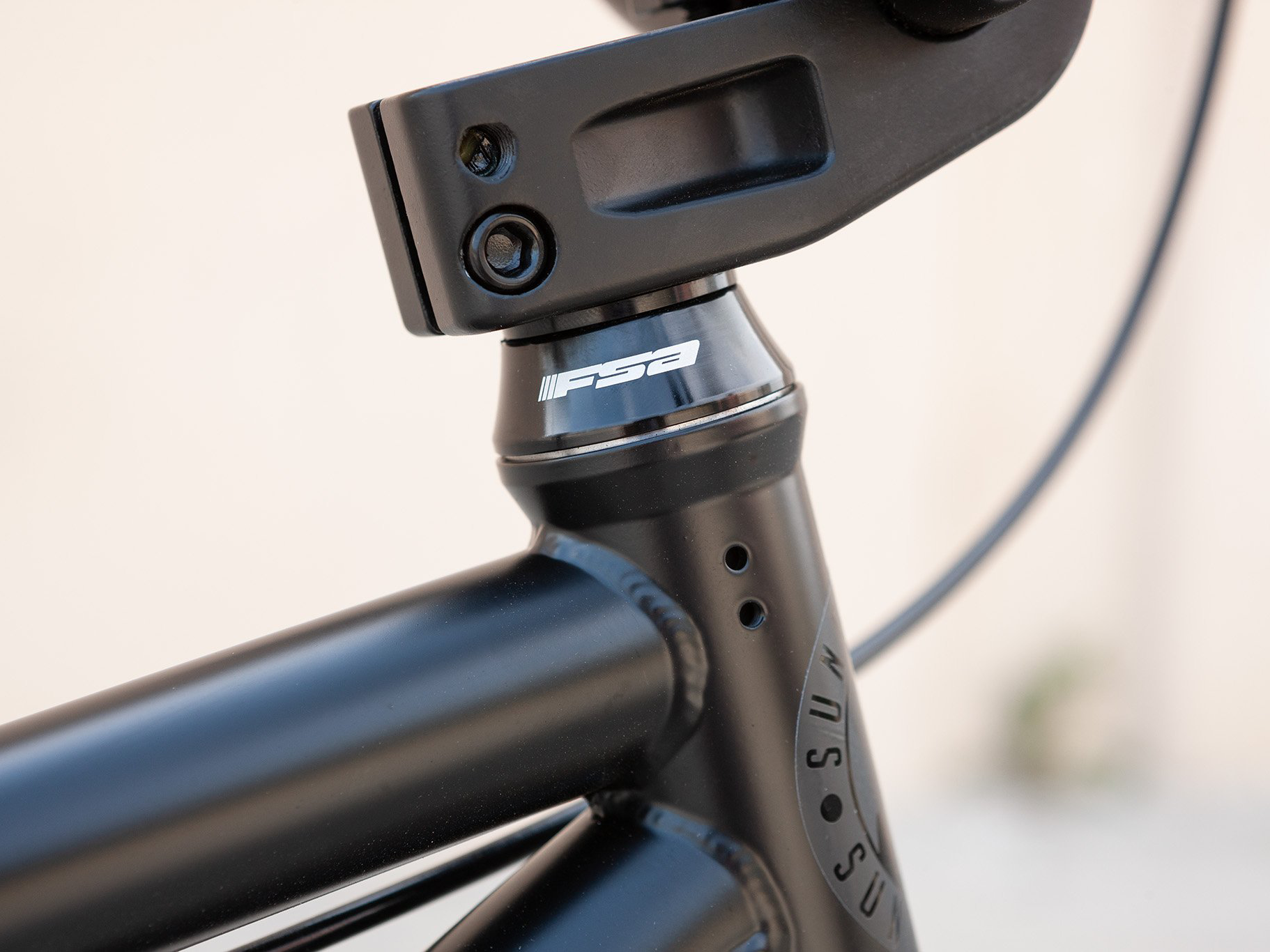

Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday M16, aluminum
Brake Lever - Odyssey Springfield

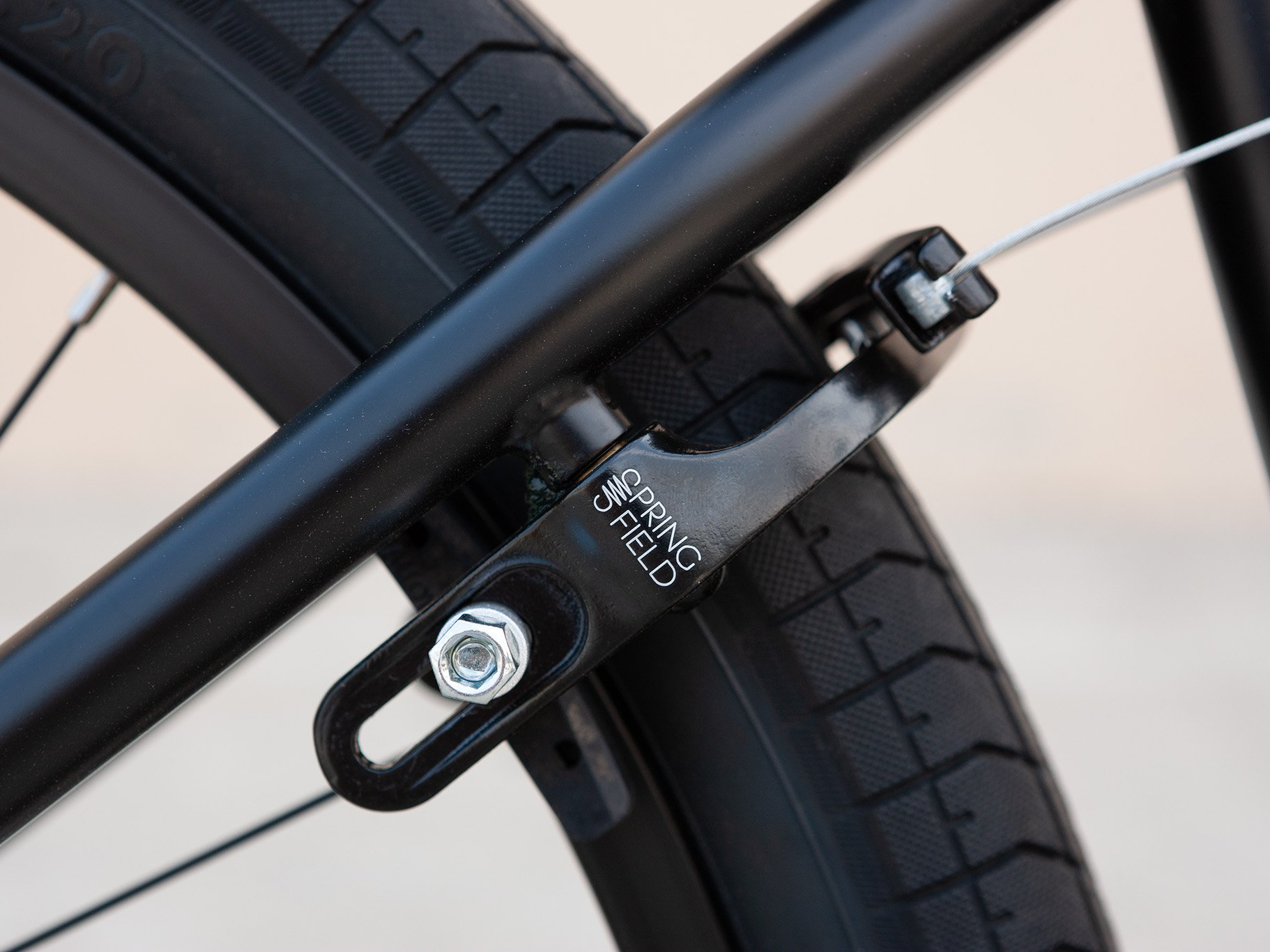

Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic
Grips - Odyssey Broc Raiford

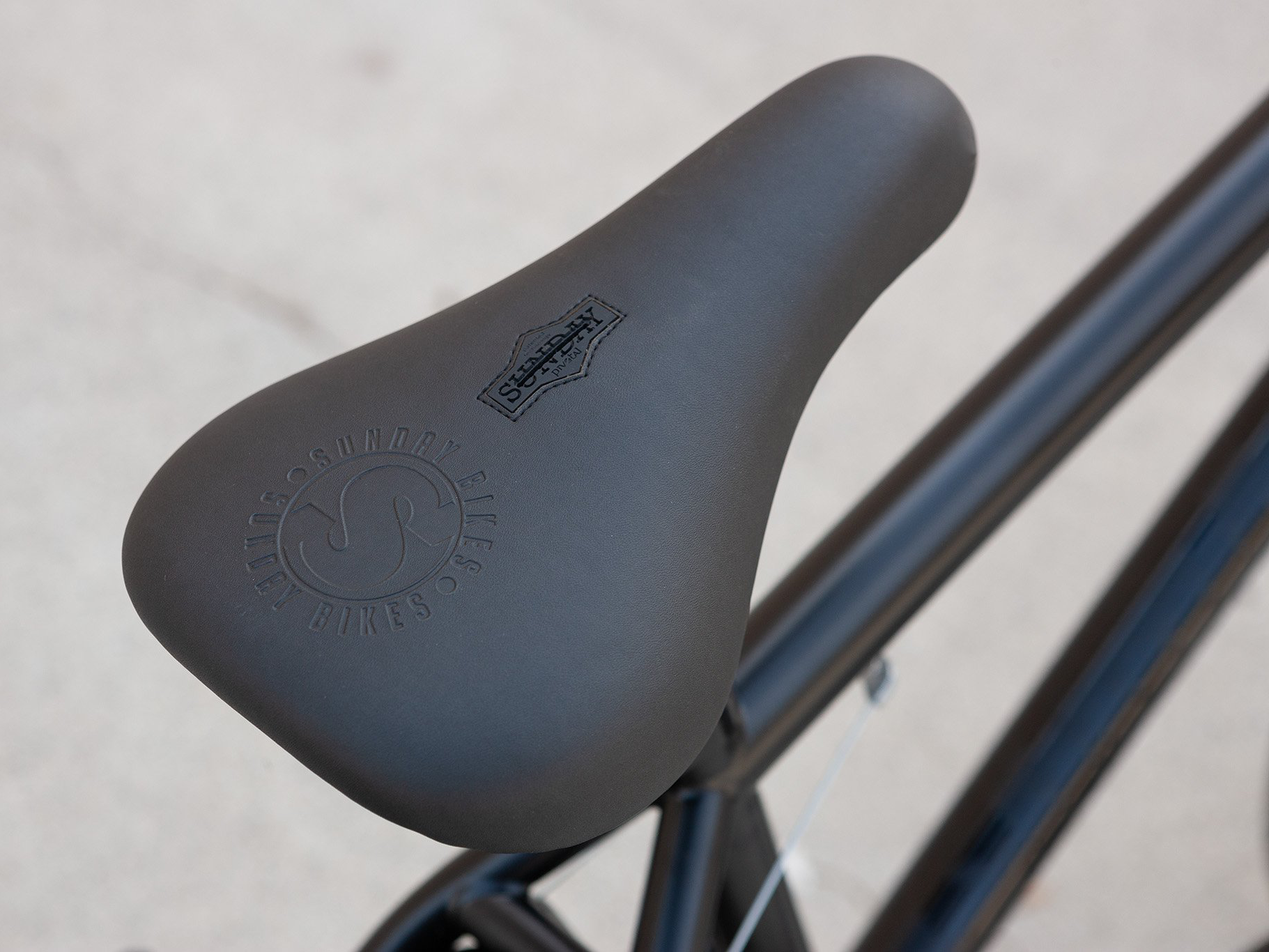

Seat - Odyssey Monogram, pivotal
Seat post - Sunday pivotal
Seat Clamp - Sunday
Sprocket - Sunday Sabertooth v2, 25T, steel
Cranks - 175mm, 3-piece, chromoly
BB Parts - Sealed, mid, 19mm
Pedals - Odyssey Twisted PC Pro
Rims - Sunday Lightning, 24", 36H
Front Hub - Sunday, 36H, low-flange, sealed , 3/8" axle
Rear Hub - Sunday 36H, sealed, 14mm axle w/ 10T driver
Spokes - 14g steel, black
Tyres - Odyssey Pursuit OEM, 24 x 2.2" (F & R)
Chain - KMC Z1 wide
Frame Geometry
Top Tube Length - 22"
Head Tube Angle - 74.5°
Seat Tube Angle - 71°
Chainstay Length - 14.6-14.85”
Bottom Bracket Height - 13.75"
Standover - 9.25”
Handlebar Geometry
Rise - 7.75"
Width - 28"
Backsweep - 12°
Upsweep - 4°
