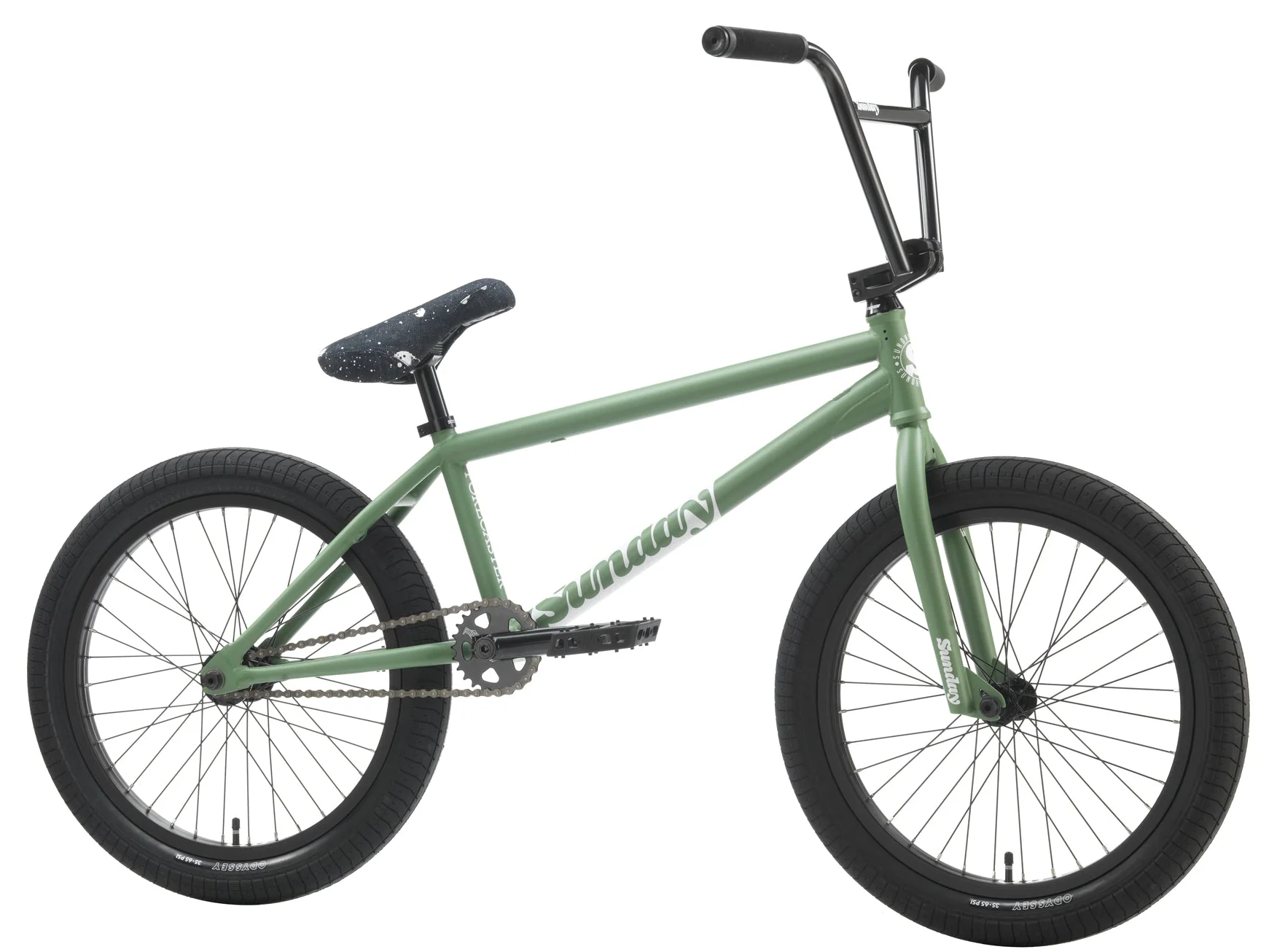

SUNDAY 20" Forecaster (Brett Silva) Bike

SUNDAY 20" Forecaster (Brett Silva) Bike

The Forecaster is a model that rides, feels and looks like a pro-level bike and it's been upgraded to a full 100% chromoly frame. This one is Brett Silva's signature model. You’ll find Signature spec’d design cues like the Odyssey Broc Signature Grips, combined with incredible parts like Odyssey Twisted Pro pedals, and Path Pro tyres. A truly dialled bike for every style of riding.

Features
- 100% chromoly frame
- Sealed front and rear hubs
- Odyssey Stage 1 rims
- Removable brake hardware
- Odyssey BROC grips
- Odyssey Twisted Pro pedals
- Sunday Freeze top load stem
- Odyssey Springfield brakes and lever
- Odyssey Path Pro OEM 2.40" tyres
- Sunday Silva pivotal seat
- FSA conical headset

Specifications
Frame - Sunday Forecaster, 20.75" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
Fork - Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar - Sunday, 4-piece
Stem - Sunday Freeze Top load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday M16, aluminium
Brake Lever - Odyssey Springfield
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic
Grips - Odyssey Broc Raiford
Seat - Sunday Silva, pivotal
Seat post - Sunday pivotal
Seat Clamp - Sunday
Sprocket - Sunday Sabertooth v2, 25T, steel
Cranks - 170mm, 3-piece, chromoly
BB Parts - Sealed, mid, 19mm
Pedals - Odyssey Twisted PC Pro
Rims - Odyssey Stage 1, 20", 36H
Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle

Rear Hub
Matt Sage Green - Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, non-drive side plastic guard
Matt Fire Engine Red - Sunday Cassette 36H, sealed, 14mm male axle w/ 9T Driver, RHD

Spokes - 14g steel, black
Tyres - Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 12.14kgs (with brakes)

Frame Geometry
Top Tube Length - 20.75"
Head Tube Angle - 75.5°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.7"
Standover - 9"

Handlebar Geometry
Matt Sage Green:
Rise -  9"
Width - 29"
Upsweep - 3°

Matt Fire Engine Red:
Rise -  9"
Width - 28.5"
Backsweep - 12°
Upsweep - 4°

Please note that all bike shipments are only partially assembled in box and will require some assembly. Feel free to contact us at Fufanu with any questions.
