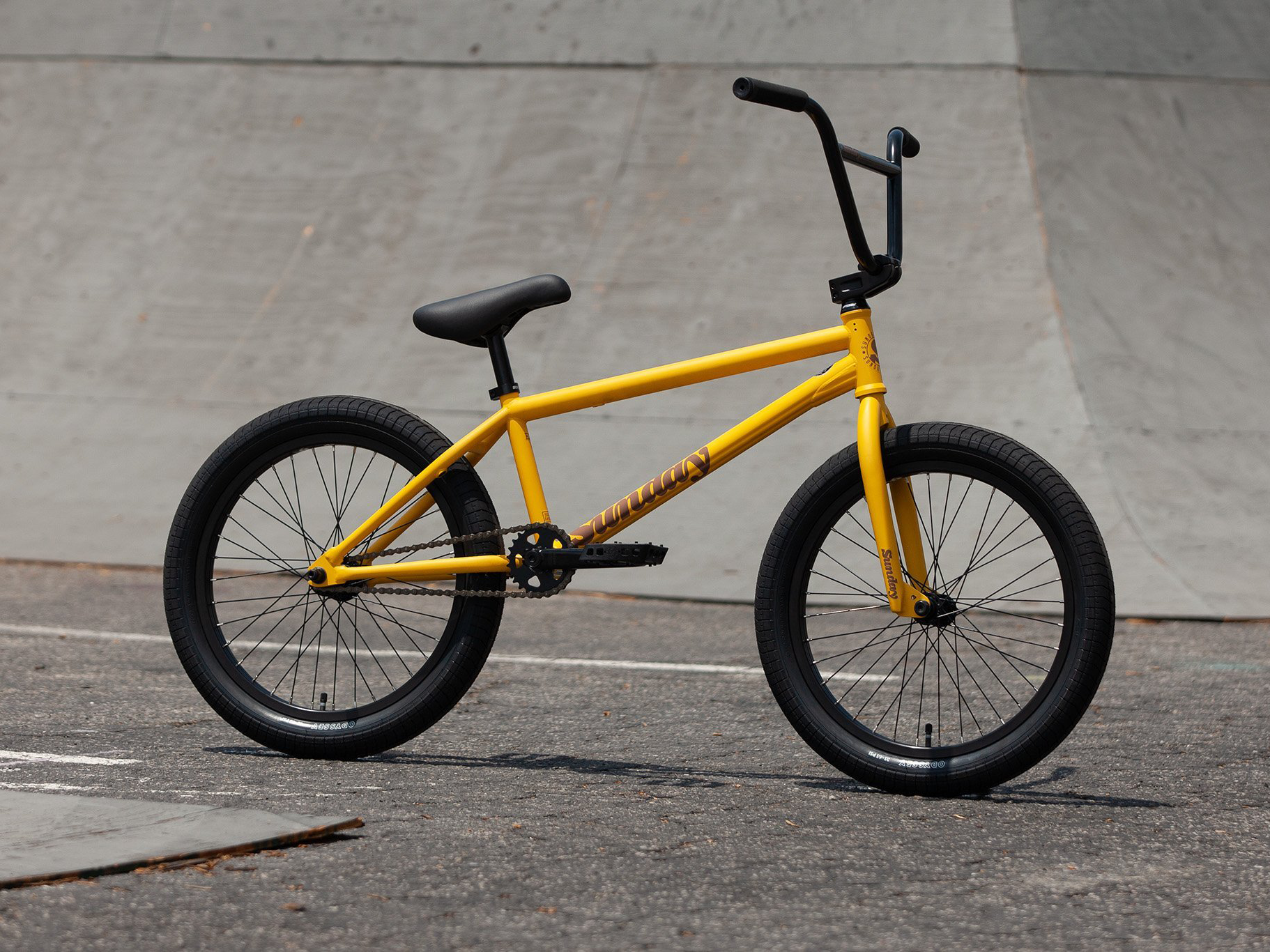

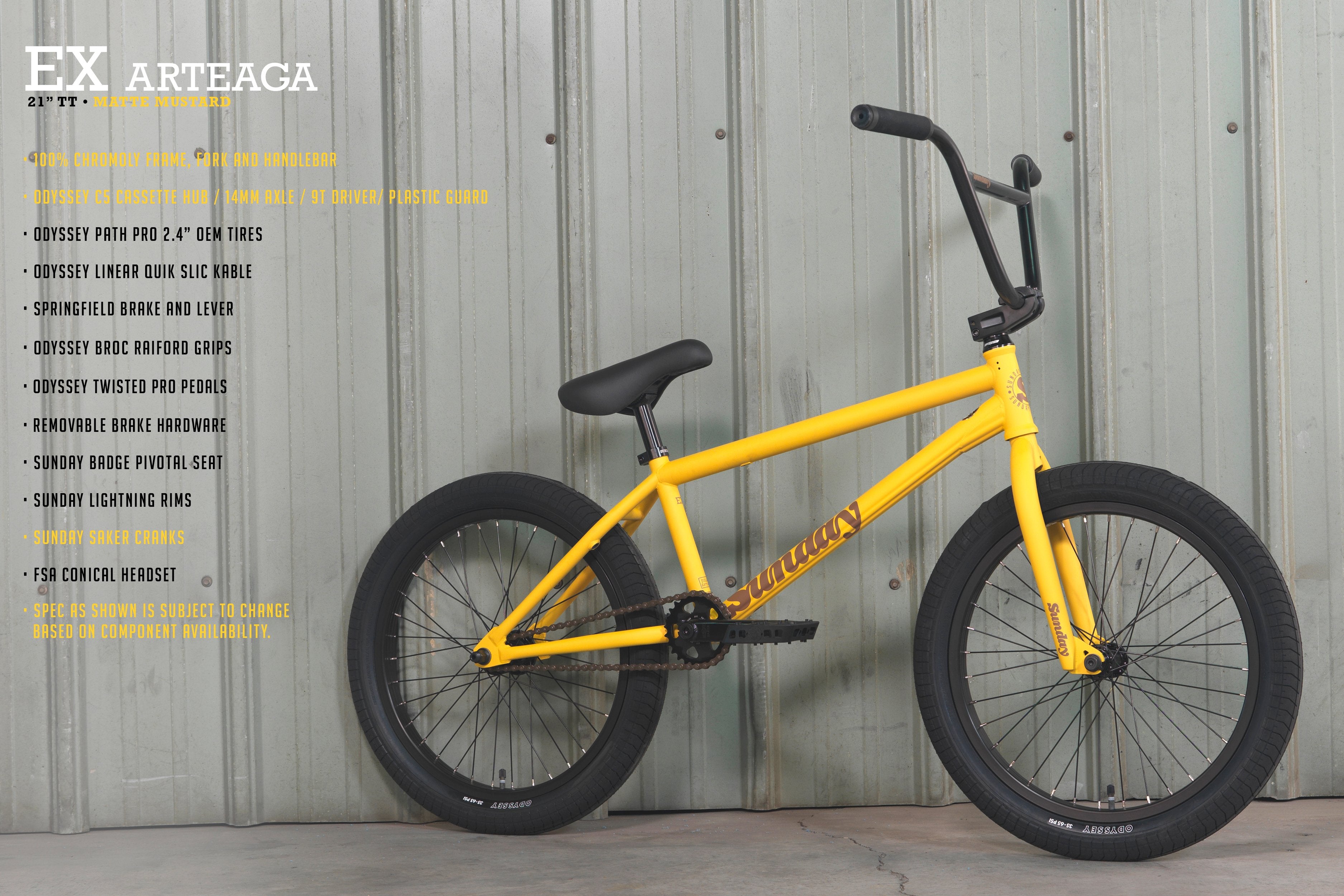

Sunday EX Julian Arteaga 20" BMX 2022 (Matte Mustard)
Regular price
$999.99
Sale price
$1,199.99
Unit price per

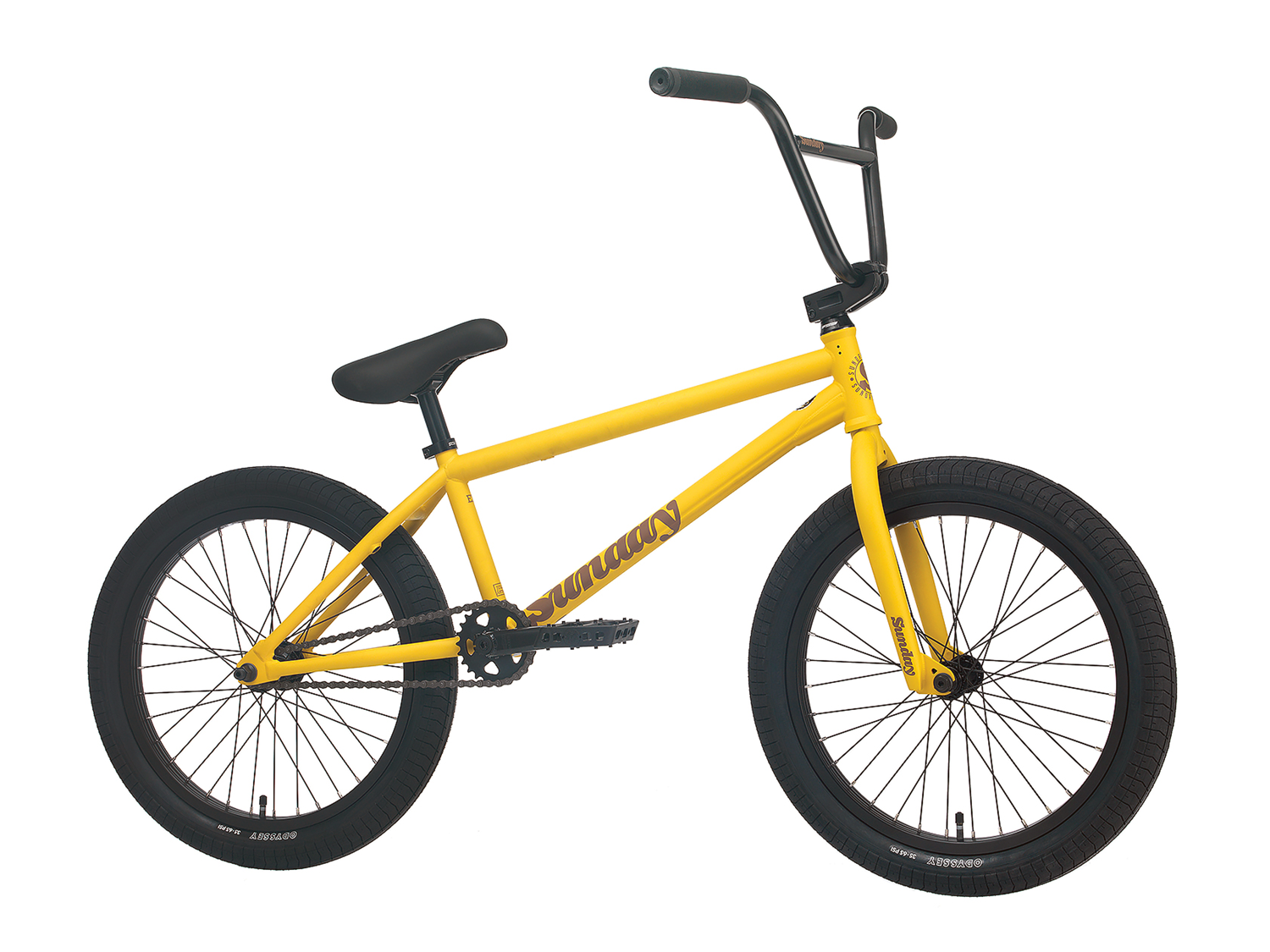

SUNDAY 20" EX (Julian Arteaga) 2022 Bike
With a 100% chromoly frame, fork, and bars, the 2022 EX is a bike that is difficult to match.
Julian Arteaga's signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business.
Follow @juliansalright.
Features

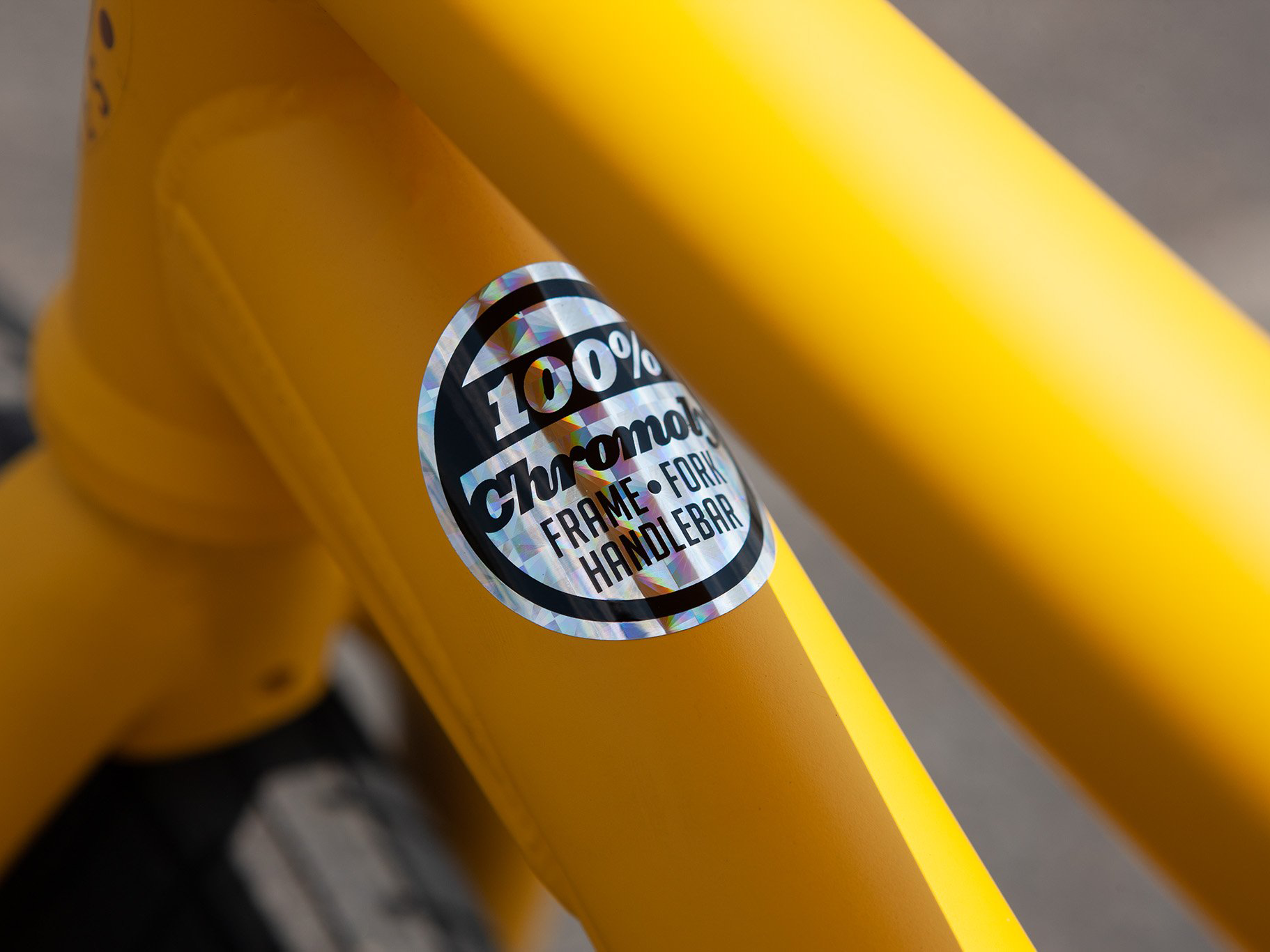

- 100% Chromoly Frame, Fork, and 4-piece Bars
- Sunday Signature Wave Down Tube
- Odyssey Broc Raiford Grips
- FSA Conical Headset
- Sunday Sabretooth v2 25t Sprocket
- Sunday Saker 3-PC Cranks, 165mm
- Odyssey Path Pro OEM 2.40" Tires
- Odyssey C5 Sealed Cassette Hub
- Sealed Front Hub
Specifications

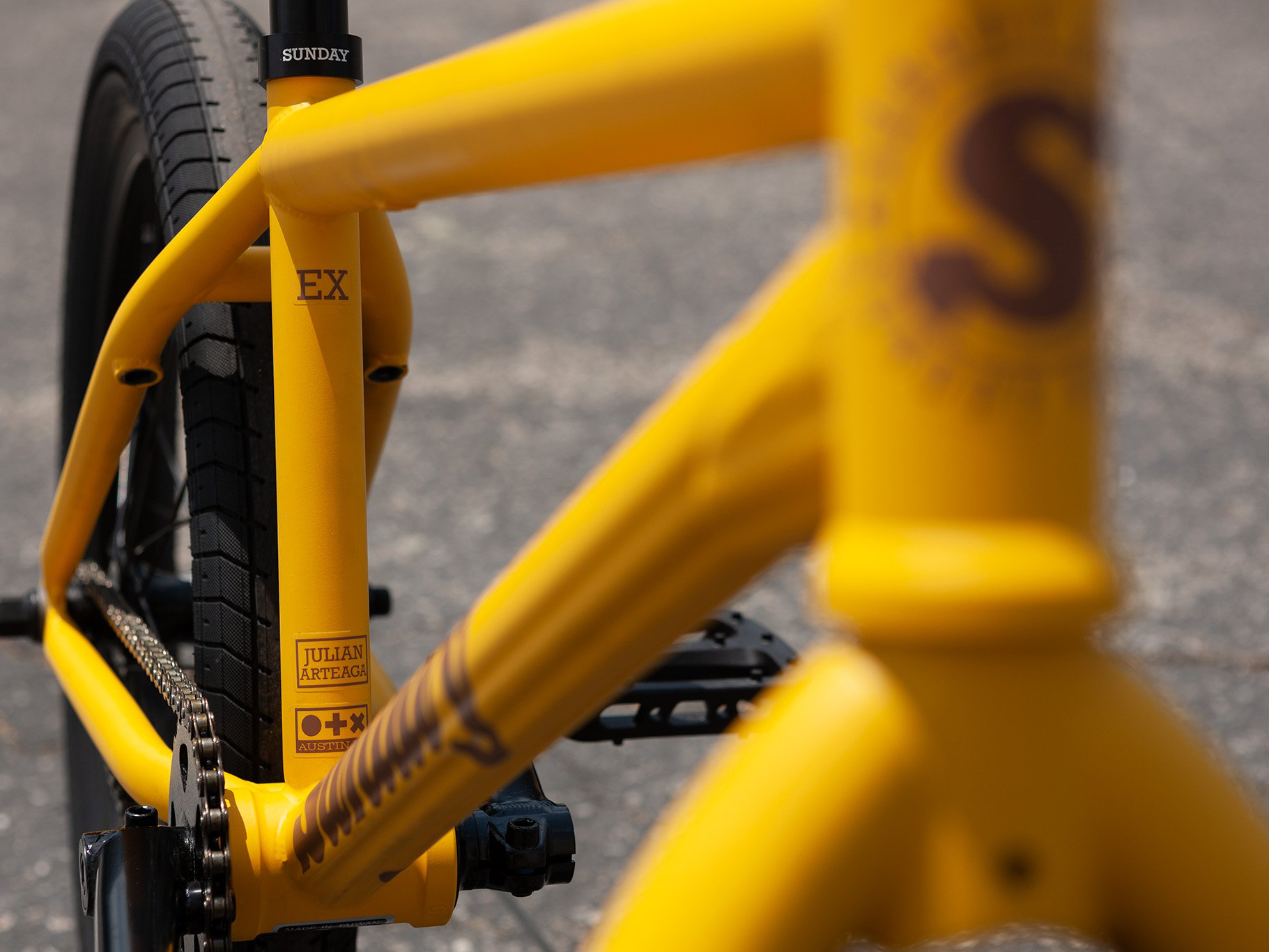

Frame - 21" top tube, 100% chromoly frame with wave downtube, removable brake hardware
Fork - Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset

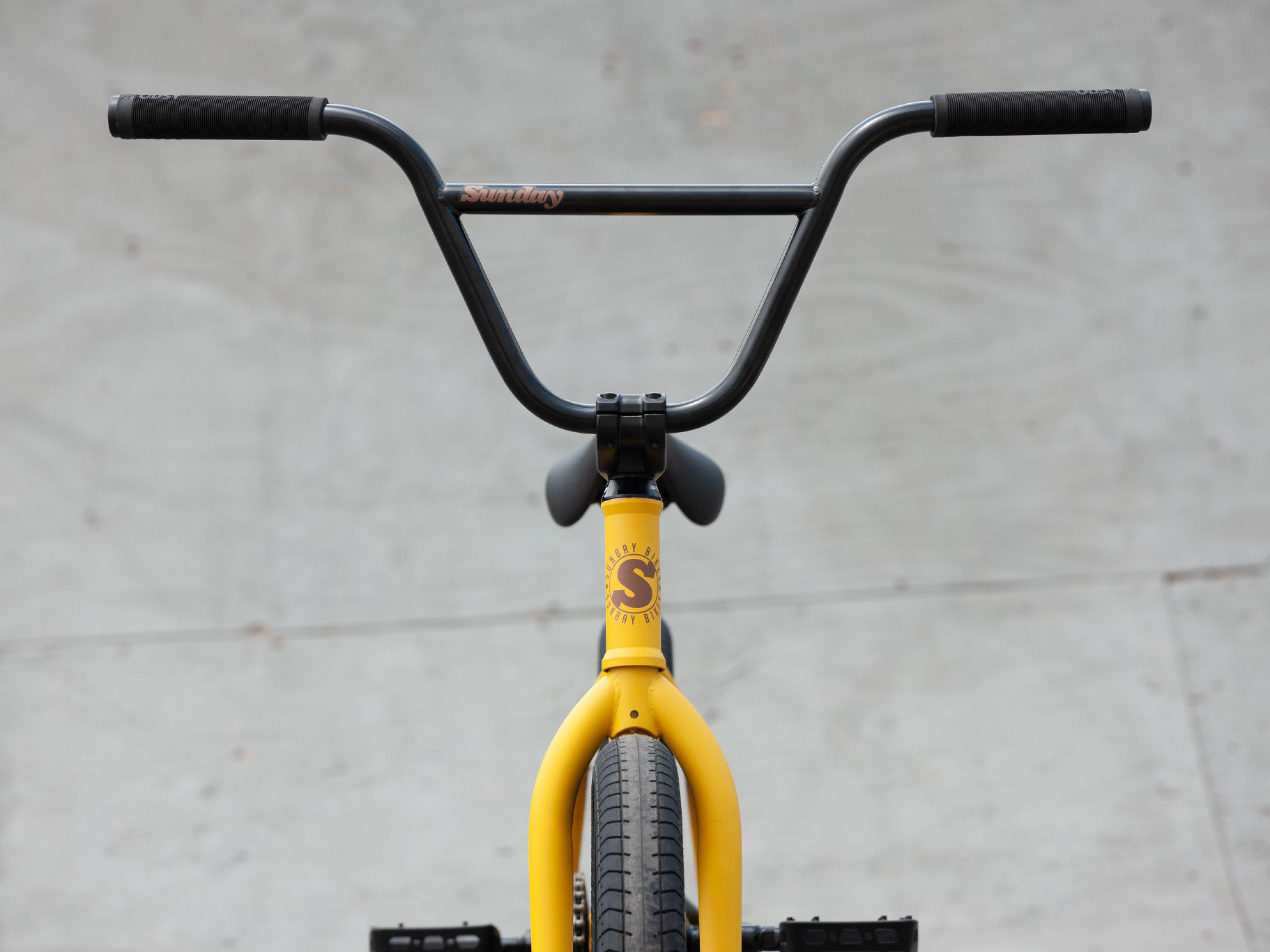

Handlebar - Sunday, 100% chromoly, 2-piece

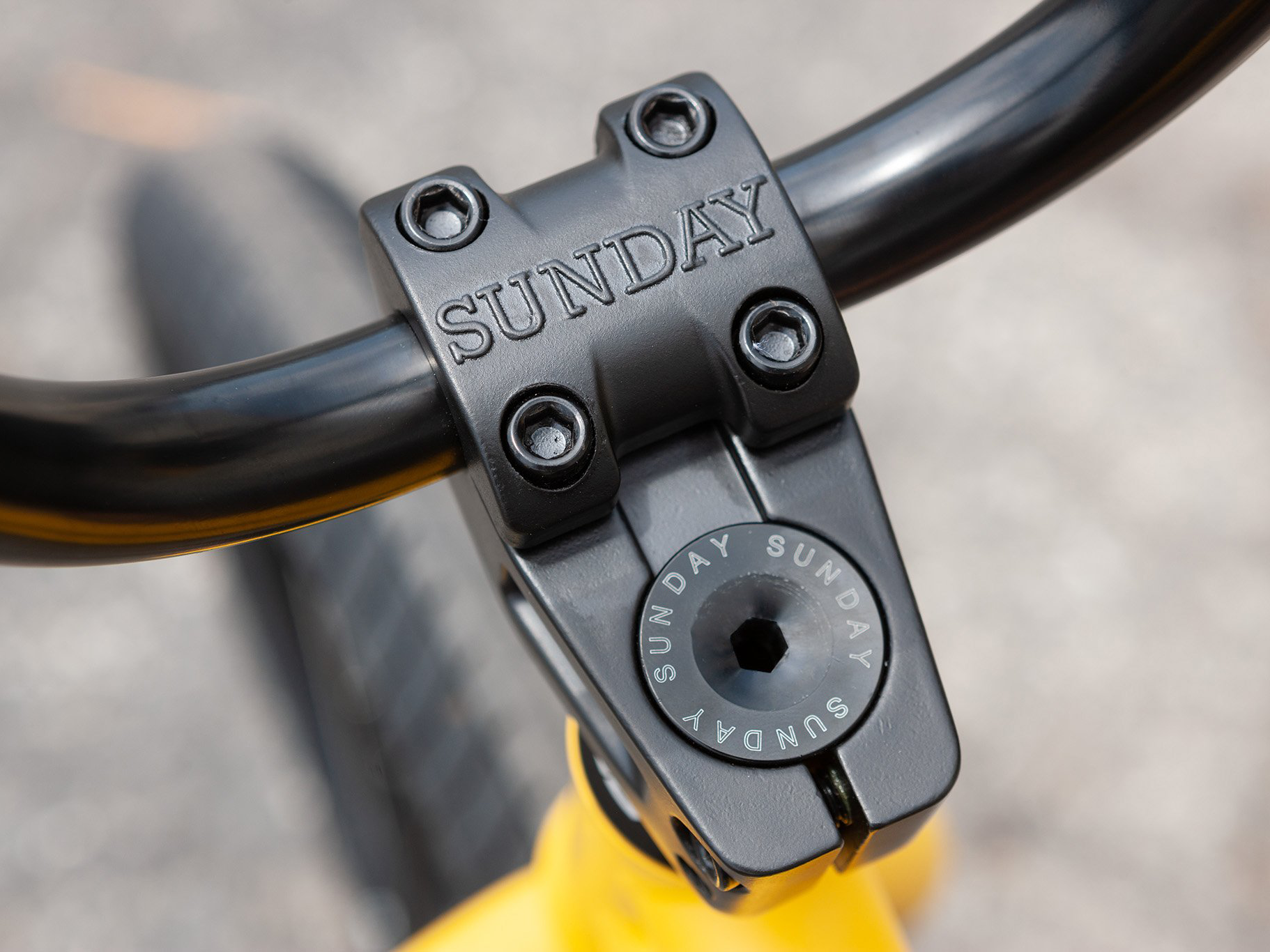

Stem - Sunday Freeze front load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday M16, aluminum
Brake Lever - Odyssey Springfield
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic

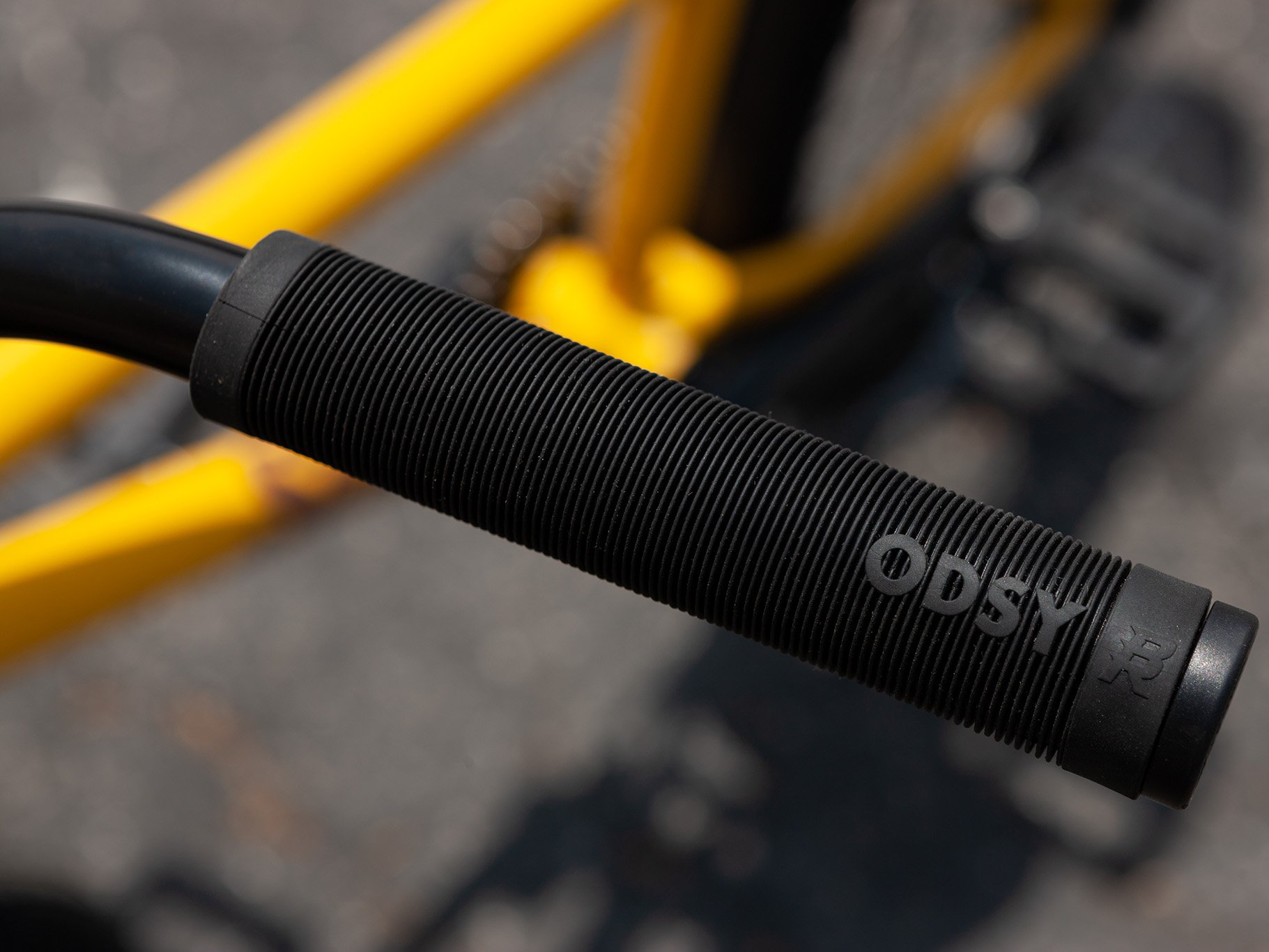

Grips - Odyssey Broc Raiford

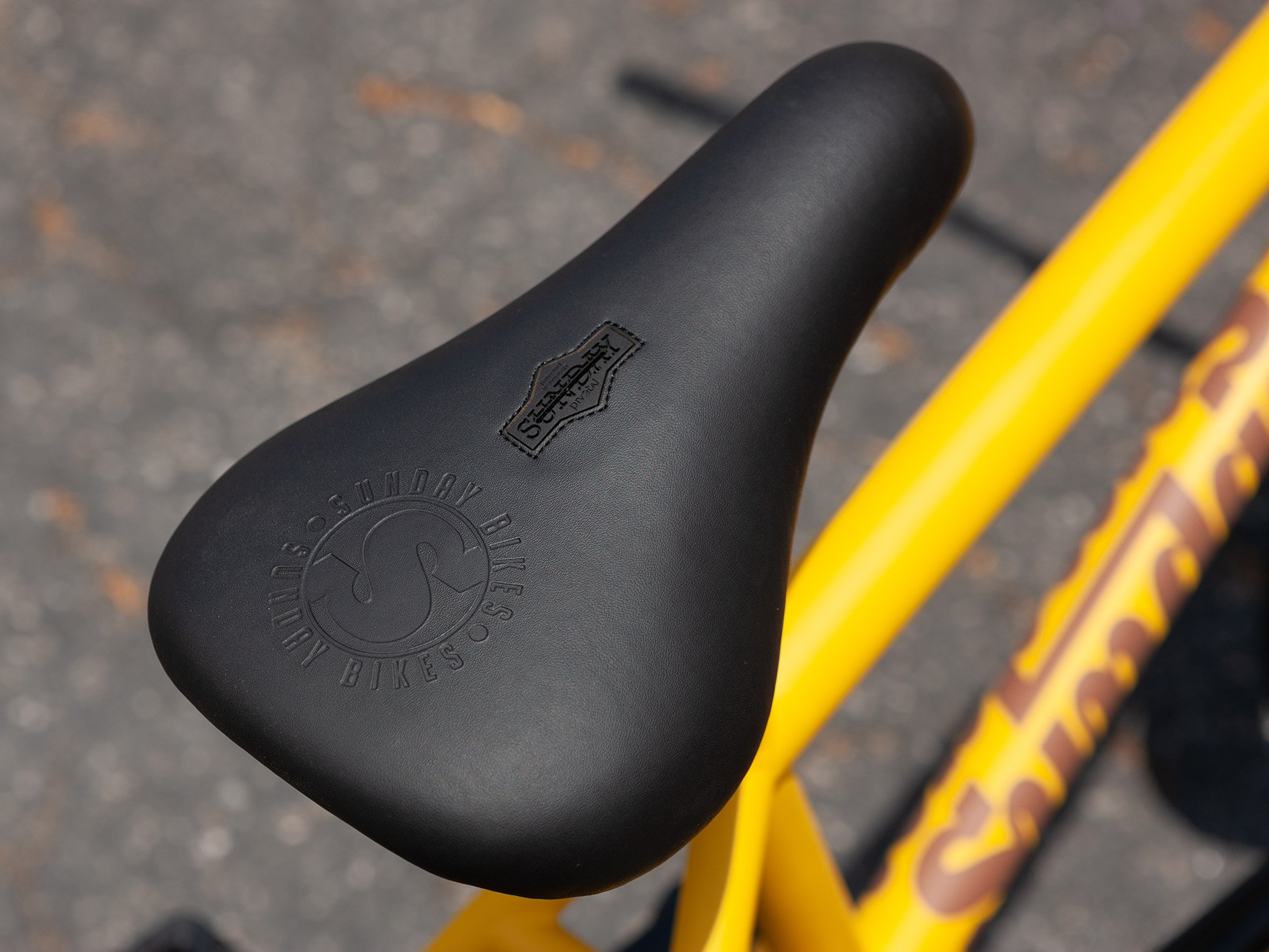

Seat - Sunday Badge, Pivotal
Seat post - Sunday Pivotal
Seat Clamp - Sunday
Sprocket - Sunday Sabertooth v2, 25T, 6061 aluminum
Cranks - Sunday Saker, 165mm
BB Parts - Sealed, Mid, 19mm

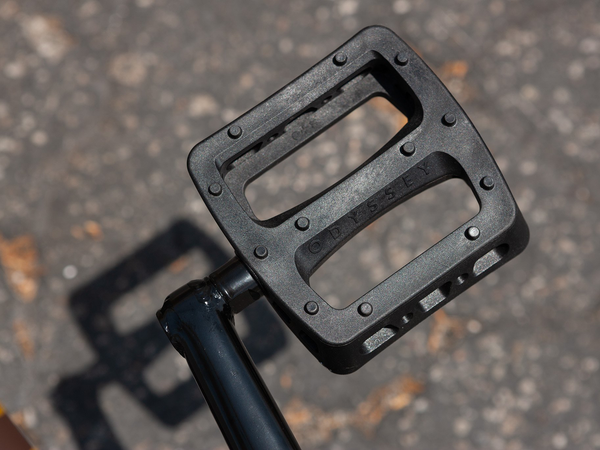

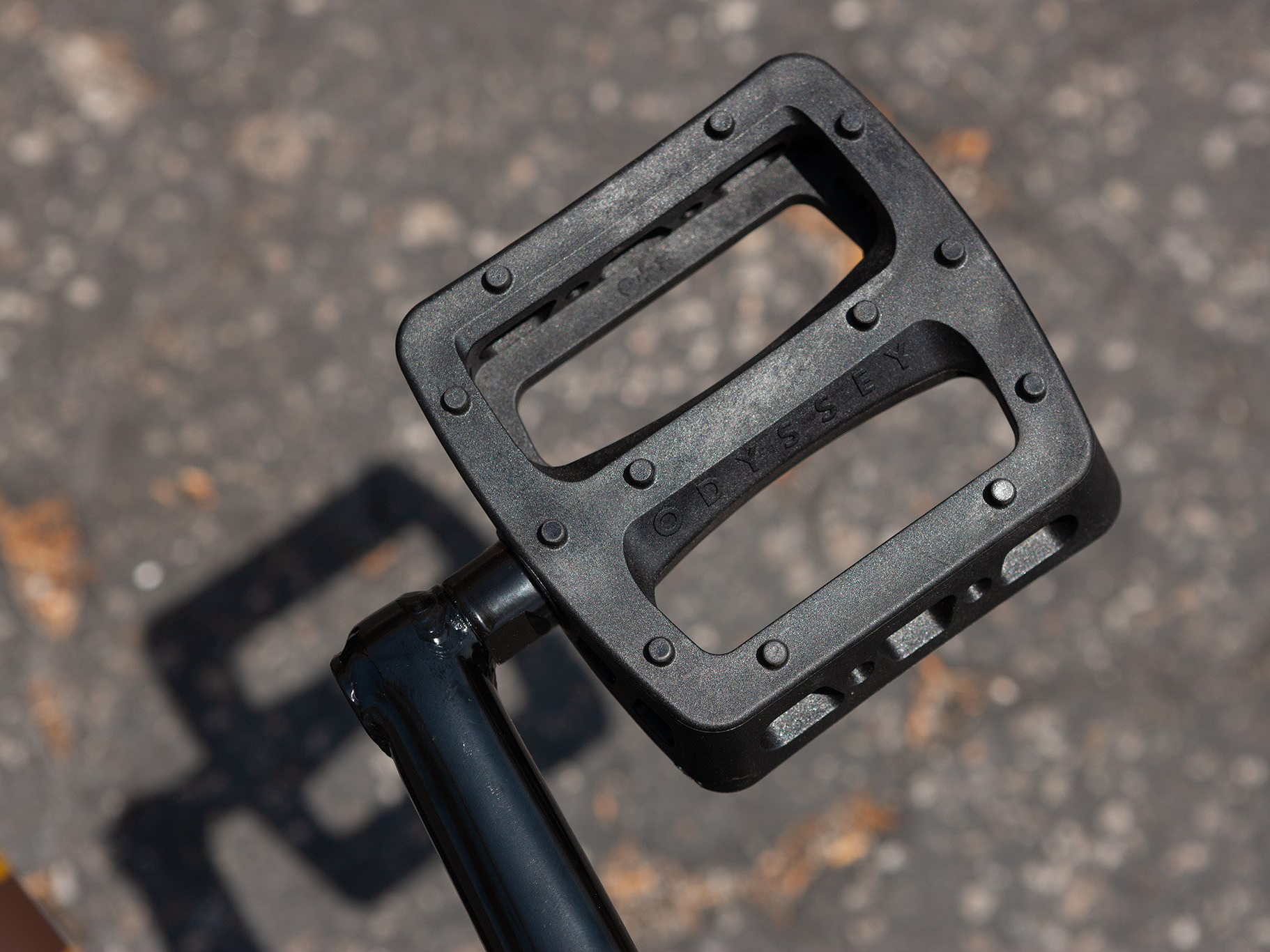

Pedals - Odyssey Twisted PC Pro
Rims - Sunday Lightning, 20", 36H
Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub - Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard
Spokes - 14g steel, black

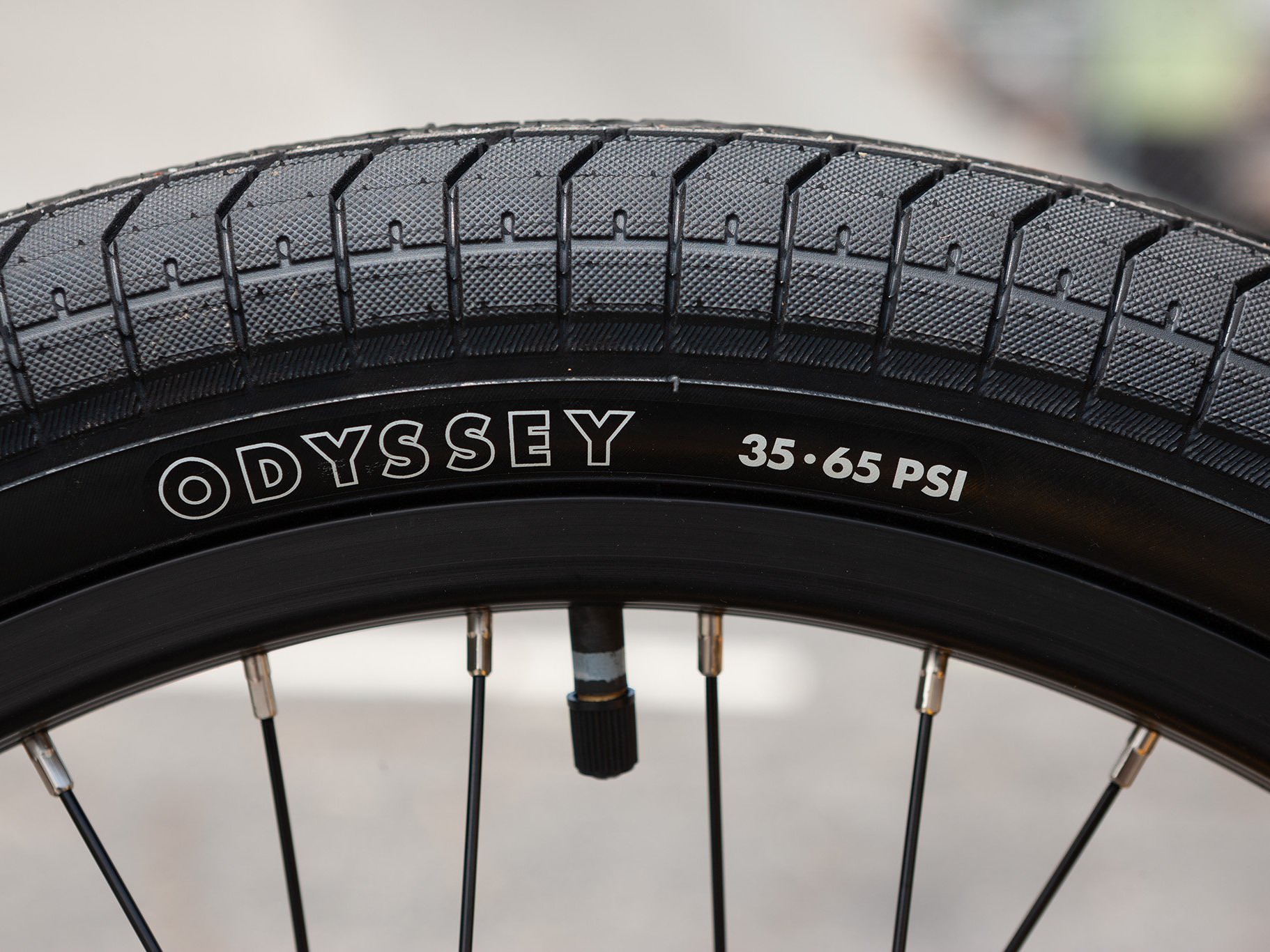

Tyres - Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 11.68kg (with brakes)
Frame Geometry
Top Tube Length - 21"
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 9"
Handlebar Geometry
Rise - 9"
Width - 28.5"
Backsweep - 12°
Upsweep - 4°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
