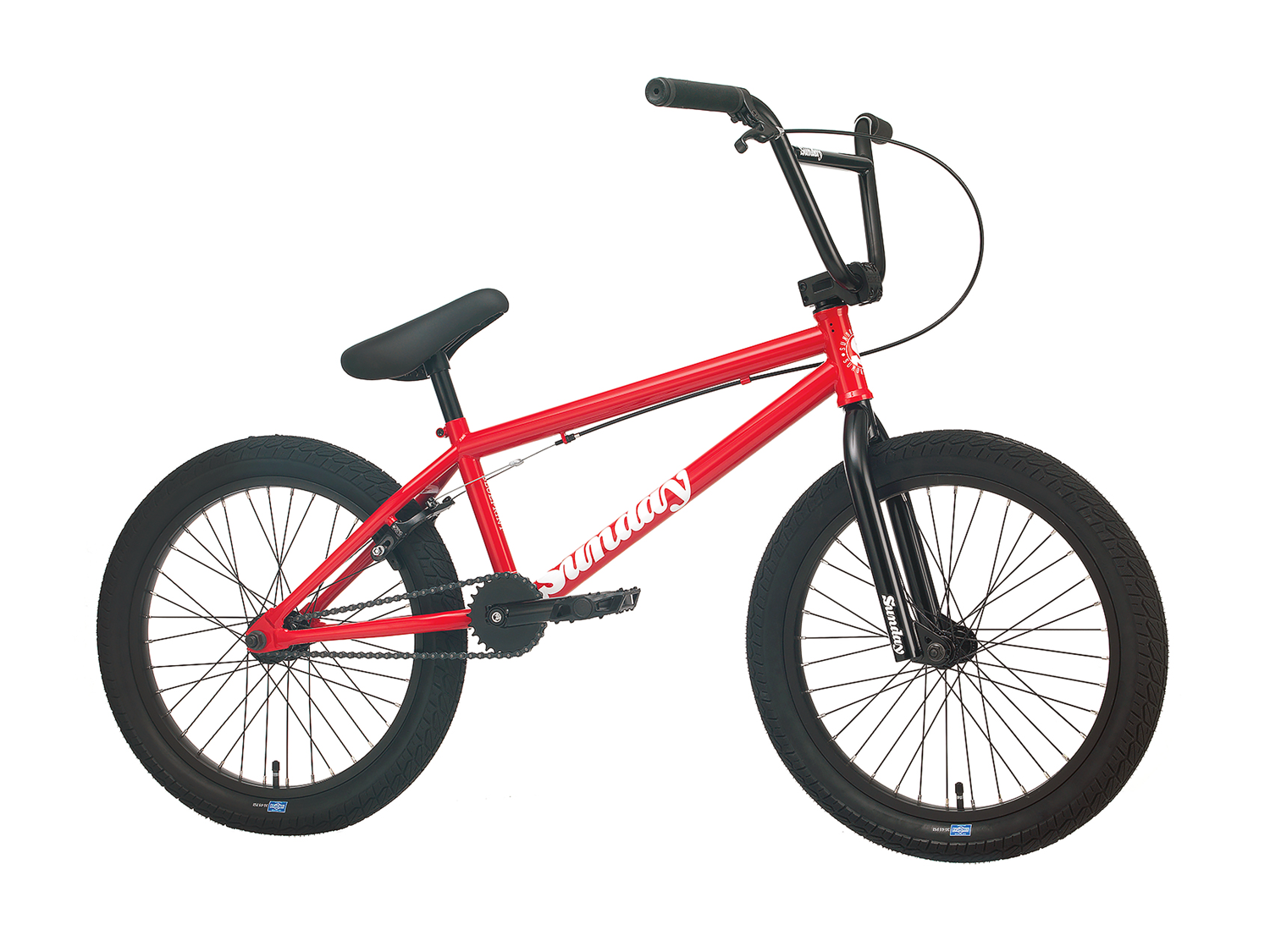

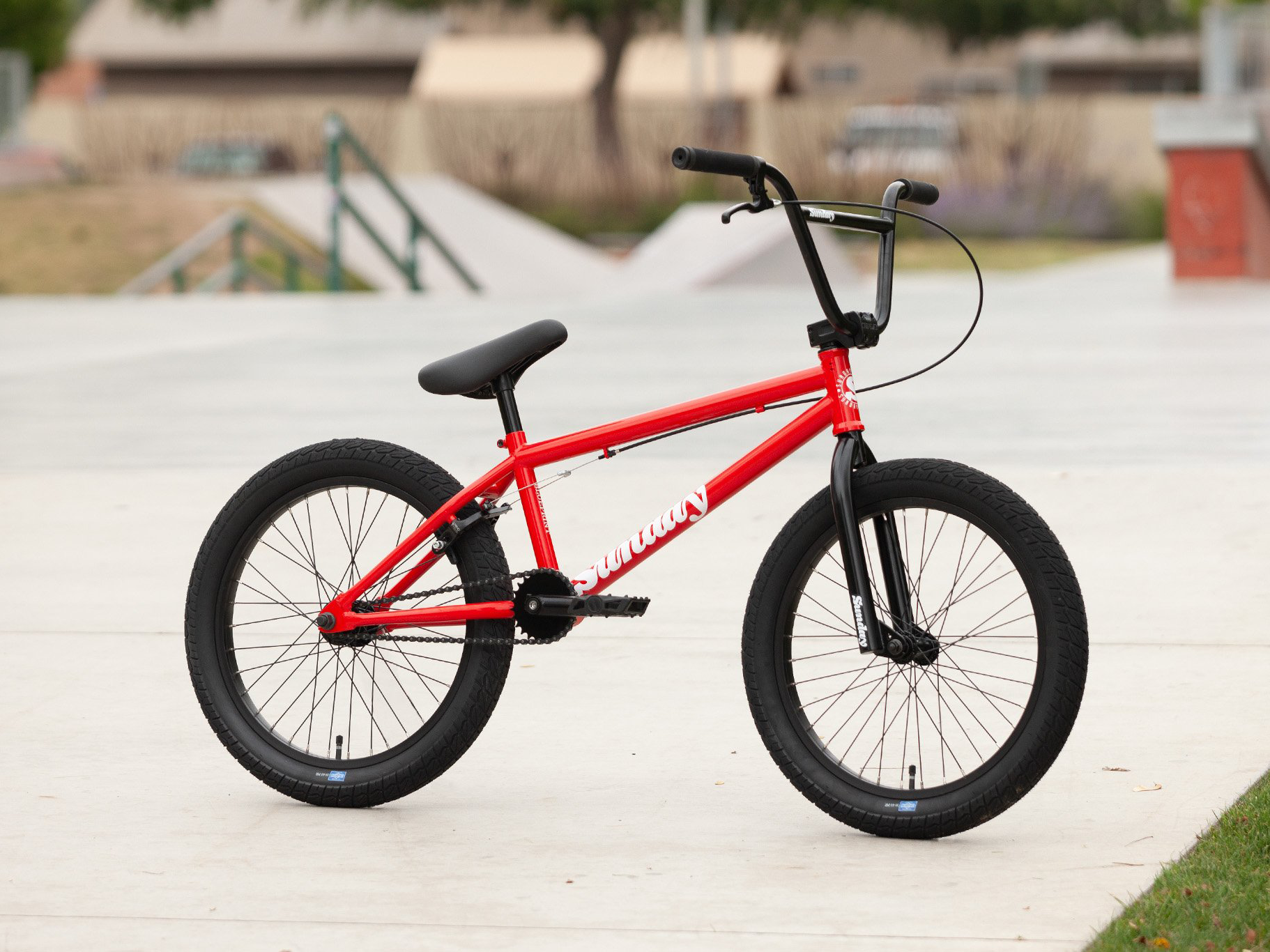

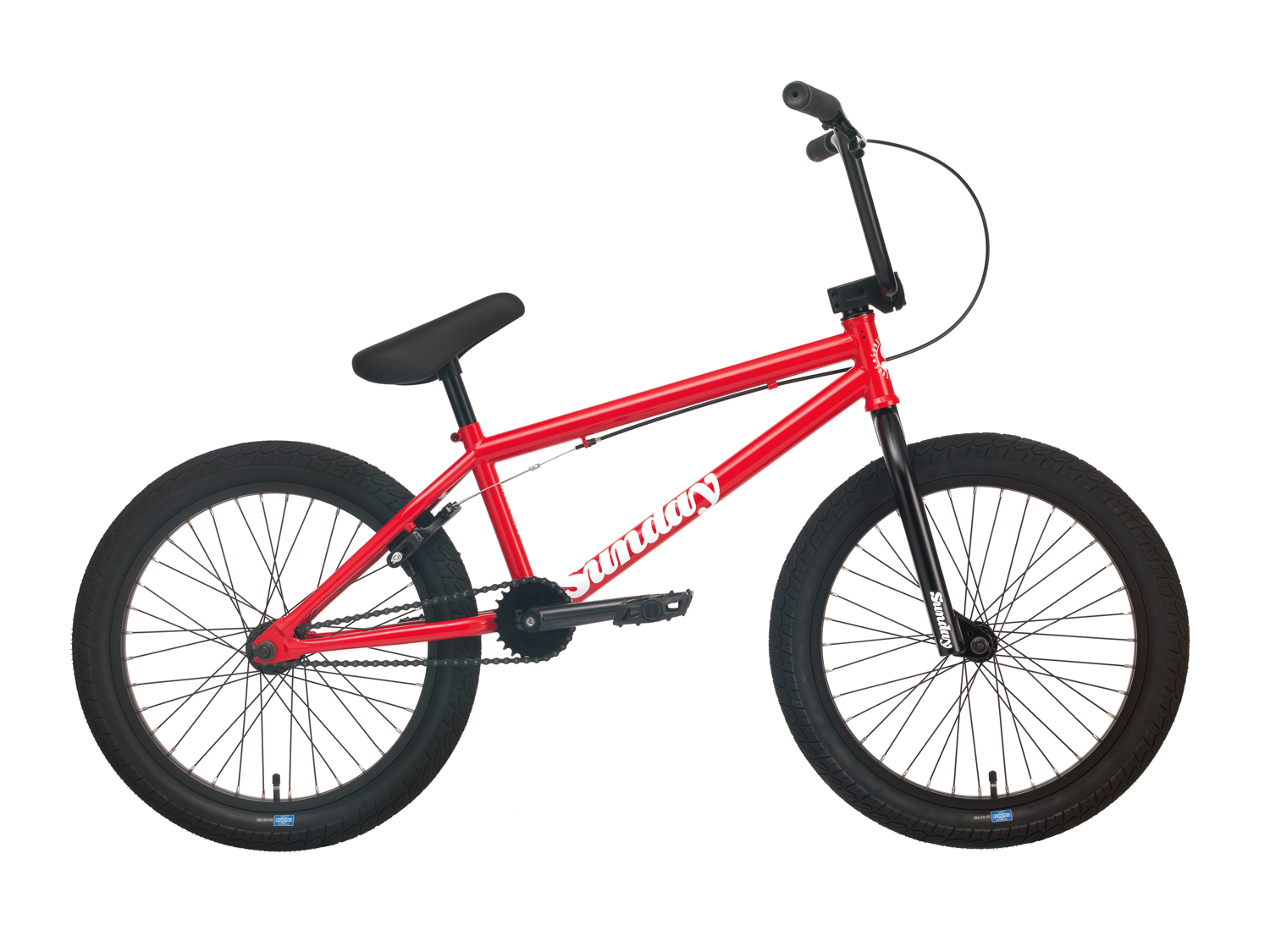

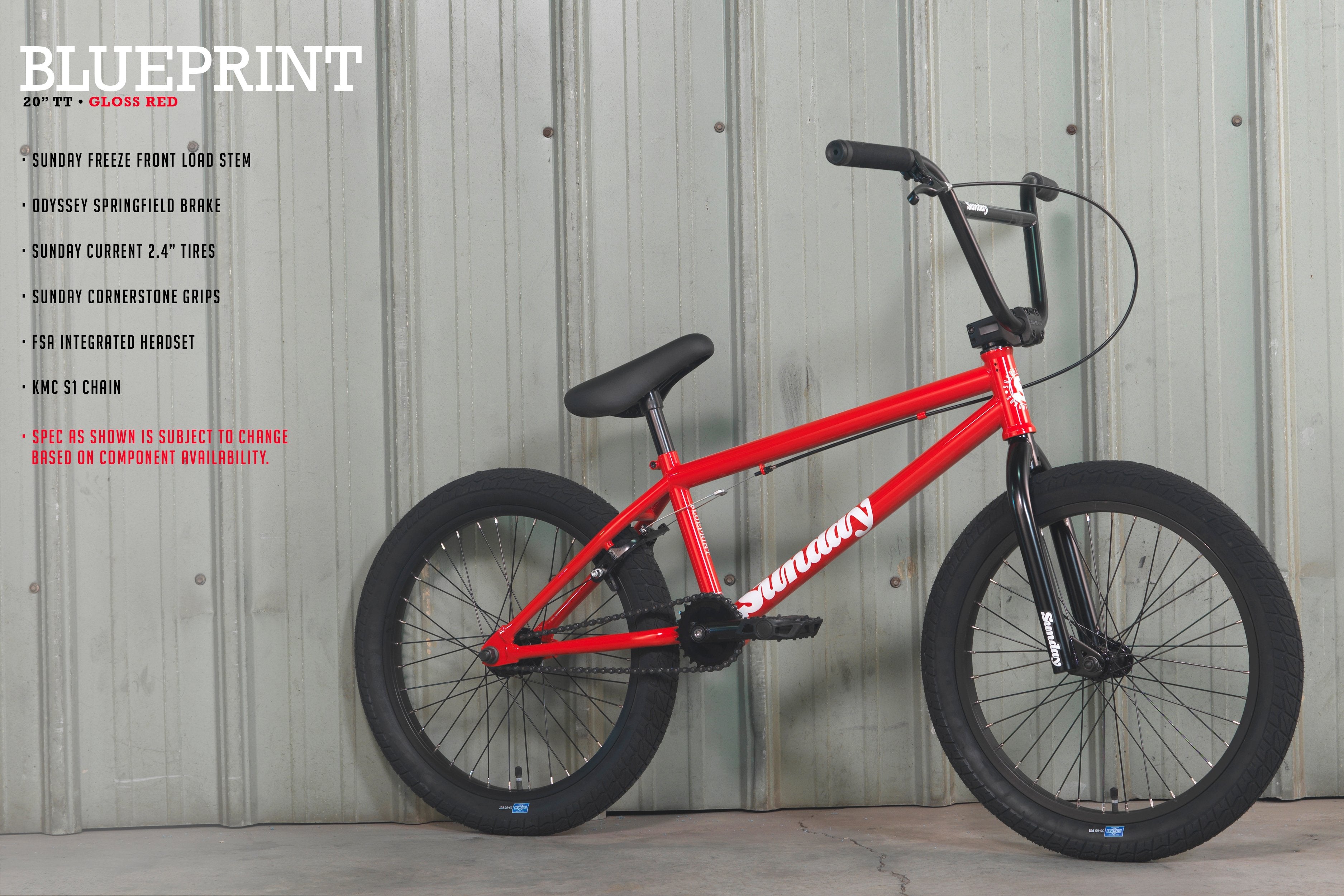

Sunday Blueprint 20" BMX (Gloss Fire Engine Red)
Regular price $599.99
Unit price per
Sunday 20" Blueprint Bike
The Blueprint is a bike for new riders that is built around a pro-level geometry to help them progress faster.
This bike is equipped with hassle-free parts like Odyssey Springfield brakes, a Sunday Freeze stem and Current 2.4” tires to help keep you focused on the important part - riding. The Blueprint comes with an integrated head tube this year for greater durability, ease of assembly and pro style points.
Features
- Sunday Current v2 2.4"
- Odyssey Springfield Brakes
- FSA Integrated Headset
- Sunday Cornerstone Grips
- Sunday Freeze Front Load Stem
- KMC S1 Chain
Specifications
Frame - Sunday Blueprint, 20" top tube, integrated 1-1/8" head tube
Fork - Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load

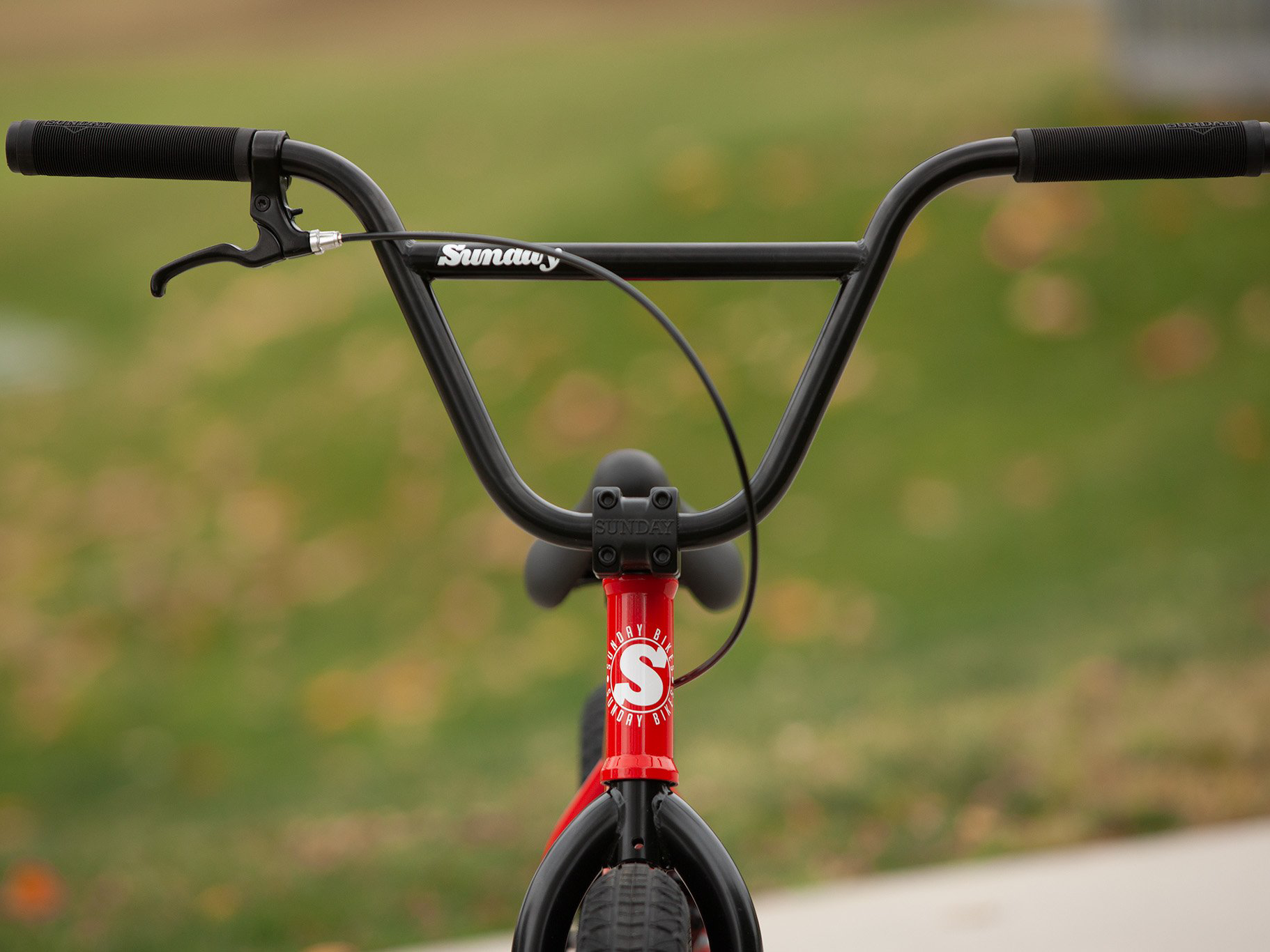

Handlebar - Sunday, 2-piece

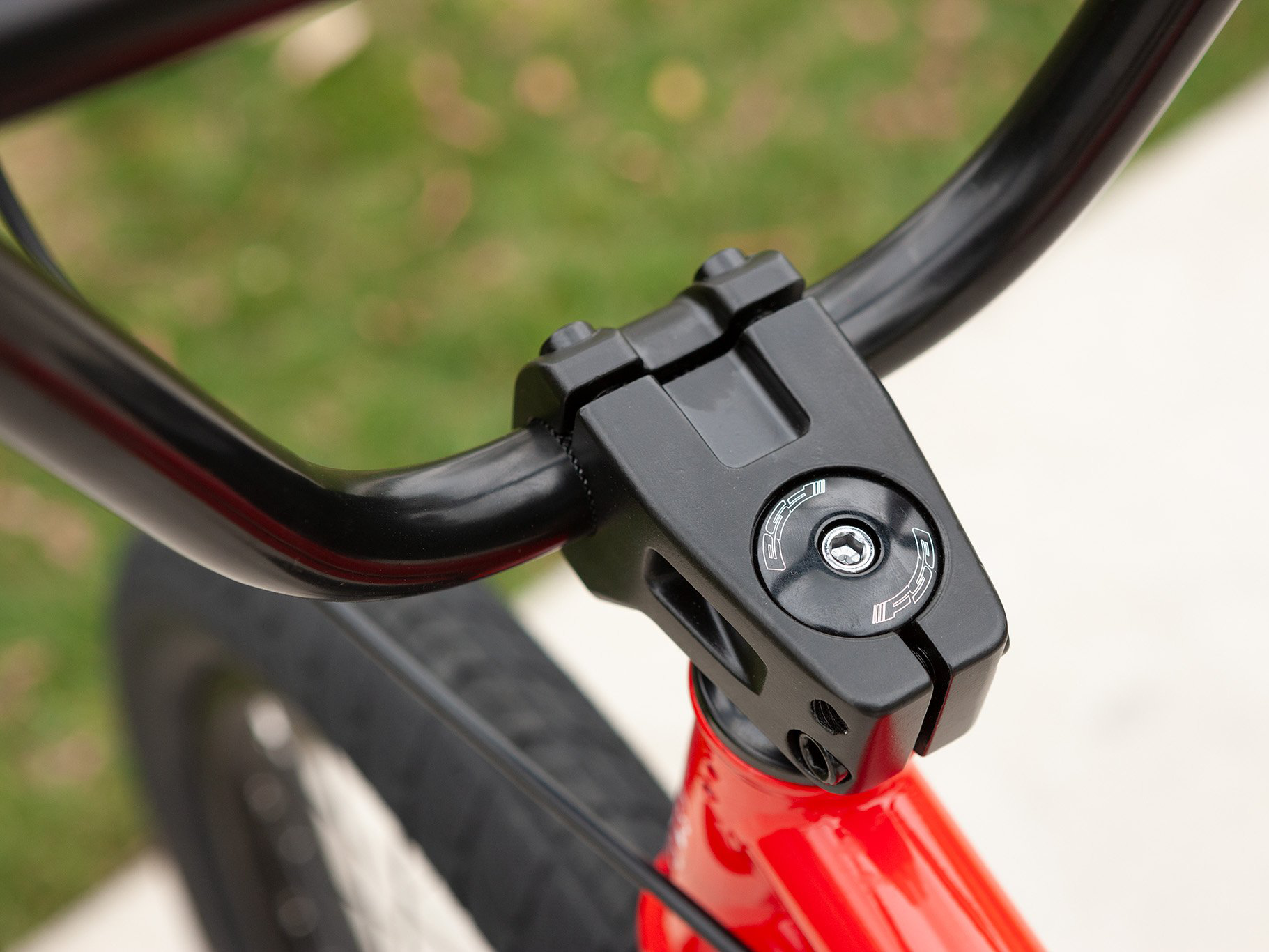

Stem - Sunday Freeze front load, 48mm
Headset - FSA integrated, 1-1/8"
Alloy Cap - FSA aluminum cap
Brake Lever - Aluminum, U-brake compatible

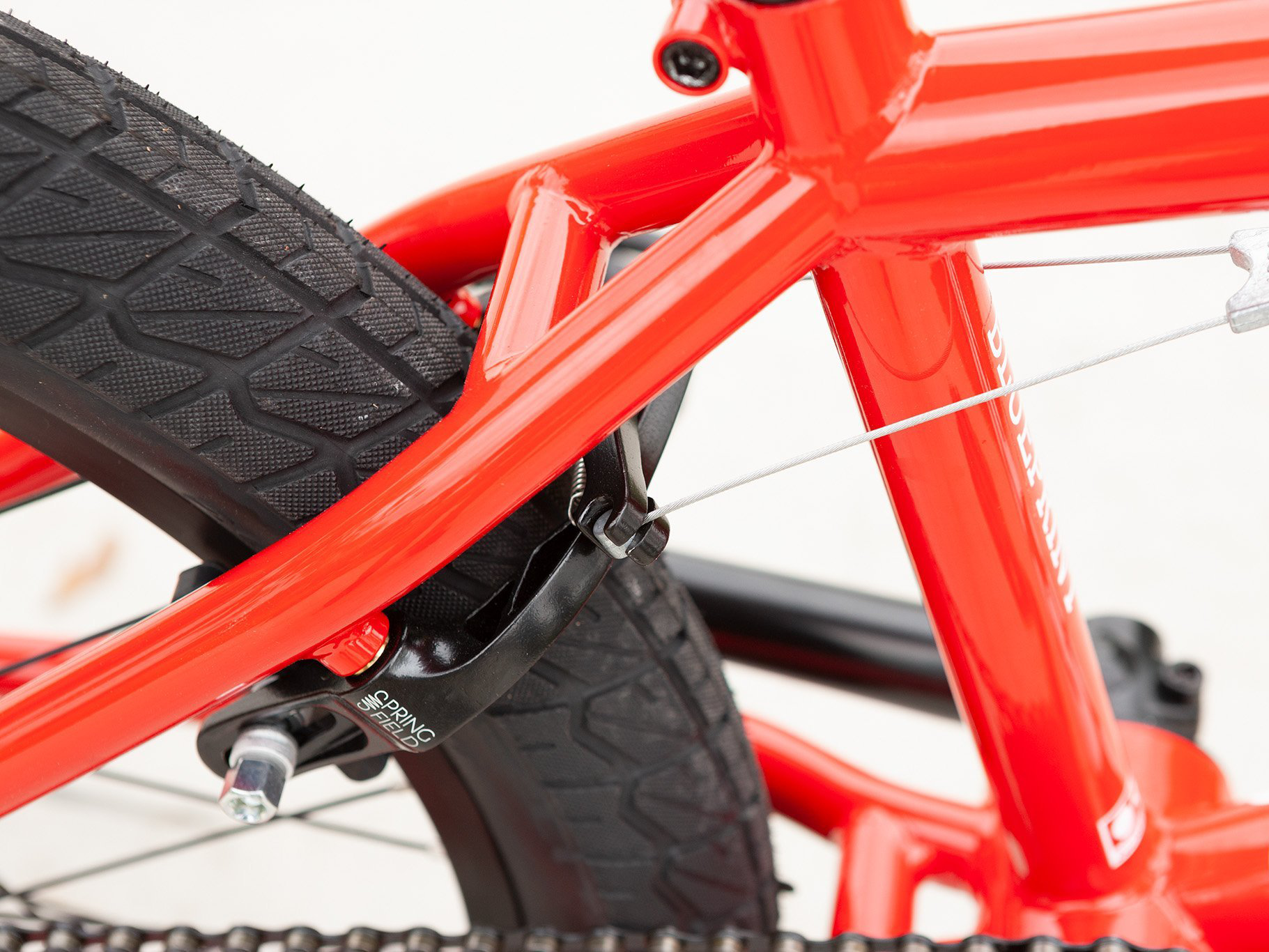

Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic
Grips - Sunday Cornerstone
Seat - Sunday Badge, seat and post combo
Seat Post - Integrated
Seat Clamp - Integrated
Sprocket - Sunday S-Logo, 25T, steel
Cranks - 160mm, 3-piece, chromoly
BB Parts - Loose-ball, American, 19mm
Pedals - Wellgo platform, plastic
Rims - P-7X aluminum, 20", 36H
Front Hub - Sunday, 36H, low-flange, loose-ball, 3/8" axle

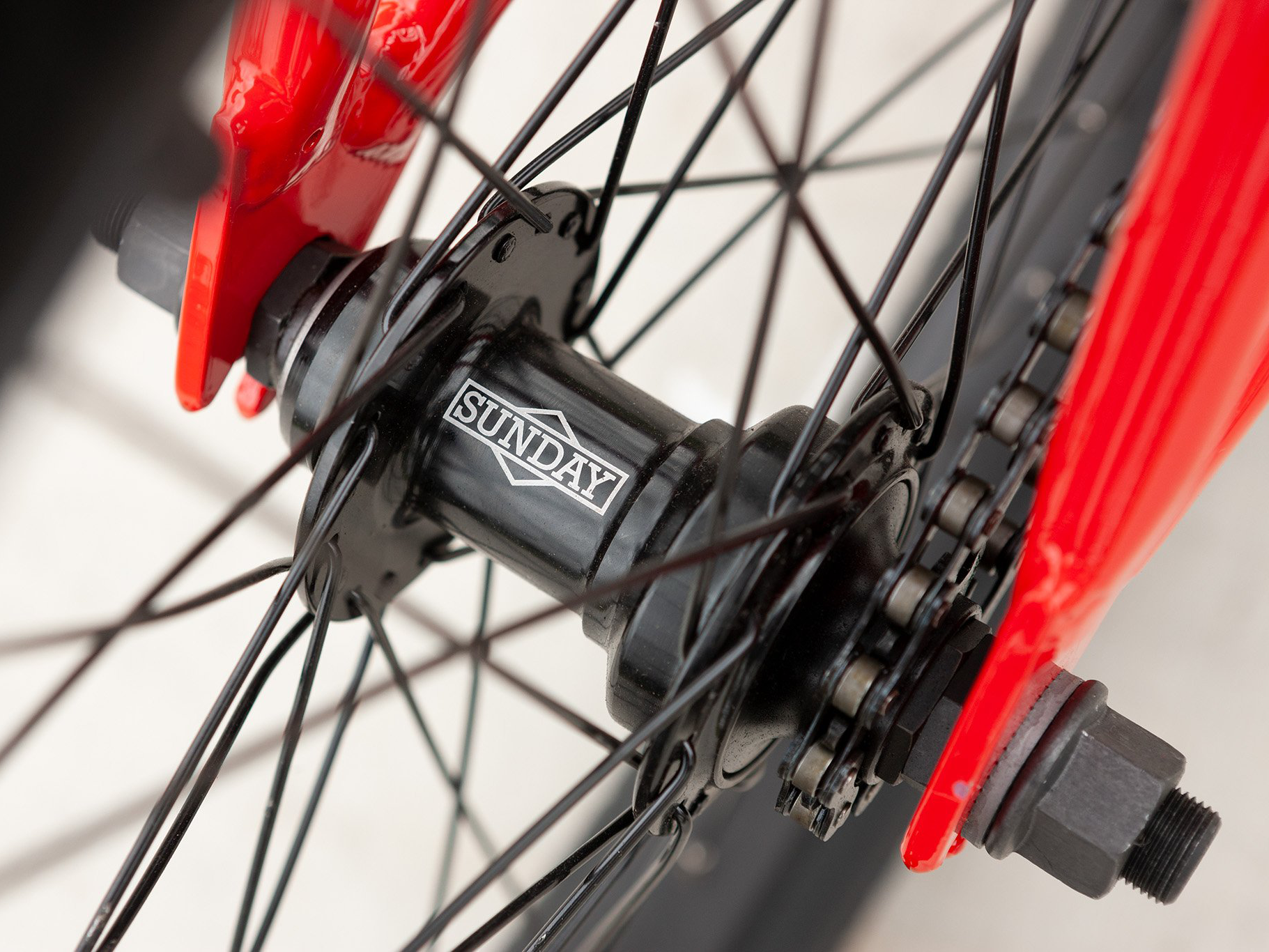

Rear Hub - Sunday, 36H,14mm axle w/ 9t Driver
Spokes - 14g steel, black

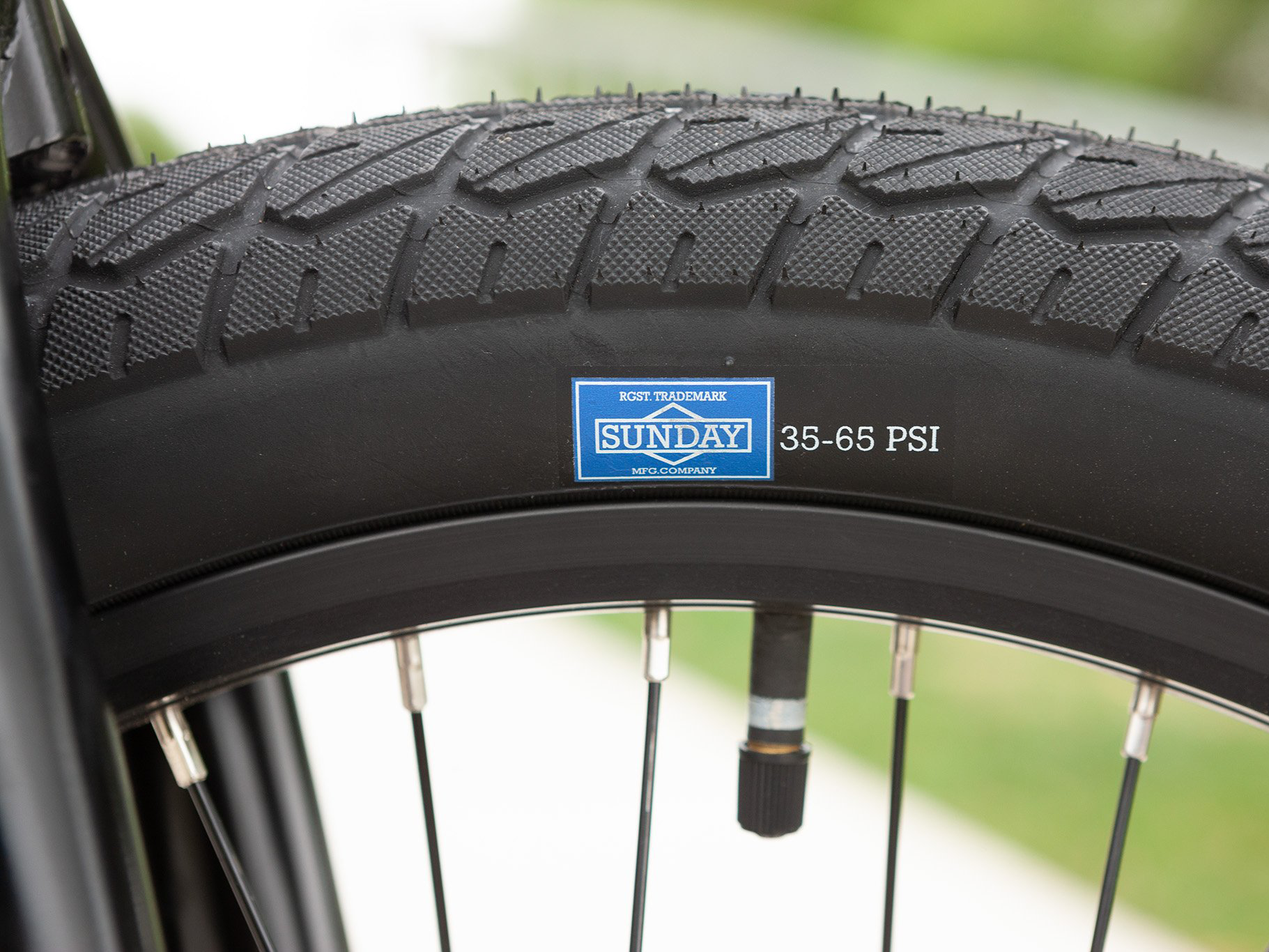

Tyres - Sunday Current, 20 x 2.4" (F & R), Pink
Chain - KMC S1
Approx. Weight - 11.79kg (with brakes)
Frame Geometry
Top Tube Length - 20"
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 8.75"
Handlebar Geometry
Rise - 9"
Width - 28.5"
Backsweep - 12°
Upsweep - 4°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
