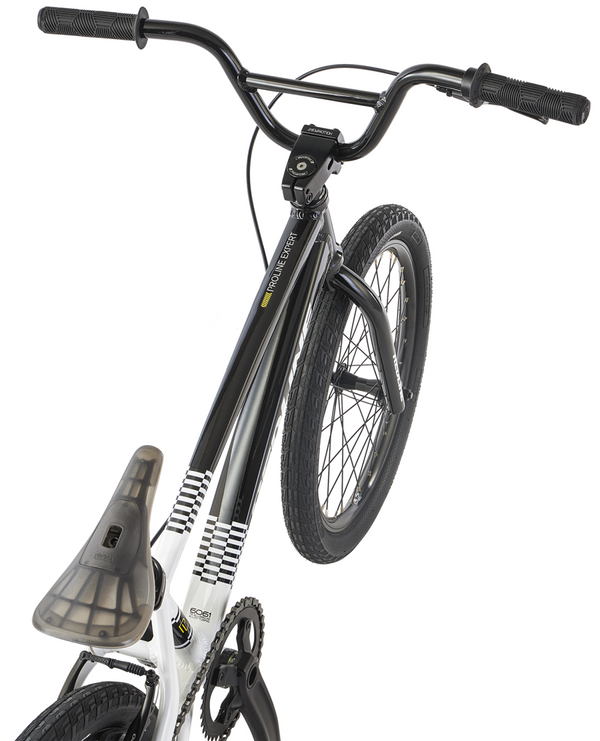

Redline Proline Expert 20" BMX Race Bike
Regular price $1,099.00
Unit price per

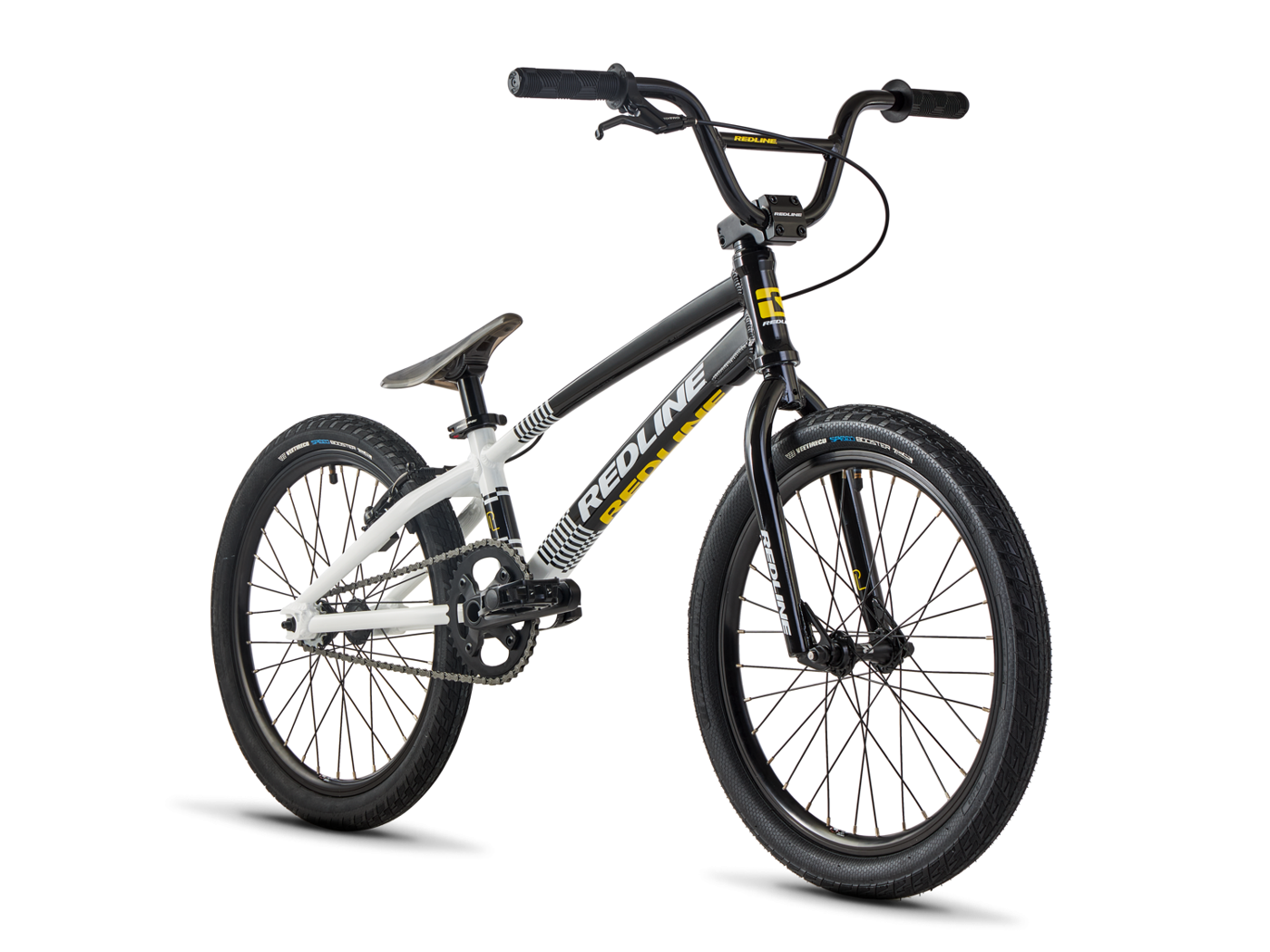

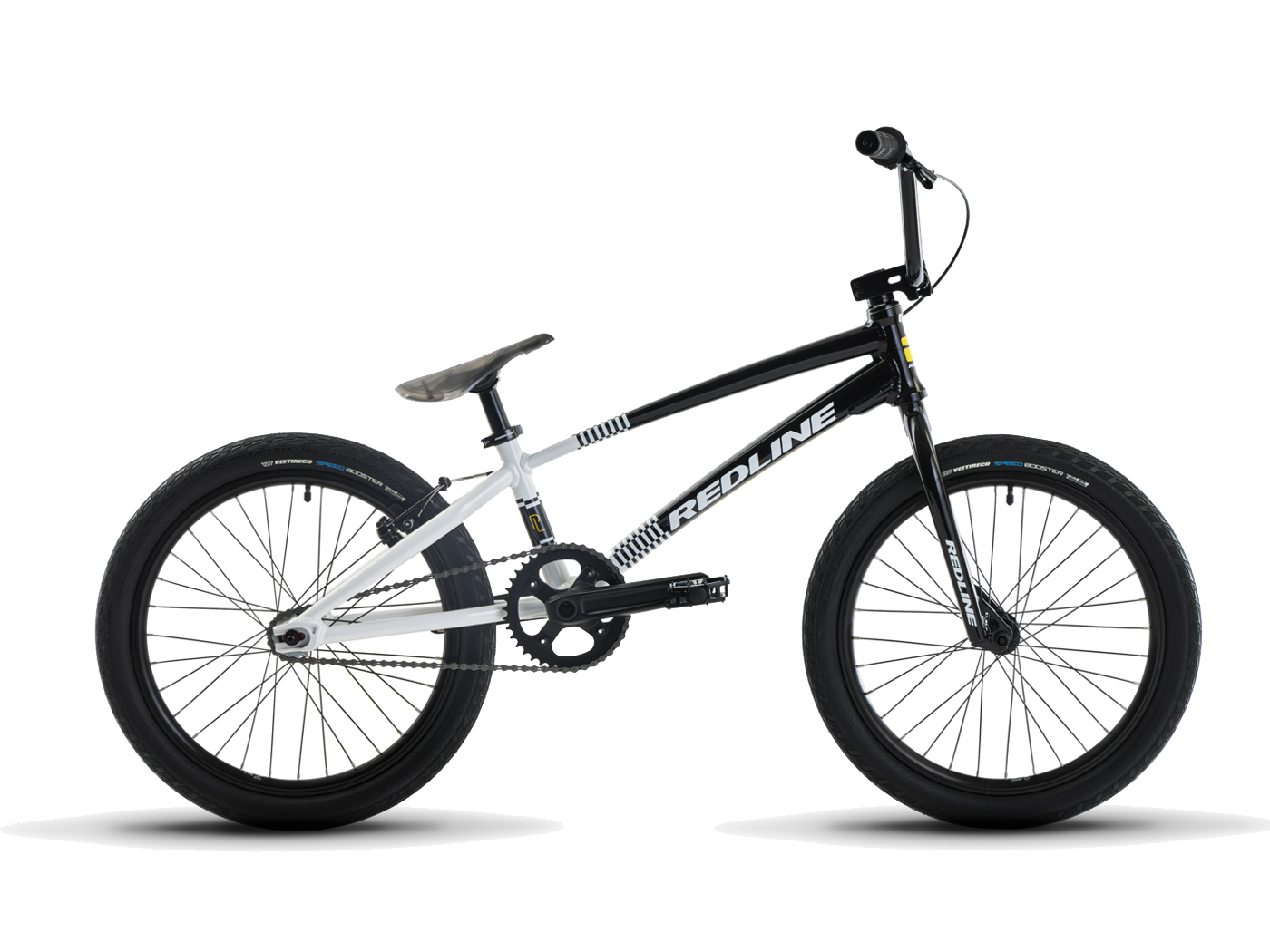

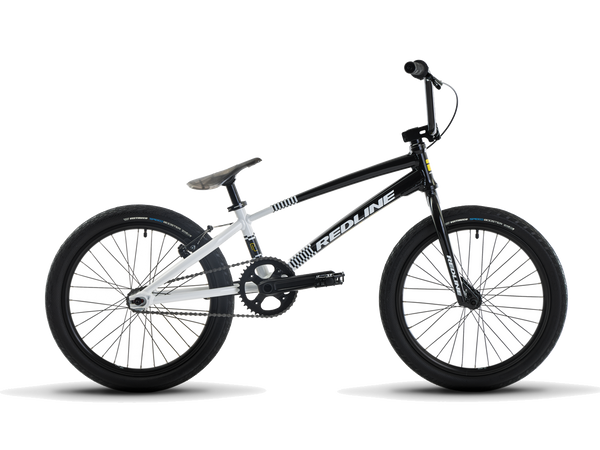

REDLINE 20" Proline Expert Bike
The Redline Proline Expert is ready to take them to the next level. Offering great performance and high quality at a mid-level price, the Proline Expert is made with a Redline proprietary aluminum alloy frame with a sealed Euro bottom bracket, aluminum 2-piece cranks, and sealed hubs. The 100 percent chromoly steel race fork with tapered legs helps young riders manoeuvre the Proline Expert more easily. The pivotal race saddle with no padding looks and acts the part at the start line. Fits riders 150 to 165 cm tall.
Specifications
Frame - Proprietary Alloy Formed And Butted Tubing

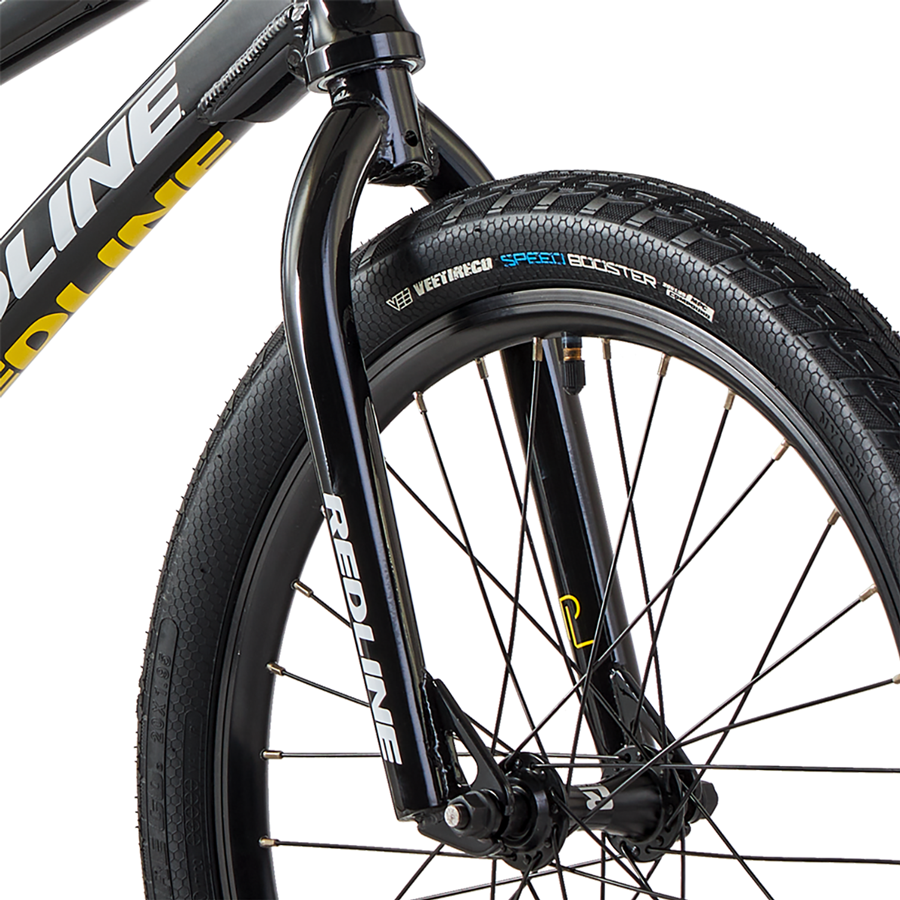

Fork - Full Chromo With Tapered Legs
Headset - Sealed Integrated Headset 1 1/8, Aluminum Top Cap

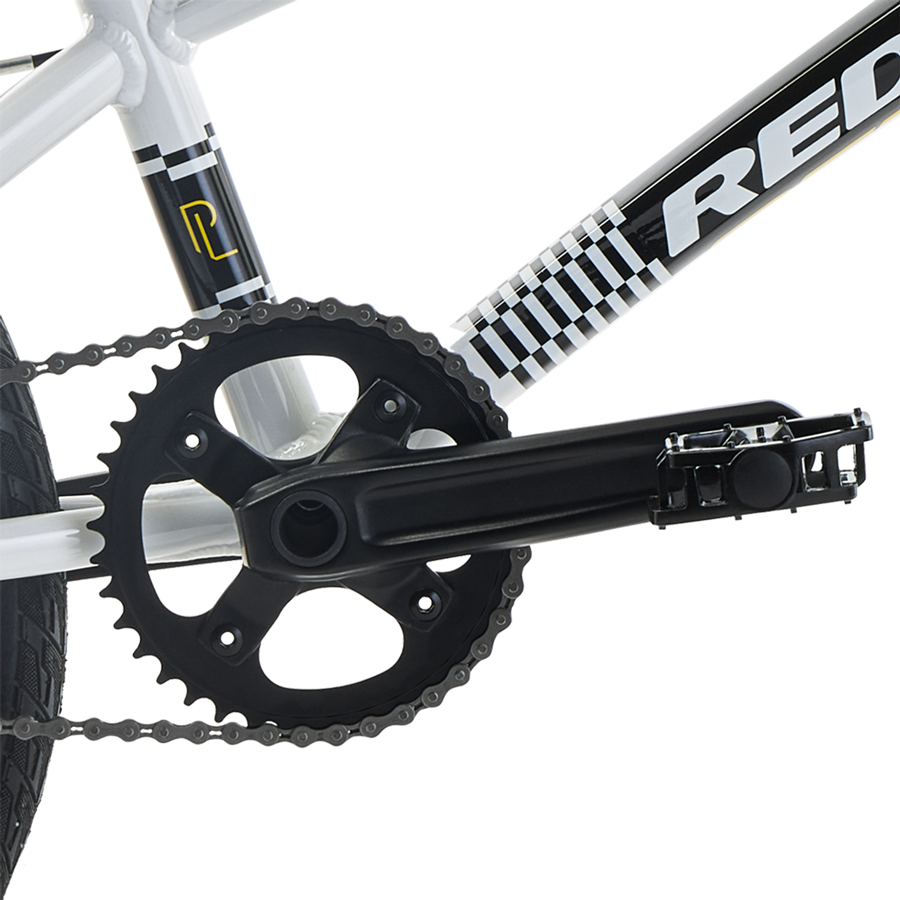

Cranks - Aluminum 2 Piece 165mm Cranks
Sprocket - 39t, Alloy, 104 Bcd
Bottom Bracket - Sealed Euro Bb
Cogset - 15t
Chain - Kmc Z6
Front Hub - Redline Aluminum Fully Sealed

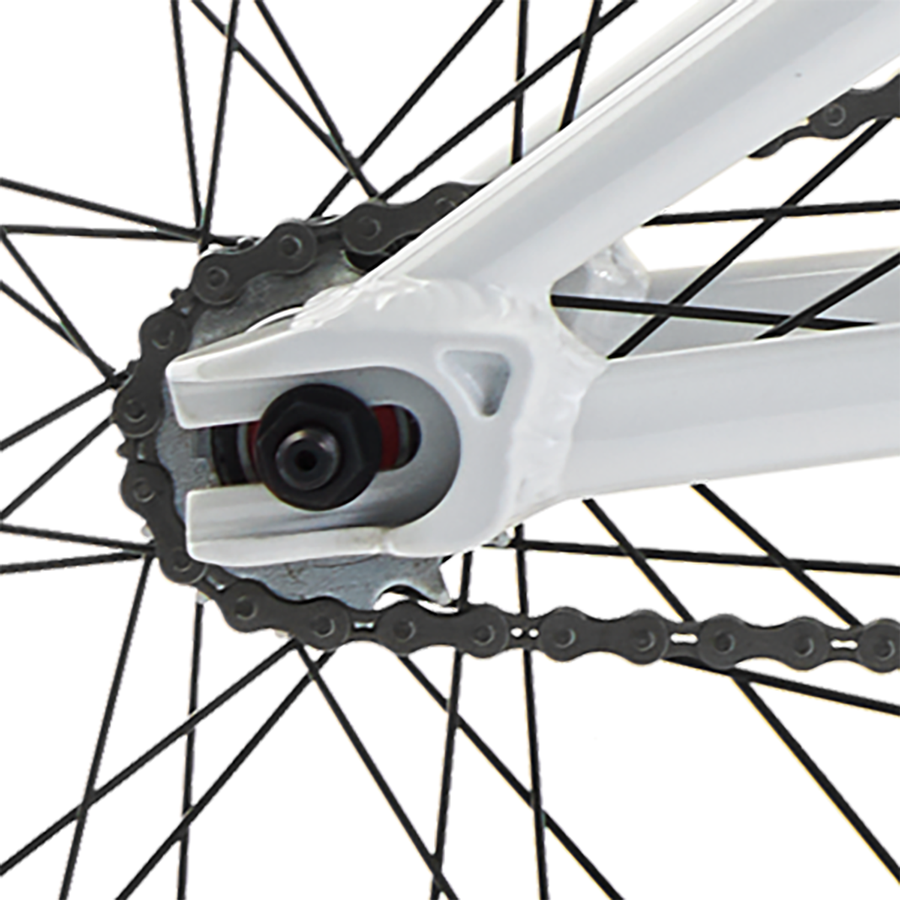

Rear Hub - Redline Aluminum, Cassette, Fully Sealed
Spokes - Stainless 14g, Black
Rims - A-M6 Alloy Race, 20 X 1.5, 32h
Tires - Vee Speed Booster, 20 X 1.95" Front / 20 X 1.75" Rear

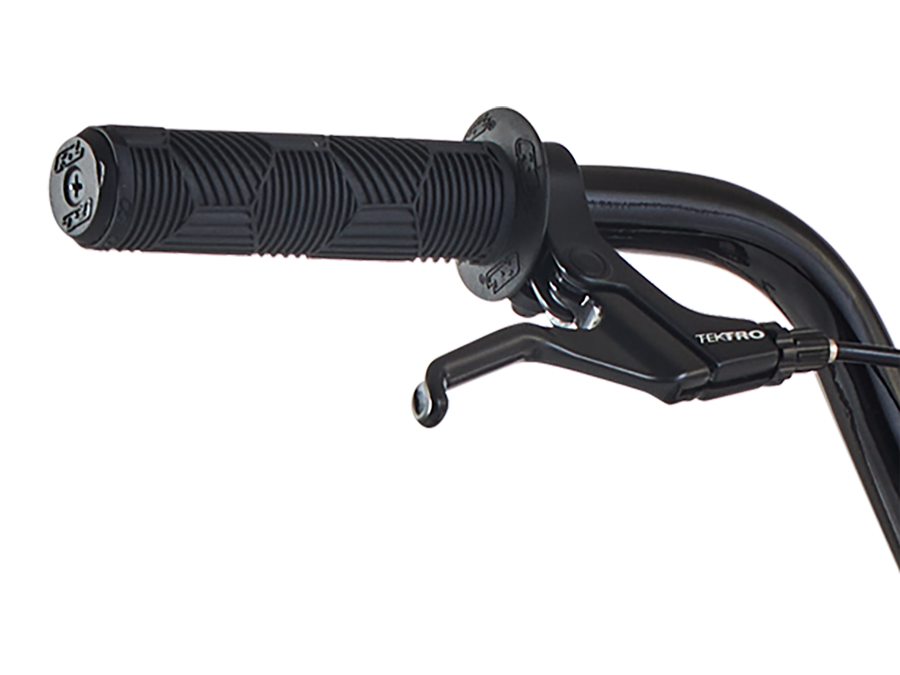

Brake Levers - Tektro 316a Linear
Pedals - Aluminum 9/16" Platform
Handlebar - Rl Expert Aluminum, 5.5" Rise / 10° Back / 2° Up
Grips - Rl Pro Hex Grips
Stem - Rl Aluminum Hollowpoint

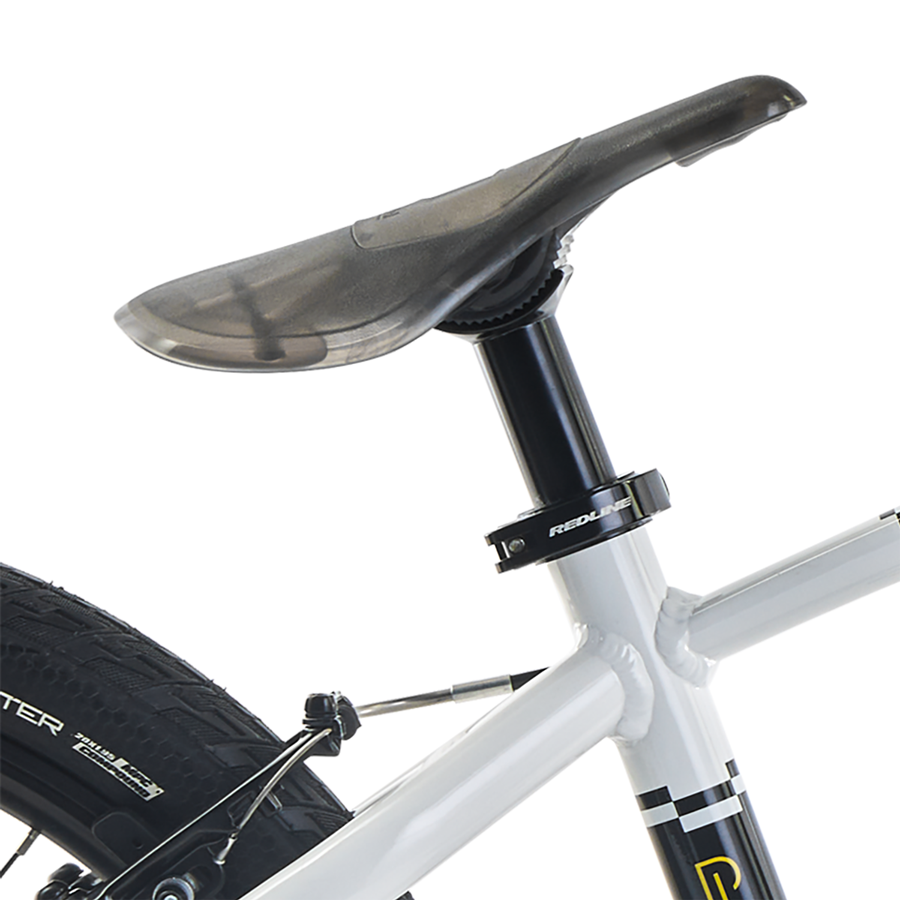

Seat - Pivotal No Padding
Seatpost - Aluminum Pivotal 26.8mm
Extras - Chain Tensioners
Brakes - Tektro 930al Linear
Geometry
Frame Size - 20"Bike Top Tube Length - 19.5 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.25 "
Bike Bb Height - 11.0 "
Bike Stem Length - 50.0 mm
Bike Handlebar Width - 26.0 "
Bike Crank Length - 170.0 mm
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
