Redline MX Mini 20" BMX Race Bike
Tax included
Shipping calculated at checkout
In stock
REDLINE 20" MX Mini Bike

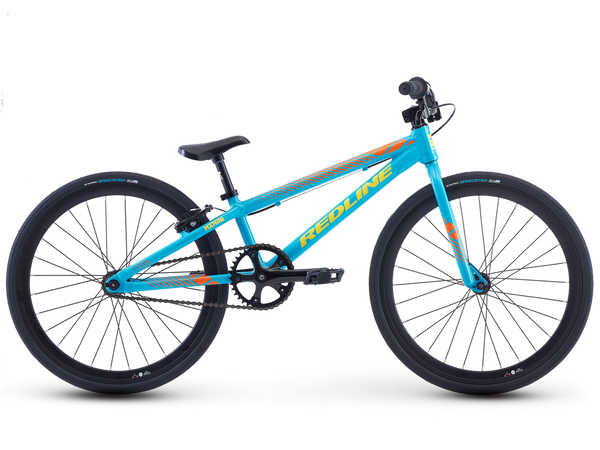

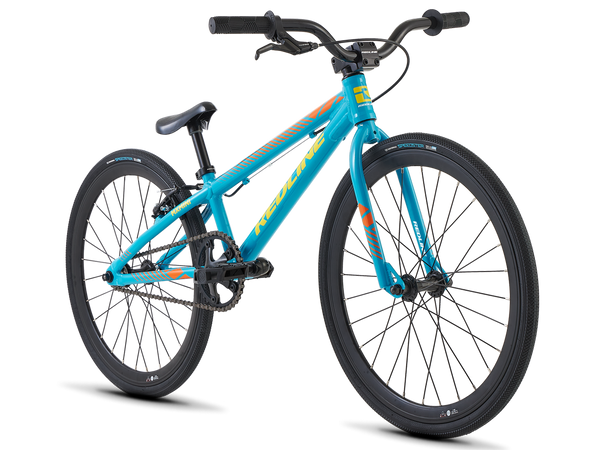

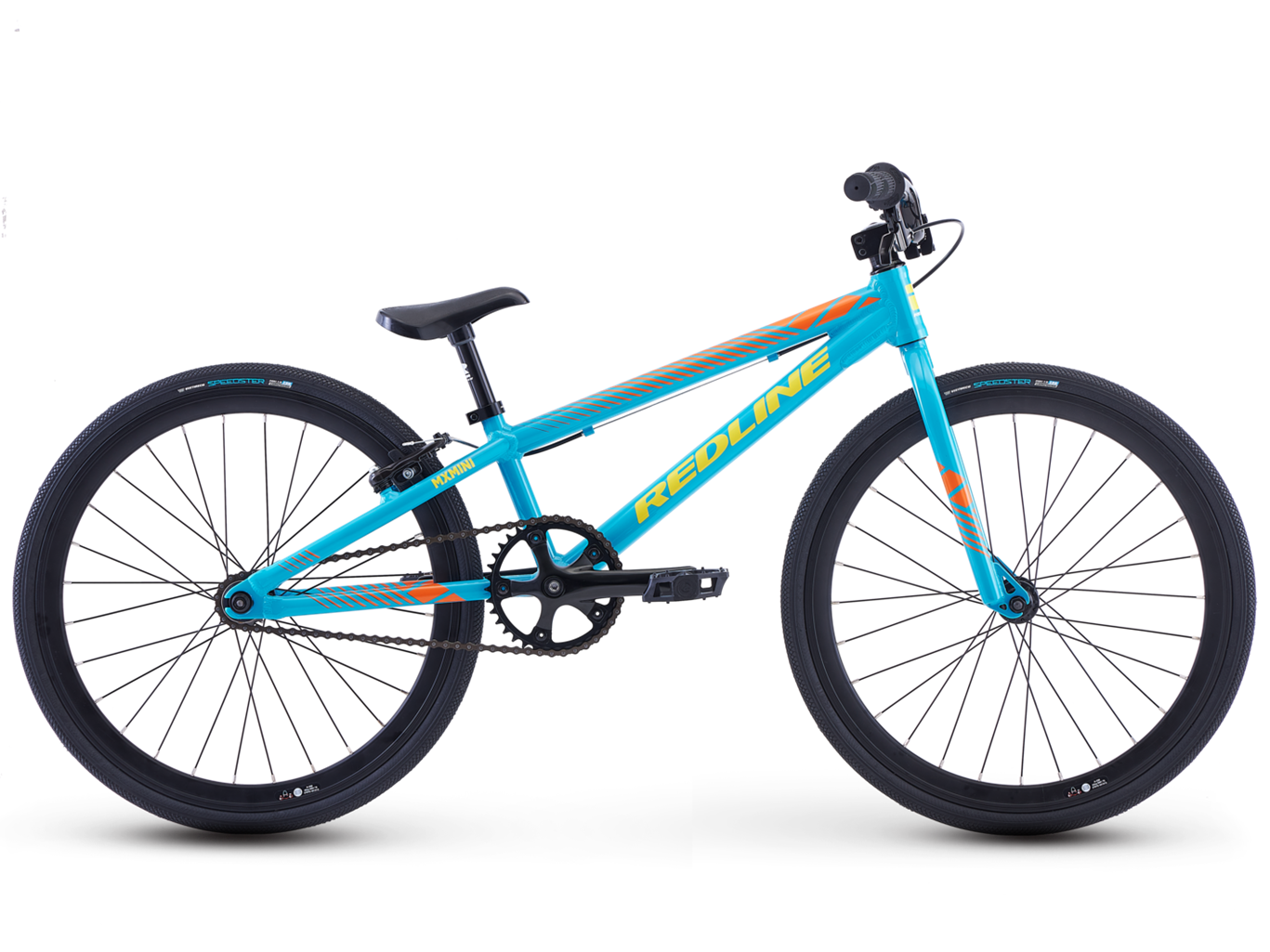

The Redline MX Mini is the perfect entry-level BMX race bike for the beginning youth racer who is 50" to 54" (127cm to 137cm) tall. Made with an aluminium frame and integrated head tube, the Redline MX Mini is lightweight and easy to manoeuvre. The MX Mini features a high quality 3-piece crank set, integrated headset, 20-inch wheels and an integrated saddle and seat post combination for ease of use.
Fork - RL Race Hi-Ten w/ Tapered legs
Headset - Integrated 1"

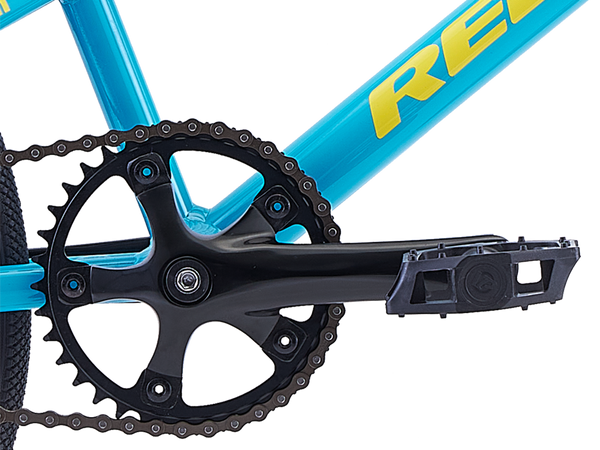

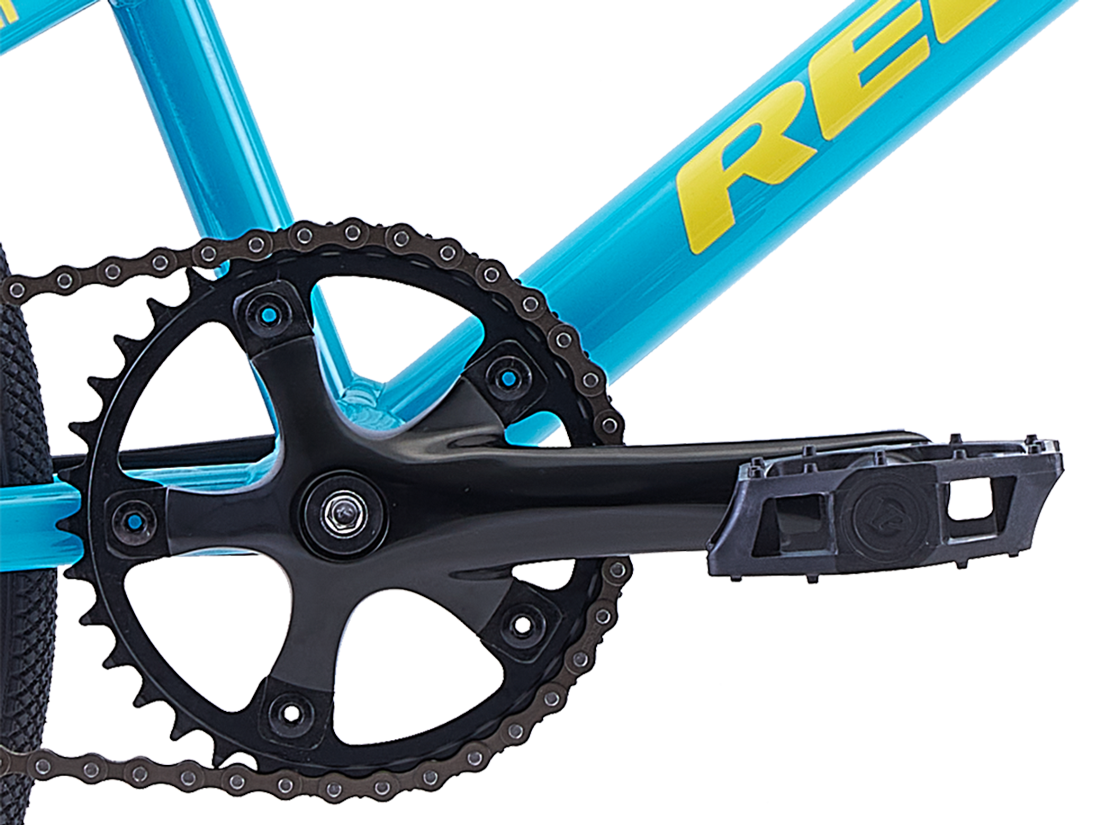

Cranks - Race Aluminum 3pc, 140mm
Sprocket - 38t, Alloy
Bottom bracket - Euro, Square Taper JIS
Cogset - 14t
Chain - KMC Z410
Front hub - Redline Aluminum
Rear hub - RL Aluminum Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 20 x 1 1/8

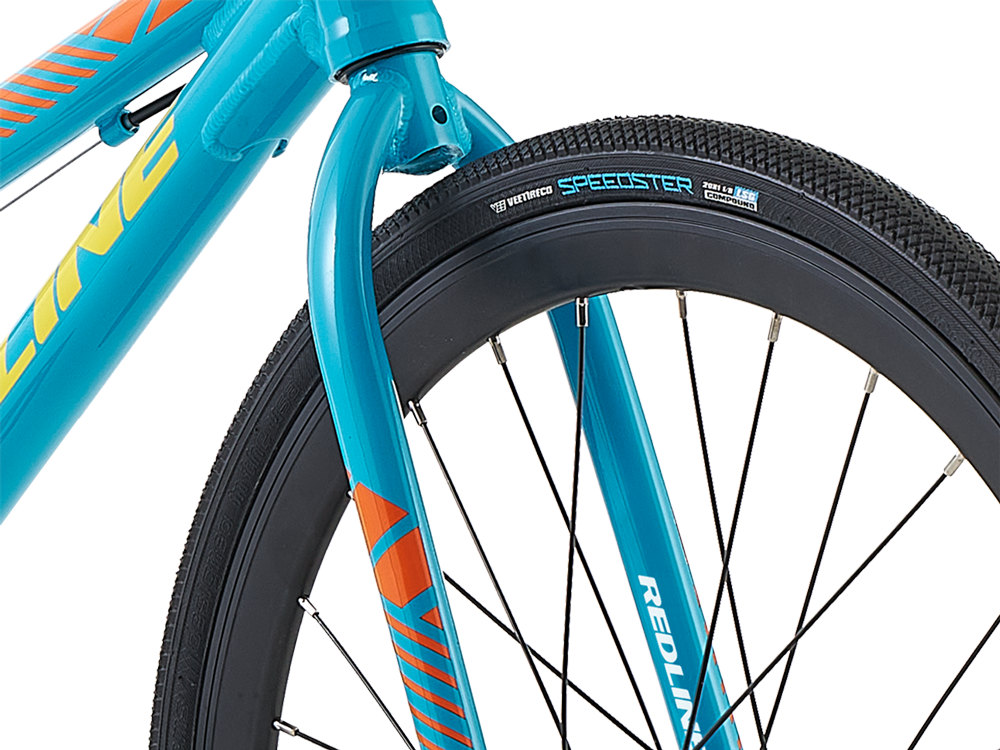

Tyres - Vee Speedster, 20 x 1-1/8"

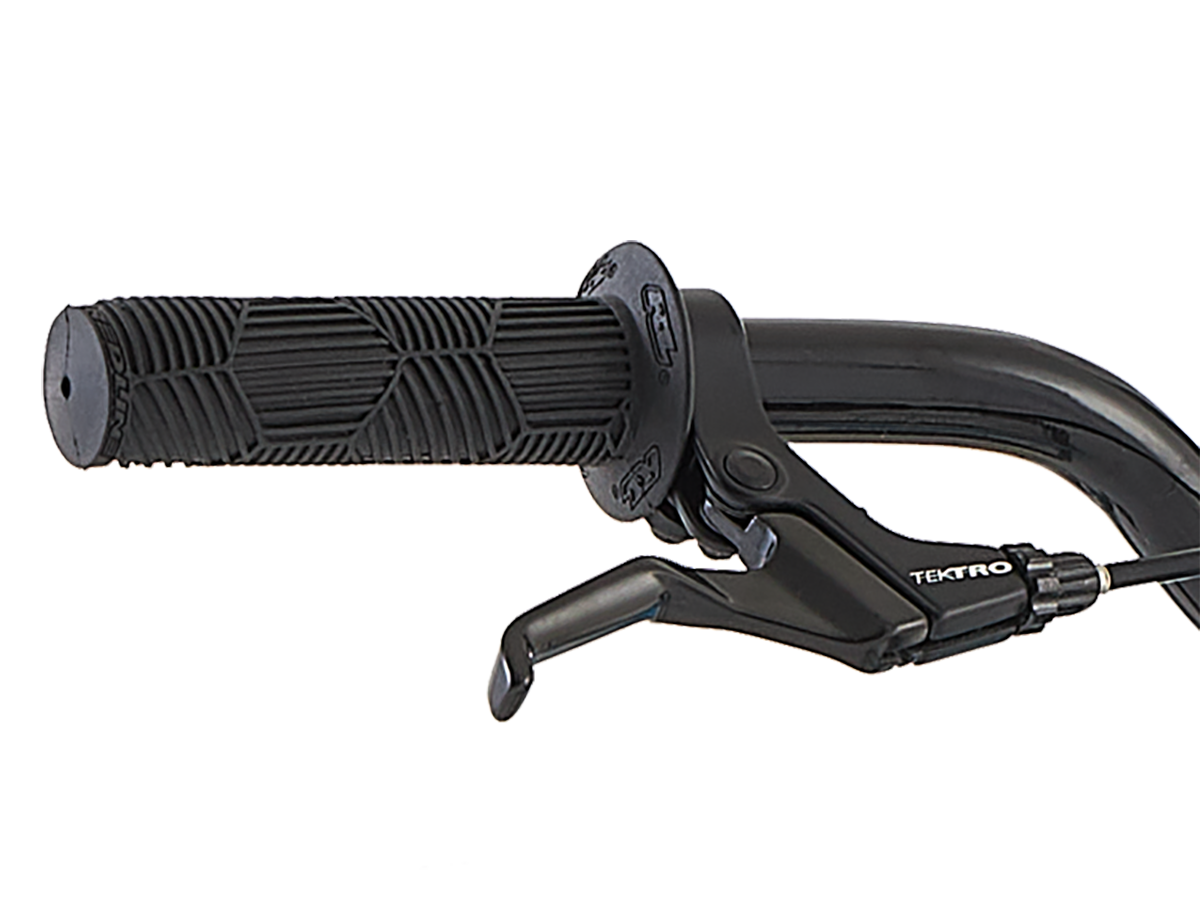

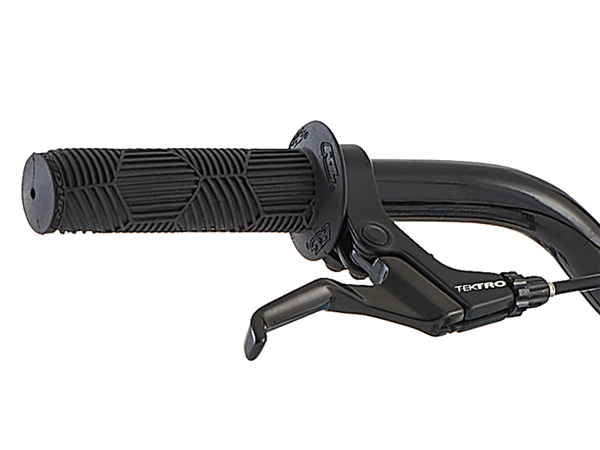

Brake Levers - Tektro
Pedals - RL Race 9/16" PC pedal

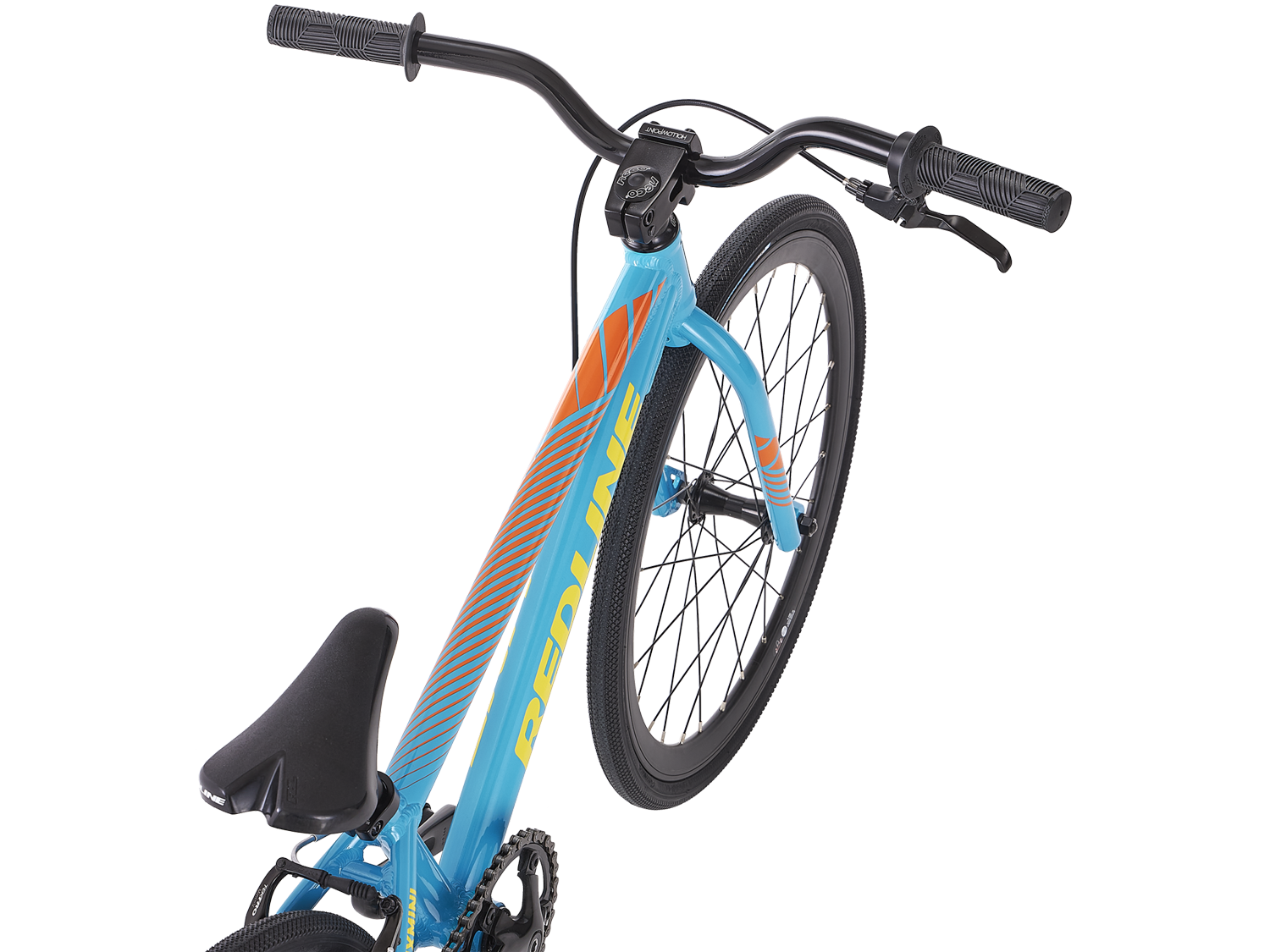

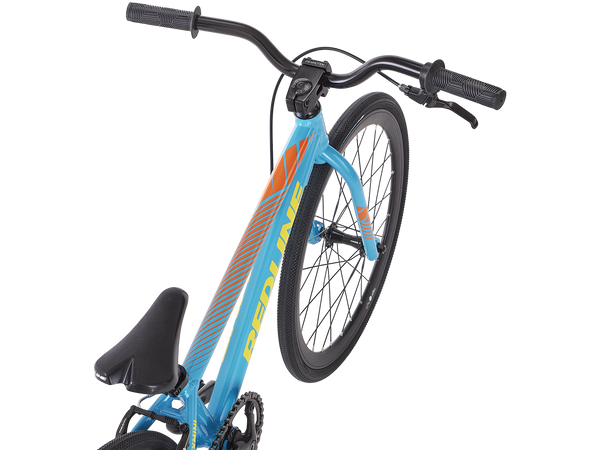

Handlebar - Alloy Race, 2.5" Rise / 10° Back / 2° Up
Grips - Redline Hex Expert w/plugs
Stem - RL Hollow Point Aluminum 1" threadless
Seat - RL Race Integrated w/22.2 Post
Brakes - Tektro 926 AL Linear
Geometry
Frame Size - 20"
Bike Top Tube Length - 18.0 "
Bike Head Angle - 72.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.1 "
Bike BB Height - 10.5 "
Bike Stem Length - 40.0 mm
Bike Handlebar Width - 24.0 "
Bike Crank Length - 140.0 mm
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
