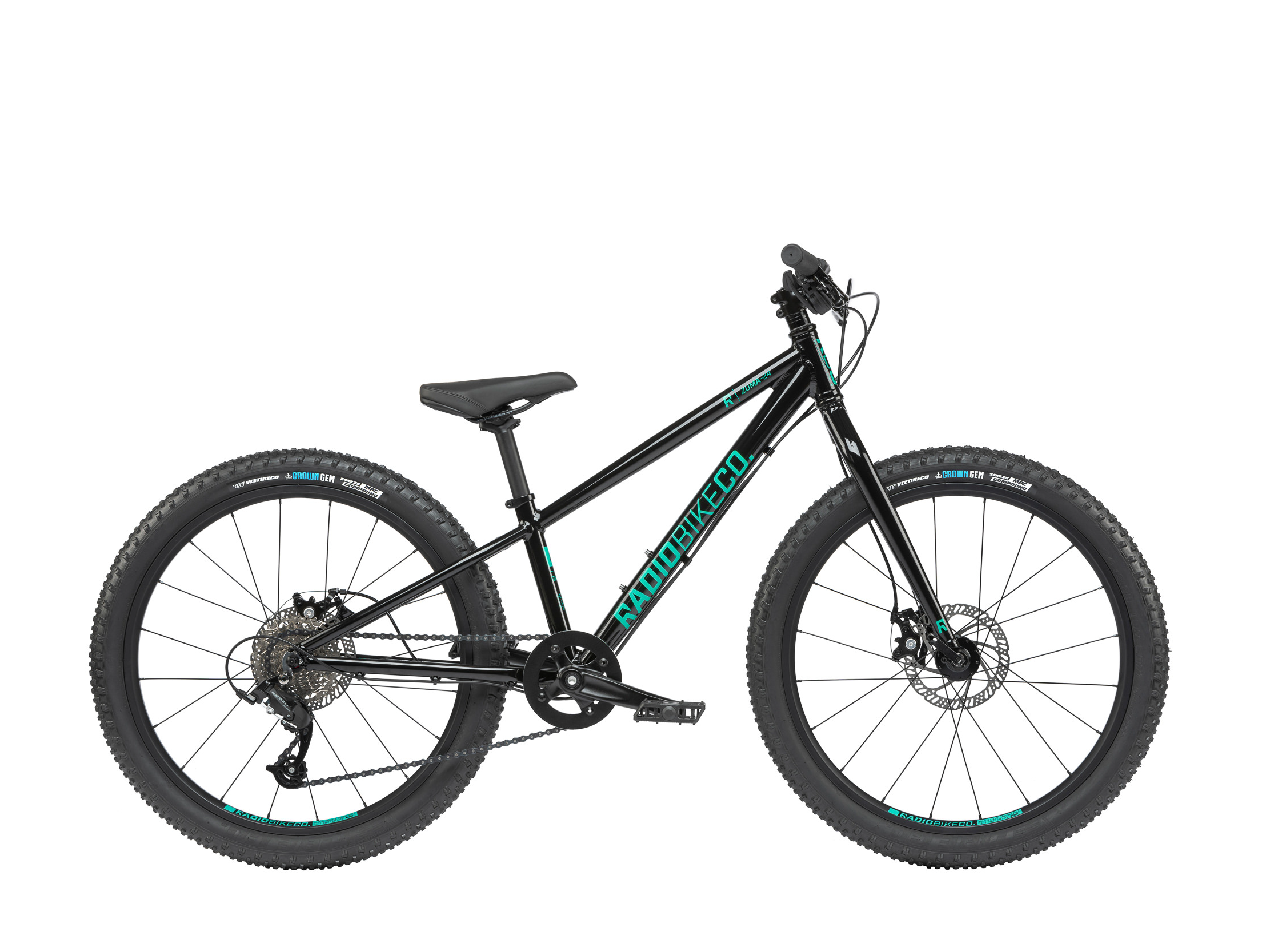

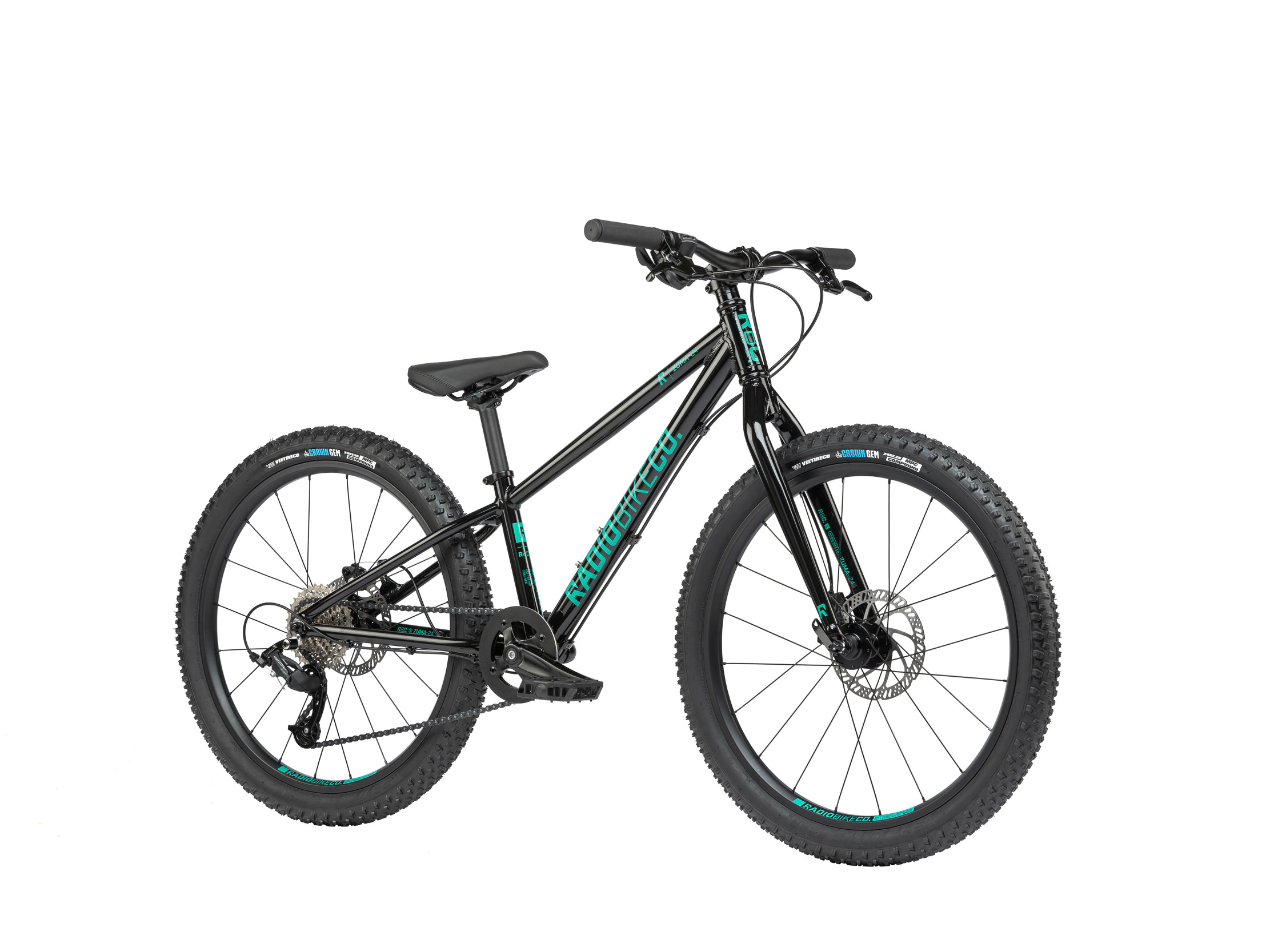

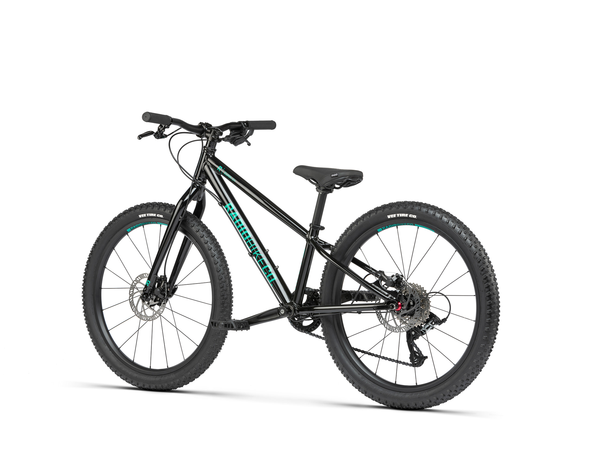

Radio Zuma 24" MTB Bike (Black)
Regular price $999.99
Unit price per
Radio Bikes Zuma 24” MTB Bike
Black or Cobalt Teal available
Frame - radio “zuma 24” frame, 6061-t6 alloy
Fork - radio “zuma 24” straight rigid fork, 6061-t6 alloy

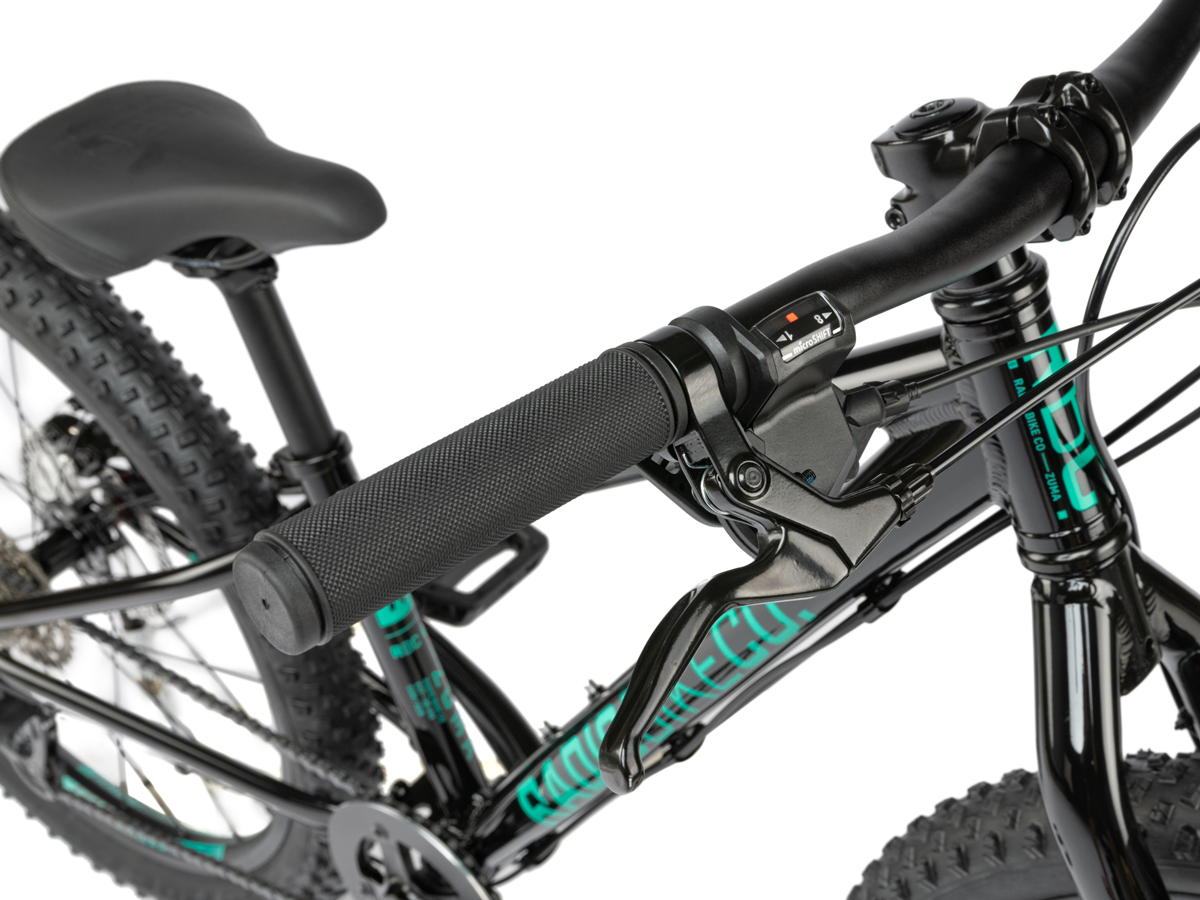

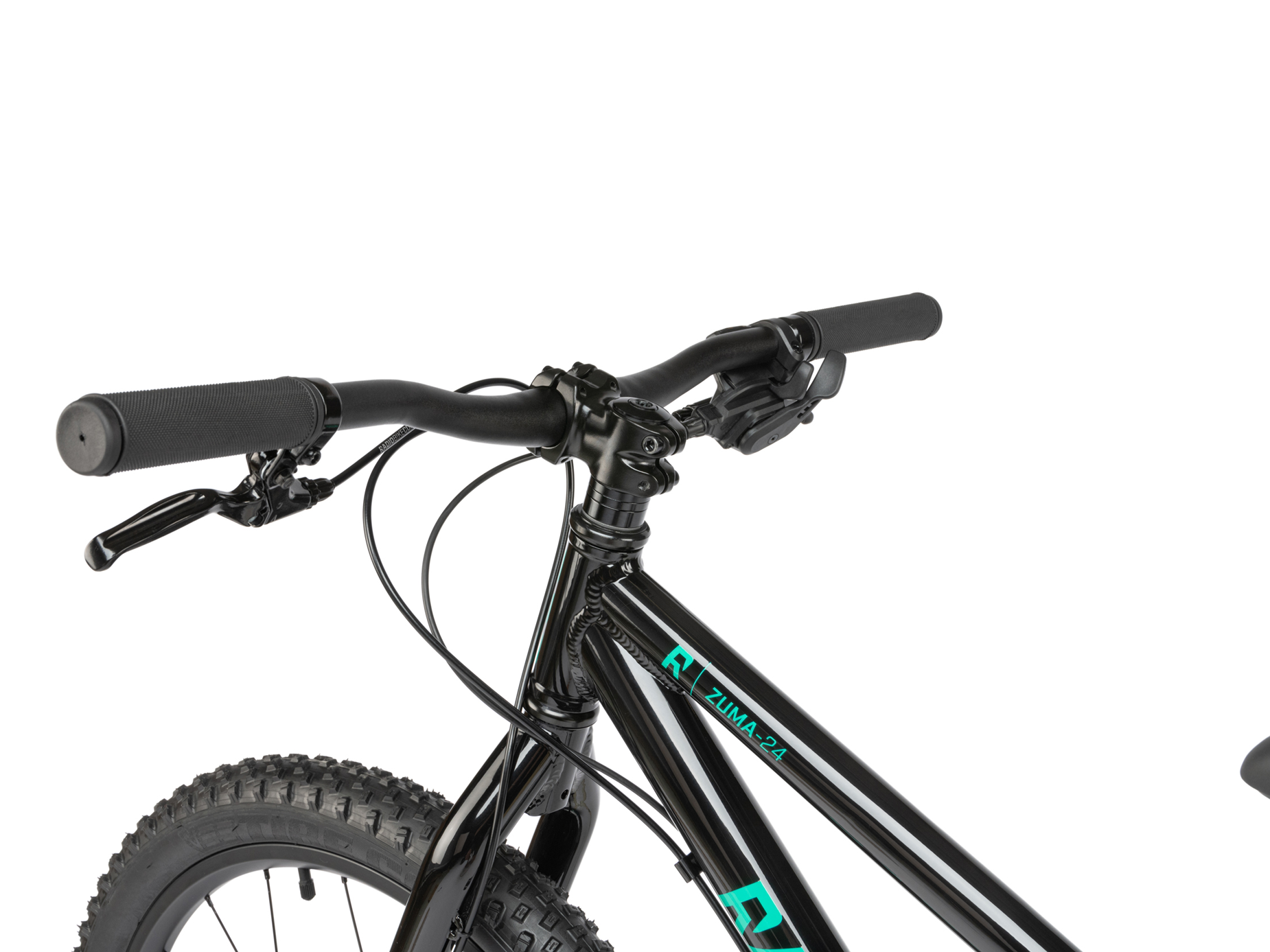

Handlebar - radio “zuma 24” bar, 6061-t6 alloy, 31.8mm bar bore, 1″rise
Grips - radio “zuma” grips, 130mm, flangeless
Stem - radio “zuma 45” frontload stem, alloy, 45mm reach
Headset - fsa a-headset, loose ball
Brake lever - promax “bl-42” lever, alloy

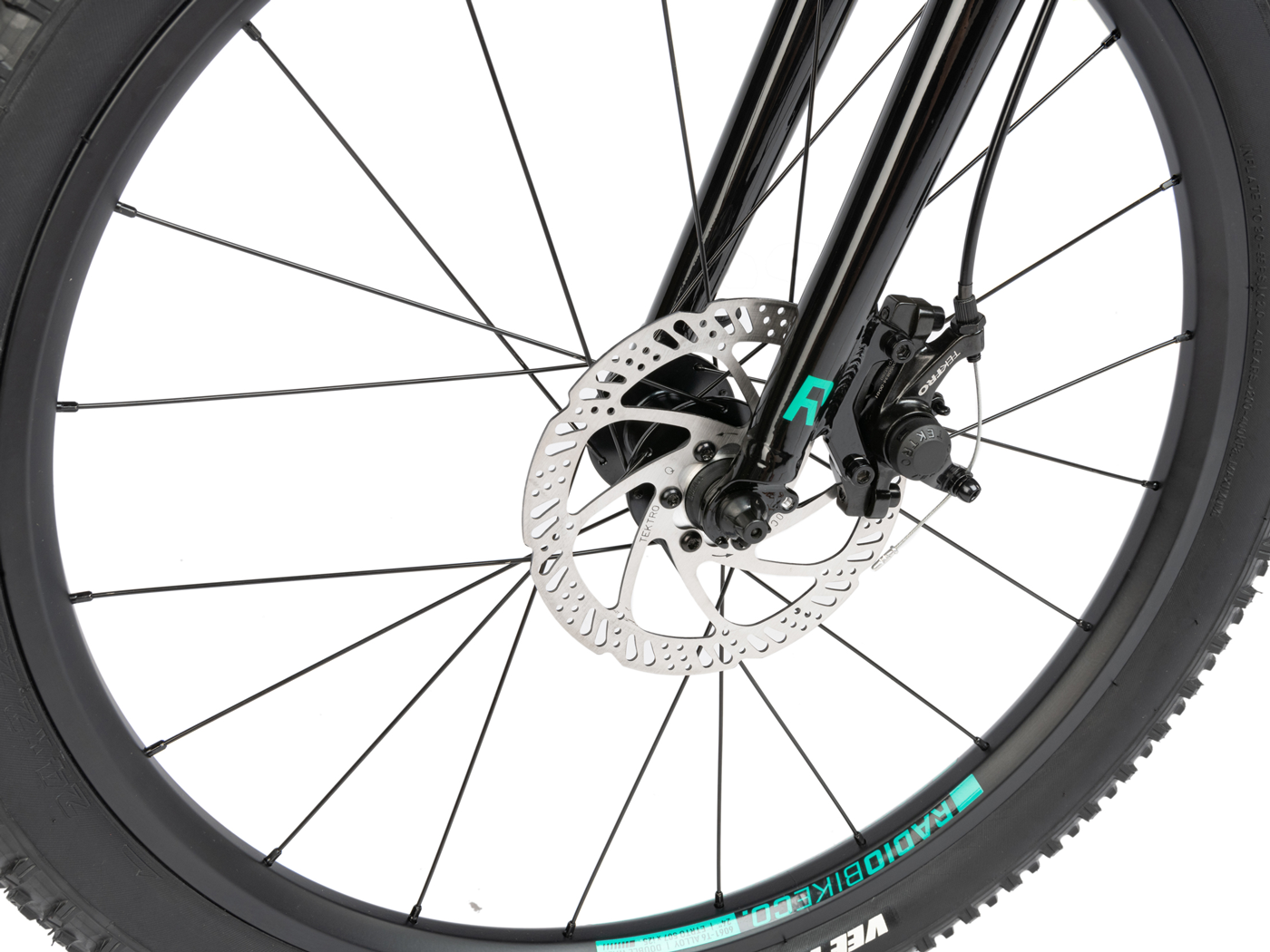

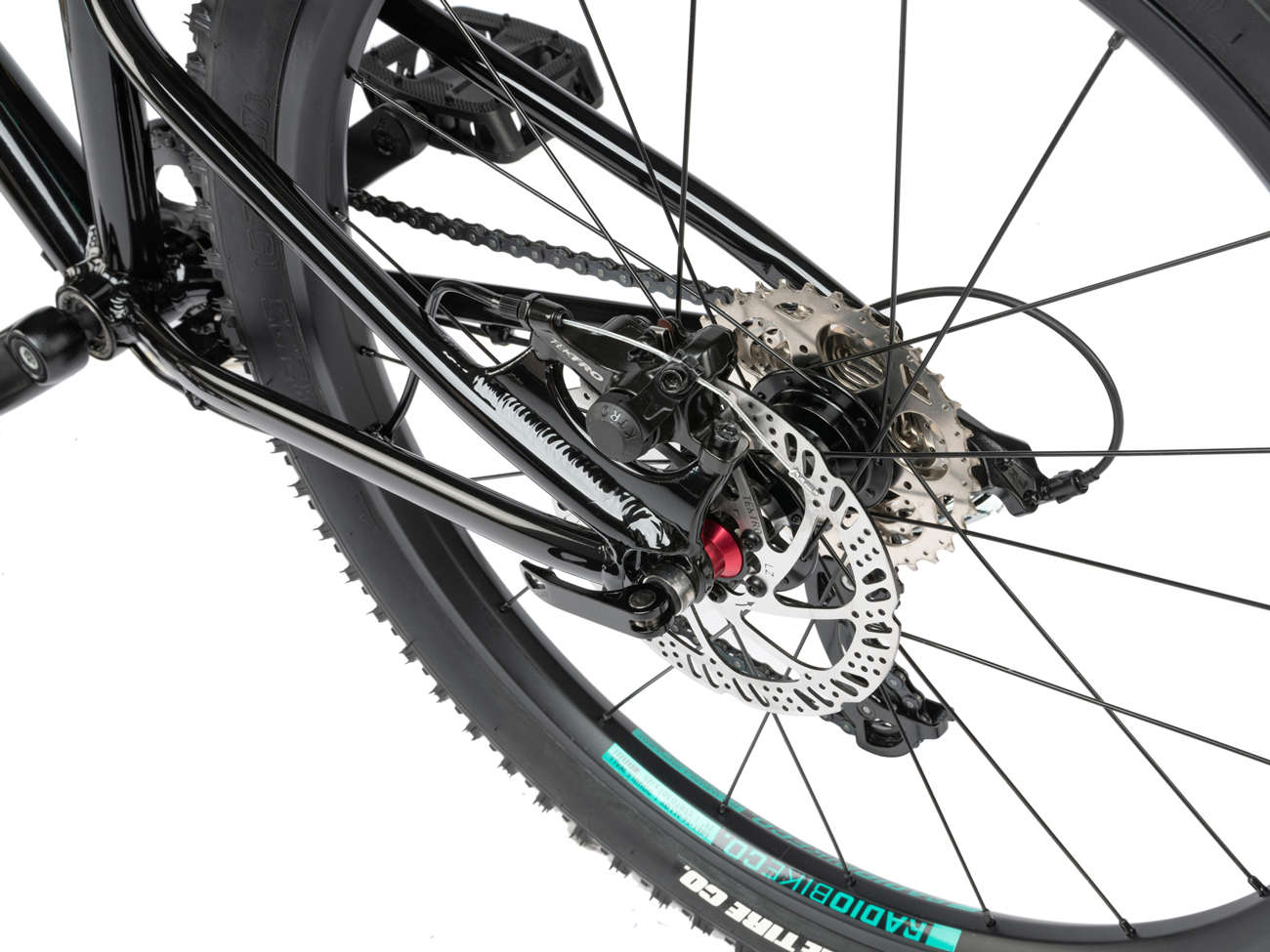

Brake - promax “dsk-310” – mechanical disc front & rear brake
Crank - radio “zuma” 3pc crank, forged alloy, 152mm length
BB - radio bb set, bsa, square taper, sealed bearing
Pedals - radio “zuma” pedals, nylon, crmo axle
Chain - kmc chain, z1 narrow type, 1/2″ x 3/32″
Sprocket - radio sprocket, steel, 32t, narrow wide

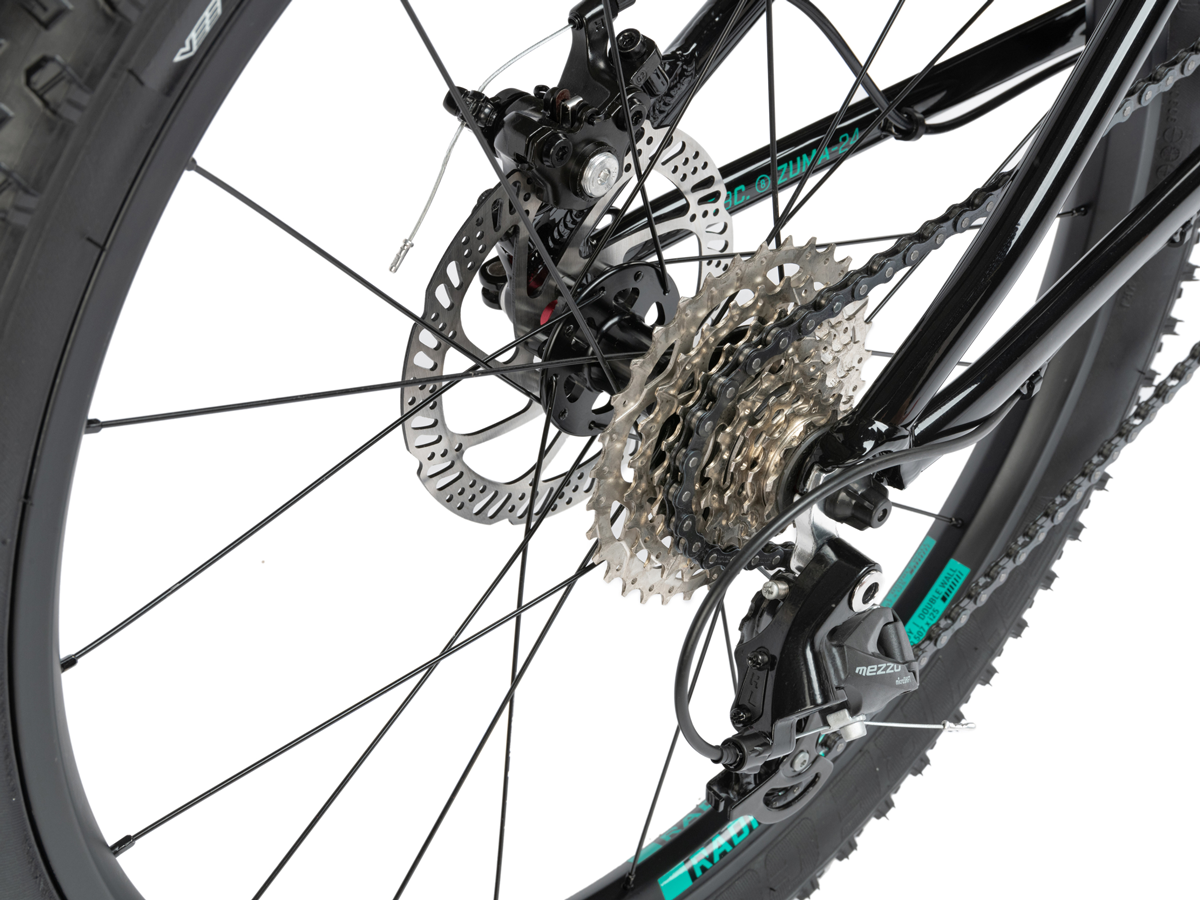

Driver - microshift 11-34t, 8speed
Front hub - radio disc hub, alloy shell, loose ball, qr crmo axle, 20h
Rear hub - radio “zuma” disc cassette hub, alloy, sealed, qr, 20h
Front rim - radio “j25se” rim, alloy, double wall
Rear rim - radio “j25se” rim, alloy, double wall

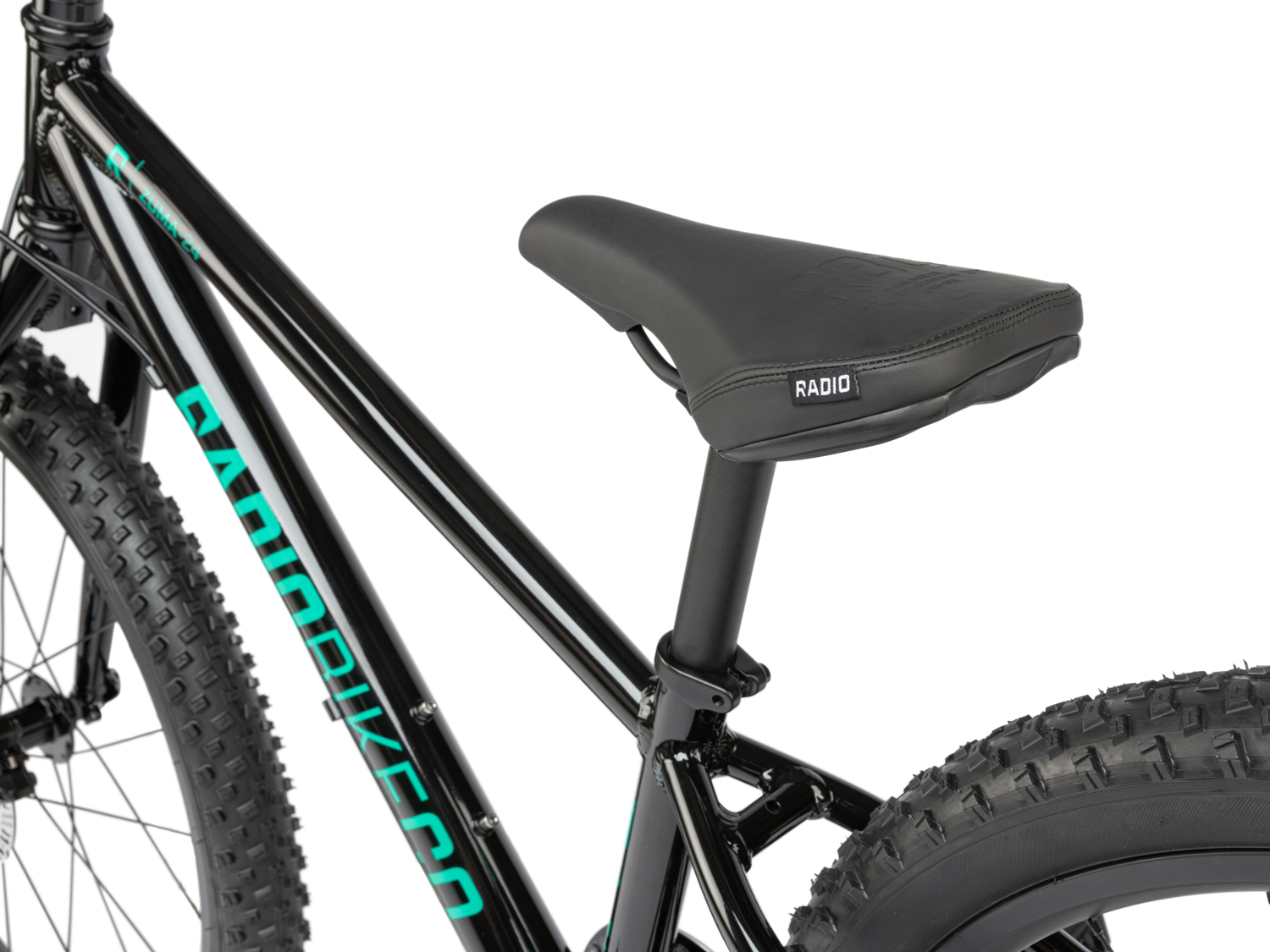

Seat - radio “zuma 2024” railed seat
Seat post - promax “sp-2019” seat post, alloy, multi-adjust, 300mm
Seat clamp - radio “slim” seat clamp, alloy
Tires - vee tire “crown gem” tires, 2.25″ front & rear
Weight - 11.28kg / 24.87lbs
FRAME GEOMETRY
Top tube length - 19.3″
Chain stay length - 16.14″
Head tube angle - 69°
Seat tube angle - 74°
Bottom bracket height - 30mm drop
Standover height - 9.2″
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
