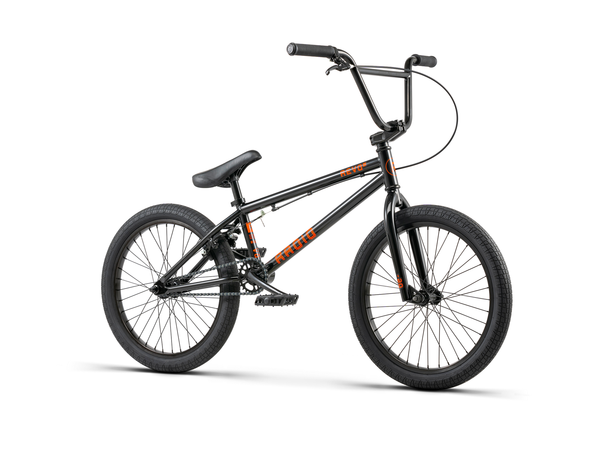

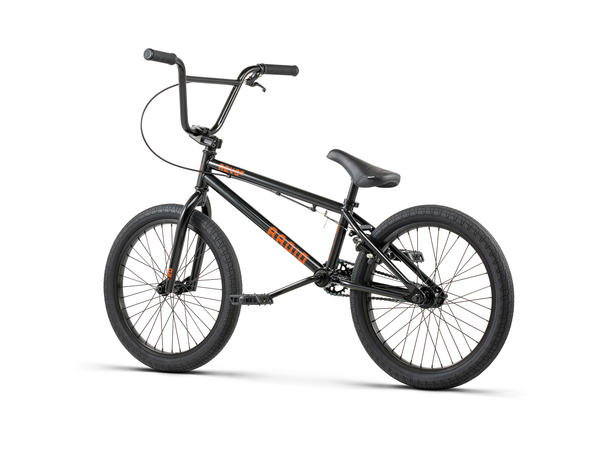

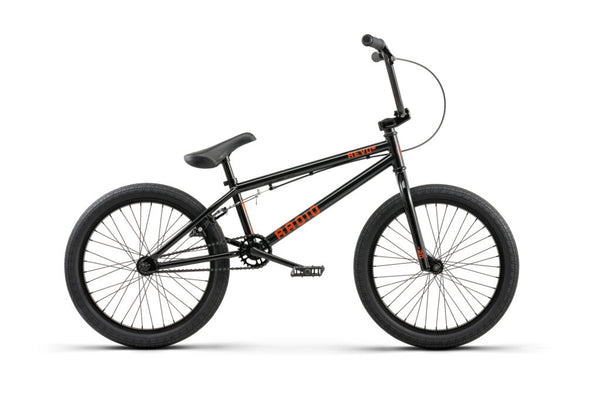

Radio Revo 20" BMX (Black/Orange)
Regular price $599.99
Unit price per
Radio Revo 20" BMX
The revo 20″ allows you to get your first taste of the bmx world on a solid and well-designed bike. We took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.
Frame - Radio “revo 20” frame, full 1020 hi-ten
Fork - Radio “am 20” fork, 1020 hi-ten, crmo steerer
Handlebar - Radio “revo 20” bar, hi-ten
Grips - Radio “am” grips, flangeless, 150mm
Stem - Salt “am” topload stem, 50mm reach
Headset - FSA “a-head-set” loose ball
Brake lever - Radio “am” alloy brake lever
Brake - Radio “am” alloy u-brake rear
Crank - Radio “rookie” opc forged crank crmo, 170mm
BB - Usa size, loose ball
Pedals - Radio “rookie” nylon pedals
Chain - KMC “s1” chain
Sprocket - Radio “rookie” sprocket, steel, 25t
Driver - 9t, cassette
Front hub - Radio “rookie” hub, steel, lb, 3/8″s, 36h
Rear hub - Radio “rookie” cassette hub, steel, lb, 9t, 14mm axle, 36h
Front rim - Salt “am” rim, straight single wall, 36h
Rear rim - Salt “am” rim, straight single wall, 36h
Seat - Radio “century” slim combo seat
Seat clamp - Radio slim alloy seat clamp
Tires - Radio “rookie” tires, 20″x2.2″, front & rear
Weight 12.22kg / 26.94lbs
Frame geometry
Top tube length - 20″
Chain stay length - 13″
Head tube angle - 75°
Seat tube angle - 71.5°
Bottom bracket height - 11.75″
Standover height - 7.8″
Handlebar geometry
Rise - 8.75″
Width - 29″
Backsweep - 11°
Upsweep - 2°
