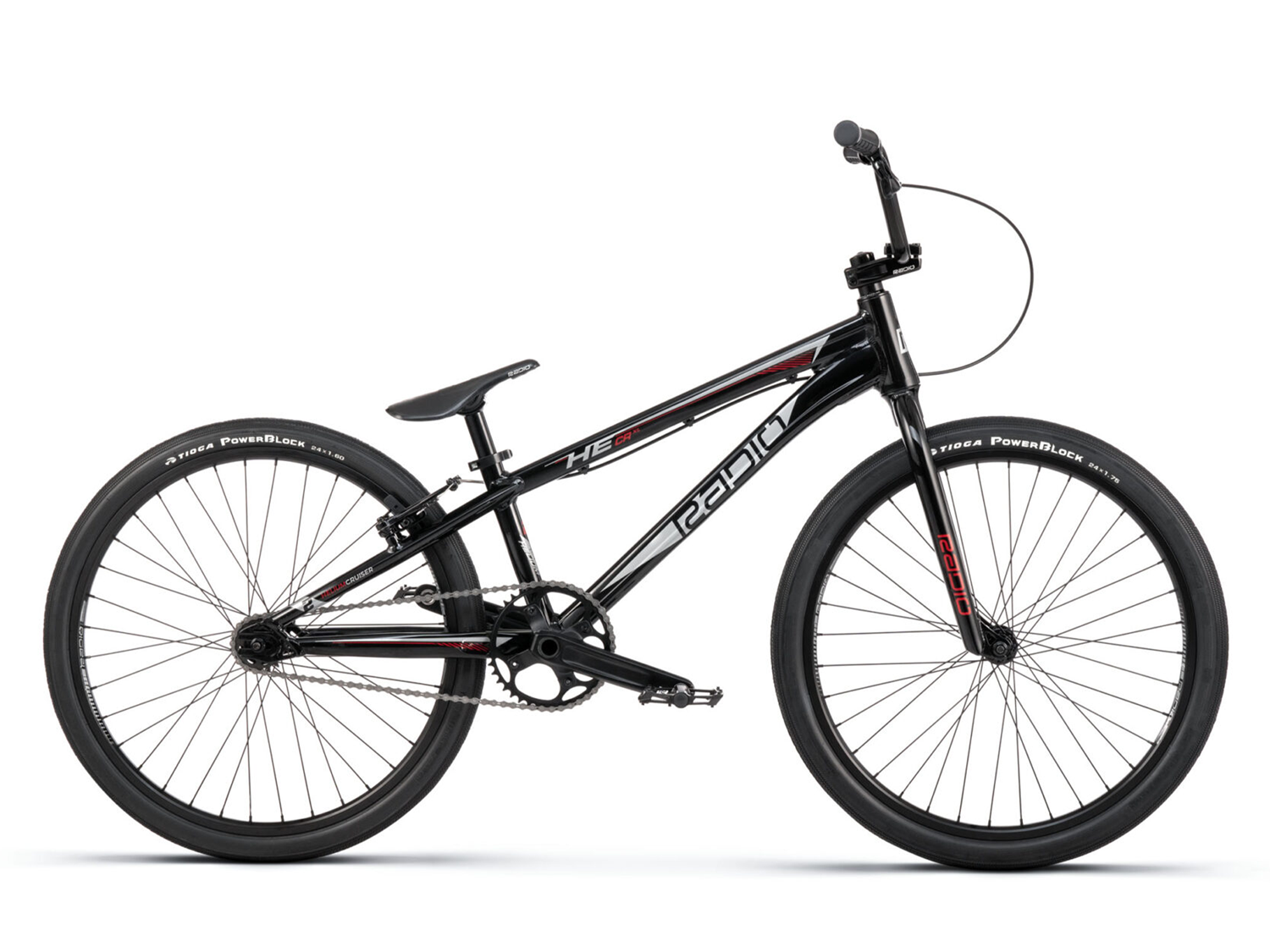

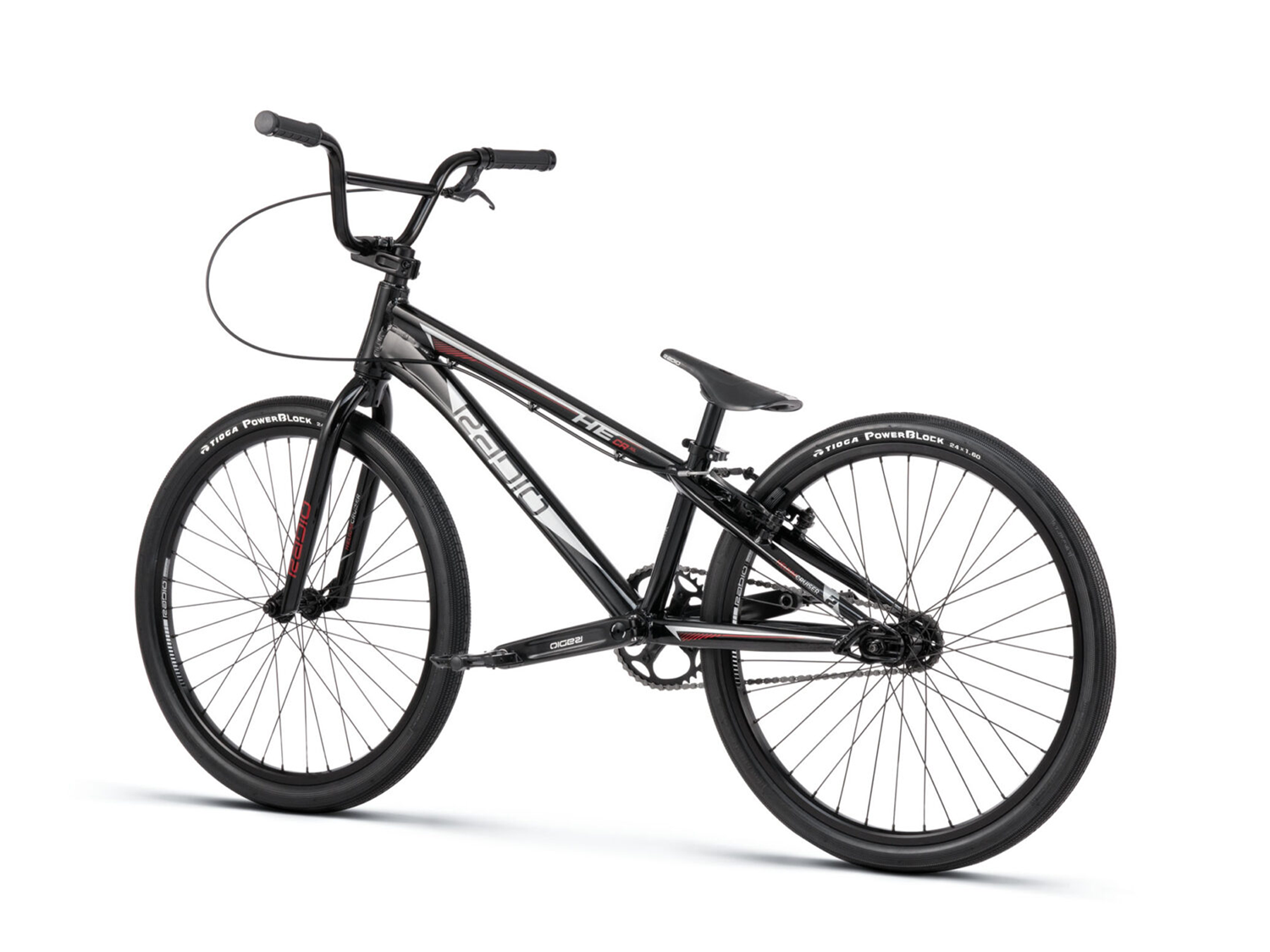

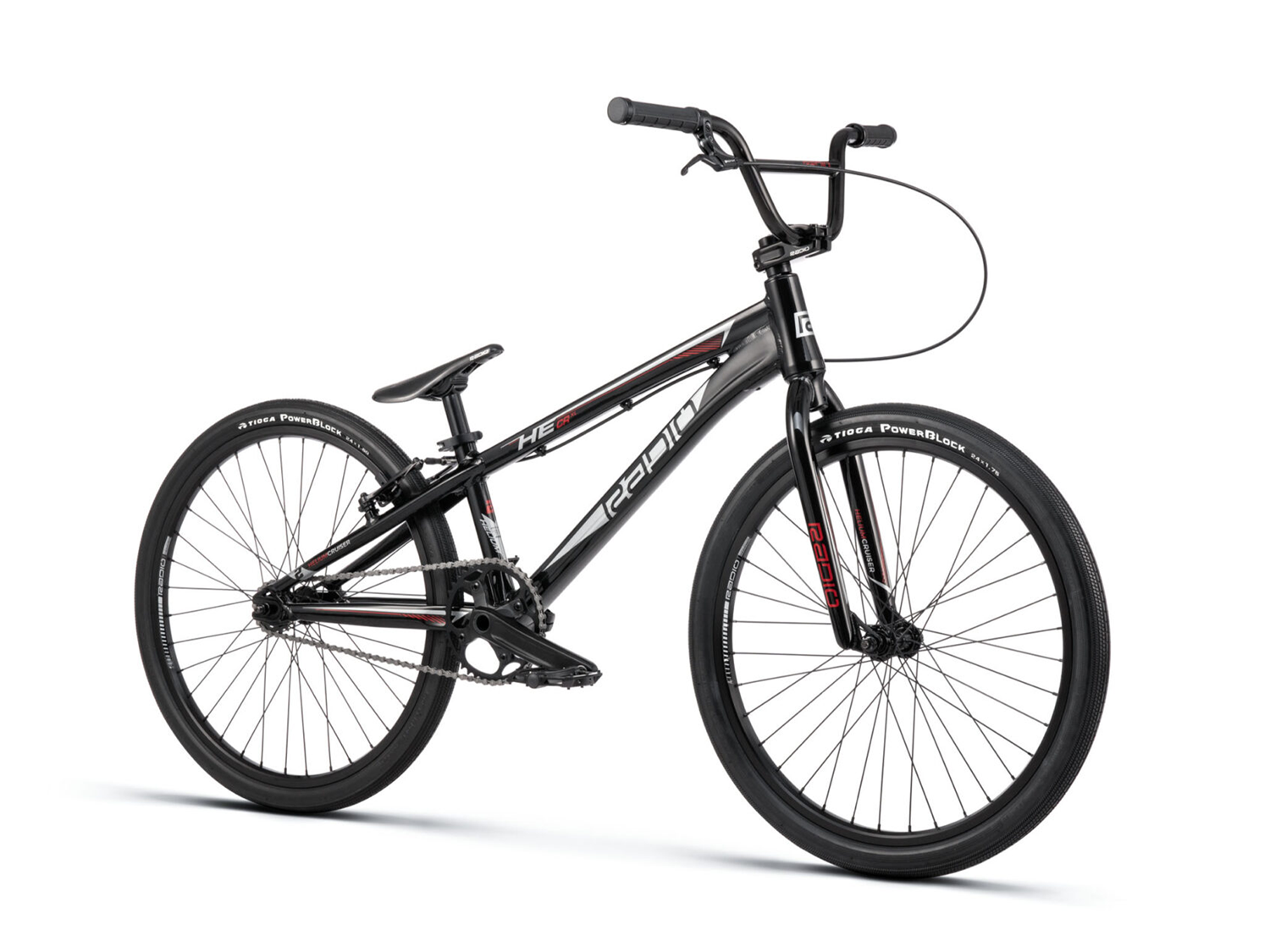

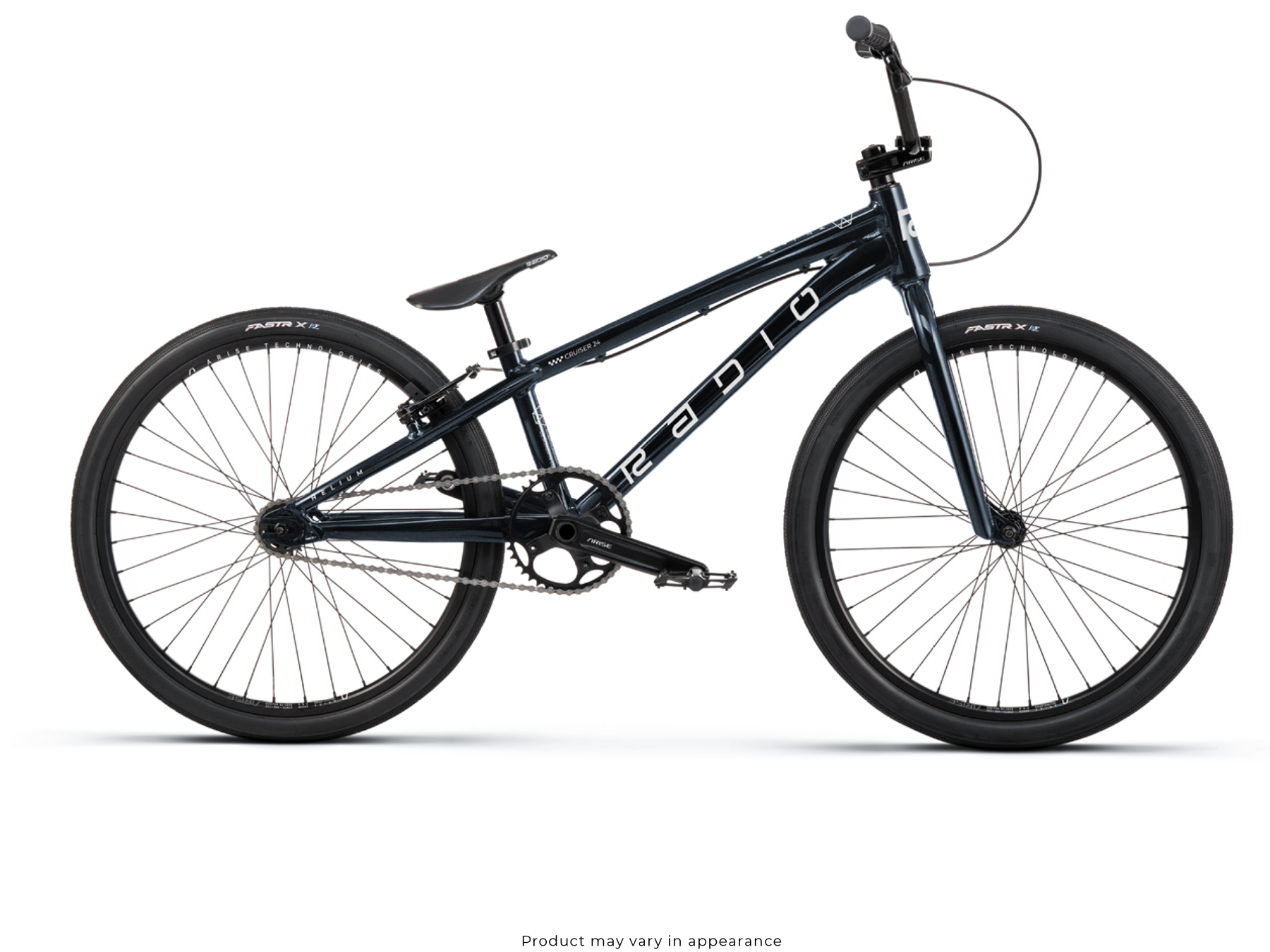

RADIO RACELINE 24" Helium Cruiser XL Bike
A bike that has developed quite the following, Radio is stoked to see the return of the Helium Cruiser to their line-up. Taking their aftermarket Helium Cruiser frame and injecting it with a full pro parts package, they spared no details here. From forged dropouts to Radio’s very own aftermarket Argon Pro rims to parts from Promax and Tioga, this 24″ machine is a bike with no limits.
Specifications
Frame - Hydroformed 6061 T6 alloy, tapered headtube, forged dropouts
Fork - Cr-Mo, 1-1/8″ butted steerer tube, Cr-Mo fork legs, 30mm offset

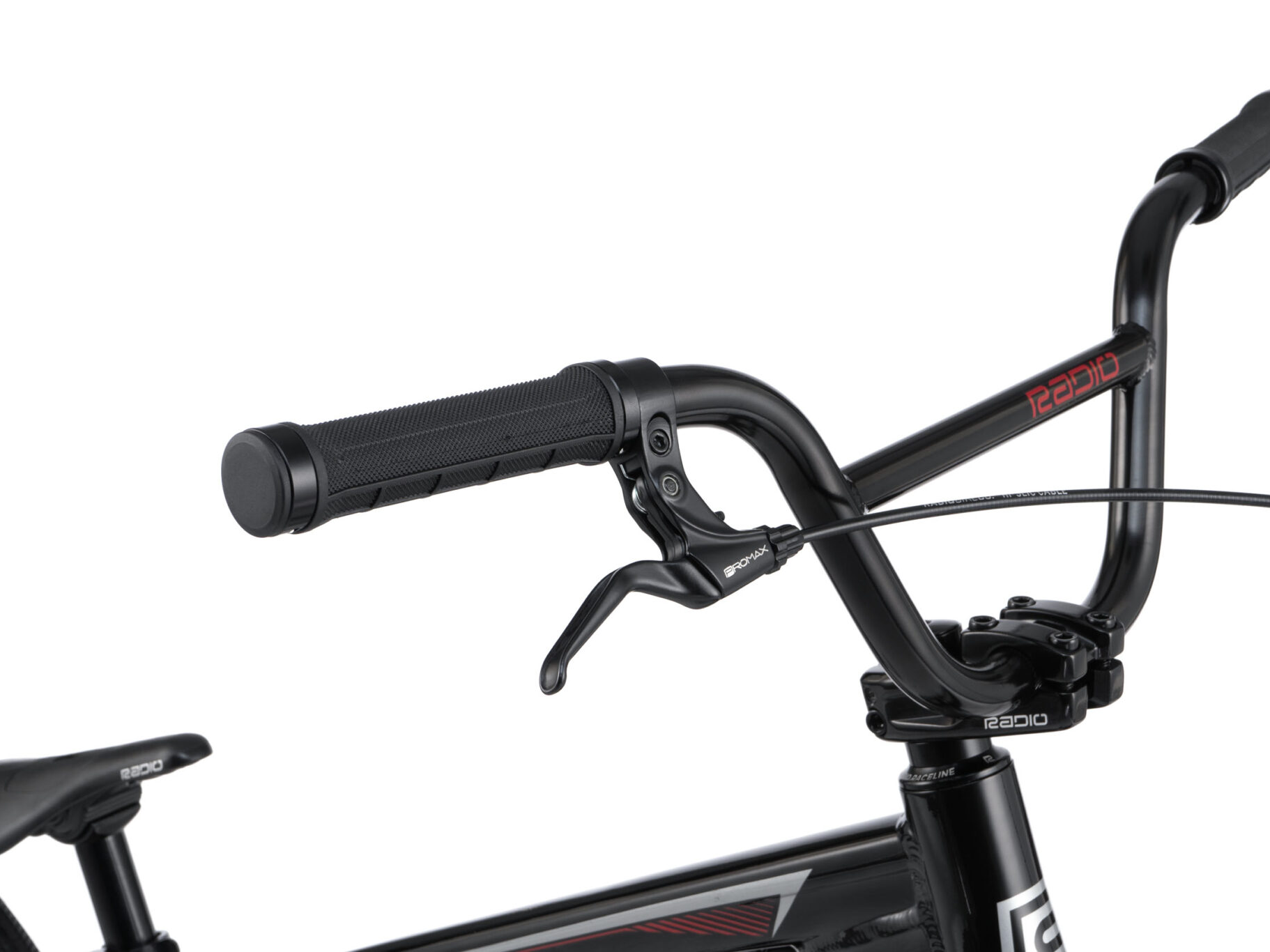

Handlebar - 4130 seamless Cr-Mo
Grips - Radio, 'Xenon', diamond knurling, clamp on grip, 139mm length

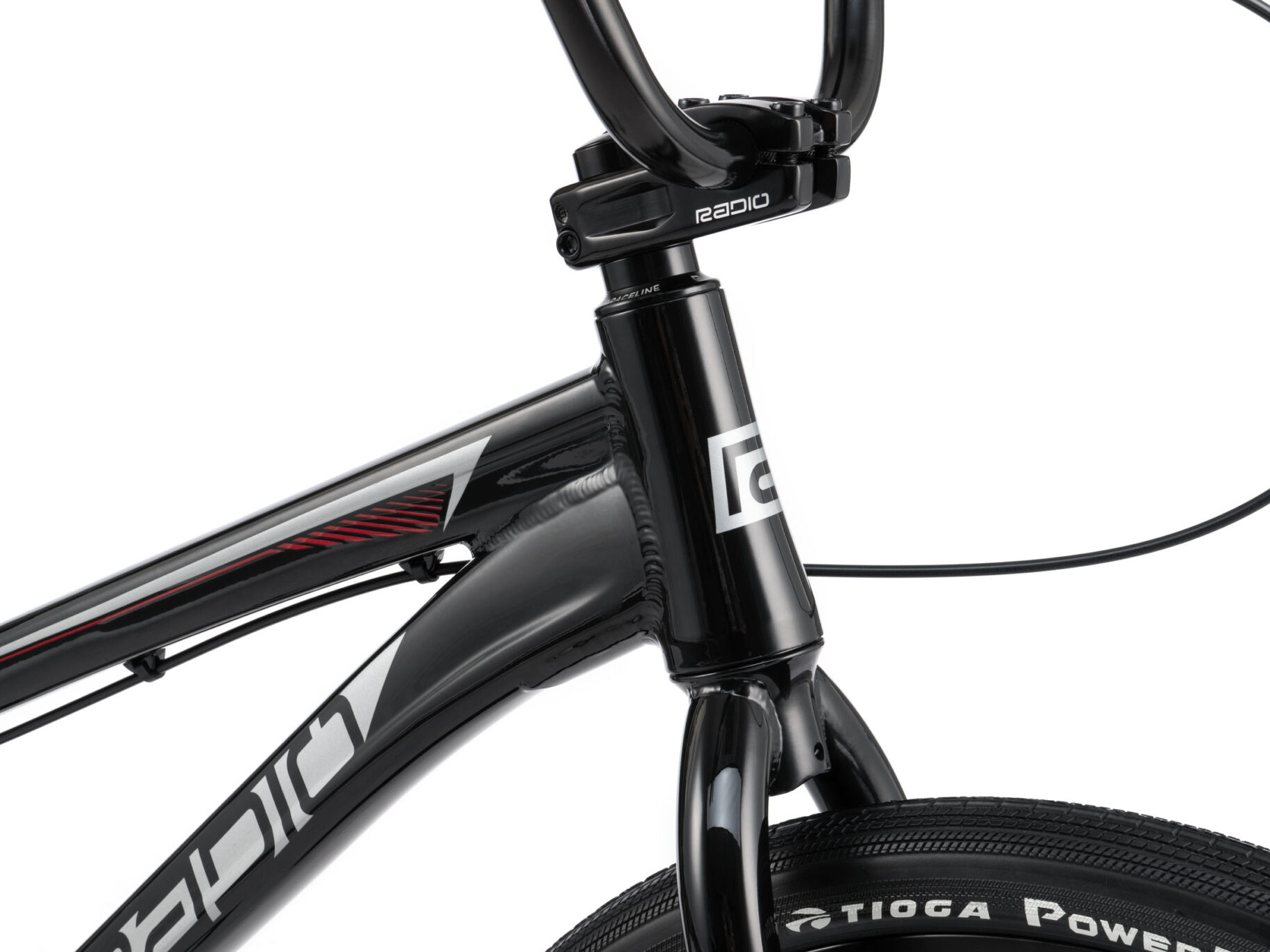

Stem - Radio, 'Xenon Pro', toploader, ext. 53mm, cold forged/CNC alloy
Headset - Radio, 'Pro', int. headset, sealed, threadless, 1-1/8″ – 1.5″, including fork crown race 1.5″-1 1/8″ converter
Brake lever -Promax 'XL-373' alloy brake rear. Dark Grey Metallic - Arise Race brake lever, rear

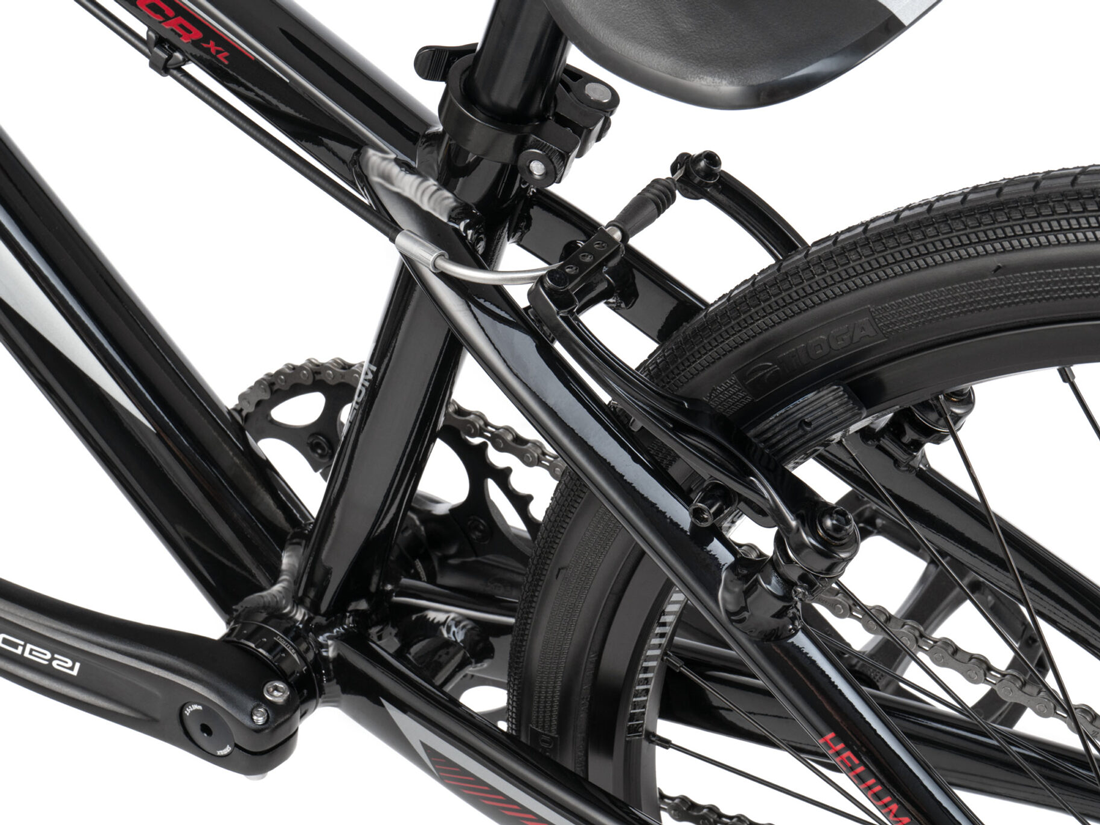

Brake - Promax 'TX-131' alloy brake rear. Dark Grey Metallic - Arise Race brake, rear

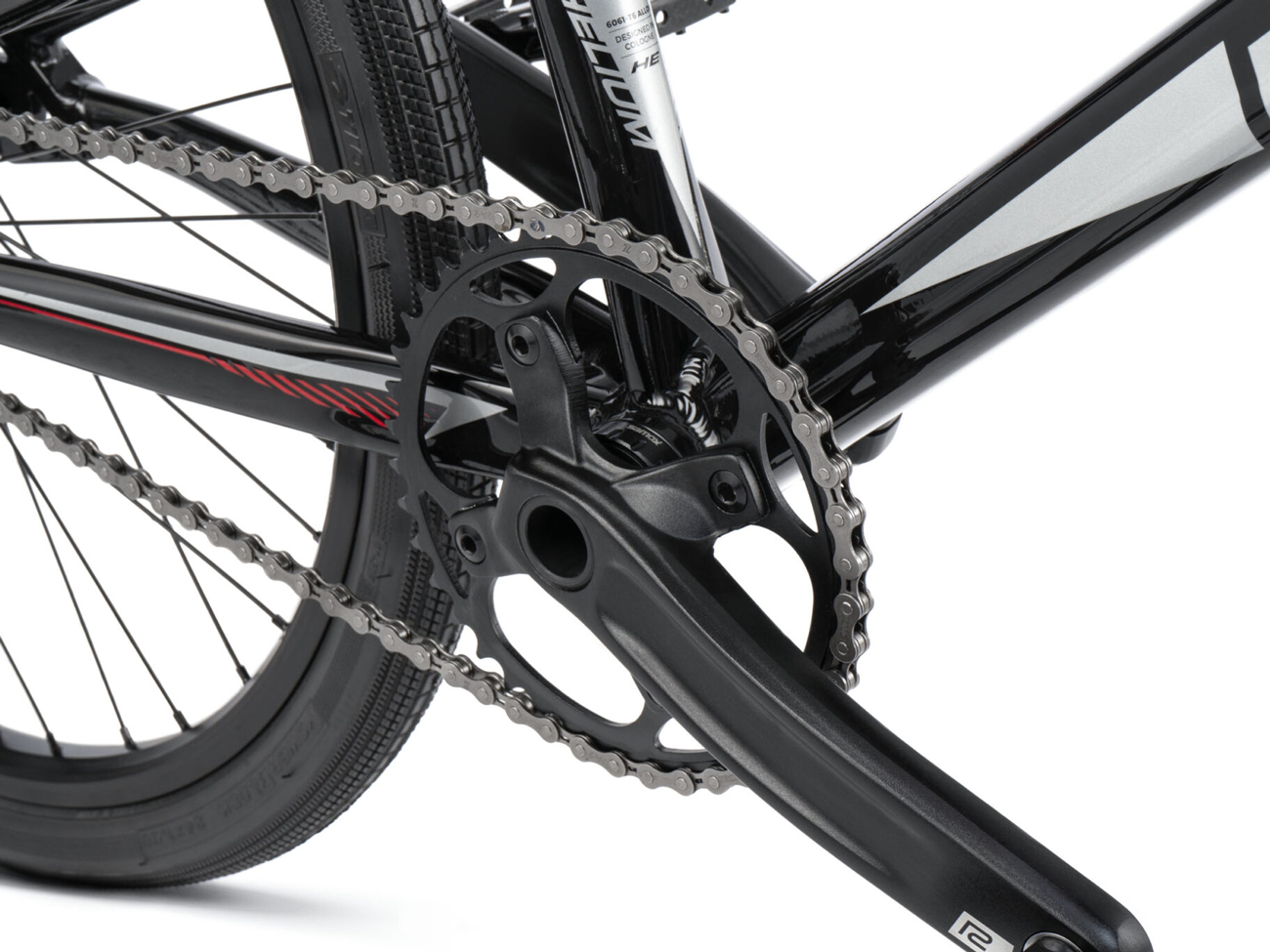

Crank - Xenon Pro 2pc crank, cold forged/CNC, alloy,180mm length, 24mm spindle
BB - Radio, 'BSA24', external bearing cups, CNC machined, sealed
Pedals - Xenon slim, alloy
Chain - KMC, 'Z6', 1/2″ x 3/32″
Sprocket - Xenon Pro 41T, alloy
Driver - Radio, 18T cog, 1/2″- 3/32″, sealed driver. Dark Metallic Grey - Radio Raceline driver, 16T, 1/2" – 3/32",sealed cassette
Front hub - Radio, 'Xenon', alloy CNC, fully sealed, 36T, Cr-Mo axle

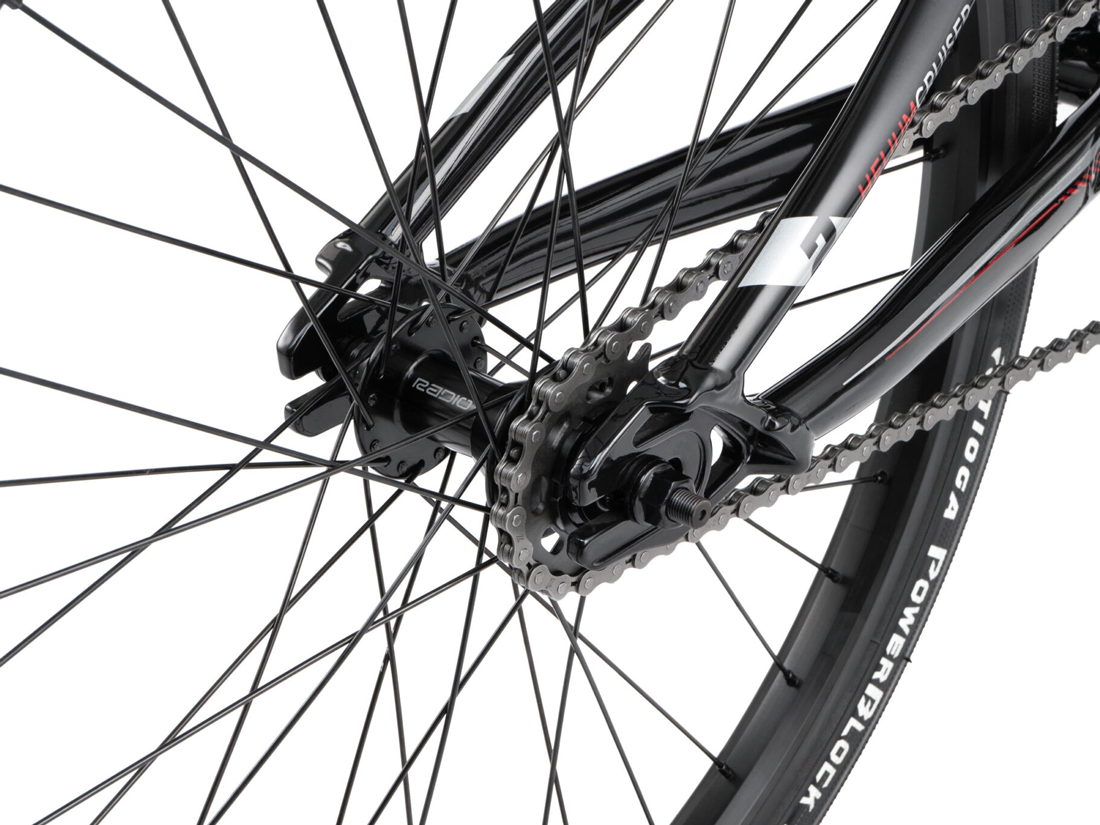

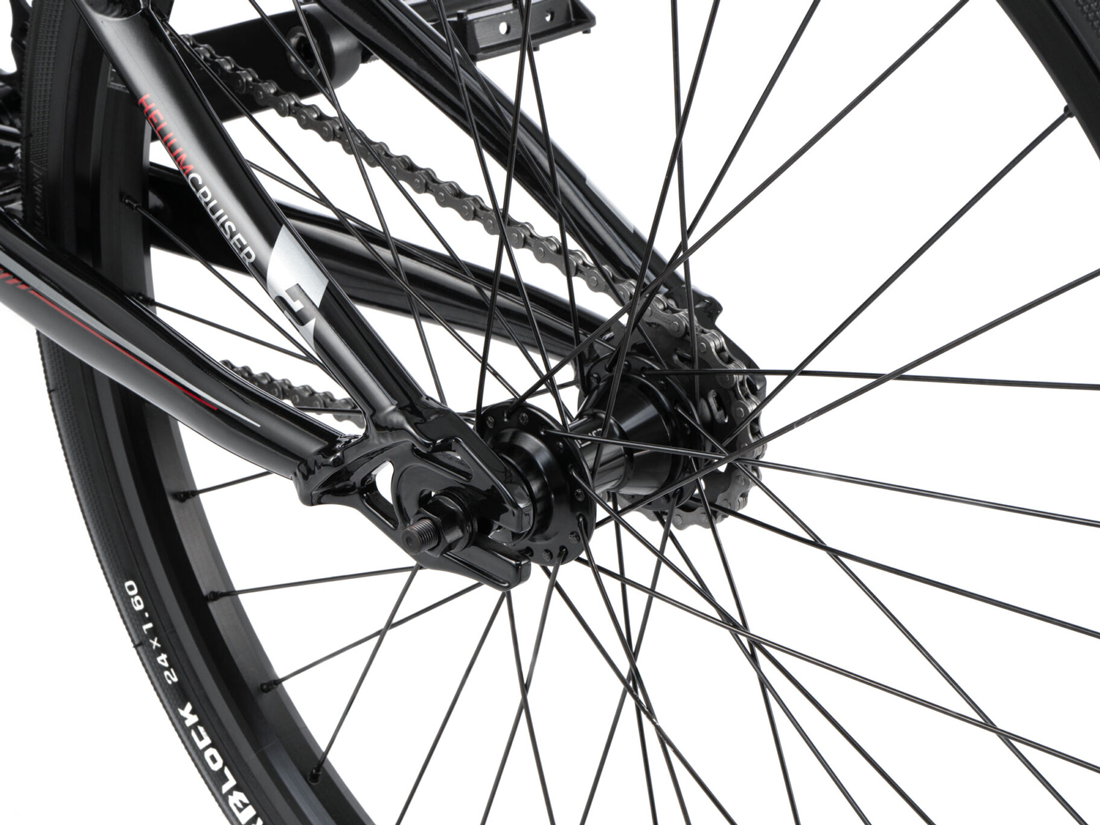

Rear hub - Radio, 'Xenon', alloy CNC, fully sealed, 36T, cassette, 3/8″ Cr-Mo axle
Rims - Radio, 'Argon Pro', 36H, alloy, sleeved joint F & R

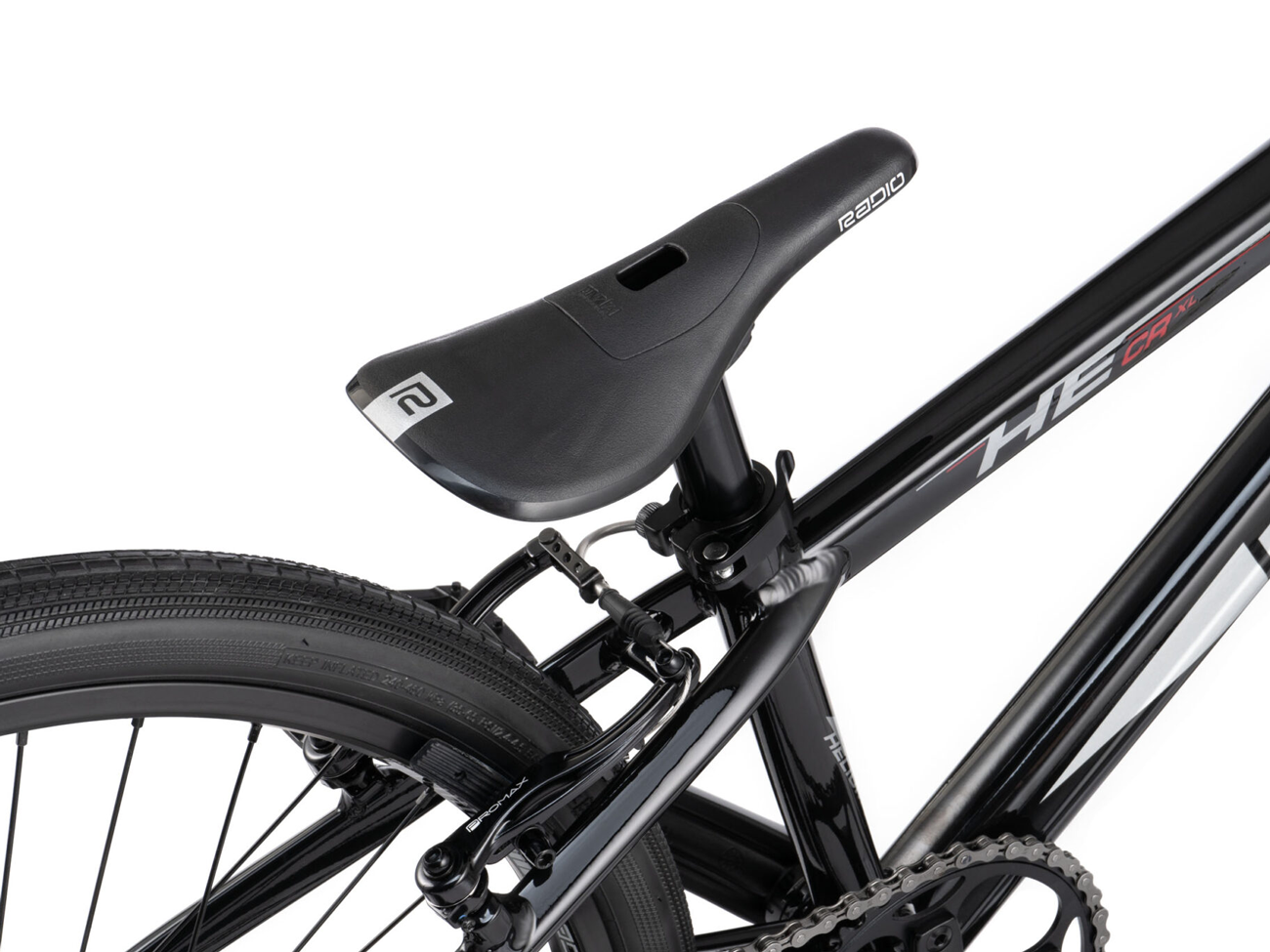

Seat - Radio, 'Xenon', pivotal, no padding
Seat post - Radio, 27.2mm, pivotal, alloy seatpost
Seat clamp - Xenon quick-release, alloy

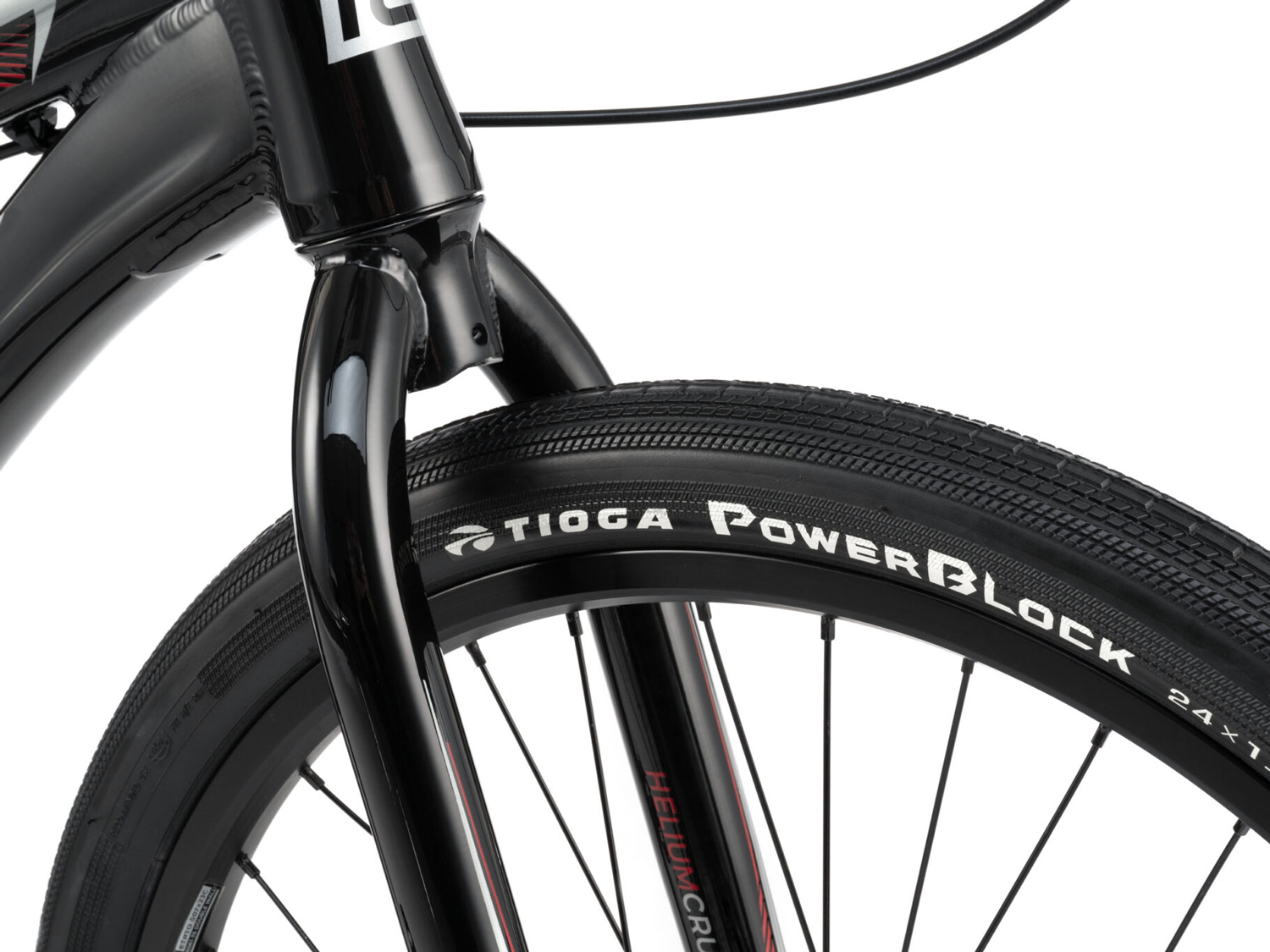

Tyres - Black/Red - Tioga, 'Power-block', front 24″x1.75″ / rear 24″x1.6″. Dark Grey Metallic - Tioga Fastr 24" x 1.75" front and rear.
Weight - 10.24kg/ 22.79lbs
Frame Geometry
Top tube length - 22″
Chain stay length - 15.15″
Head tube angle - 74°
Seat tube angle - 71°
Bottom bracket height - 12″
Handlebar Geometry
Rise - 6.1″
Width - 26.75″
Backsweep - 8°
Upsweep - 2°
Please note that all bike shipments are only partially assembled in box and will require some assembly. Feel free to contact us at Fufanu with any questions.
