Radio Evol

Regular price $649.99

Unit price per

only 0 left in stock

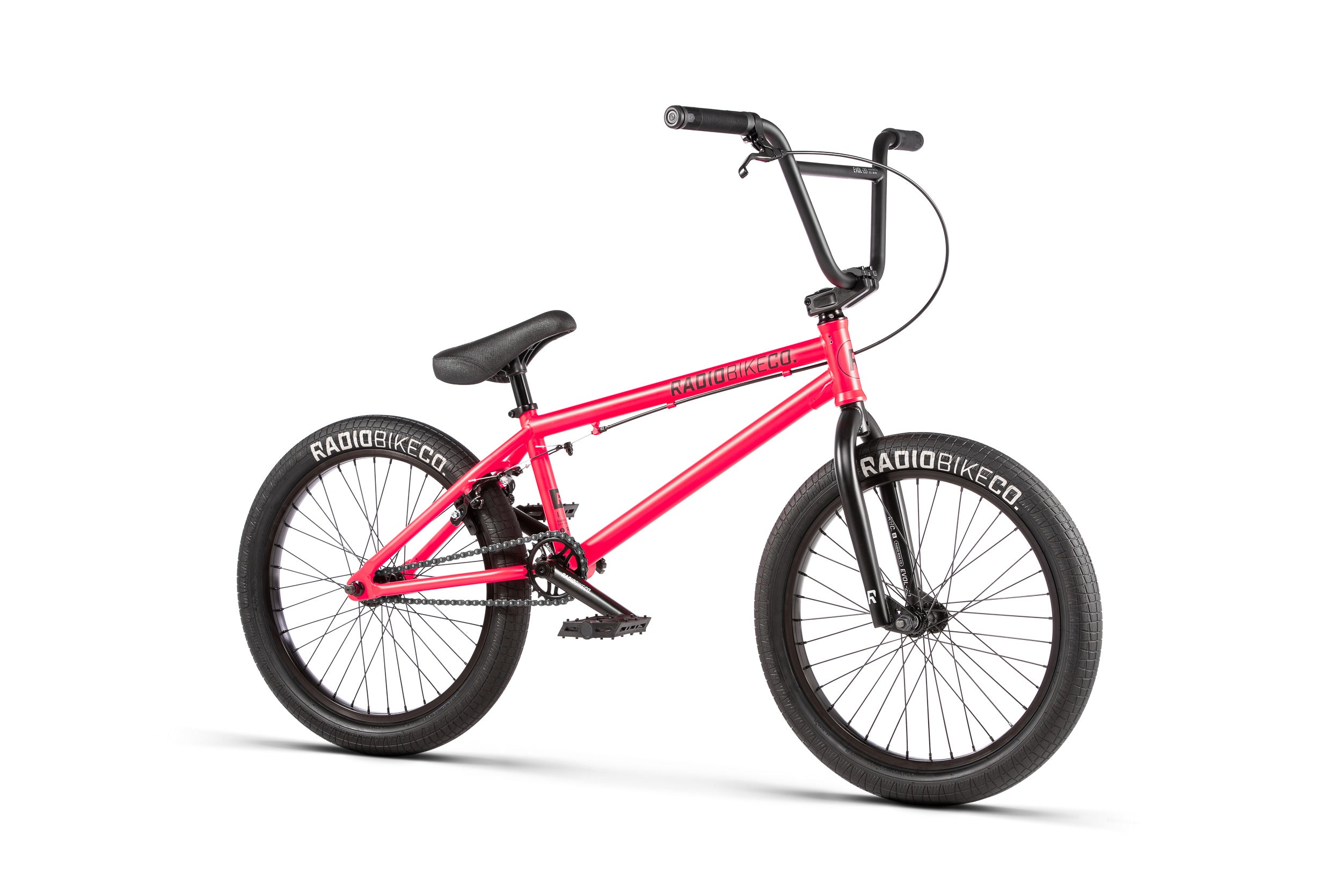

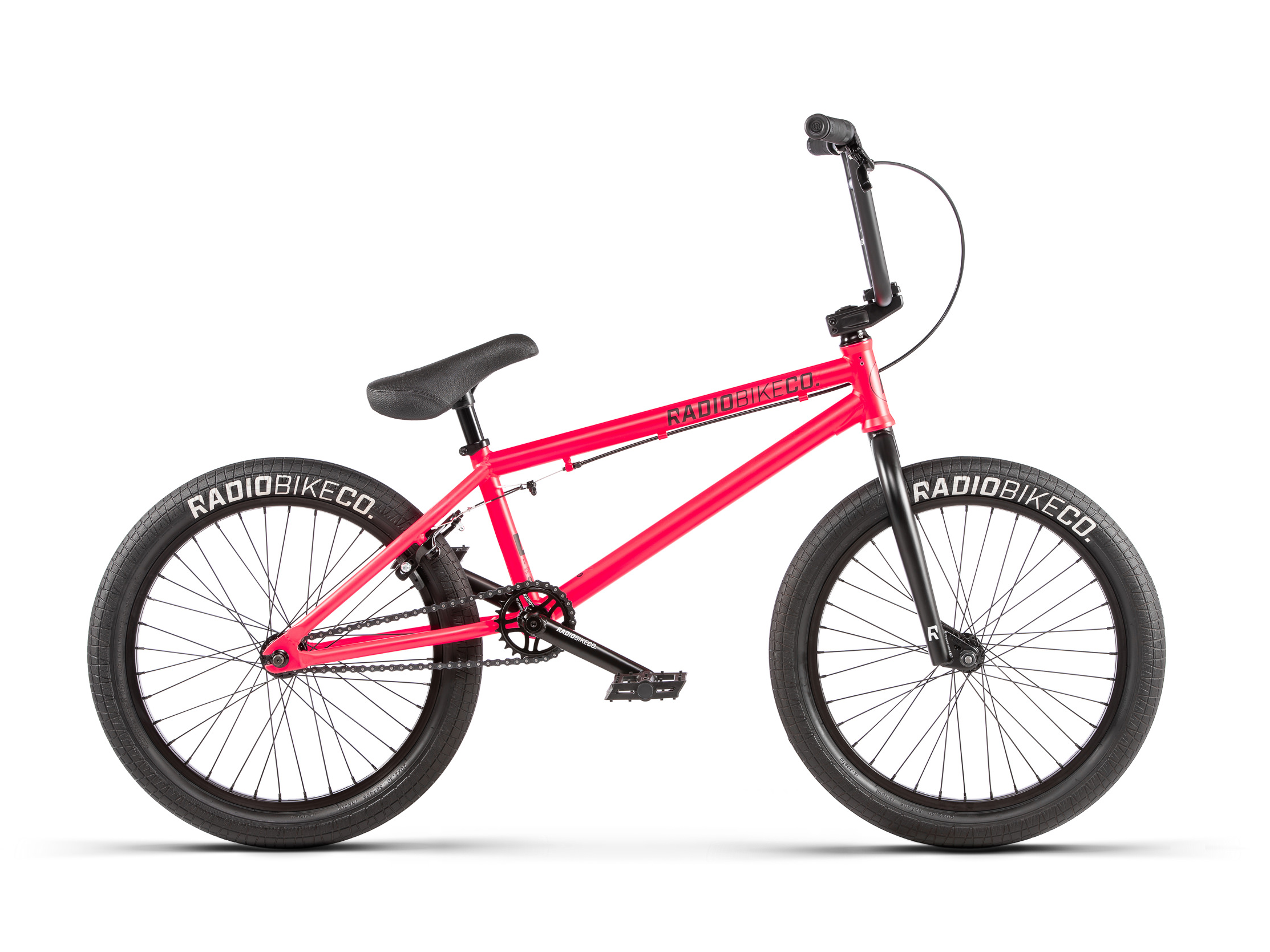

THE RADIO EVOL ENTERS 2020 WITH A FRESH INJECTION OF NEW PARTS AND FLAVOUR. NOW BOASTING A CRMO TOPTUBE AND A SEALED INTEGRATED HEADSET, DETAILS LIKE THE BIG LOGO RADIO ROOKIE TIRES AND CLEAR GRIPS WITH STICKERS UNDER MAKE THE EVOL SOMETHING VERY SPECIAL.

FRAME - CrMo top tube, 1020 hi-ten

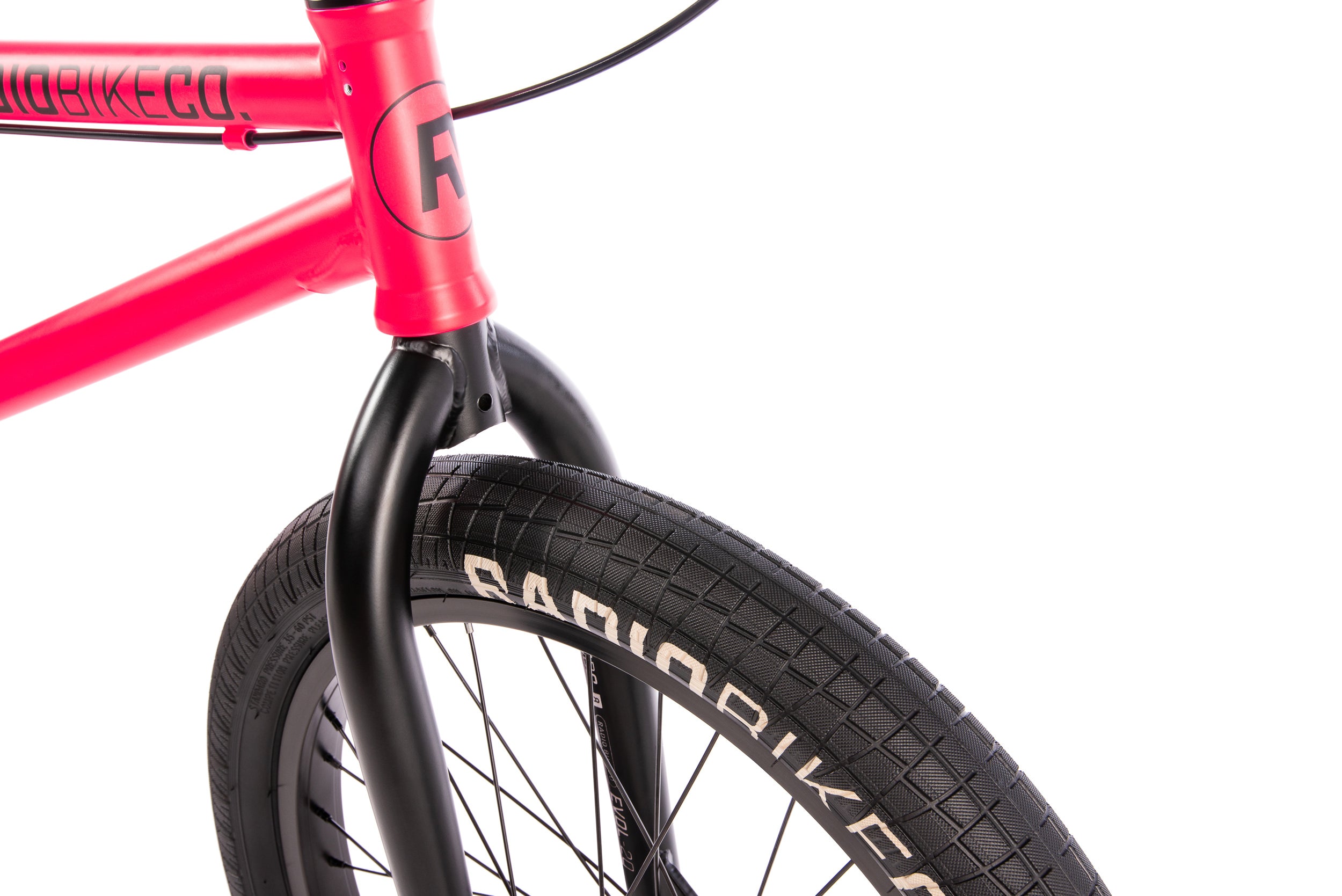

FORK - RADIO "AM" 1020 hi-ten fork, crmo steerer, tapered legs

BARS - RADIO "AM 20" bar, 1020 hi-ten

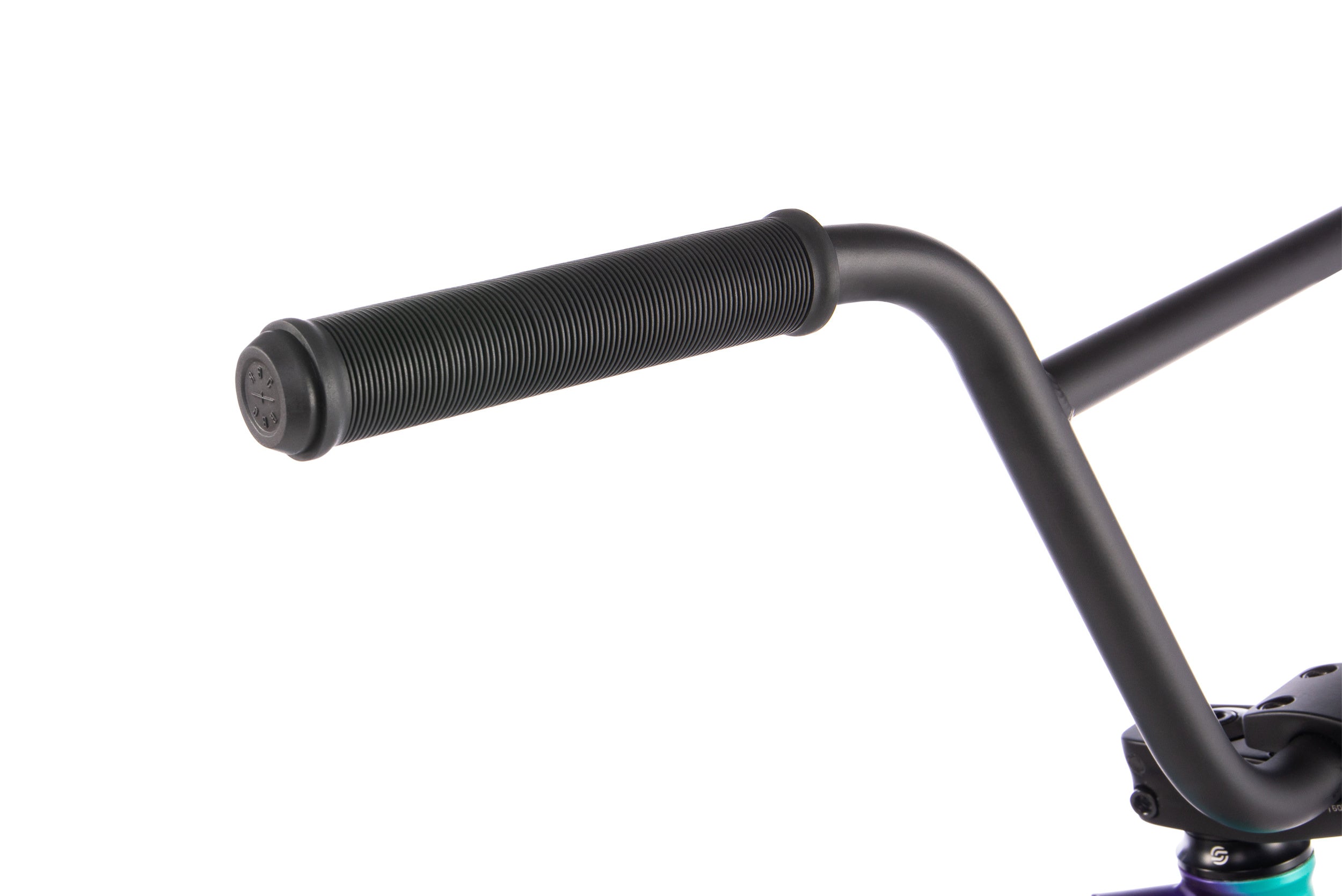

GRIPS - SALT "EX" grips, flangless

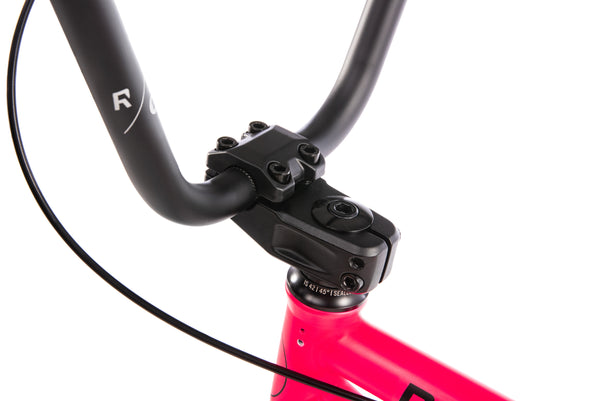

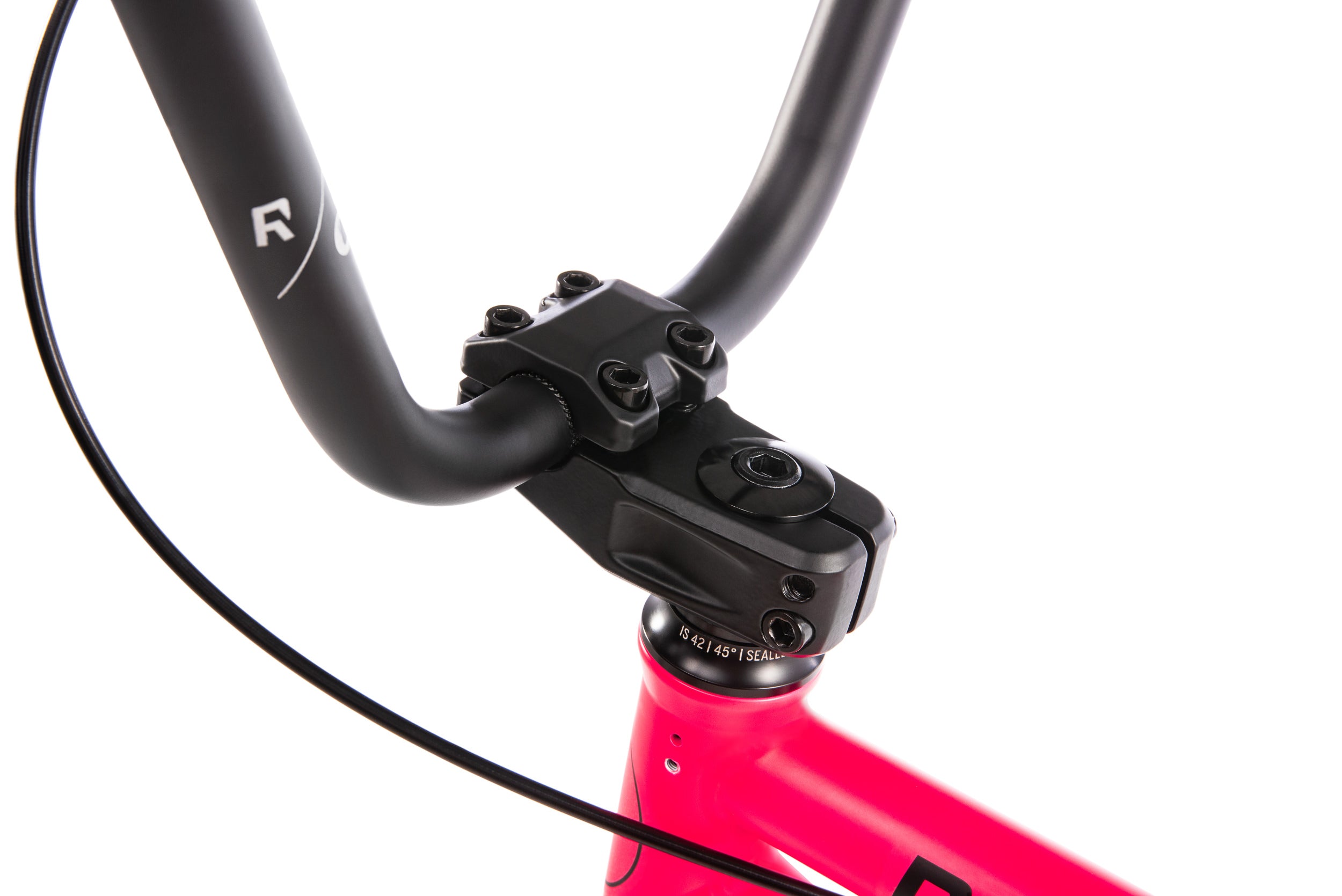

STEM - RADIO “AM” top load stem, 50mm reach

HEADSET - SALT “PRO” int. headset, sealed bearing

GYRO - Holes for removable gyro tabs

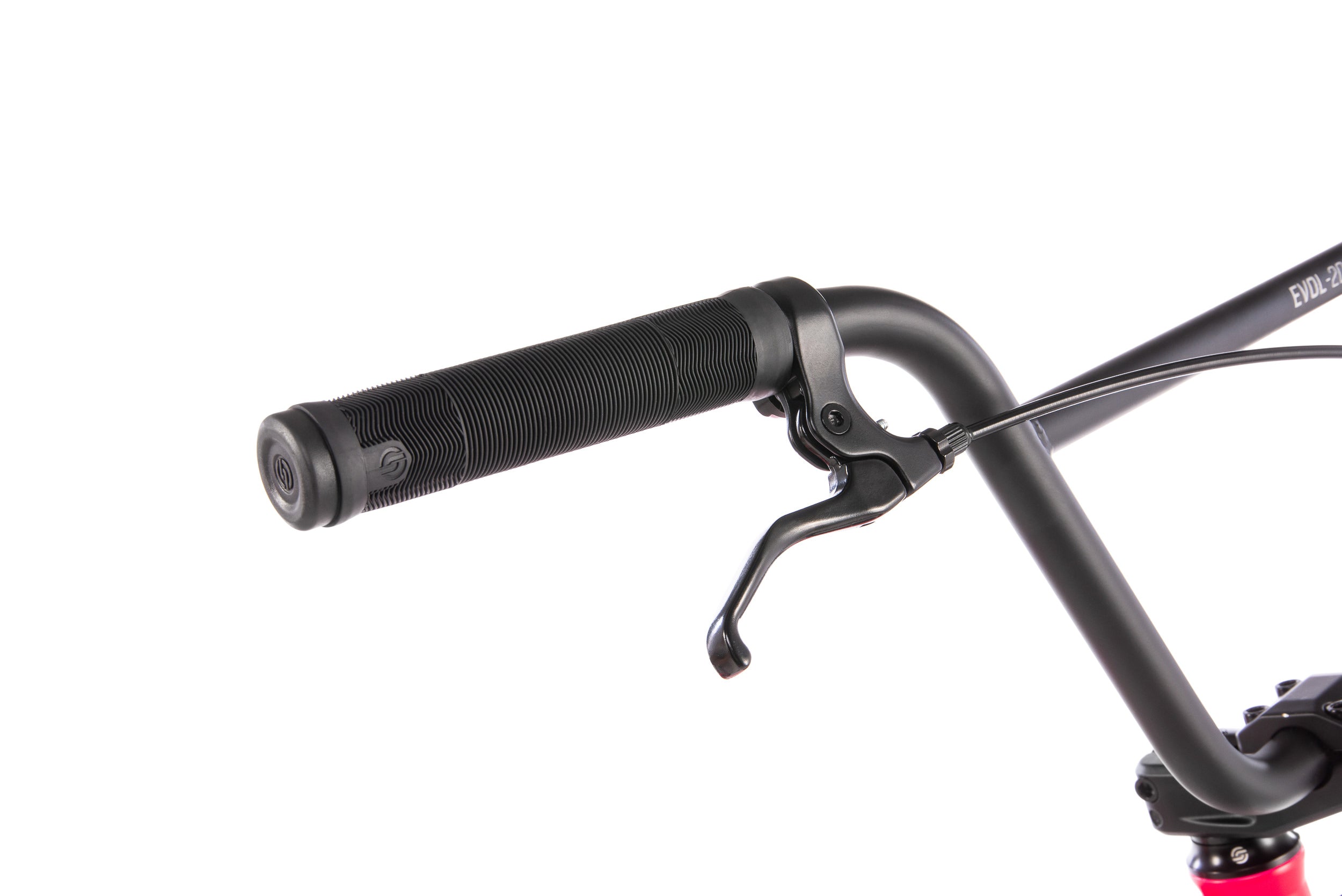

LEVER - RADIO “AM” alloy brake lever, rear

BRAKES - RADIO “AM” alloy u-brake rear

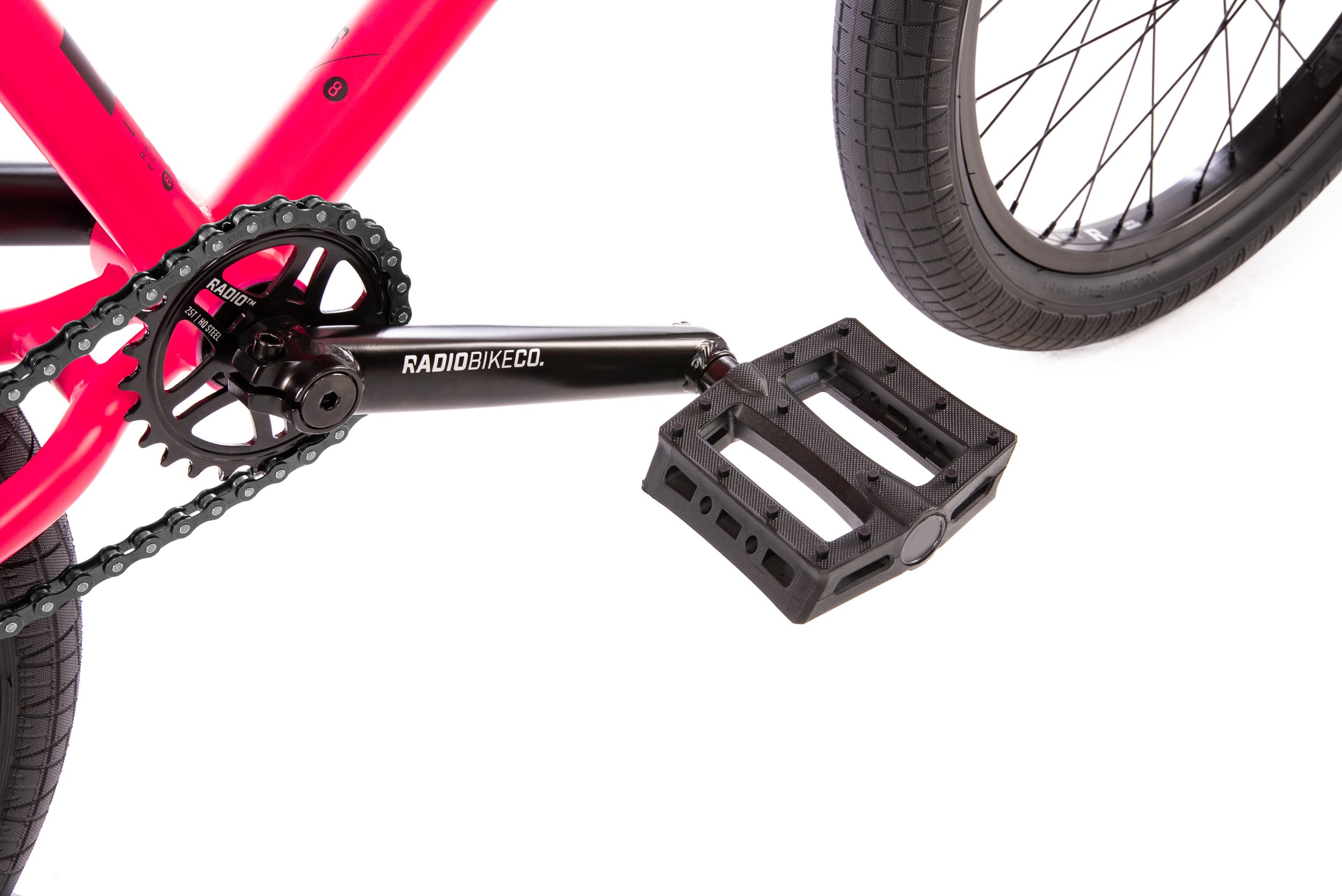

CRANKS - RADIO "Rookie" tubular 3pc crank crmo 165mm, 8 spline

BB - Mid size, press fit, sealed bearing

PEDALS - RADIO “PRO” nylon/fiberglass pedals

CHAIN - SALT "AM" chain, Z1 type

SPROCKET - RADIO "VISION" steel 25t sprocket

DRIVER - 9T cassette driver, lb

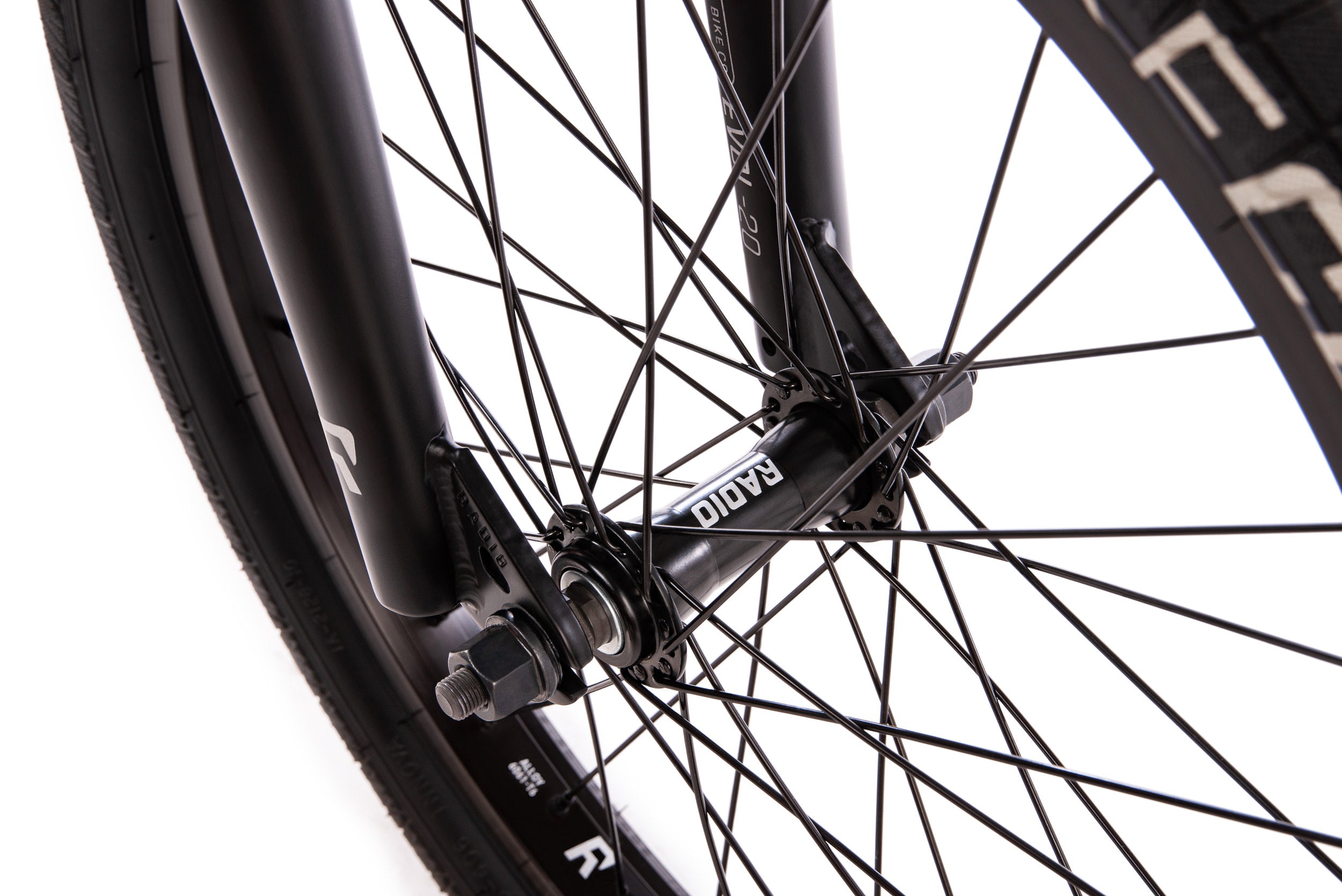

FRONT HUB - RADIO “ROOKIE” steel hub, lb 3/8”s, 36h

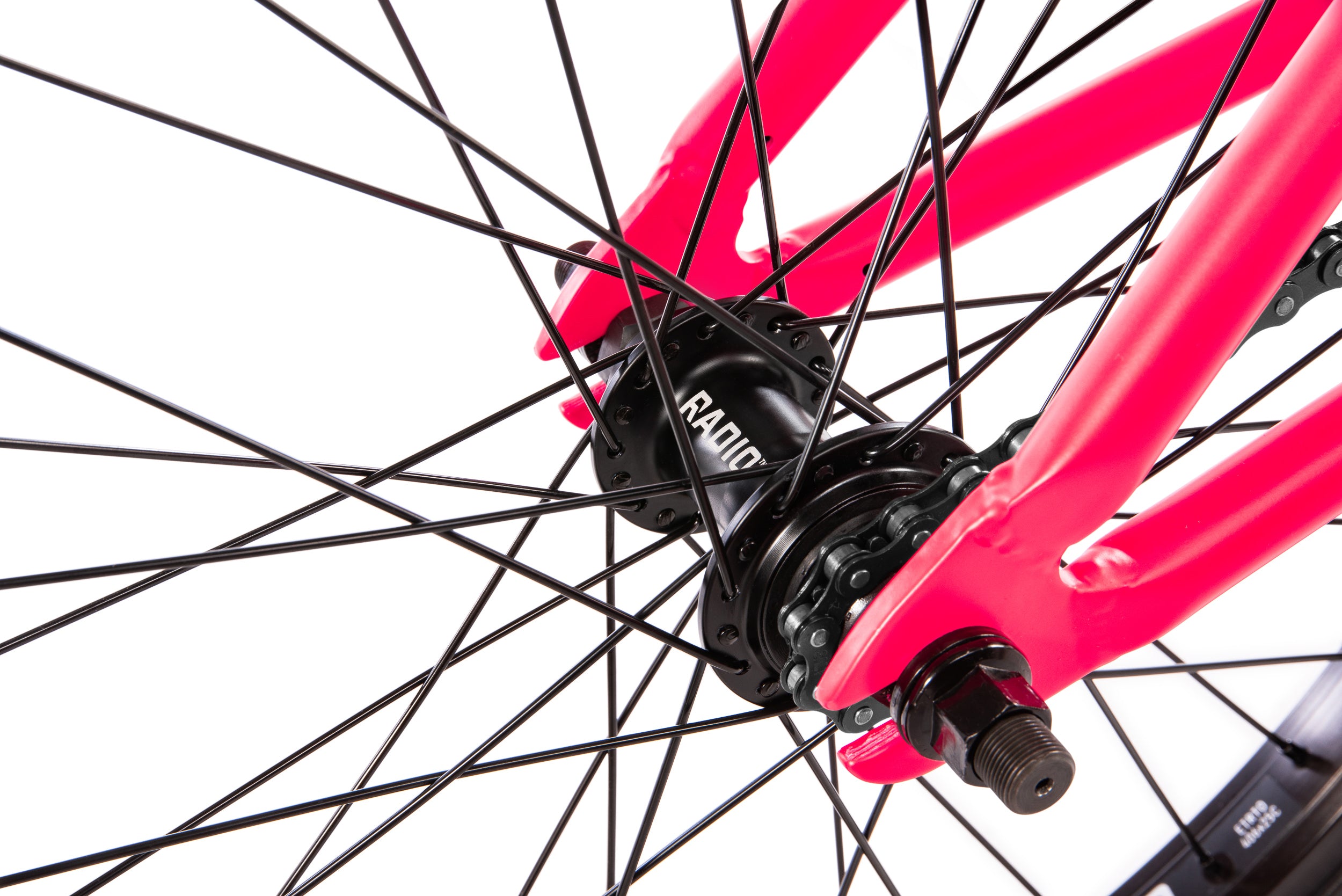

REAR HUB - RADIO “AM” cassette hub, semi-sealed, 9t, 14mm axle, 36h

FRONT RIM - RADIO “ROOKIE” rim, single wall

REAR RIM - RADIO “ROOKIE” rim, single wall

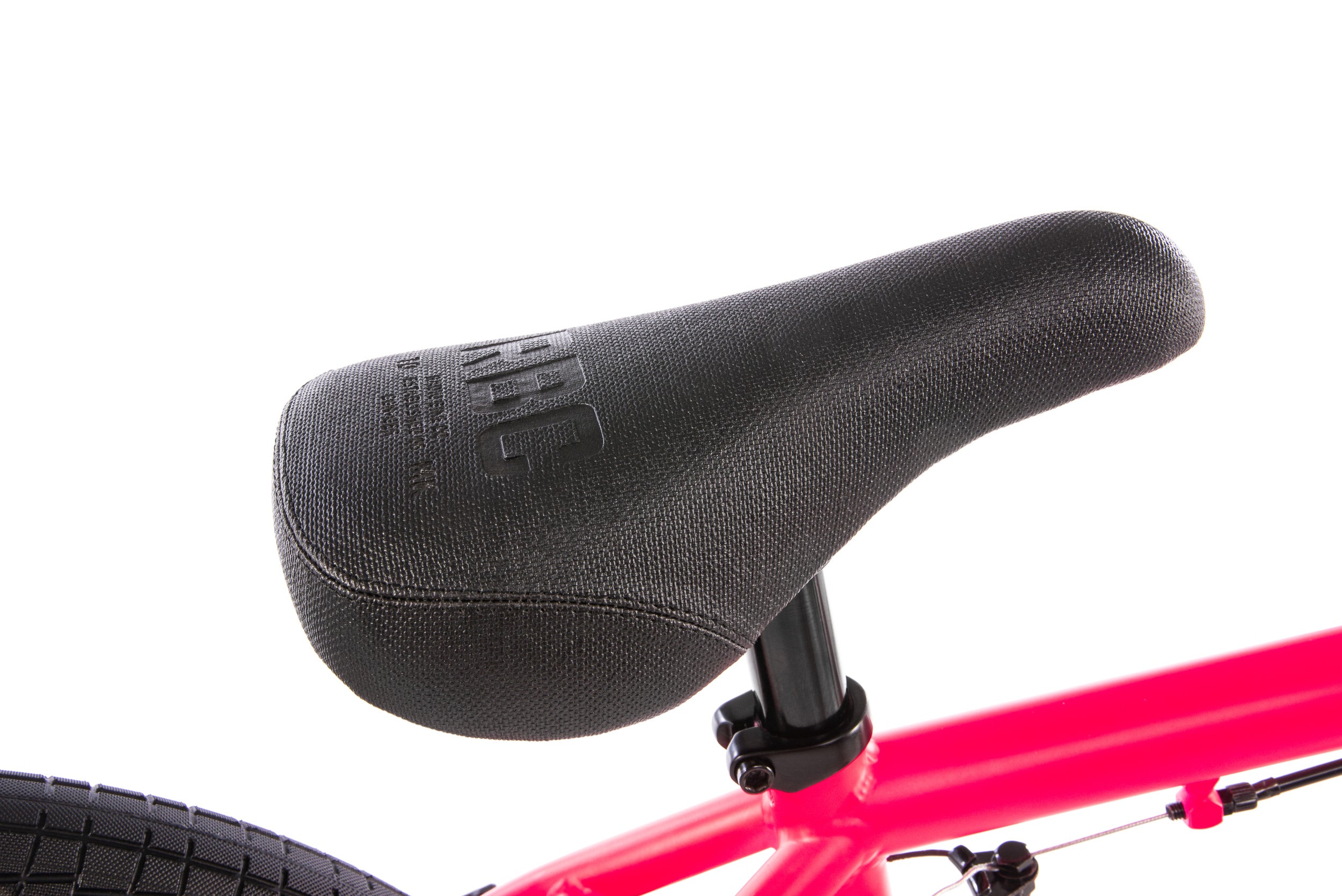

SEAT - RADIO "CENTURY" mid padded combo seat

SEAT CLAMP - RADIO slim alloy seat clamp

TYRES - RADIO “Rookie” tires, 2.3" front & rear

FRAME GEOMETRY

TOP TUBE LENGTH - 20.3"

CHAIN STAY LENGTH - 13.2"

HEAD TUBE  ANGLE - 75°

SEAT TUBE ANGLE - 71.5°

BOTTOM BRACKET HEIGHT - 11.75"

STAND OVER HEIGHT - 8.25"

HANDLEBAR GEOMETRY

RISE - 8.8"

WIDTH - 28.9"

BACKSWEEP - 11°

UPSWEEP - 2°

Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
