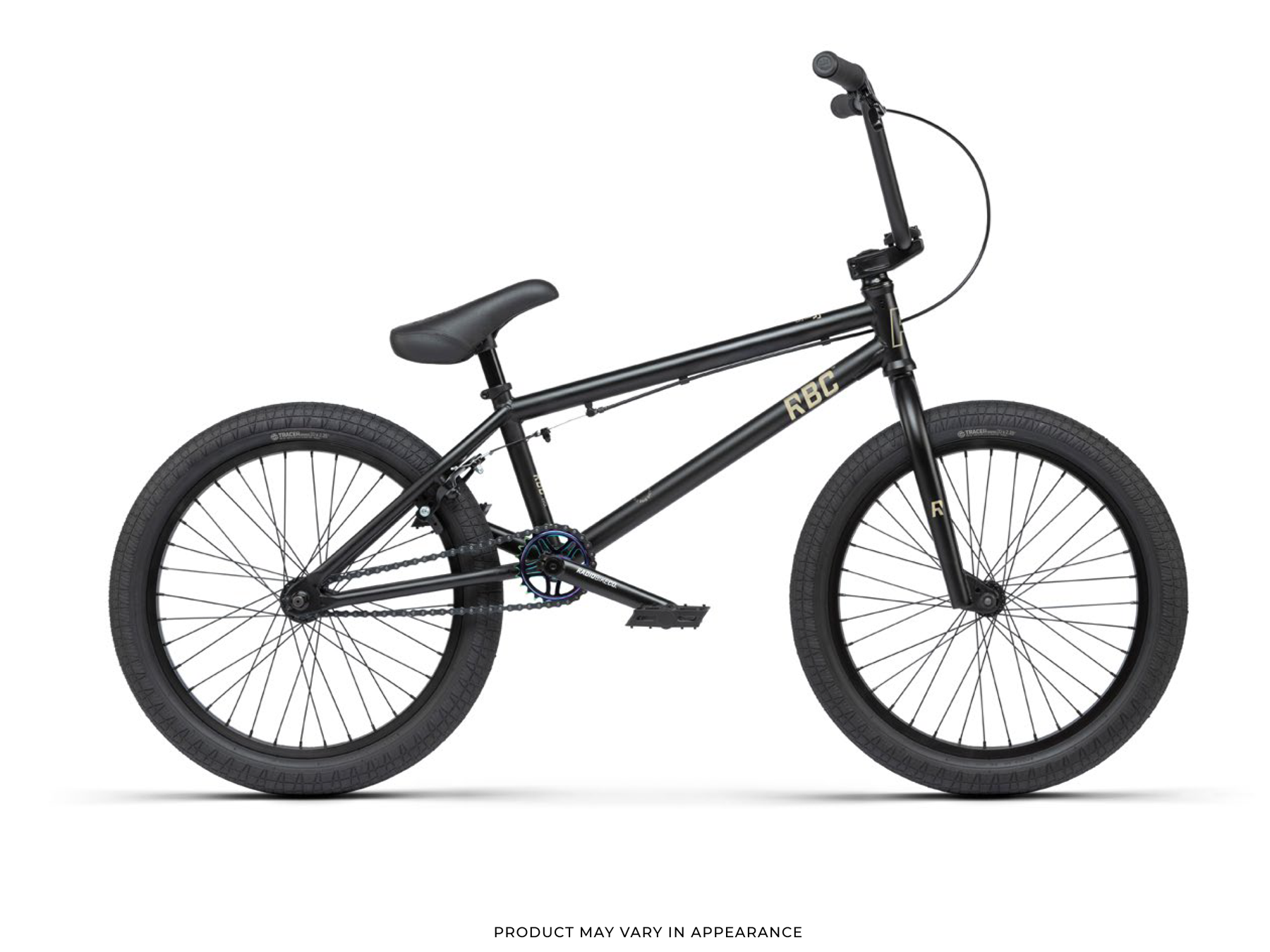

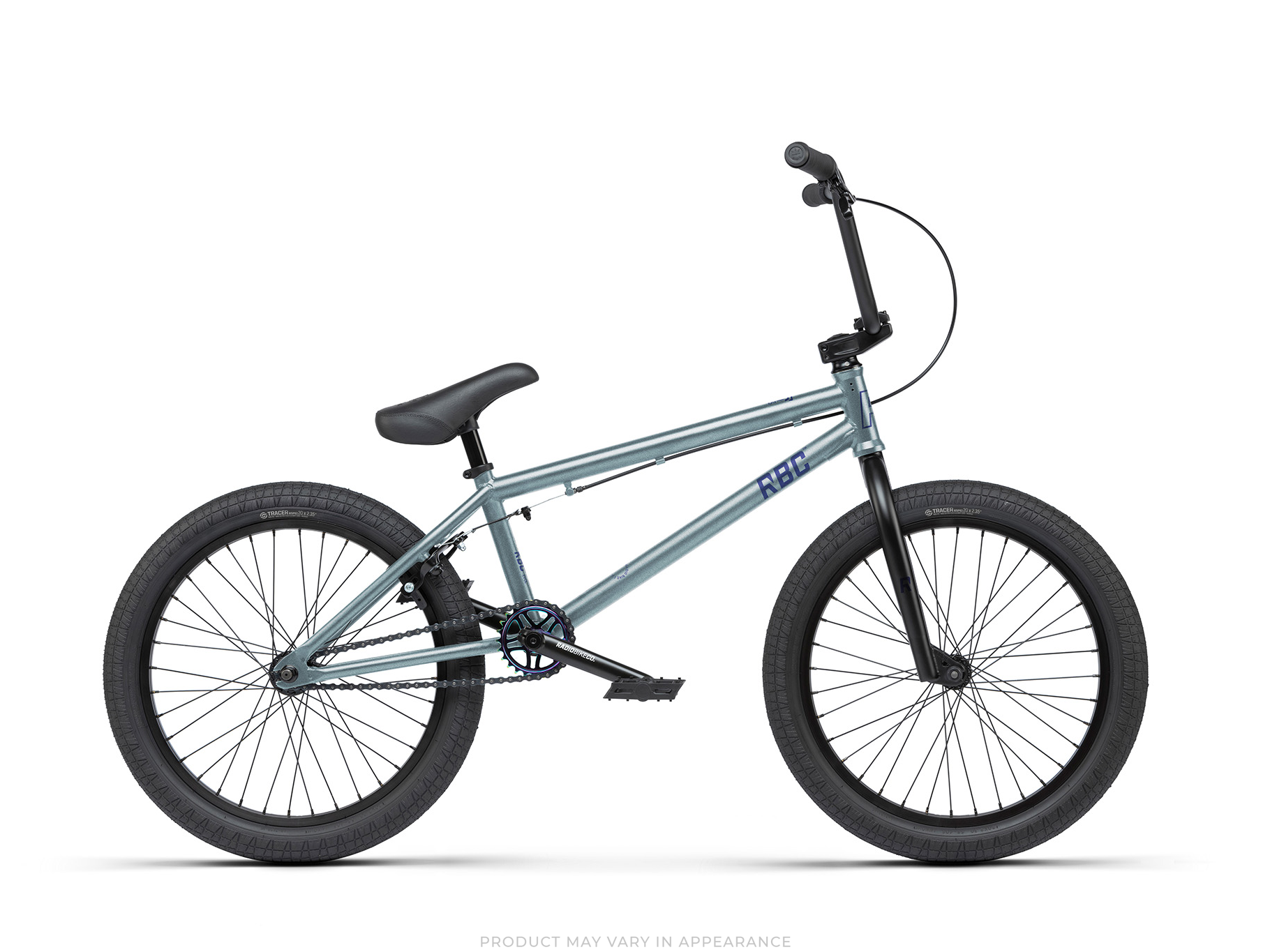

RADIO 20" Evol XL Bike
Tax included
Shipping calculated at checkout
Only 10 in stock
RADIO 20" Evol XL Bike
The Evol is a solid entry level machine with everything you need to start making serious progression with your riding. Boasting a crmo toptube and a sealed integrated headset and Mid-sized bottom bracket, details like the big logo Radio Rookie tyres and Oil Slick sprocket make the Evol something very special and unique.
Features
- 21" crmo toptube
- Sealed bearing Integ. Headset and Mid sized bottom bracket
- 25-9 gearing and combo saddle
- Big Logo” 2.30"" Radio Rookie tyres
Specifications
Frame - Radio Evol XL frame, crmo top tube, 1020 hi-ten
Fork - Radio AM fork, 1020 hi-ten, crmo steerer, tapered legs
Bars - Radio AM XL 20 bar, 1020 hi-ten
Grips - Salt EX grips, flangeless, 155mm
Stem - Radio AM topload stem, 50mm reach
Headset - Salt Pro integrated headset, sealed bearing
Rotor - holes for removable gyro tabs
Lever - Radio AM brake lever, aluminium, rear
Brakes - Radio AM u-brake, aluminium, rear
Cranks - Radio Rookie 3pc crank, tubular, crmo, 165mm, 8 spline
BB - Radio MID bb set, press fit, sealed bearing
Pedals - Radio Pro pedals, nylon/fibreglass
Chain - Salt AM chain, WZ1 type
Sprocket - Radio Vision sprocket, steel, 25t
Driver - cassette driver, 9t, lb
Front hub - Radio Rookie hub, steel, loose ball, 3/8"s, 36h
Rear hub - Radio AM cassette hub, aluminium, semi-sealed, 9t, 14mm axle, 36h
Front rim - Radio Rookie rim, single wall
Rear rim - Radio Rookie rim, single wall
Seat - Radio Century combo seat, mid padded
Seat clamp - Radio Slim seat clamp, aluminium
Tyres - Salt Tracer tyres, 2.35", front & rear
Weight - 12.25kg / 27.02lbs
Frame Geometry
Tob tube length - 21"
Chain stay length - 13.2"
Head tube angle - 75°
Seat tube angle - 71.5°
Bottom bracket height - 11.75"
Standover height - 8.25"
Handlebar geometry
Rise - 9"
Width - 29.5"
Backsweep - 12°
Upsweep - 2°
