The Kink Carve 16” bike is the younger sibling of our Kicker 18”, and it ensures every age and every height rider can find a perfect fitting Kink bike. Kids are getting into BMX younger and younger, and we love it. The 2020 Carve comes in a subtle Gloss Dusk Navy color, which is complimented by black components throughout.
Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet. Still stacked with great parts, the 2020 Carve comes with 7” Kink Tiger CC bars, a short reach 40mm Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and all new modern tread design 2.4” tires.
COLOURS: Gloss Dusk Navy
FRAME MATERIAL: 100% Hi-Ten Steel
TOPTUBE LENGTH: 16.5"
FORK: Kink Stryker 4130 Chromoly Steerer
Tapered Fork Legs
BARS: Kink Tiger CC 7” 100% Hi-Ten Steel
GRIPS: Mission Helix Mini
BARENDS: Mission Phase Plug Style

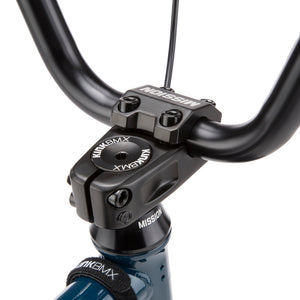

STEM: Mission Topload 40mm
HEADSET: Mission Sealed Integrated (41.8 x 45)
BRAKE LEVER: Mission Mini
BRAKE CABLE: Mission L1 Linear
BRAKES: Mission Cease V2

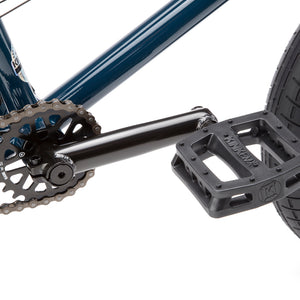

CRANKS: Mission Triumph 3pc Tubular Chromoly 140mm – 8 Spline
BOTTOM BRACKET: Sealed Mid 19mm
PEDALS: Kink Hemlock
CHAIN: Mission 410
SPROCKET: Mission Rank 25T
FRONT HUB: Mission Covert Unsealed 3/8″ Axle
REAR HUB: Mission Function Semi-Sealed Cassette 14mm
FRONT RIM: Mission X7
REAR RIM: Mission X7

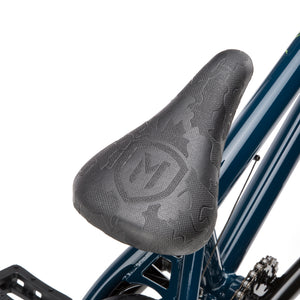

SEAT: Mission LaForce Mini Combo
SEAT POST: Mission Combo Steel Post
SEAT CLAMP: Mission Slim

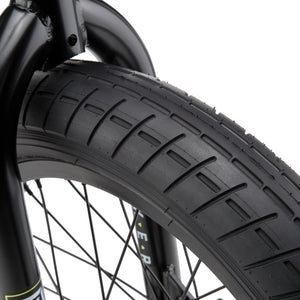

FRONT TYRE: Mission Tracker 16x2.4"
REAR TYRE: Mission Tracker 16x2.4"
GYRO TABS: Tapped for Tabs
WEIGHT: 22lb 12oz
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
