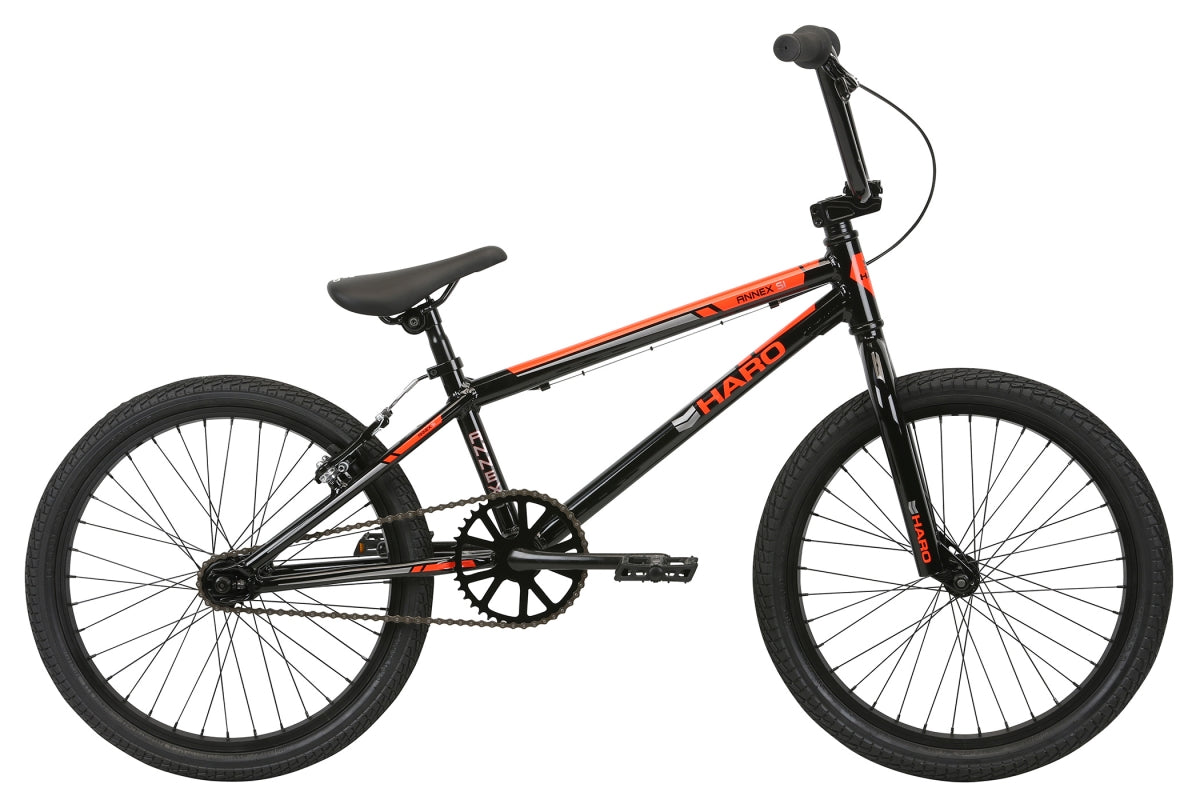

With its 19.5" top tube alloy frame, the Annex Si is a great starting point for riders who are considering hitting the local BMX track for the first time but also want a bike that can handle everyday riding. The 165mm cranks and 40/16 gearing make pedalling a breeze whether on the track or on the way to school and the stylish BMX race inspired graphics are sure to catch attention.
FEATURES
|
SPECIFICATIONS |
|
|
Frame Components |
|
|
Frame |
6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners |
|
Fork |
Hi-Ten 1 1/8" Threadless |
|
Headset |
Threadless Loose Ball, 1 1/8" |
|
Drivetrain |
|
|
Cranks |
Steel 1-pc, 165mm, 44t Alloy sprocket |
|
Bottom Bracket |
Loose Ball American BB |
|
Gearing |
40/16 |
|
Chain |
KMC 410 |
|
Pedals |
Nylon, 1/2" |
|
Wheels |
|
|
Tyres |
Kenda "Kontact" 20 x 1.95" Front / 20 x 1.75" Rear |
|
Wheels/Rims |
20" Alloy 36h, Single Wall |
|
Hubs |
Front: Alloy 36h, Loose Ball Rear: Alloy Flip-Flop 36h, Loose Ball |
|
Braking System |
|
|
Brakes |
Promax MV-295L Alloy V-Brake |
|
Brake Levers |
Promax XL-378 Alloy Lever |
|
Other Components |
|
|
Grips |
Micro Knurl Grips |
|
Handlebar |
Hi-Ten, 7.5" Rise |
|
Stem |
Forged Alloy Top-Load, 45mm Ext. |
|
Seat |
Haro Padded Adjustable |
|
Seat Post |
Steel, 25.4mm |
|
Seat Clamp |
Alloy, 28.6mm |
|
GEOMETRY |
|||||||
|
Size |
Head Angle |
Seat Angle |
Top Tube |
Seat Tube |
Chainstay |
BB Height |
Stand Over |
|
20 |
74° |
70° |
495mm (19.5") |
250mm (9.8") |
352mm (13.9") |
293mm (11.5") |
546mm (21.5") |
