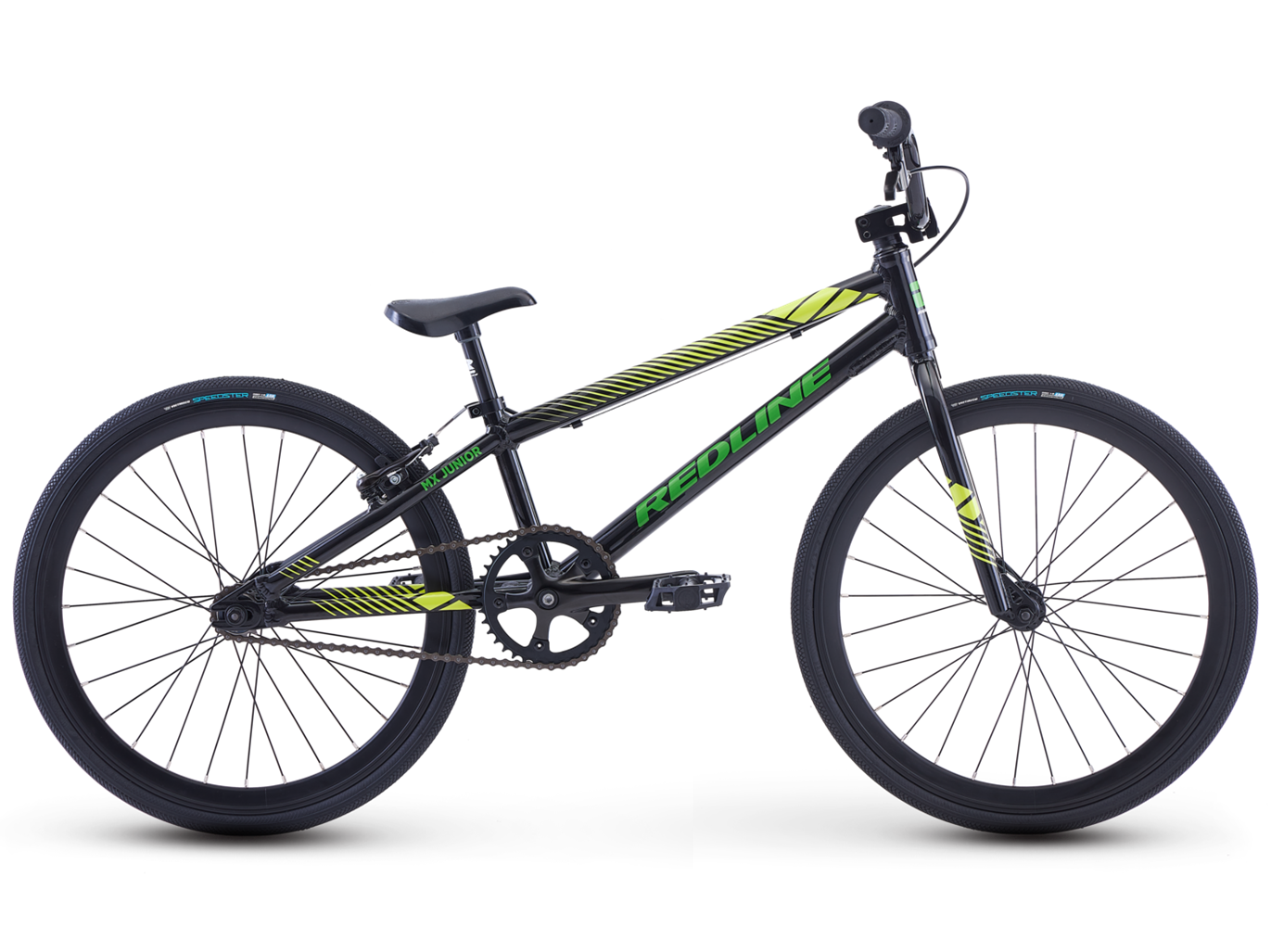

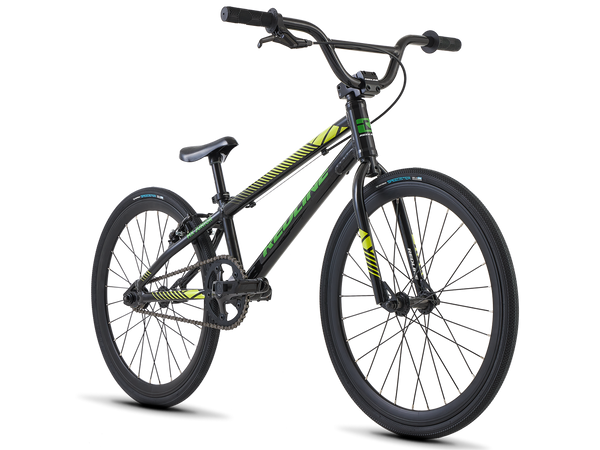

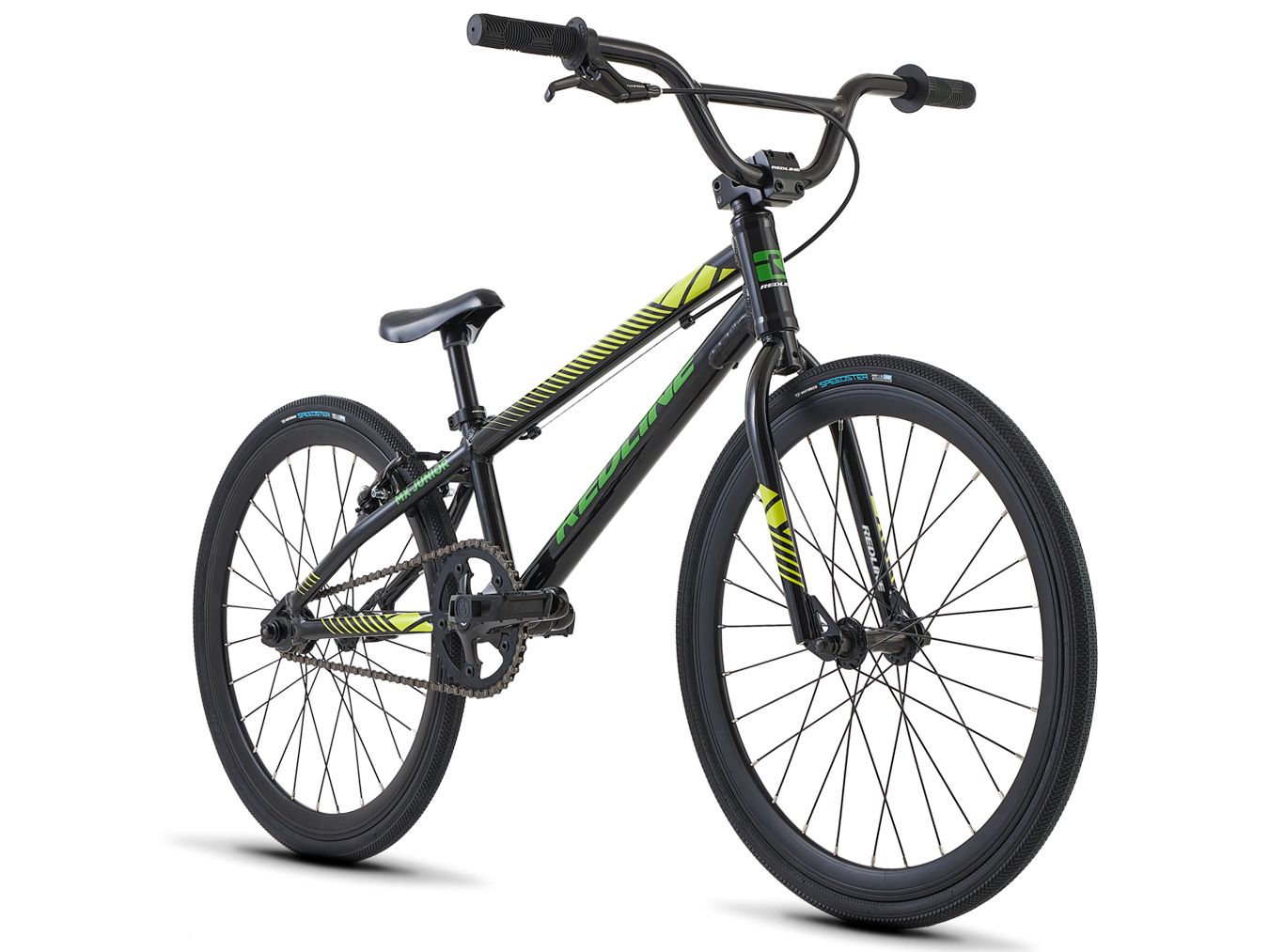

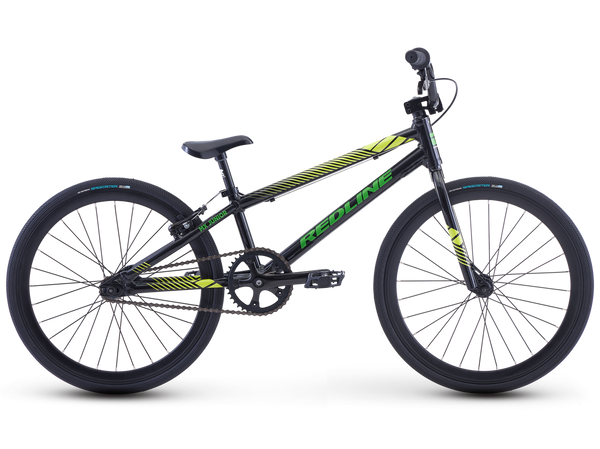

Redline MX Junior 20" BMX Race Bike
Regular price $899.00
Unit price per
REDLINE 20" MX Junior Bike
The Redline MX Junior is the perfect entry-level BMX race bike for the beginning youth racer who is 4’6” to 5’1” (137cm - 155cm) tall. Made with an aluminium frame and integrated head tube, the Redline MX Junior is lightweight and easy to manoeuvre. The MX Junior features high-quality 155mm 3-piece aluminium cranks, integrated headset, 20 inch wheels, and an integrated saddle and seat post combination for weight savings.
Specifications
Frame - 6061 Alloy w/Integrated HeadtubeFork - RL Race Hi-Ten w/ Tapered legs
Headset - Integrated 1"

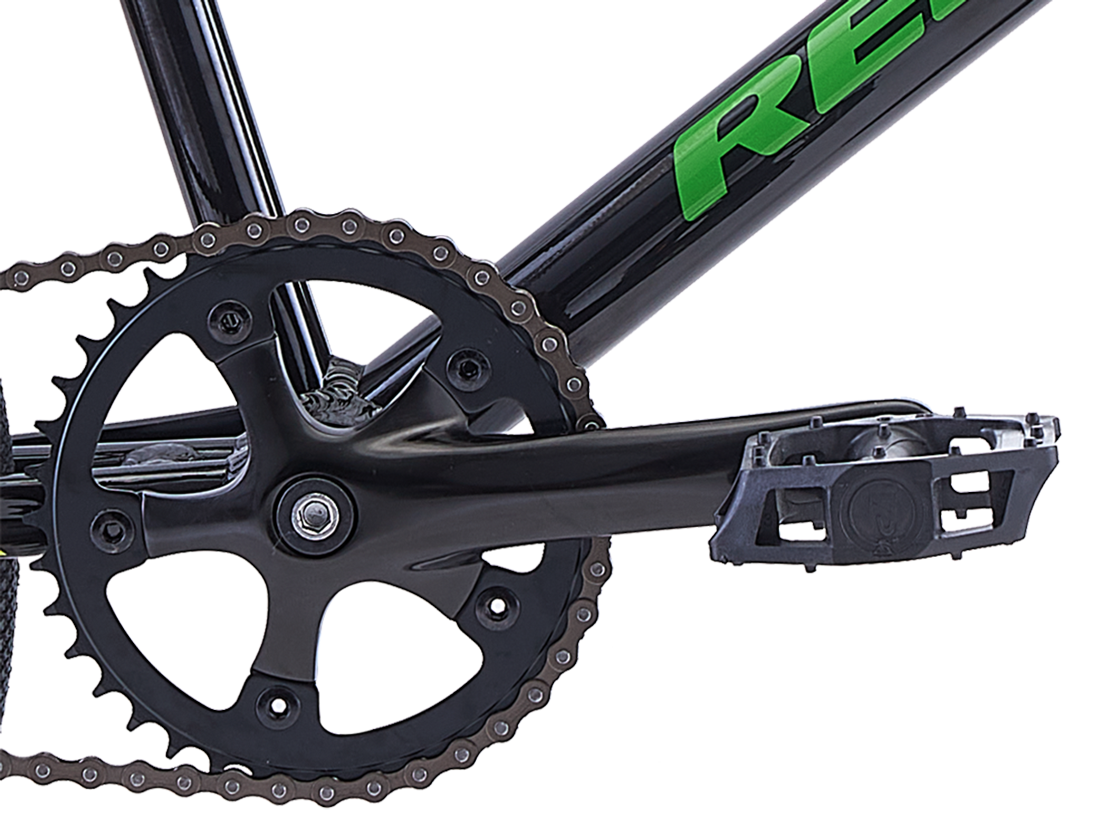

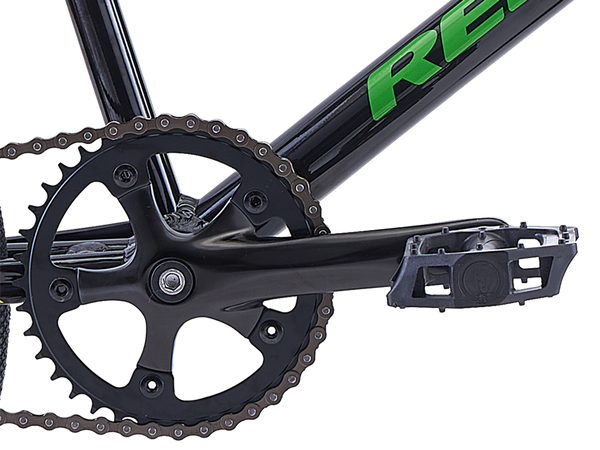

Cranks - Race Aluminium 3pc, 155mm
Sprocket - 38t, Alloy
Bottom bracket - Euro, Square Taper JIS
Cogset - 14t
Chain - KMC Z410
Front hub - Redline Aluminium
Rear hub - RL Aluminium Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 20 x 1 1/8

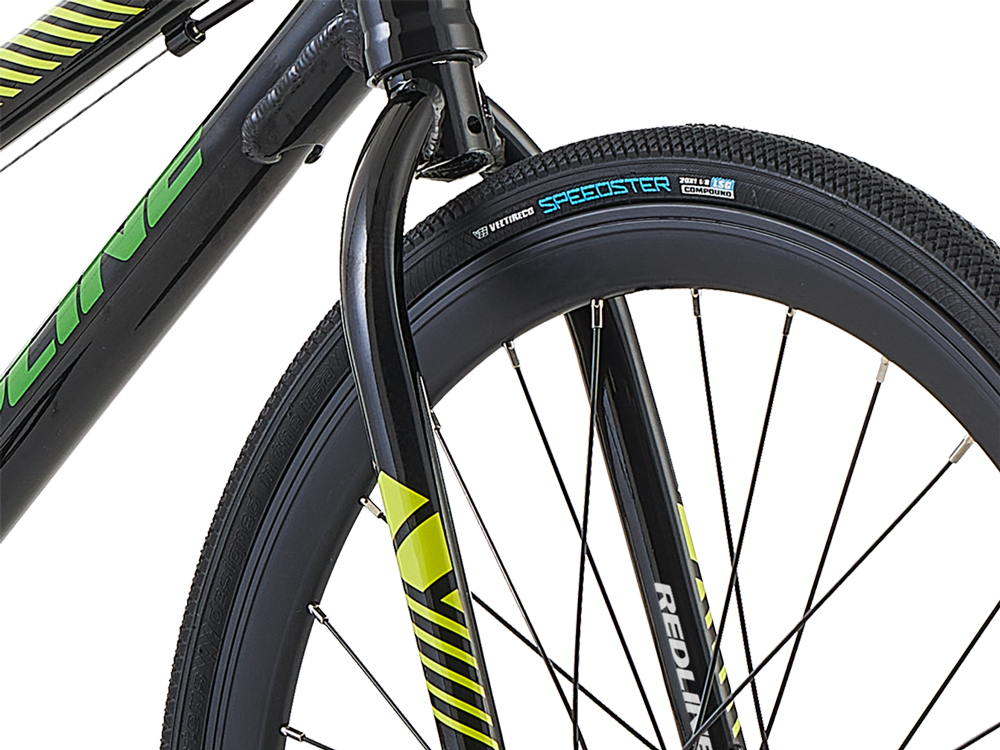

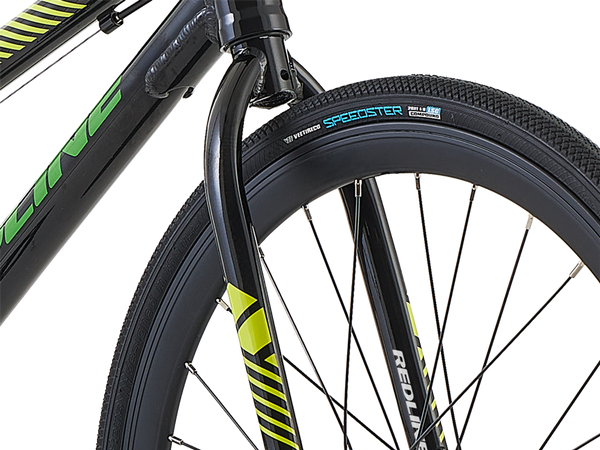

Tyres - Vee Speedster 20 x 1-1/8"

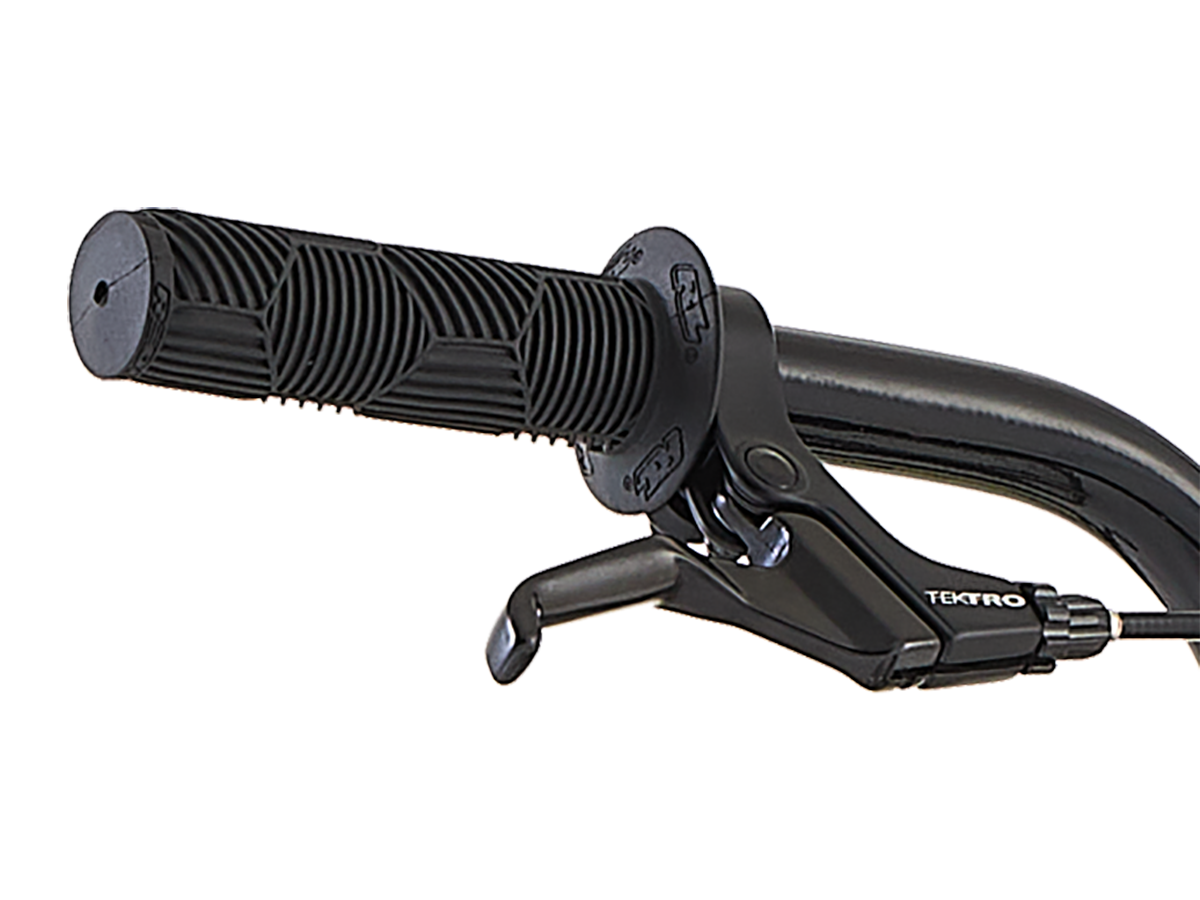

Brake levers - Tektro
Pedals - RL Race 9/16" PC pedal

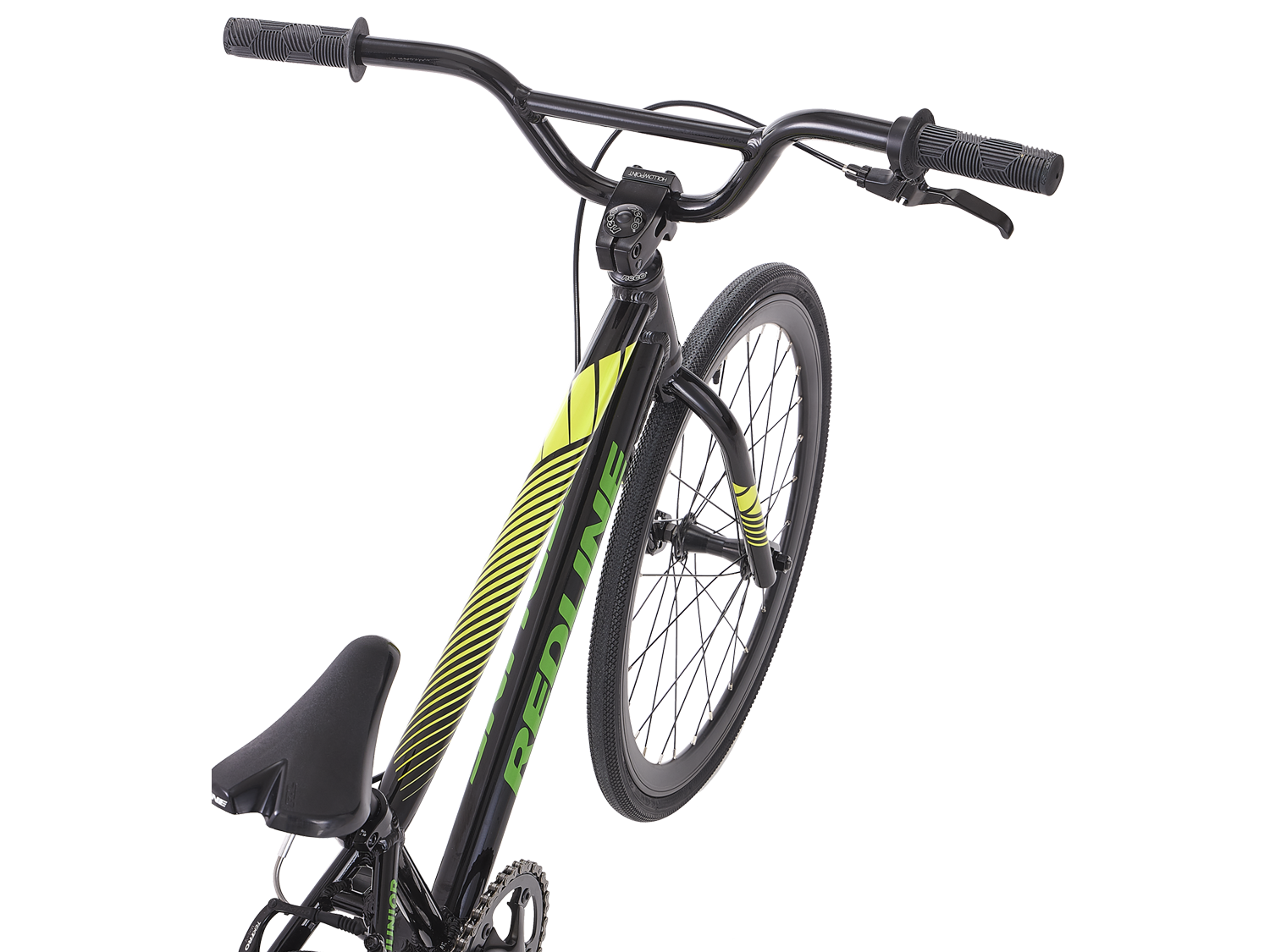

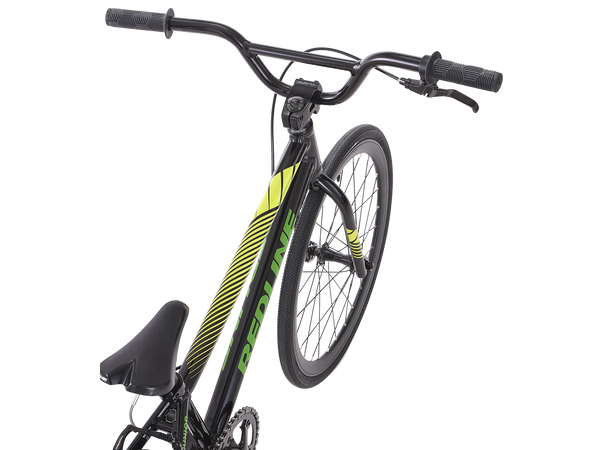

Handlebar - RL Race Aluminium 4.5" Rise / 10° Back / 2° Up
Grips - Redline Hex Expert w/plugs
Stem - RL Hollow Point Aluminium 1" threadless
Seat - RL Race Integrated w/22.2 Post
Brakes - Tektro 926 AL Linear
Geometry
Frame Size - 20"
Bike Top Tube Length - 18.5 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.5 "
Bike Bb Height - 10.8 "
Bike Stem Length - 40.0 mm
Bike Handlebar Width - 24.0 "
Bike Crank Length - 155.0 mm
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
