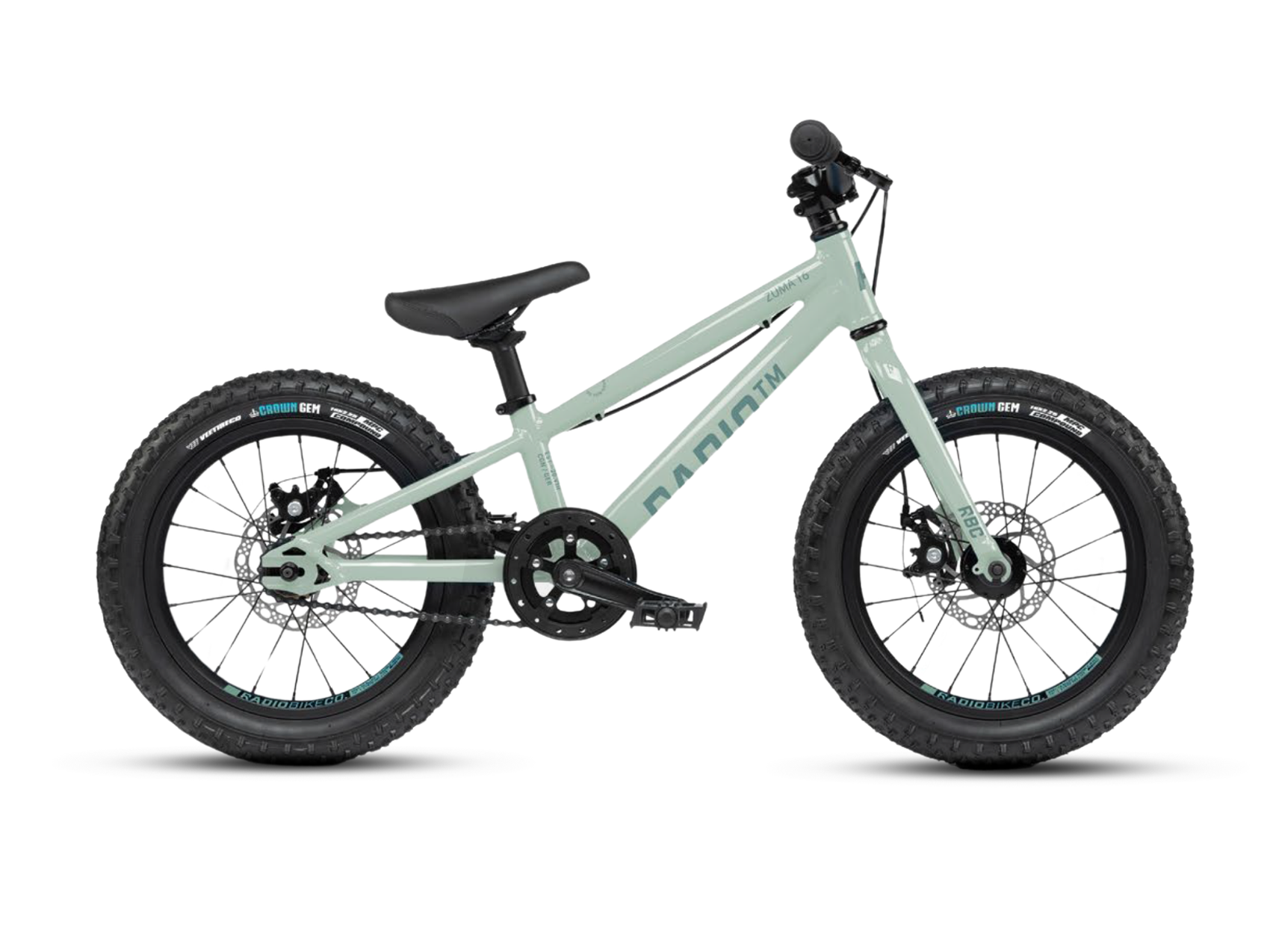

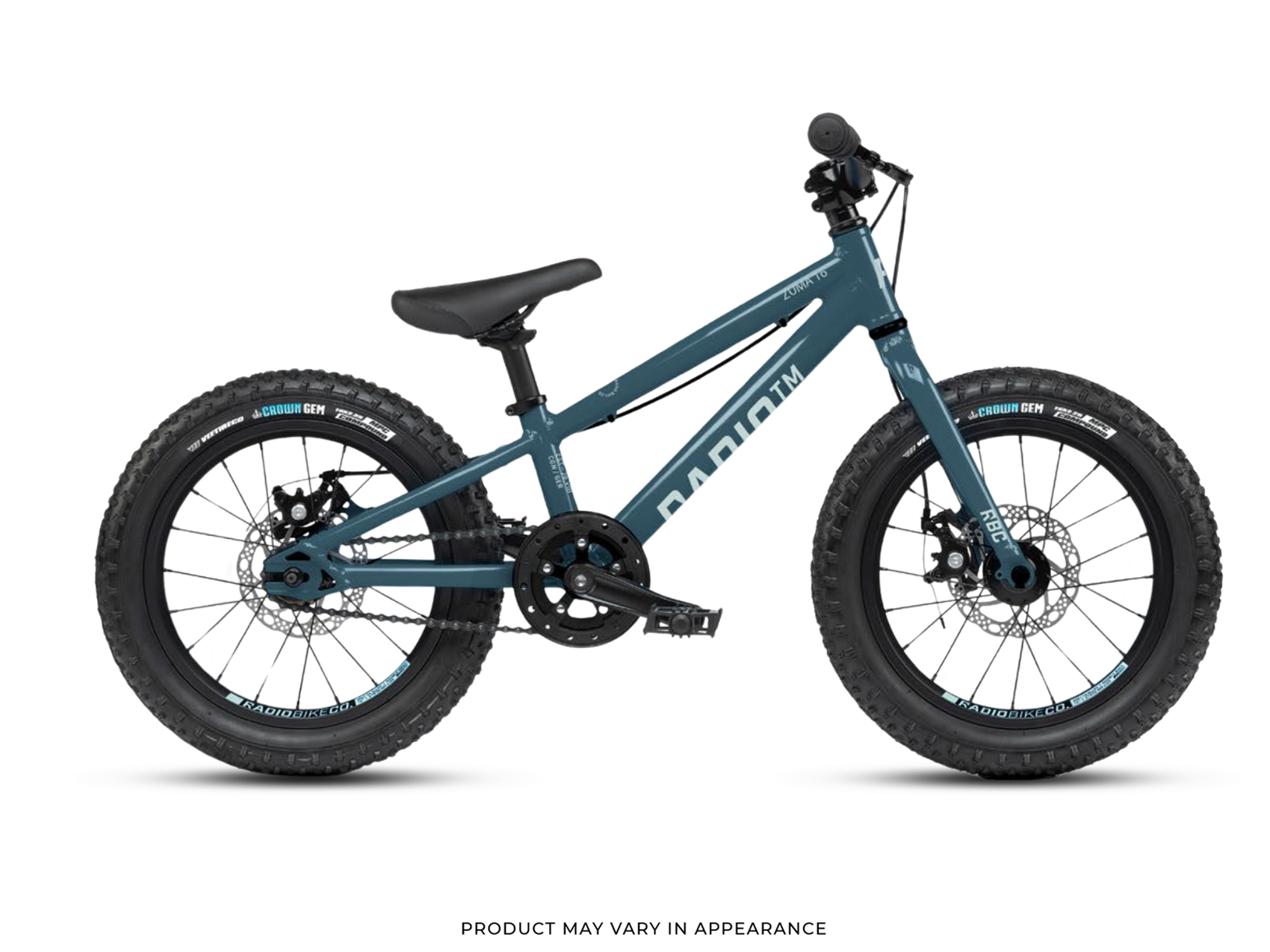

RADIO 16" Zuma Bike
Tax included
Shipping calculated at checkout
Only 14 in stock
RADIO 16" Zuma Bike
Specifications
Frame - Radio Zuma 16 frame, 6061-T6 alloy
Fork - Radio Zuma 16 straight rigid fork, 6061-T6 alloy
Bars - SATORI bar, 6061-T6 alloy, 19mm grip tube, 25.4mm bar bore, 1”rise
Grips - Radio Junior grips, 100mm, with flange
Stem - Radio Zuma 30 frontload stem, alloy, 30mm reach
Headset - FSA A-headset, loose ball
Lever - Promax BL-367 lever, alloy
Brakes - Tektro MD280 — mechanical disc front & rear brake, 140mm rotors
Cranks - Radio Junior 3pc crank, forged alloy, 114mm length
BB - Radio bb set, BSA, square taper, sealed bearing
Pedals - Radio Junior pedals, nylon
Chain - KMC chain, S1 type, 1/2” × 1/8”
Sprocket - Radio sprocket, steel, 28t
Cassette - 16t freewheel, crmo
Front Hub - Radio disc hub, alloy shell, loose ball, 3/8”s crmo axle, 20h
Rear Hub - Radio disc hub, alloy shell, for freewheel, sealed,3/8”s crmo axle, 20h
Front Rim - Radio J25SE rim, alloy, double wall, 20h
Rear Rim - Radio J25SE rim, alloy, double wall, 20h
Seat - Radio Zuma 1416 railed seat
Seat Post - Promax SP-2019 seat post, alloy, multi-adjust, 250mm × 27.2mm
Seat Clamp - Radio Slim seat clamp, alloy
Tyres - Vee tyre Crown Gem tyres, 2.25” front & rear
Weight - 8.11kg / 17.88lbs
Frame Geometry
Top tube length - 14.75"
Chain stay length - 11.4"
Head tube angle - 69°
Seat tube length - 73°
BB height - 8"
Standover height - 5.8"
