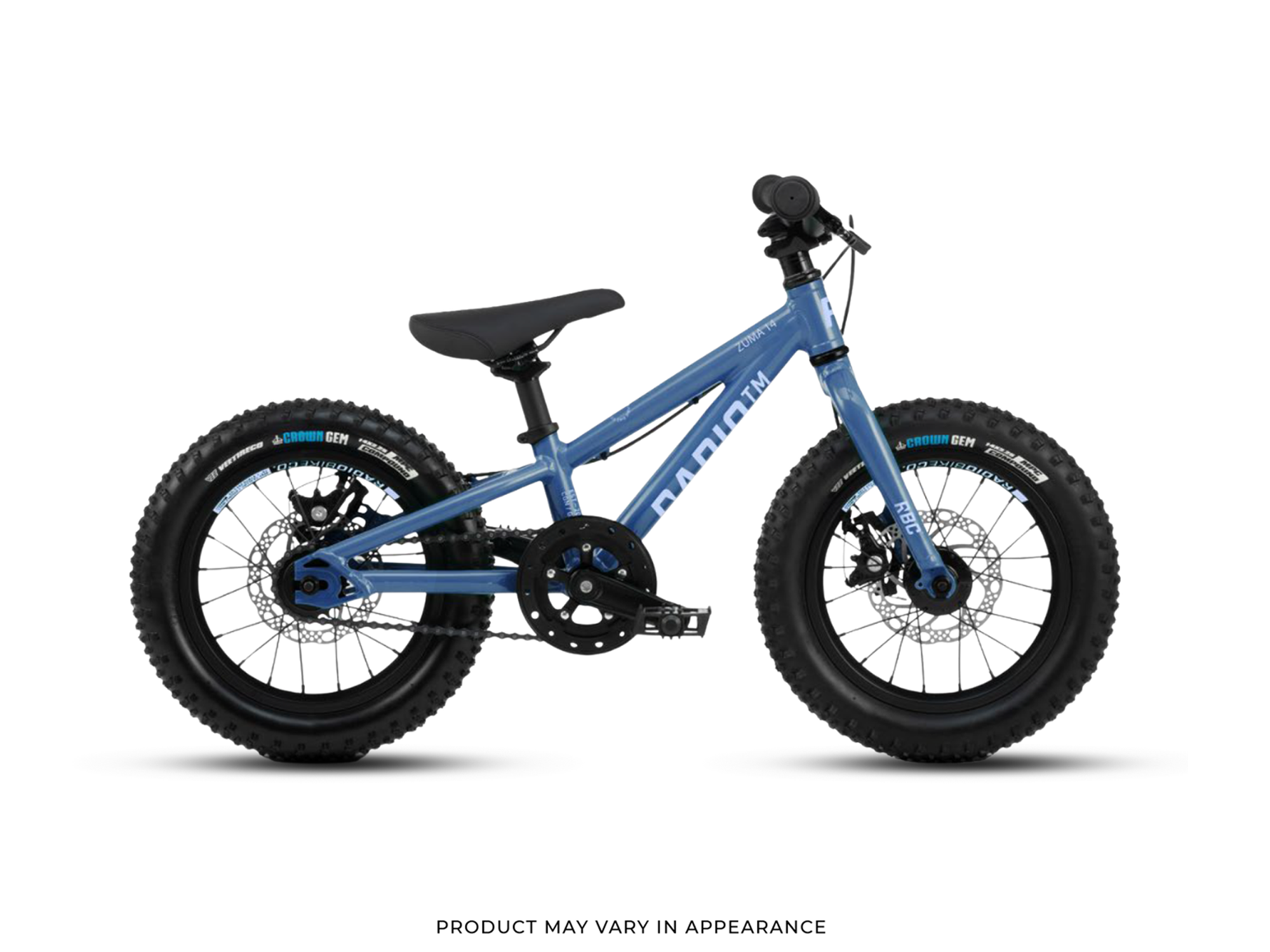

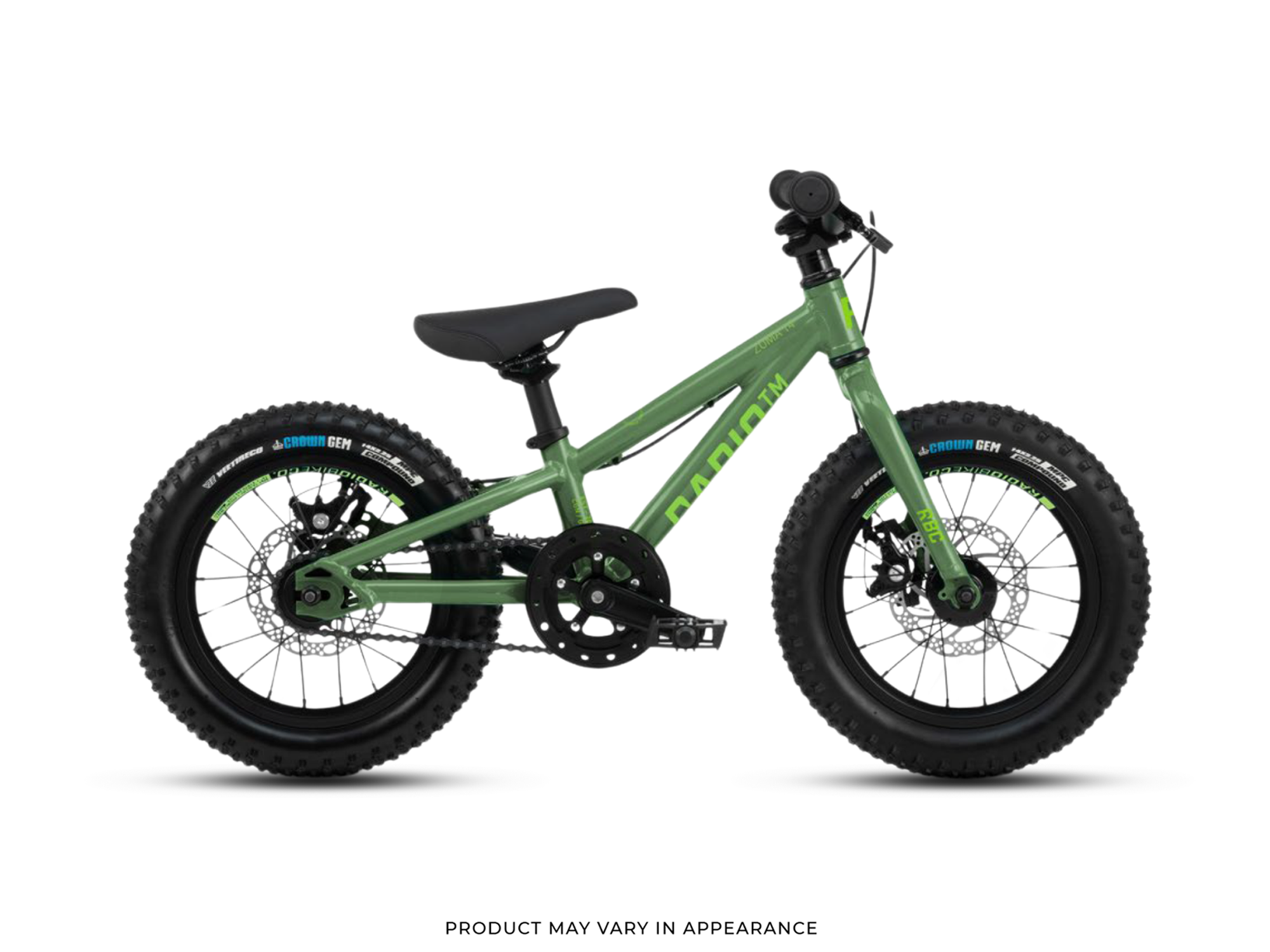

RADIO 14" Zuma Bike
Buying a bike for your child can be daunting, that’s why Radio developed the Zuma range to make it that much easier. Based around the concept of a kid sized mtb bike, the Zuma bikes are incredibly lightweight, with carefully researched geometry and designed specifically around smaller riders as the perfect balance between a bike for a child to learn the basics on, and a more advanced mtb for off-road riding conditions for weekend rides with the parents.
With a full range of sizes from 14” for the first-time rider, all the way through to a 26” wheeled machine for the aspiring rookie, there is a Zuma for every rider. These carefully spec’d bikes feature a super lightweight alloy frame and fork with double wall rims and children-specific aftermarket components from KMC, FSA, Vee Rubber and Satori, making them suit the rider’s size perfectly, but look, feel and ride just like a high-end full adult size mtb.
Children are the future, and the Zuma line is designed to give them the best possible start in that future…
Specifications:
Frame - Radio 'Zuma 14' frame, 6061-T6 alloy
Fork - Radio 'Zuma 14' straight rigid fork, 6061-T6 alloy
Handlebar - Satori bar, 6061-T6 alloy, 19mm griptube, 25.4mm bar bore, 1″rise
Grips - Radio 'Junior' grips, 100mm, with flange
Stem - Radio 'Zuma 30' frontload stem, alloy, 30mm reach
Headset - FSA a-headset, loose ball
Brake lever - Promax 'BL-367' lever, alloy
Brake - Tektro MD280 - mechanical disc front & rear brake
Crank - Radio 'Junior' 3pc crank, forged alloy, 89mm length
BB - Radio BB set, BSA, square taper, sealed bearing
Pedals - Radio 'Junior' pedals, nylon
Chain - KMC chain, S1 type, 1/2″ x 1/8″
Sprocket - Radio sprocket, steel, 28T
Driver - 18T freewheel, Cr-Mo
Front hub - Radio disc hub, alloy shell, loose ball, 3/8″s Cr-Mo axle, 20h
Rear hub - Radio disc hub, alloy shell, for freewheel, sealed 3/8″s Cr-Mo axle, 20h
Rotor Size - 140mm
Front rim - Radio 'J25SE' rim, alloy, double wall
Rear rim - Radio 'J25SE' rim, alloy, double wall
Seat - Radio 'Zuma 1416' railed seat
Seat post - Promax 'SP-2019' seat post, alloy, multi-adjust, 250mm - (Can be cut down smaller to suit rider.)
Seat clamp - Radio 'Slim' seat clamp, alloy
Tyres - Vee Crown Gem Tyre, 14 x 2.25" front and rear
Weight - 7.18kg / 15.81lbs
Frame geometry
Top tube length - 12″
Chain stay length - 10.6″
Head tube angle - 70°
Seat tube angle - 73°
Bottom bracket height - 7″
Standover height - 4.7"
