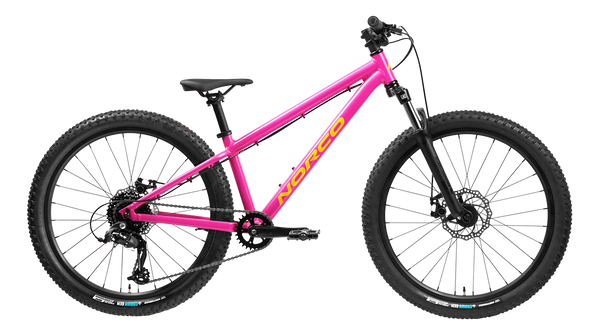

Norco Fluid HT 24.2 - 24" MTB
| FRAME | Aluminum HT |
| FORK | SR Suntour XCT Coil, 80mm Travel, Soft Spring, Adjustable Preload |
| REAR SHIFTER | SunRace Trigger |
| REAR DERAILLEUR | SunRace RDM41 |
| CRANKSET | Alloy 3 Piece, 28T Narrow Wide, 152mm |
| BOTTOM BRACKET | Sealed Bearing, Square Taper |
| CASSETTE | SunRace MF, 14-34T, 7 Speed |
| CHAIN | KMC Z7 |
| FRONT BRAKE | Mechanical Disc |
| FRONT BRAKE ROTOR | 160mm |
| REAR BRAKE | Mechanical Disc |
| REAR BRAKE ROTOR | 160mm |
| BRAKE LEVERS | Alloy Jr., Reach Adjust |
| HANDLEBAR | Alloy Jr., 600mm, 30mm Rise |
| STEM | Alloy, 45mm Length, 31.8mm Clamp |
| SEATPOST | Alloy 27.2mm |
| HEADSET | External Cup |
| SADDLE | Norco Youth |
| GRIPS | Norco Youth |
| PEDALS | Jr. MTB Flat, Black |
| FRONT HUB | Aluminum, 9x100mm, 6 Bolt |
| REAR HUB | Aluminum 10x135mm, HG, 6 Bolt |
| RIMS | Aluminum Double Wall, 28H, 24" |
| FRONT TIRE | Vee Crown Gem 2.25" |
| REAR TIRE | Vee Crown Gem 2.25" |
| SPOKES/NIPPLES | Stainless, Black |
| Wheel Size | 24" | |
|---|---|---|
| Travel (mm front) | 80mm | |
| Reach | 365mm | |
| Stack | 523mm | |
| HTA | Head Tube Angle | 66º |
| ST | Seat Tube Length | 305mm |
| STA | Effective Seat Tube Angle | 73º |
| RC | Rear Centre Length | 380mm |
| BB | Bottom Bracket Drop | 43mm |
| BBH | Bottom Bracket Height | 267mm |
| HTT | Horizontal Top Tube | 525mm |
| WB | Wheelbase | 1000mm |
| HT | Head Tube Length | 90mm |
| Crank Length | 152mm |
