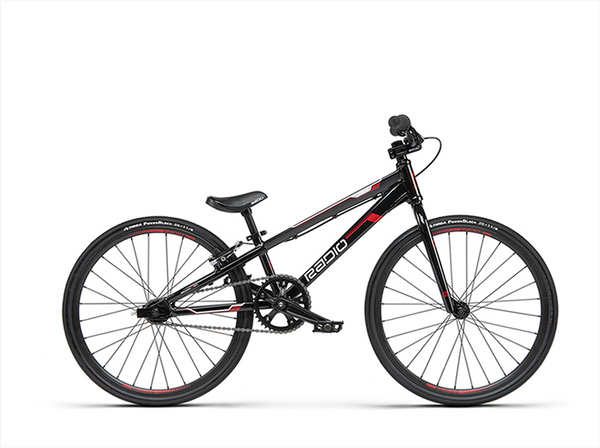

Radio Raceline Xenon Mini 20" BMX Race Bike (Black/Red)
Regular price $999.99
Unit price per
RADIO RACELINE 20" Xenon Mini Bike
The mid-tier Xenon line is a game changer with all bikes being disc-ready allowing you to convert them to a full disc-brake setup with Radio's aftermarket disc brake kit. The Xenon Mini might be small in size but packs a real punch in power. Radio spared no details here, from forged disc-ready dropouts, their very own aftermarket Clipper Junior rims to parts from Promax and Tioga, the Xenon is a natural born winner.
Specifications
Frame - Hydroformed 6061 T6 alloy, forged & disc brake mount ready dropouts
Fork - Cr-mo, 1″ butted steerer tube, cr-mo fork legs, 23mm offset
Handlebar - 6061-T6 alloy
Grips - Radio, Xenon, diamond knurling, clamp on grip, 115mm length
Stem - Radio, Cobalt toploader, ext. 40mm, alloy
Headset - Radio, integrated headset, sealed, 1″
Brake lever - Promax XL-378 alloy brake rear
Brake - Promax MV-85 alloy brake rear
Crank - Radio, Xenon 3pc crank, forged/CNC, alloy crank, 140mm length
BB - Radio, BSA square taper, sealed
Pedals - Radio, Xenon junior, alloy
Chain - KMC, Z6, 1/2″ x 3/32″
Sprocket - Radio alloy, 38T sprocket
Driver - Radio, 16T cog, 1/2″- 3/32″, sealed cassette driver
Front hub - Radio, Xenon, alloy CNC, fully sealed, 28t, 3/8″ cr-mo axle
Rear hub - Radio, Xenon, alloy CNC, fully sealed, 28t, disc brake cassette, 3/8″ cr-mo axle
Rims - Radio, Clipper Junior, 28h, alloy, sleeved joint
Seat - Radio Mini combo seat
Seat post - 22.2mm alloy
Seat clamp - Radio, Xenon, quick-release, alloy
Tires - Tioga, Power-block, 20″x 1-1/8″
Weight- 7.55kg/ 16.64lbs
Specifications
Frame - Hydroformed 6061 T6 alloy, forged & disc brake mount ready dropouts
Fork - Cr-mo, 1″ butted steerer tube, cr-mo fork legs, 23mm offset
Handlebar - 6061-T6 alloy
Grips - Radio, Xenon, diamond knurling, clamp on grip, 115mm length
Stem - Radio, Cobalt toploader, ext. 40mm, alloy
Headset - Radio, integrated headset, sealed, 1″
Brake lever - Promax XL-378 alloy brake rear
Brake - Promax MV-85 alloy brake rear
Crank - Radio, Xenon 3pc crank, forged/CNC, alloy crank, 140mm length
BB - Radio, BSA square taper, sealed
Pedals - Radio, Xenon junior, alloy
Chain - KMC, Z6, 1/2″ x 3/32″
Sprocket - Radio alloy, 38T sprocket
Driver - Radio, 16T cog, 1/2″- 3/32″, sealed cassette driver
Front hub - Radio, Xenon, alloy CNC, fully sealed, 28t, 3/8″ cr-mo axle
Rear hub - Radio, Xenon, alloy CNC, fully sealed, 28t, disc brake cassette, 3/8″ cr-mo axle
Rims - Radio, Clipper Junior, 28h, alloy, sleeved joint
Seat - Radio Mini combo seat
Seat post - 22.2mm alloy
Seat clamp - Radio, Xenon, quick-release, alloy
Tires - Tioga, Power-block, 20″x 1-1/8″
Weight- 7.55kg/ 16.64lbs
Frame geometry
Top tube length - 17.5″
Chain stay length - 13.1″
Head tube angle - 72°
Seat tube angle - 70°
Bottom bracket height - 10.7″
Top tube length - 17.5″
Chain stay length - 13.1″
Head tube angle - 72°
Seat tube angle - 70°
Bottom bracket height - 10.7″
Handlebar geometry
Rise - 2.25″
Width - 21″
Backsweep - 8°
Upsweep - 2°
Rise - 2.25″
Width - 21″
Backsweep - 8°
Upsweep - 2°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
