Radio Raceline Xenon Expert 20" BMX Race Bike (Black/Teal)
Regular price $999.99
Unit price per

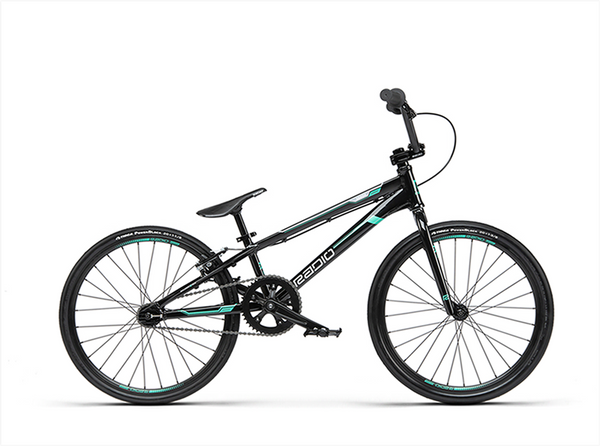

RADIO RACELINE 20" Xenon Expert Bike
The Xenon Expert is the next step on the ladder to the top. The mid-tier Xenon line is a game changer with all bikes being disc-ready allowing you to convert them to a full disc-brake setup with Radio’s aftermarket disc brake kit. Radio spared no details here, from forged disc-ready dropouts with tensioners, their very own aftermarket Clipper Junior rims, the Xenon is a natural born winner.
Specifications
Frame - Hydroformed 6061 T6 alloy, forged & disc brake mount ready dropouts, with int. chain tensioners
Fork - Cr-mo, 1-1/8″ butted steerer tube, cr-mo fork legs, 23mm offset
Handlebar - 6061-T6 alloy
Grips - Radio, Xenon, diamond knurling, clamp on grip, 132mm length
Stem - Radio, Cobalt-toploader, ext. 50mm, alloy
Headset - FSA, no.28, integrated headset, sealed, 1-1/8″
Brake lever - Promax “XL-378” alloy brake rear
Brake - Promax MV-85 alloy brake rear
Crank - Radio, Xenon 3pc crank, forged/cnc, alloy crank, 165mm length
BB - Radio, bsa square taper, sealed
Pedals - Radio, Xenon slim, alloy
Chain - KMC, Z6, 1/2″ x 3/32″
Sprocket - Radio, 42T, alloy
Driver - Radio, 16T cog, 1/2″- 3/32″, sealed cassette driver
Front hub - Radio, Xenon, alloy CNC, fully sealed, 32t, 3/8″ cr-mo axle
Rear hub - Radio, Xenon, alloy CNC, fully sealed, 32t, disc brake cassette, 3/8″ cr-mo axle
Rims - Radio, clipper junior, 28h, alloy, sleeved joint f & r
Seat - Radio, Xenon, pivotal, no padding
Seat post - Radio, 22.2mm, pivotal, alloy seatpost
Seat clamp - Radio, Xenon, quick-release , alloy
Tyres - Tioga, Power-block, 20″x 1-3/8″ f&r
Weight - 8.19kg
Frame Geometry
Top tube length - 19.5″
Chain stay length - 13.6″
Head tube angle - 73.5°
Seat tube angle - 71°
Bottom bracket height - 10.8″
Handlebar geometry
Rise - 5.75″
Width - 24.4″
Backsweep - 8°
Upsweep - 2°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
