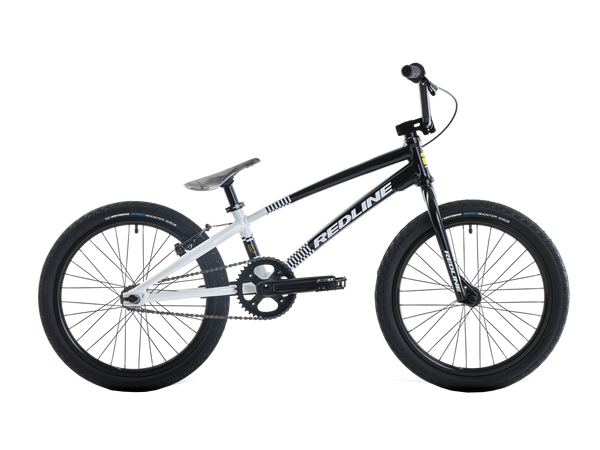

Redline Proline Expert XL 20" BMX Race Bike
Regular price $1,099.00
Unit price per
REDLINE 20" Proline Expert Bike
Once tweens or teens have some laps under their belts and they’re ready to get more serious about racing, the Redline Proline Expert XL is ready to take them to the next level. Offering great performance and high quality at a mid-level price, the Proline Expert XL is made with a Redline proprietary aluminum alloy frame with a sealed Euro bottom bracket, aluminum 2-piece cranks, and sealed hubs. The 100 percent chromoly steel race fork with tapered legs helps riders maneuver the Proline Expert XL more easily. The pivotal race saddle with no padding looks and acts the part at the start line.
Frame - Proprietary Alloy Formed And Butted Tubing

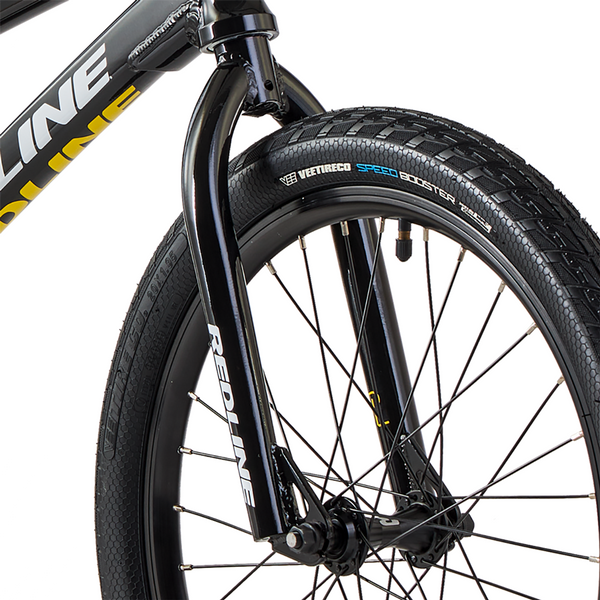

Fork - Full Chromo With Tapered Legs
Headset - Sealed Integrated Headset 1 1/8, Aluminum Top Cap

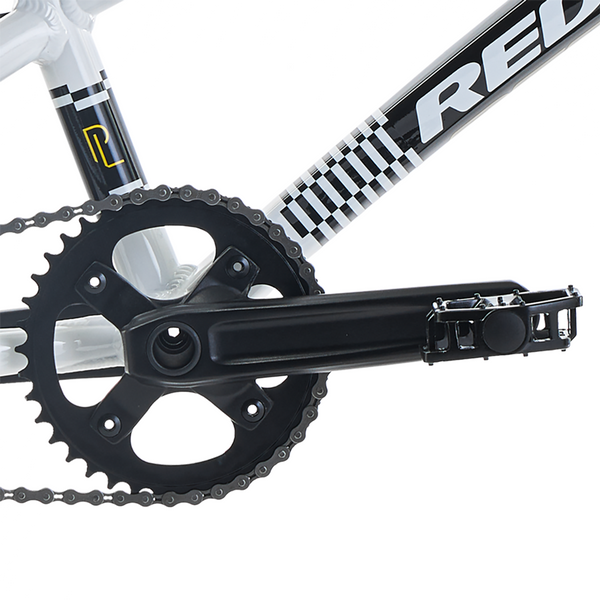

Cranks - Aluminum 2 Piece 165mm Cranks
Srocket - 39t, Alloy, 104 Bcd
Bottom Bracket - Sealed Euro Bb
Cogset - 14t
Chain - Kmc Z6
Front Hub - Redline Aluminum Fully Sealed

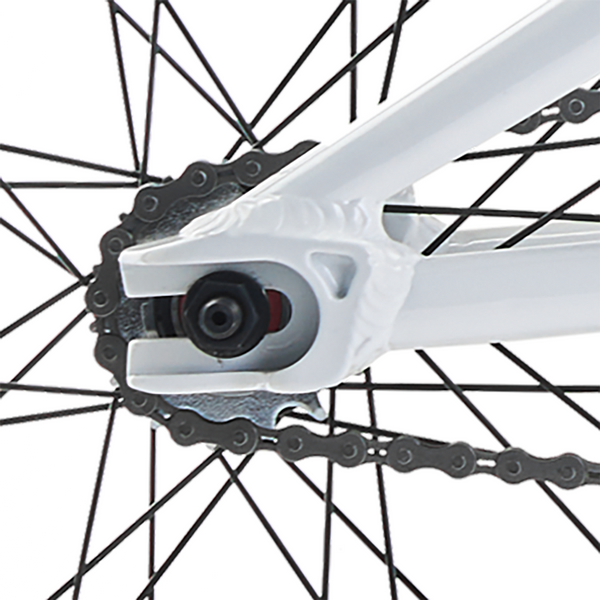

Rearhub - Redline Aluminum, Cassette, Fully Sealed
Spokes - Stainless 14g, Black
Rims - A-M6 Alloy Race, 20 X 1.5, 32h
Tires - Vee Speed Booster, 20 X 1.95" Front / 20 X 1.75" Rear
Brake E Levers - Tektro 316a Linear
Pedals - Aluminum 9/16" Platform
Handlebar - Chromoly, 6.5" Rise / 12° Back / 1° Up

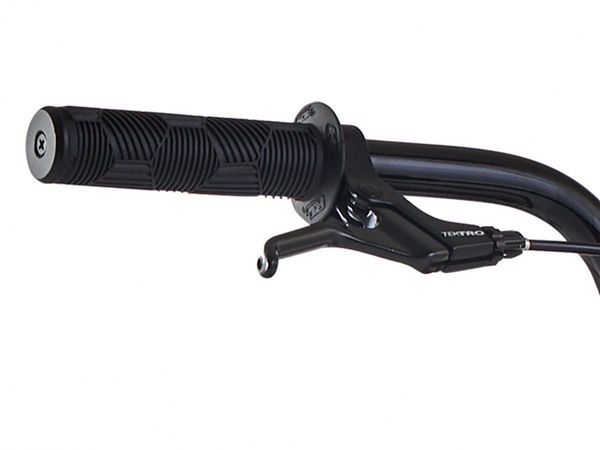

Grips- Rl Pro Hex Grips
Stem - Rl Aluminum Hollowpoint

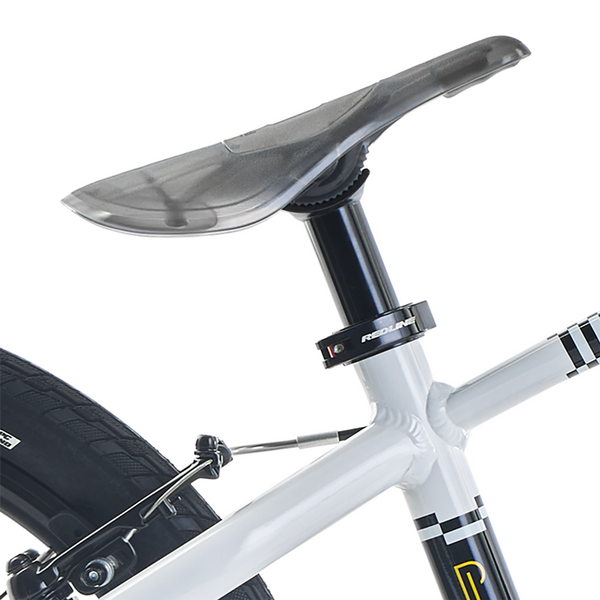

Seat - Pivotal No Padding
Seatpost - Aluminum Pivotal 26.8mm
Extras - Chain Tensioners
Brakes - Tektro 930al Linear
Geometry
Frame Size - 20"Bike Top Tube Length - 20.0 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.25 "
Bike Bb Height - 11.2 "
Bike Stem Length - 50.0 mm
Bike Handlebar Width - 26.0 "
Bike Crank Length - 170.0 mm
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
