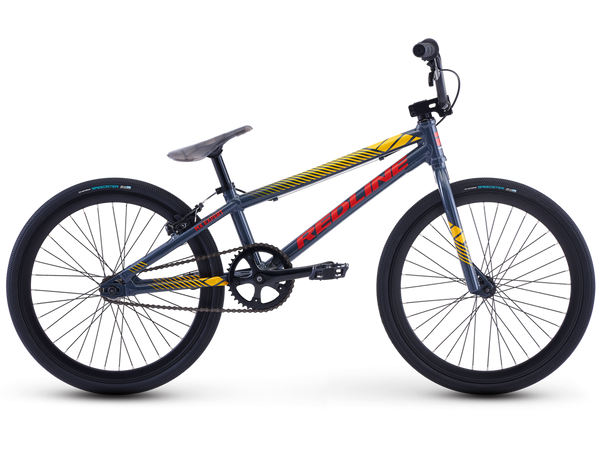

Redline MX Expert 20" BMX Race Bike
Regular price $999.00
Unit price per
REDLINE 20" MX Expert Bike
Made for your growing BMX racer, the Redline MX Expert is top of class for value and quality. Aluminium alloy rims, Vee Speedster 20 × 1 3/8 inch tires, Redline premium aluminium frame, and an integrated head tube all come together to make the Redline MX Expert lightweight and easy to manoeuvre. The MX Expert features a high-quality 3-piece crank set, integrated headset, and pivotal race saddle. Fits riders 155cm - 165cm tall.
Specifications

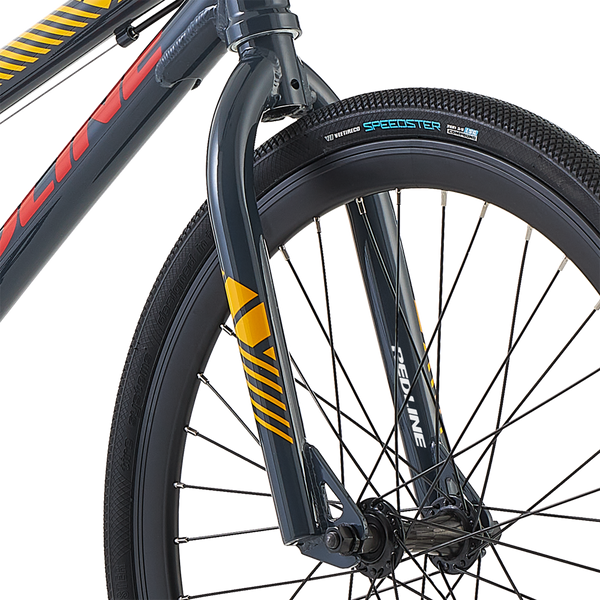

Frame - 6061 Alloy w/Integrated Headtube Fork - RL Race Hi-Ten w/ Tapered legs
Headset - Integrated 1 1/8"

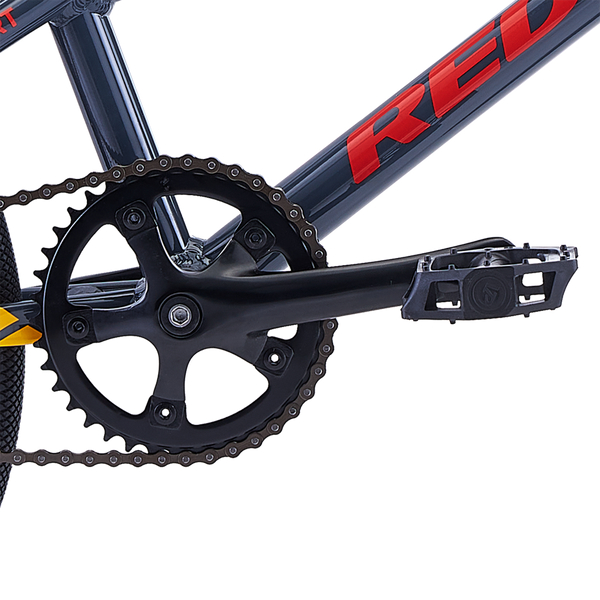

Cranks - Race Aluminium 3pc, 165mm
Sprocket - 39t, Alloy
Bottom bracket - Euro
Cogset - 15t
Chain - KMC S1
Front hub - Redline Aluminium
Rear hub - RL Aluminium Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 20 x 1 1/8, 36h
Tyres - Vee Speedster, 20 x 1 3/8

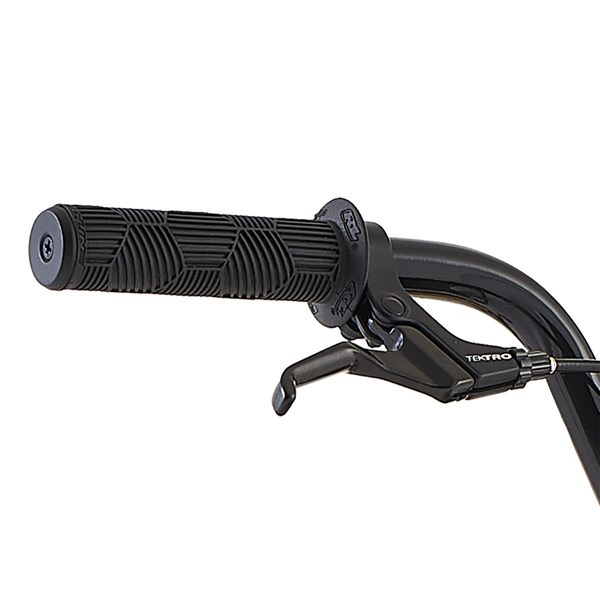

Brake levers - Tektro
Pedals - RL Race 9/16" PC pedal

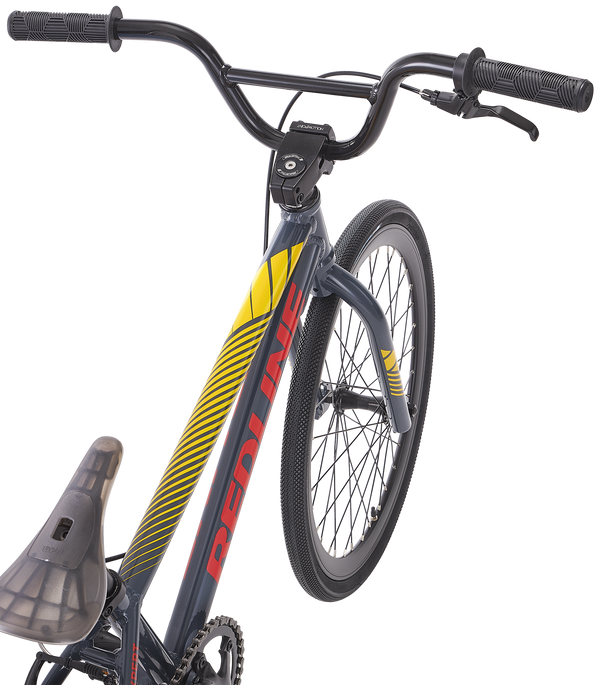

Handlebar - RL Race 5.5" Rise/ 12 deg Back/ 1 deg Up
Grips - Redline Hex expert w/plugs
Stem - RL Hollow Point Aluminium 1 1/8" threadless
Seat - Pivotal Race
Seatpost - Pivotal 26.8
Brakes - Tektro BX-1V Linear
Geometry
Bike Top Tube Length - 19.5 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.75 "
Bike Bb Height - 11.4 "
Bike Stem Length - 50.0 mm
Bike Handlebar Width - 26.0 "
Bike Crank Length - 165.0 mm
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
