Radio Raceline Xenon Pro 20" BMX Race Bike (Black/Purple)

Regular price $1,299.99

Unit price per

Color

Size

only 0 left in stock

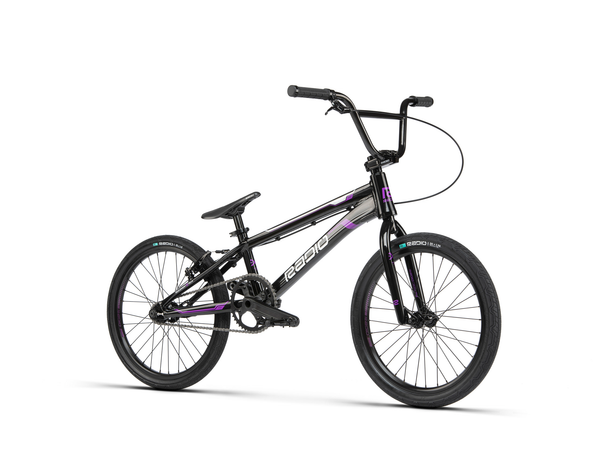

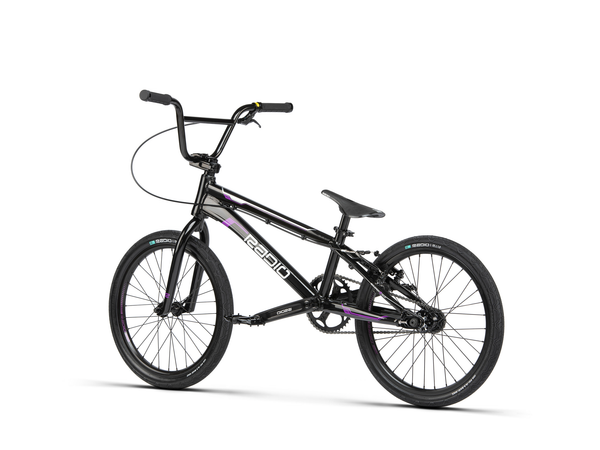

RADIO RACELINE 20" Xenon Pro Bike

The Xenon Pro features a full spec upgrade and pro sized geometry. The mid-tier Xenon line is a game changer with all bikes being disc-ready allowing you to convert them to a full disc-brake setup with Radio's aftermarket disc brake kit. Radio spared no details here, from forged disc-ready dropouts with tensioners, their very own aftermarket Xenon stem, Oxygen tyres and Argon Pro rims, the Xenon is a natural born winner.

Specifications

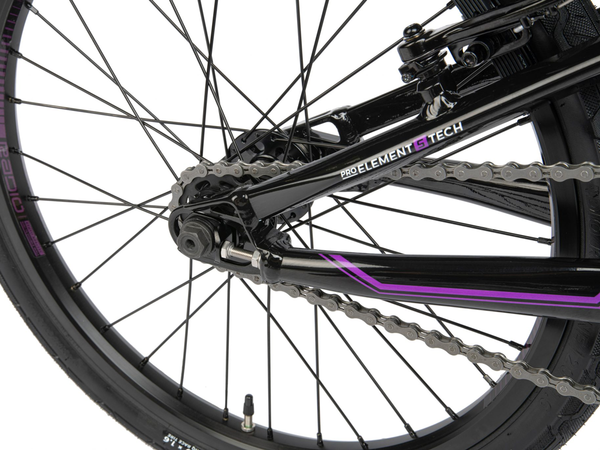

Frame - Hydroformed 6061 T6 alloy, forged & disc brake mount ready dropouts, with int. chain tensioners
Fork - Cr-mo, 1-1/8″ butted steerer tube, cr-mo fork legs, 30mm offset
Handlebar - 6061-T6 alloy
Grips - Radio, Xenon, diamond knurling, clamp on grip, 139mm length

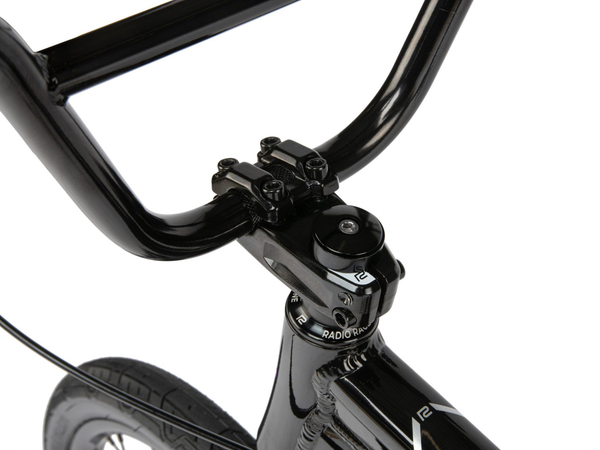

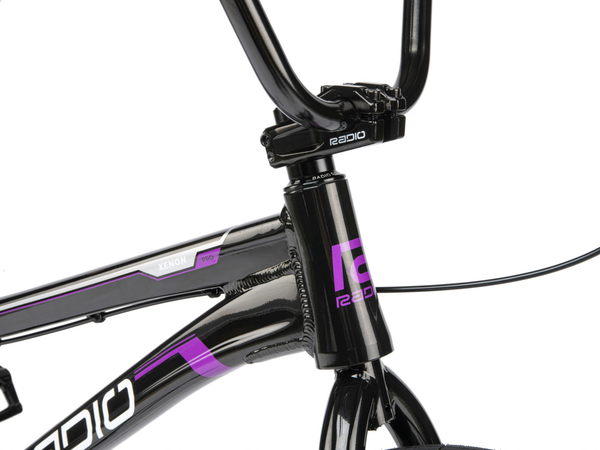

Stem - Radio, Xenon Pro, toploader, ext. 53mm, cold forged/CNC alloy
Headset - Radio, pro, int. headset, sealed, threadless, 1-1/8″ – 1.5″, including fork crown race 1.5″-1 1/8″ converter

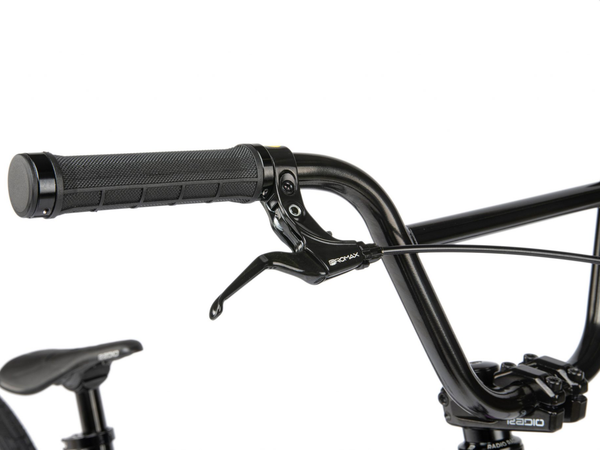

Brake lever - Promax XL-373 alloy brake rear
Brake - Promax TX-131 alloy brake rear

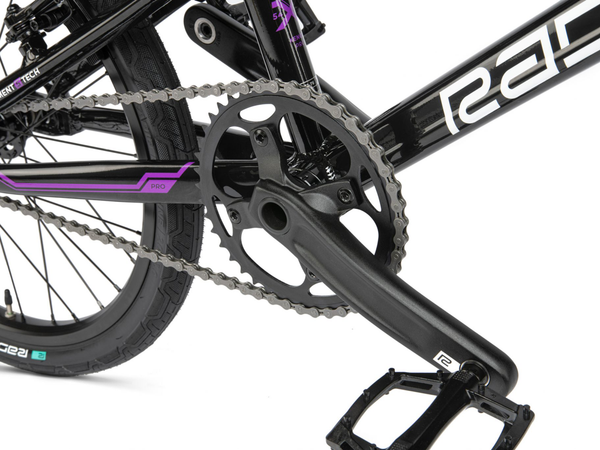

Crank - Radio, Xenon Pro, 2pc crank, cold forged/CNC, alloy,175mm length, 24mm spindle
BB - Radio, BSA 24, external bearing cups, CNC machined, sealed
Pedals - Radio, Xenon slim, alloy
Chain - KMC, Z6, 1/2″ x 3/32″
Sprocket - Radio, Xenon Pro, 43T, alloy
Driver - Radio, 16T cog, 1/2″- 3/32″, sealed cassette driver

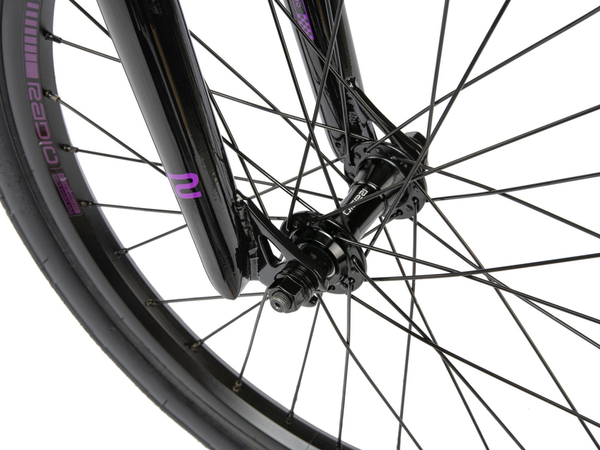

Front hub - Radio, Xenon, alloy CNC, fully sealed, 32T, 3/8″ cr-mo axle

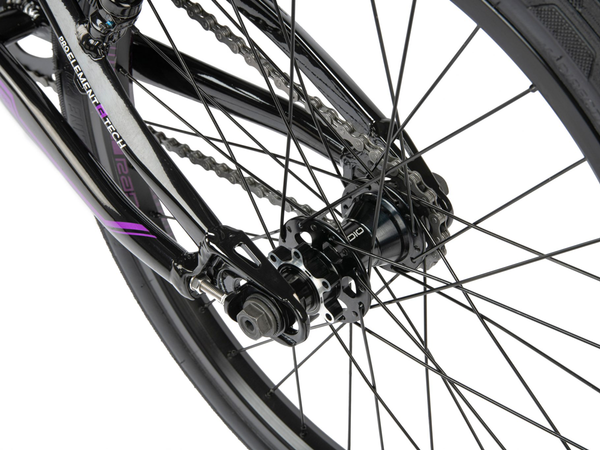

Rear hub - Radio, Xenon, alloy CNC, fully sealed, 32T, disc brake cassette, 3/8″ cr-mo axle
Rims - Radio, Argon Pro, 32h, alloy, sleeved joint f & r

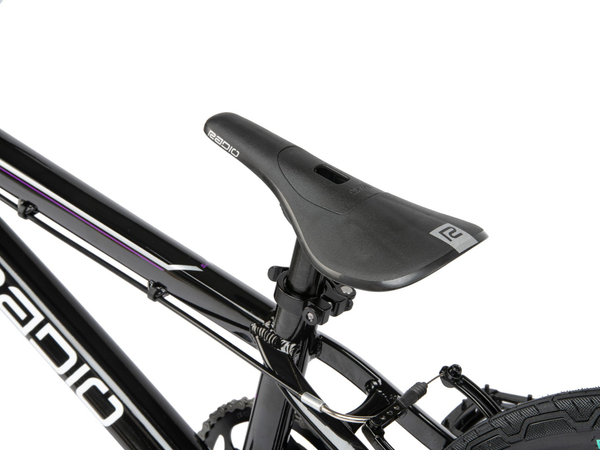

Seat - Radio, Xenon, pivotal, no padding
Seat post - Radio, 27.2mm, pivotal, alloy seatpost
Seat clamp - Radio, Xenon, quick-release, alloy

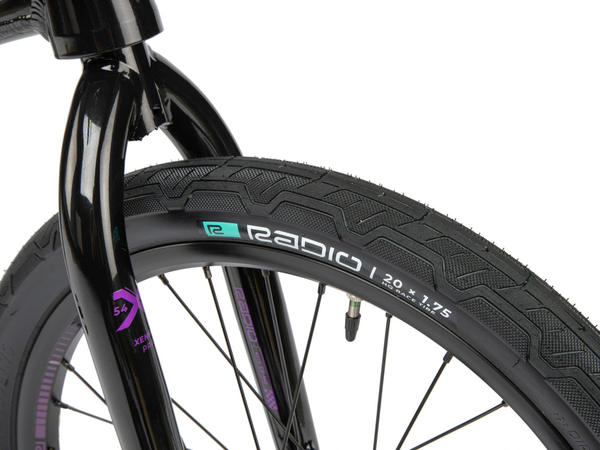

Tyres - Radio, Oxygen, front 20″x1.75″ / rear 20″x1.6″ f & r

Frame geometry
Top tube length - 20.75″
Chain stay length - 14.25″
Head tube angle - 74°
Seat tube angle - 71°
Bottom bracket height - 11.6″

Handlebar geometry
Rise - 7.5″
Width - 28″
Backsweep - 11°
Upsweep - 3.5°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
