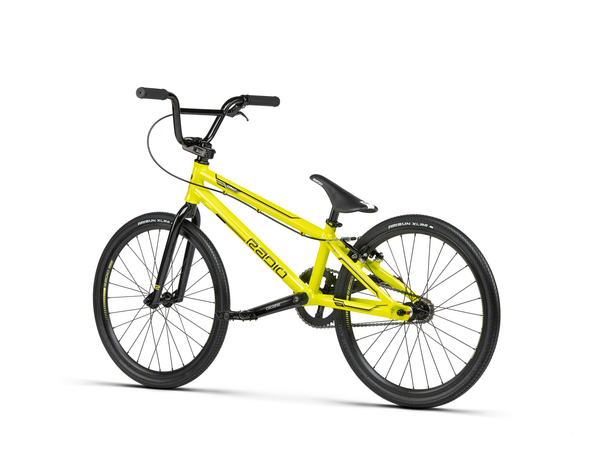

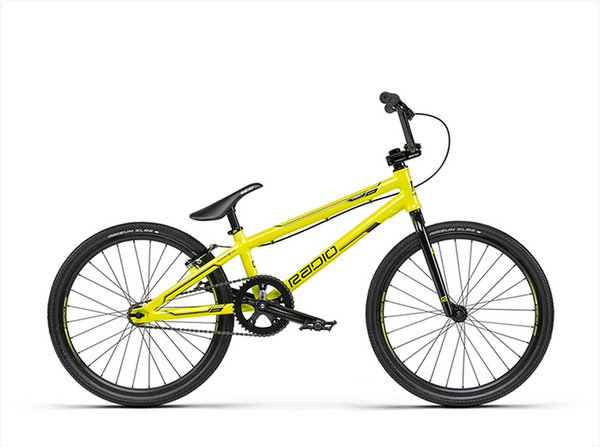

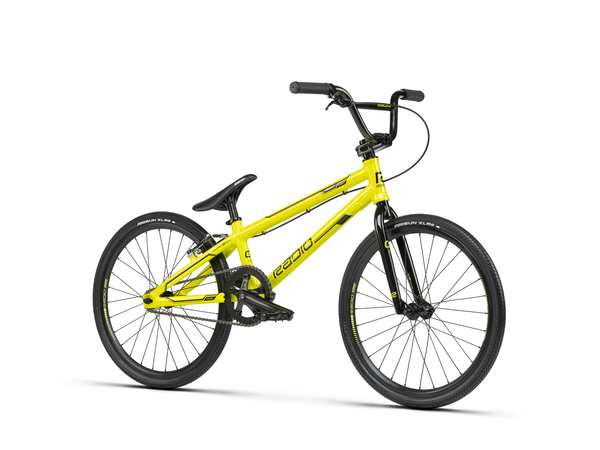

Radio Raceline Cobalt Expert 20" BMX (Metallic Yellow)
Regular price $799.00
Unit price per
Radio Raceline Cobalt Expert 20" BMX
The cobalt line combines proven geometry and dialled components giving you the best start out of the gate during your first days racing. The cobalt expert steps up to a 19.5″ toptube, a longer 50mm reach cobalt stem, a slim radio combo seat and wider 1 3/8″ arisun “xlr8” tires.
Fresh out of the box for 2021 with incredible new paint and graphics, you’ll be able to spot a cobalt on the track very easily. All cobalt bikes now feature full sealed front hubs and integrated headsets, making them simply unbeatable when comparing price to spec. The cobalt is one seriously unstoppable machine.
Frame - 6061 t6 alloy, forged dropouts with int. Chain tensioner
Fork - cr-mo, 1-1/8″ butted steerer tube, hi-ten fork legs, 23mm offset
Handlebar - 4130 seamless cr-mo
Grips - Radio, diamond knurling, closed end, flangeless, 130mm length

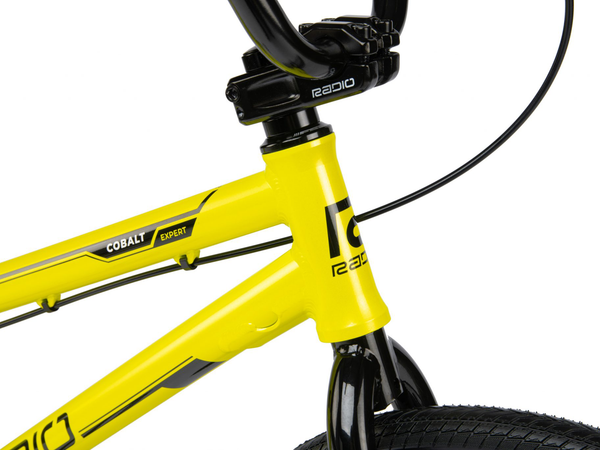

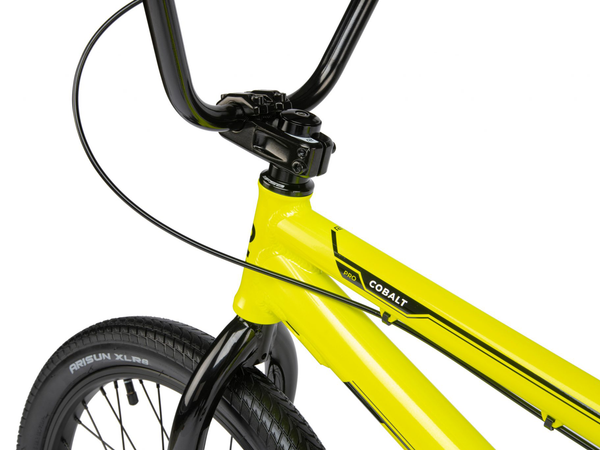

Stem - Radio, cobalt-toploader, ext. 50mm, alloy
Headset - FSA, no.28, integrated headset, sealed, 1-1/8″
Brake lever - Promax “xl-378” alloy brake rear

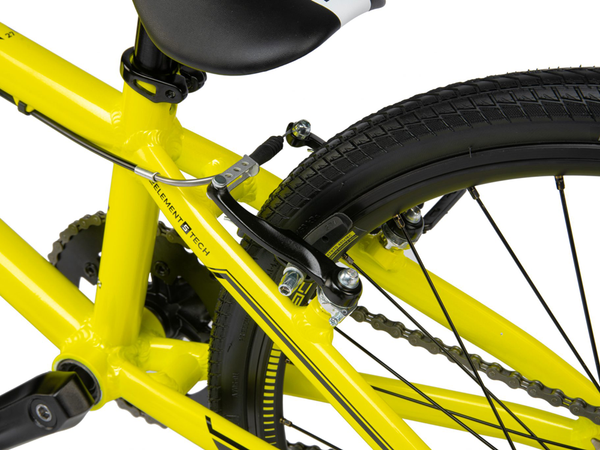

Brake - Promax “mv-87” alloy brake rear
Crank - Radio “cobalt” forged alloy 3pc crank, 165mm long
BB - Radio, bsa square taper, sealed
Pedals - Radio, cobalt pro, alloy
Chain - KMC, z6, 1/2″ x 3/32″
Sprocket - Radio alloy, 42t sprocket
Driver - ATA, 16t, 1/2″ x 3/32″, cr-mo
Front hub - Radio “cobalt” alloy cnc hub, fully sealed, 3/8″s, 28h, crmo axle

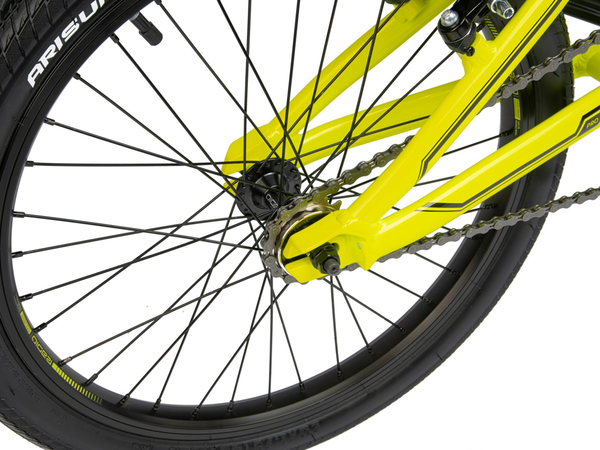

Rear hub - Radio “cobalt” alloy cnc hub, fully sealed, 3/8″s, crmo axle, 28h, flip flop
Rims - Radio, a-m5, double wall, 28h, alloy f&r

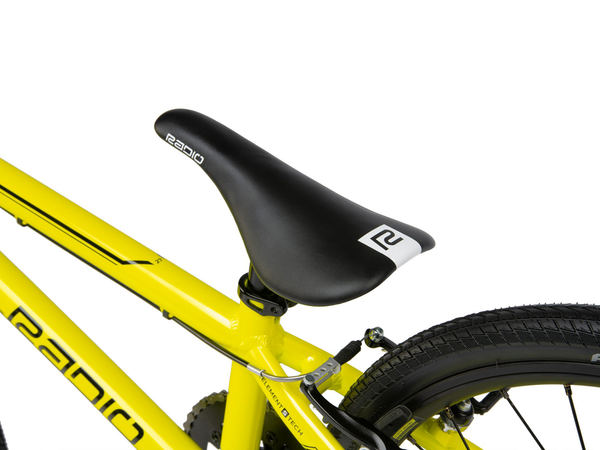

Seat - Radio cobalt pro, combo seat
Seat post - Radio 25.4mm alloy
Seat clamp -Radio, seat clamp, forged, alloy
Tires -Arisun, xlr8, 20″x 1-3/8″
Weight - 8.95kg/ 19.73lbs
Frame geometry
Top tube length - 19.5″
Chain stay length - 13.6″
Head tube angle - 73°
Seat tube angle - 71°
Bottom bracket height - 10.8″
Handlebar geometry
Rise - 5.75″
Width - 24.5″
Backsweep - 8°
Upsweep - 2°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
