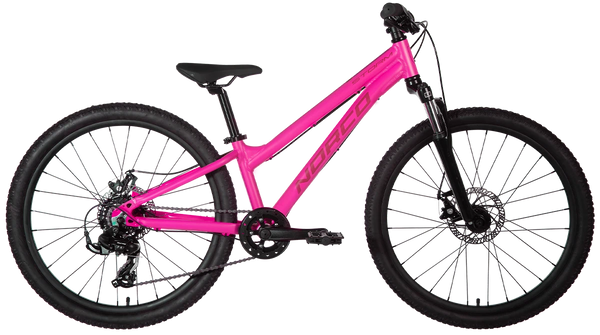

Norco Storm 4.1 - 24" MTB
| FRAME | Aluminum |
| FORK | SR Suntour XCT Jr., Coil Spring, 50mm Travel |
| REAR SHIFTER | Shimano Altus RapidFire |
| REAR DERAILLEUR | Shimano Tourney TY500 |
| CRANKSET | 3 Piece Alloy, 28T Narrow-Wide, Outer Guard |
| BOTTOM BRACKET | Sealed Bearing, BSA Threaded |
| CASSETTE | Shimano HG200, 12-32T, 7 Speed |
| CHAIN | KMC |
| PEDALS | Jr. MTB Flat |
| FRONT BRAKE | Tektro Mechanical Disc |
| REAR BRAKE | Tektro Mechanical Disc |
| BRAKE LEVERS | Tektro Alloy Jr, Reach Adjust |
| HANDLEBAR | Alloy Jr, 640mm, 30mm Rise |
| STEM | Alloy Jr. MTB, 45mm Reach |
| SEATPOST | Alloy, 27.2mm |
| HEADSET | Internal Threadless |
| SADDLE | Norco Jr. MTB |
| GRIPS | Jr. MTB, Soft Krayton Rubber |
| SEATPOST CLAMP | Alloy QR 31.8mm - Black |
| FRONT HUB | Alloy, 9x100mm, 6 Bolt |
| REAR HUB | Alloy, 10x135mm, HG, 6 Bolt |
| RIMS | Aluminum Double Wall, 28H, 24" |
| TIRES | MTB Tread, 24 x 1.95” |
| SPOKES/NIPPLES | Stainless, Black |
| Wheel Size | 24" | |
|---|---|---|
| Reach |
350mm |
|
| Stack | 518mm | |
| HTA | Head Tube Angle | 69º |
| ST | Seat Tube Length | 270mm |
| STA | Effective Seat Tube Angle | 70º |
| RC | Rear Centre Length | 380mm |
| BB | Bottom Bracket Rise/Drop | -40mm |
| BBH | Bottom Bracket Height | 266mm |
| HTT | Horizontal Top Tube | 538mm |
| WB | Wheelbase | 954mm |
| SOH | Standover | 603mm |
| HT | Head Tube Length | 100mm |
| Stem Length | 35mm | |
| Crank Length | 152mm | |
| FC | Front Centre Length | 577mm |
| FL | Fork Length | 416mm |
