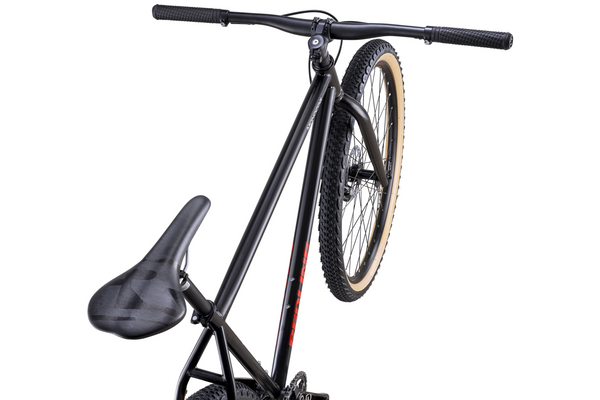

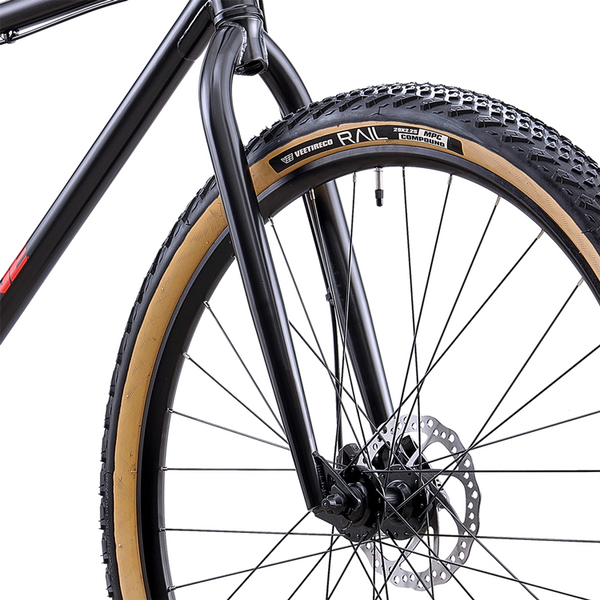

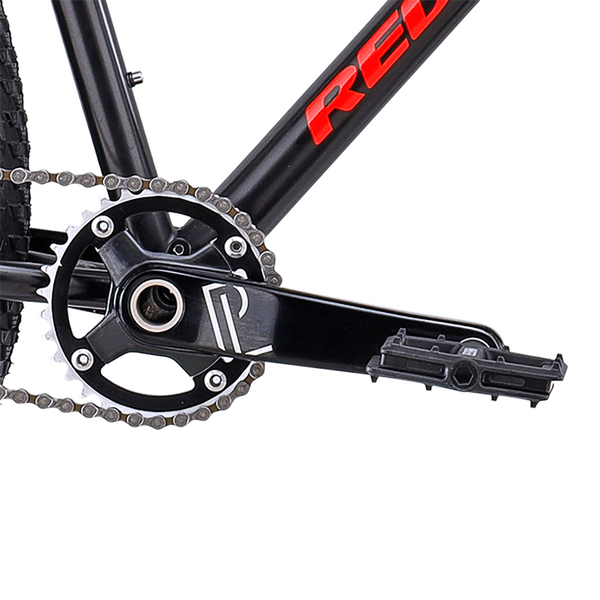

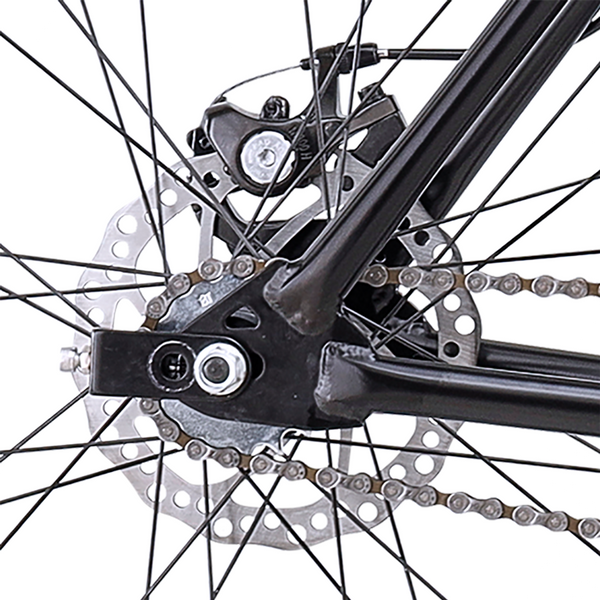

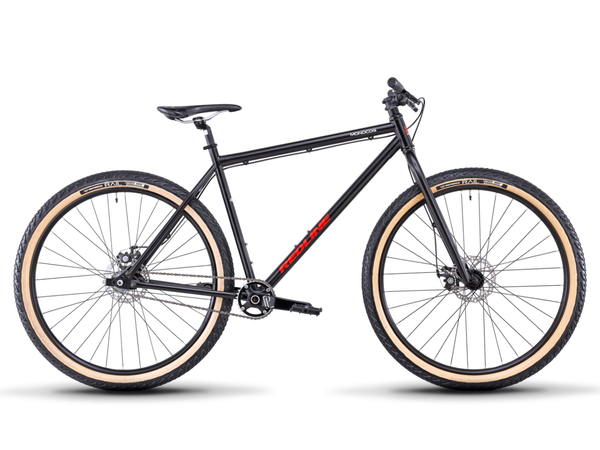

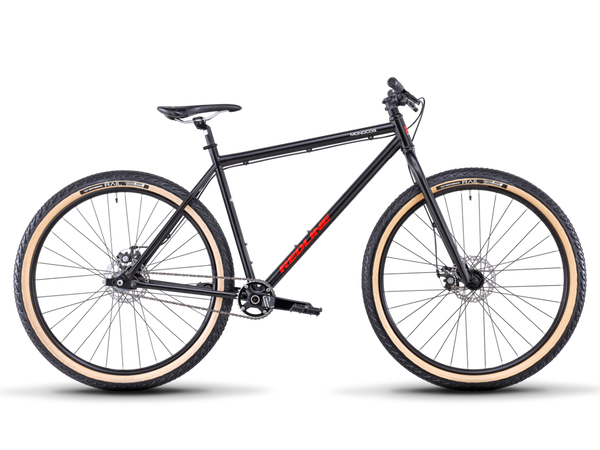

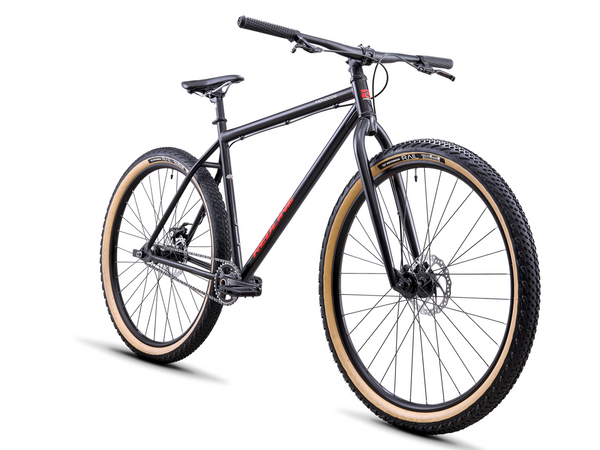

Redline Monocog 29" Bike (Black)
Regular price $1,499.99
Unit price per
REDLINE 29" Monocog Bike
The Monocog is a steel singlespeed 29er for the ultimate in simplicity. A chromoly frame and fork makes for old-school style and gives you the smooth ride quality that steel is known for. Durable double wall 29-inch wheels let your roll over obstacles, whether you are on the road or cruising on trails. Tektro mechanical disc brakes and a nice, wide 740mm riser handlebar round out the package for great control and a comfortable riding position. This fully rigid mountain bike is at home on trails, gravel roads, and even pavement to give you a versatile ride that’s plenty fun on the singletrack.
Specifications
Frame - Full Chromoly Disc
Fork - Chromoly Disc
Headset - Fsa Impact Integrated 1 1/8"
Cranks - Proline 2pc Alloy Forged Cranks 175mm W/24mm Chromo Spindle
Sprocket - Alloy, 104 Bcd, 32t
Bottom Bracket - Sealed External Euro
Cogset - 18t
Chain - Kmc Z33
Front Hub - Formula Alloy Disc, Qr, 32h
Rear Hub - Formula Alloy Disc, Cassette Spaced For Single Speed, Nutted, 32h
Spokes - 14g Stainless Steel
Rims - Alloy Ddm-2 Double Wall, Disc
Tires - Vee Rubber, 29 X 2.25
Brake Levers - Tektro Ml520
Pedals - Monster Pc, Sealed Bearing, Ultra Low Profile W/ Broached Chromo Spindle
Handlebar - Alloy, 740mm Wide, 15mm Rise, 9 Deg Back, 5 Deg Up, 35mm
Grips - Redline Monster 151, No Flange
Stem - Alloy, 3d Forged, 40mm, 35mm Bar Bore
Seat - Redline Mtb
Seatpost - Alloy, 26.8 X 350mm
Brakes - Tektro Md-M300, Mechanical Disc, 160mm Rotor
Frame - Full Chromoly Disc
Fork - Chromoly Disc
Headset - Fsa Impact Integrated 1 1/8"
Cranks - Proline 2pc Alloy Forged Cranks 175mm W/24mm Chromo Spindle
Sprocket - Alloy, 104 Bcd, 32t
Bottom Bracket - Sealed External Euro
Cogset - 18t
Chain - Kmc Z33
Front Hub - Formula Alloy Disc, Qr, 32h
Rear Hub - Formula Alloy Disc, Cassette Spaced For Single Speed, Nutted, 32h
Spokes - 14g Stainless Steel
Rims - Alloy Ddm-2 Double Wall, Disc
Tires - Vee Rubber, 29 X 2.25
Brake Levers - Tektro Ml520
Pedals - Monster Pc, Sealed Bearing, Ultra Low Profile W/ Broached Chromo Spindle
Handlebar - Alloy, 740mm Wide, 15mm Rise, 9 Deg Back, 5 Deg Up, 35mm
Grips - Redline Monster 151, No Flange
Stem - Alloy, 3d Forged, 40mm, 35mm Bar Bore
Seat - Redline Mtb
Seatpost - Alloy, 26.8 X 350mm
Brakes - Tektro Md-M300, Mechanical Disc, 160mm Rotor
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
Geometry
| Frame Size | SM/15 | MD/17 | LG/19 | XL/21 |
| Bike Stand Over Height | 721.0 " | 753.0 " | 796.0 " | 819.0 " |
| Bike Seat Tube Length | 385.0 " | 432.0 " | 482.0 " | 535.0 " |
| Bike Top Tube Length | 585.0 " | 603.0 " | 625.0 " | 640.0 " |
| Bike Head Tube Length | 95.0 " | 100.0 " | 110.0 " | 115.0 " |
| Bike Head Angle | 68.0 ° | 68.0 ° | 68.0 ° | 68.0 ° |
| Bike Seat Angle | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° |
| Bike Wheel Base | 1121.0 " | 1140.0 " | 1163.0 " | 1179.0 " |
| Bike Chain Stay Length | 450.0 " | 450.0 " | 450.0 " | 450.0 " |
| Bike Fork Offset | 46.0 " | 46.0 " | 46.0 " | 46.0 " |
| Bike Bb Height | 292.0 " | 292.0 " | 292.0 " | 292.0 " |
| Bike Bb Drop | 65.0 " | 65.0 " | 65.0 " | 65.0 " |
| Bike Stack | 582.0 " | 586.0 " | 596.0 " | 600.0 " |
| Bike Reach | 418.0 " | 435.0 " | 454.0 " | 468.0 " |
| Bike Fork Length | 481.0 mm | 481.0 mm | 481.0 mm | 481.0 mm |
