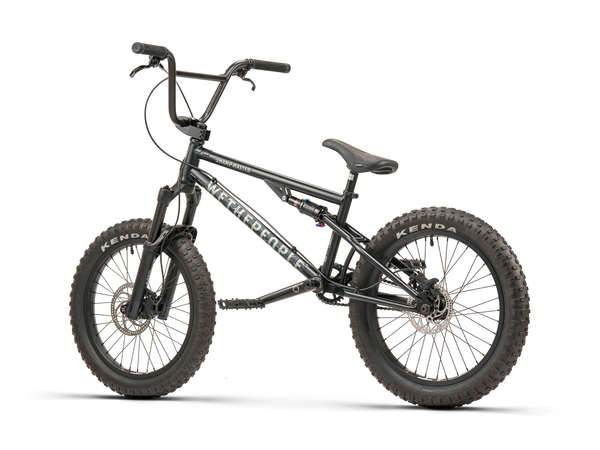

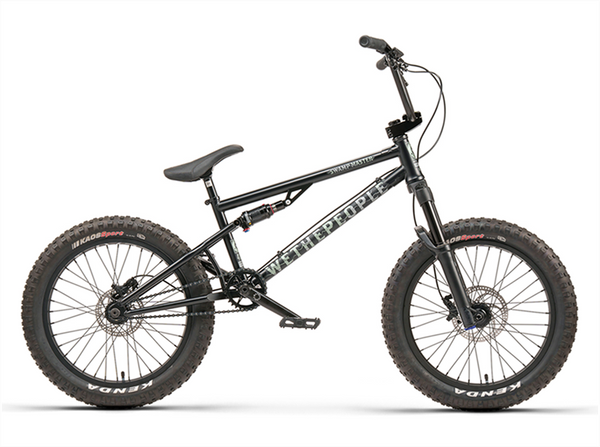

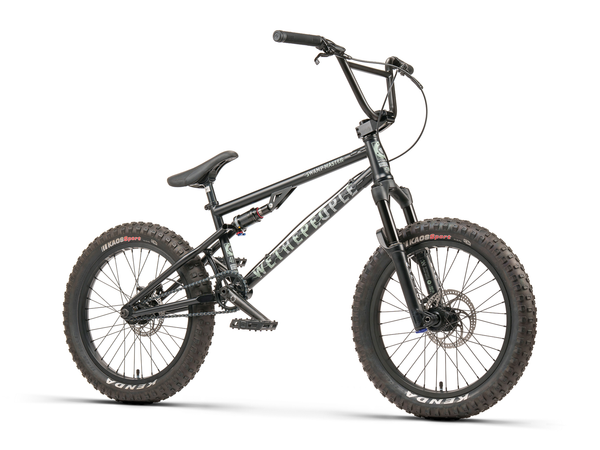

WeThePeople The Swampmaster 20" BMX Bike (Matt Black)

WETHEPEOPLE 20" The Swampmaster Bike

A whole new world of fun, the SWAMP MASTER is the first full suspension complete BMX bike. Inspired by the world of downhill mountain biking, mixed with classic BMX roots and fun, this bike is unique to say the least. Engineered in Cologne, Germany, the SWAMP MASTER is designed for serious downhill shredding whilst gaining the movement and freedom that a BMX bike offers. Spec’d with a mixture of our own aftermarket BMX components and genuine MTB parts from Kenda and Manitou, the SWAMP MASTER is the first production complete bike of its kind and is set to revolutionise a new chapter in BMX and MTB fusion.

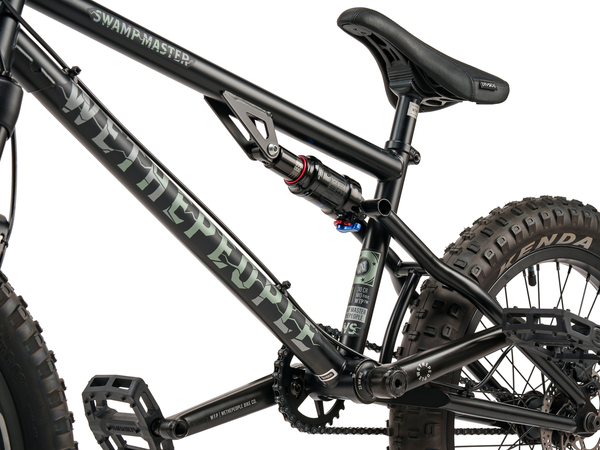

Frame - WETHEPEOPLE "SWAMP MASTER" frame, 4130 full crmo,

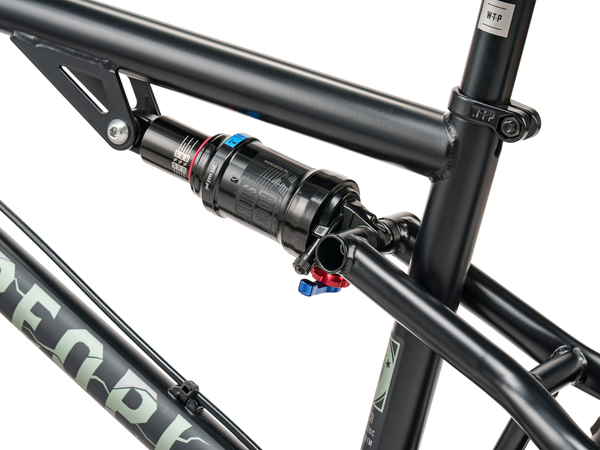

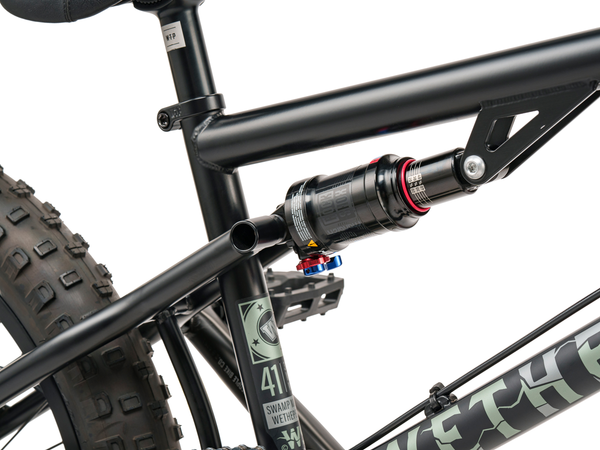

Rockshox Monarch RL shock - 152x31

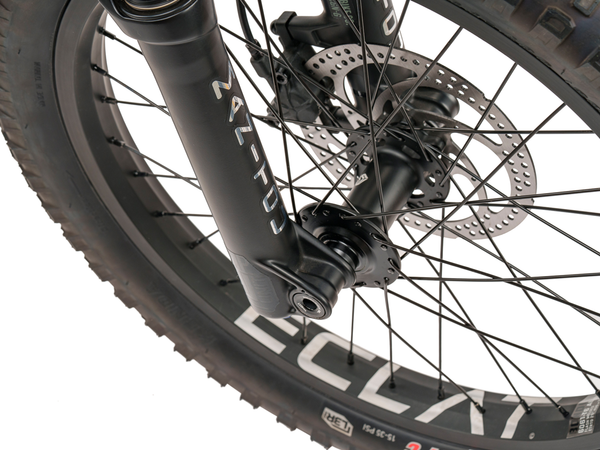

Fork - MANITOU "MACHETE J-UNIT EXPERT" fork, adult tuning , 100mm travel
Bars - WETHEPEOPLE "SWAMP MASTER" bar, post liquid heat-treated 4130 crmo
Grips - SALT "EX" grips, 154mm, flangless

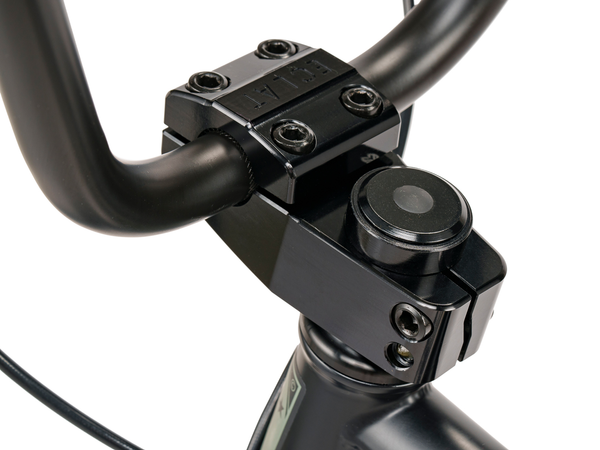

Stem - ÉCLAT "METRA" topload stem, cnc alloy, 51mm reach, 30mm rise
Headset - WETHEPEOPLE "COMPACT" tapered int. headset, sealed bearing

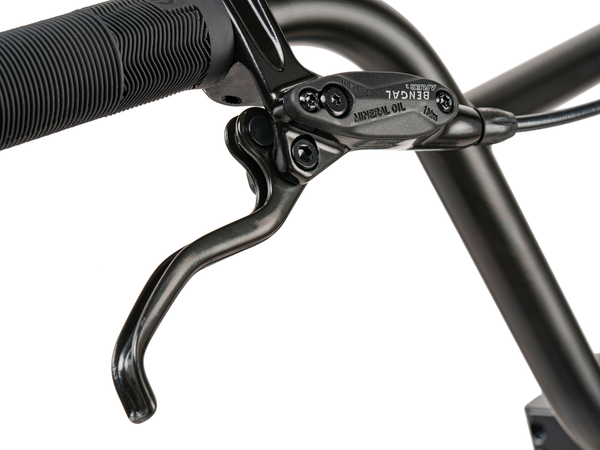

Lever - BENGAL "ARES 3" disc brake levers

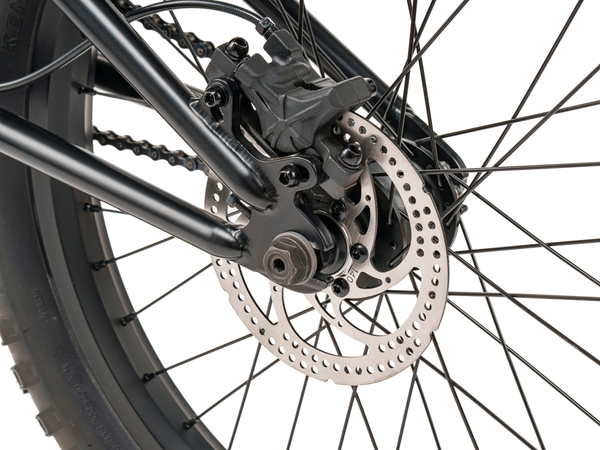

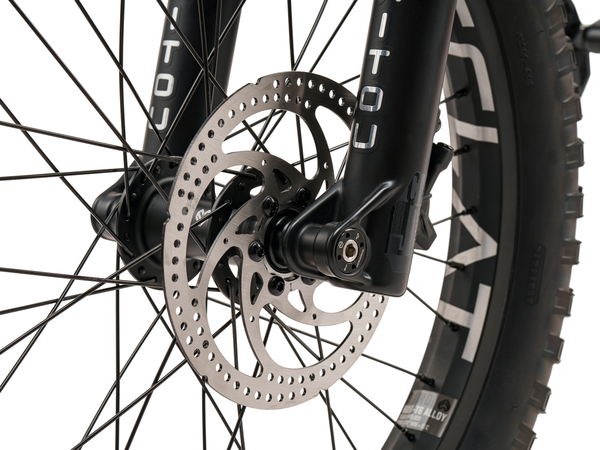

Brakes - BENGAL "ARES 3" hydraulic disc brakes, 140 mm rotors

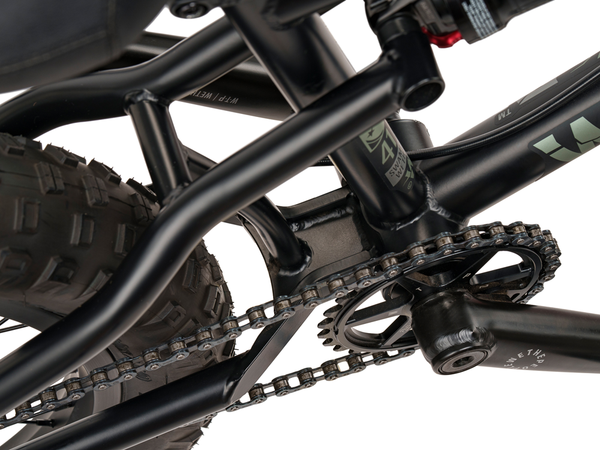

Cranks - WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline
BB - WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing
Pedals - WETHEPEOPLE "LOGIC" pedals, nylon/fiberglass
Chain - ÉCLAT "DIESEL" chain

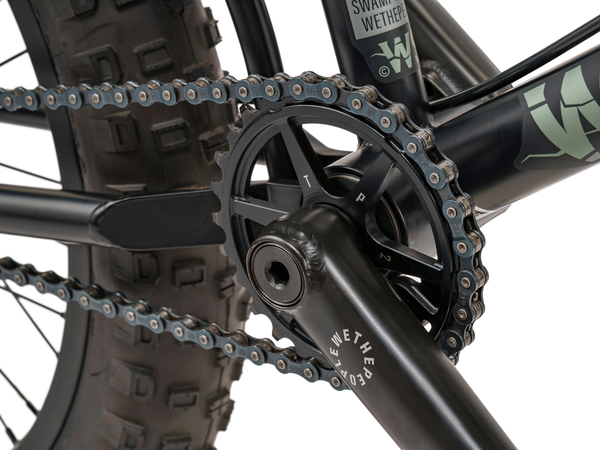

Sprocket - WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 28t
Driver - 1pc cassette driver, 9t, sealed bearing
Front hub - ÉCLAT "EXILE" disc front hub, BOOST 120mm, fully sealed, 15mm thru axle, 36h
Rear hub - ÉCLAT "EXILE" disc cassette hub, fully sealed, 3/8" female bolts, 36h
Front rim - ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
Rear rim - ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h

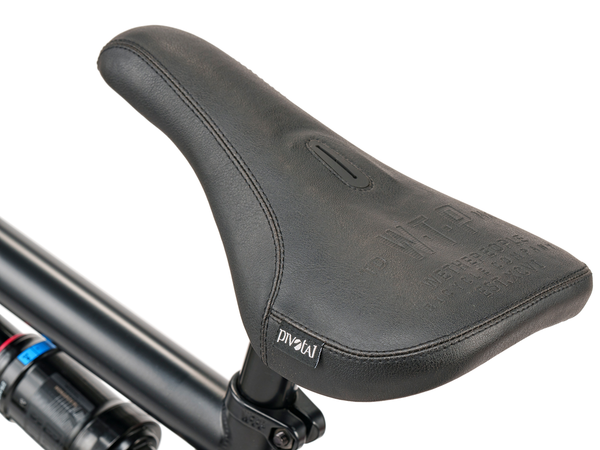

Seat - ÉCLAT "BIOS" pivotal seat, slim padded
Seat post - WETHEPEOPLE "TEAM" pivotal seat post, 200mm long, 6061-T6 alloy
Seat clamp - integrated seat clamp
Tires - KENDA "KAOS" tires, 20"x 2.6", front & rear

Frame Geometry
Top tube length – 21.5”
Chain stay length – 14.1” – 14.8”
Head tube angle - 71°
Seat tube angle - 70°
BB height – 12.15”
Standover height – 9.5”

Bar Geometry
Bar rise – 8.5”
Bar width – 29.15”
Bar backsweep - 11°
Bar upsweep – 2.5°

Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
