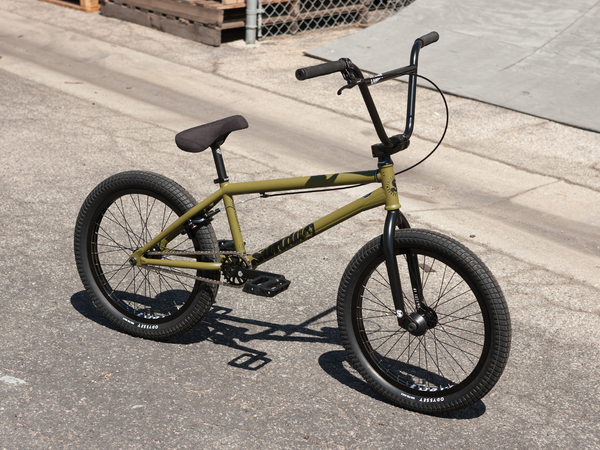

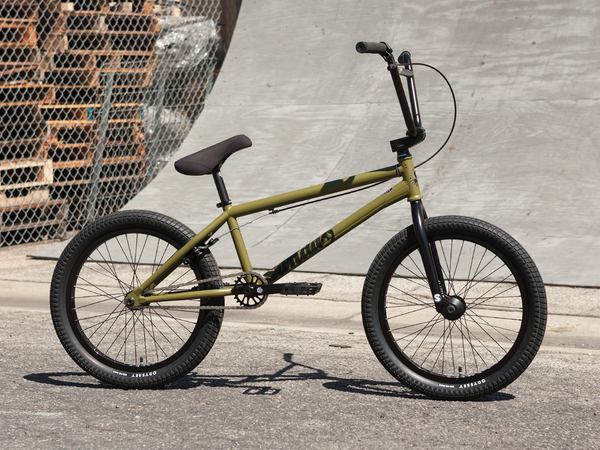

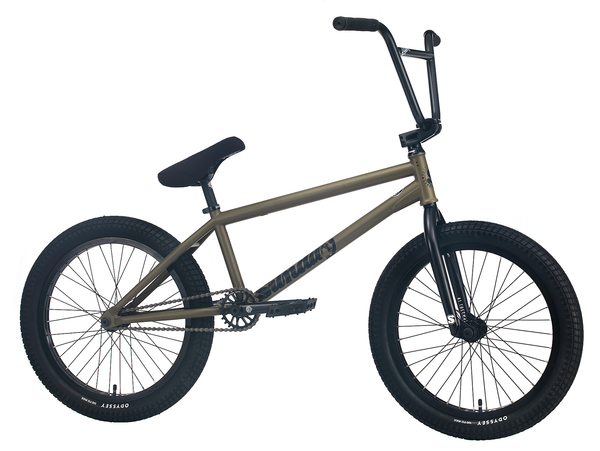

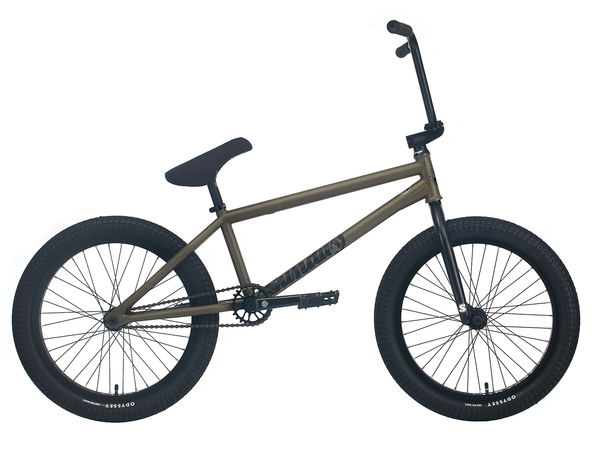

Sunday Wavelength (Gary Young) 20" BMX 2023 (Matt Army Green)
Regular price $2,499.99
Unit price per
Sunday 20" Wavelength (Gary Young) 2023 Bike

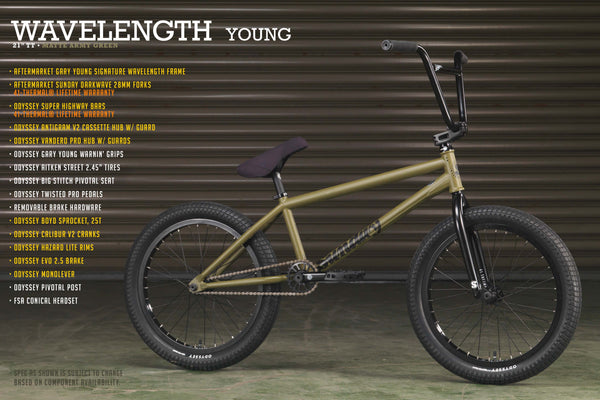

All-new for this year is the Gary Young Wavelength complete.
This model features Gary’s new signature frame along with an amazing aftermarket parts package including right-hand, left-hand switchable Odyssey Calibur V2 Cranks, switchable Antigram V2 Cassette hub, Evo 2.5 brakes, Aitken Street tires and loads of aftermarket parts for a build similar to the previous Soundwave Special cassette bike.
Features

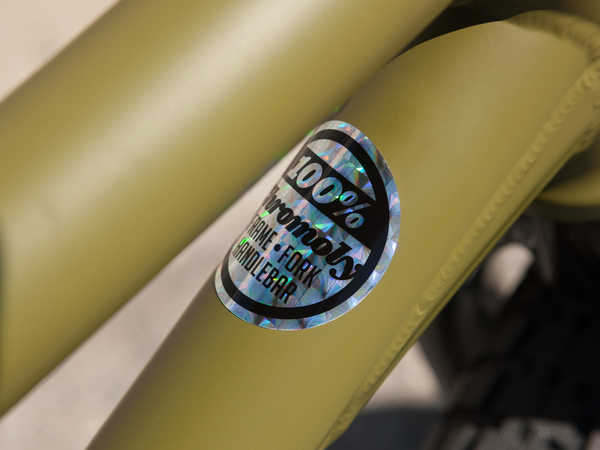

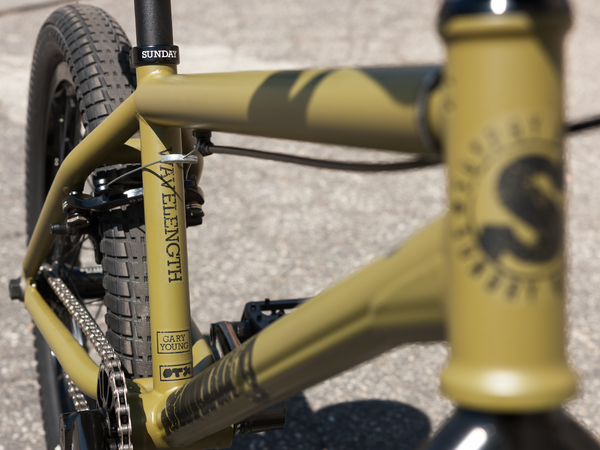

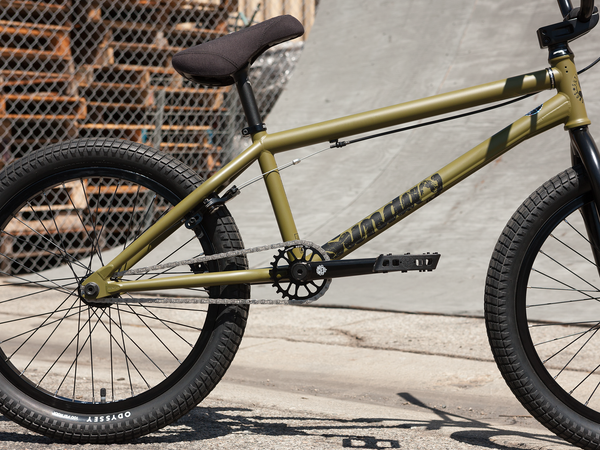

- Sunday Wavelength 100% Chromoly Frame- Sunday Darkwave 41-Thermal Forks
- Odyssey BROC 41-Thermal Bars
- Odyssey Calibur Cranks
- Odyssey Evo 2.5 Brakes
- Odyssey Antigram v2 Cassette
- Odyssey Vandero Pro Front Hub
- Odyssey Hazard Lite Rims
- Odyssey Aitken Street Tires
Specifications
Fork - Sunday Darkwave, 20", 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset

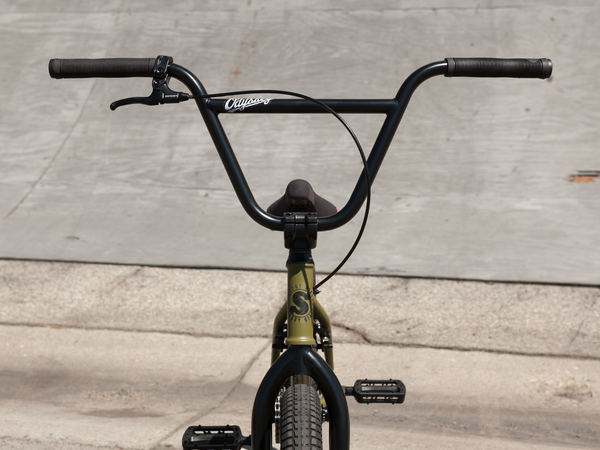

Handlebar - Odyssey Super Highway Bar, 41-Thermal, aftermarket bar

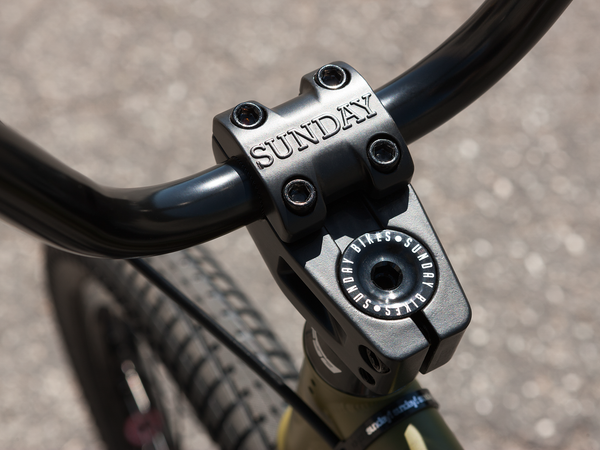

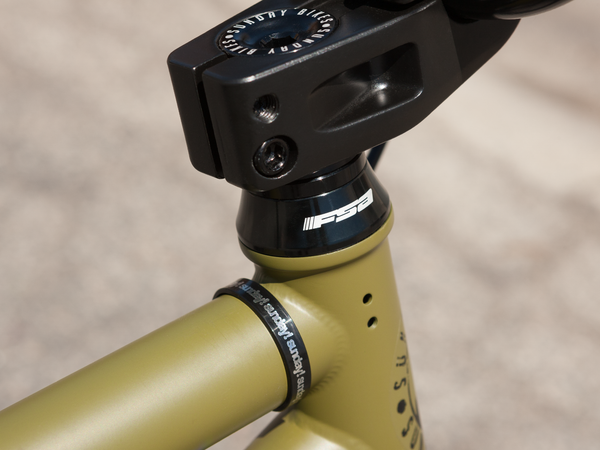

Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated conical, 1-1/8"
Headset Cap - Sunday aftermarket, aluminum

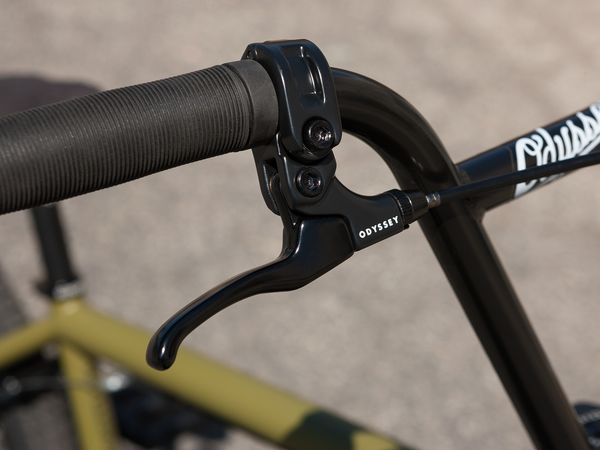

Brake Lever - Odyssey Monolever

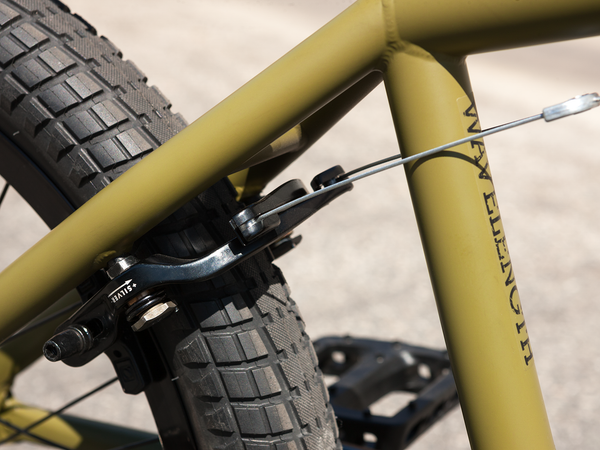

Brakes - Odyssey Evo 2.5
Brake Cable - Odyssey Linear Quik Slic

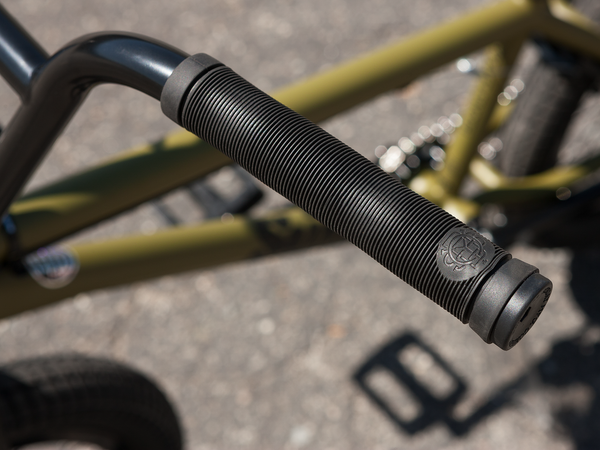

Grips - Odyssey Warnin'

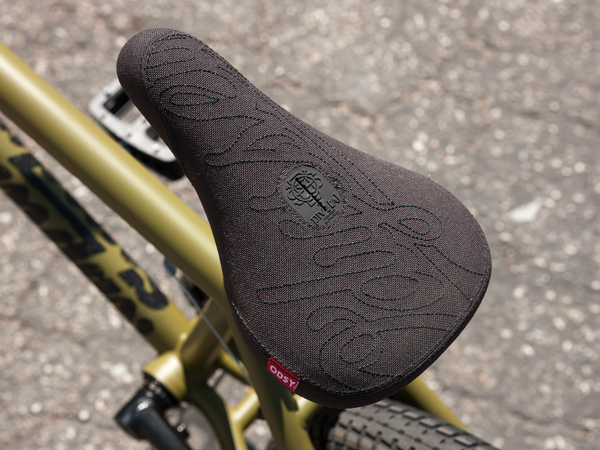

Seat - Odyssey Slugger Stitch, Pivotal
Seat Post - Odyssey Pivotal
Seat Clamp - Sunday aftermarket
Sprocket - Odyssey BOYD Sprocket, 25T
Cranks - Odyssey Calibur V2, 170mm, 100% chromoly, RHD/LHD Compatible
BB Parts - Sealed, Mid, 22mm
Pedals - Odyssey Twisted PC Pro

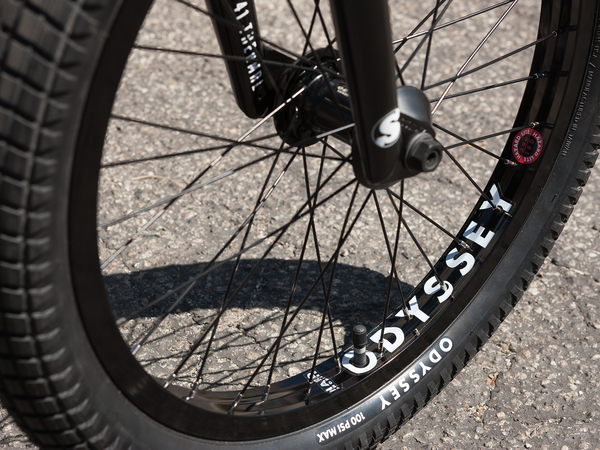

Rims - Odyssey Hazard Lite, 20", 36H
Front Hub - Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards

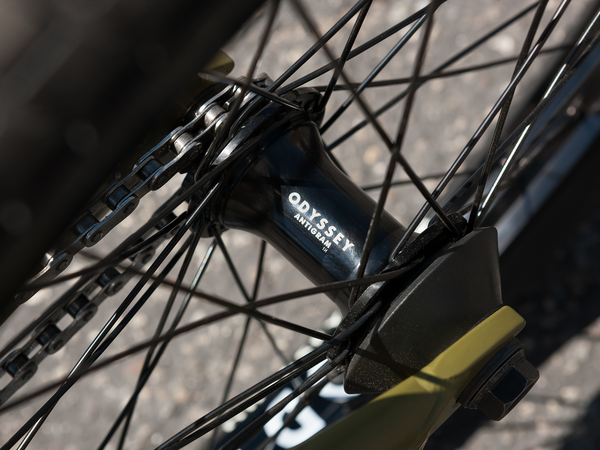

Rear Hub - Odyssey Antigram V2 cassette, 36H, 14mm female axle w/ 9T driver, RHD/LHD Switchable, non-drive side plastic guard
Spokes - 14g steel, black

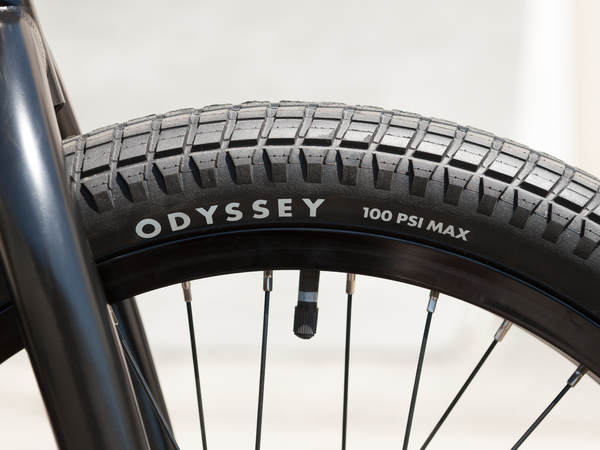

Tyres - Odyssey Aitken Street, 2.45" (F & R)
Chain - KMC Z1 eHX-W
Frame Geometry
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.65"-14"
Bottom Bracket Height - 11.5"
Standover - 9"
Handlebar Geometry
Width - 29"
Backsweep - 11°
Upsweep - 1°
Please Note that all bike shipments are only partially assembled in box and will require some assembly feel free to contact us at Fufanu with any questions.
