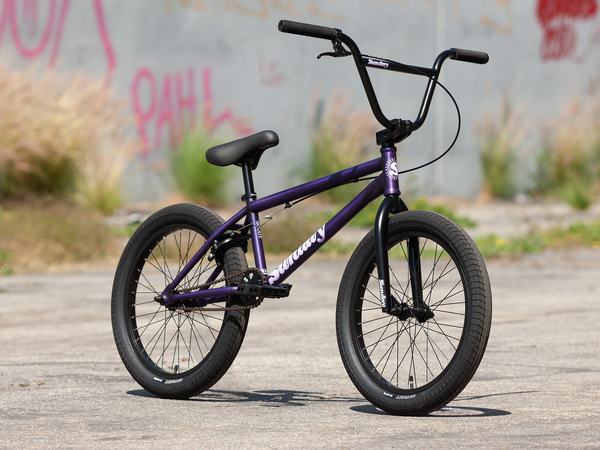

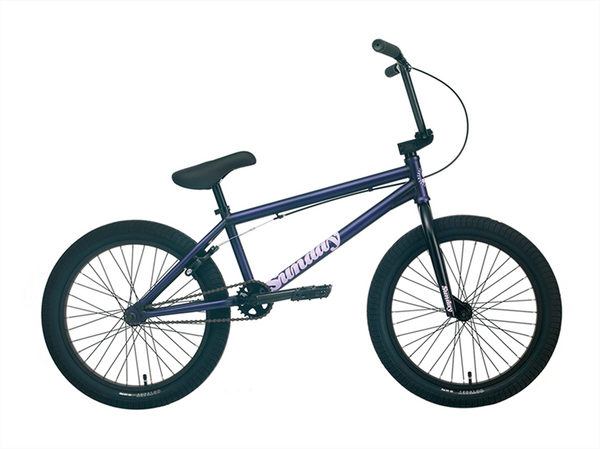

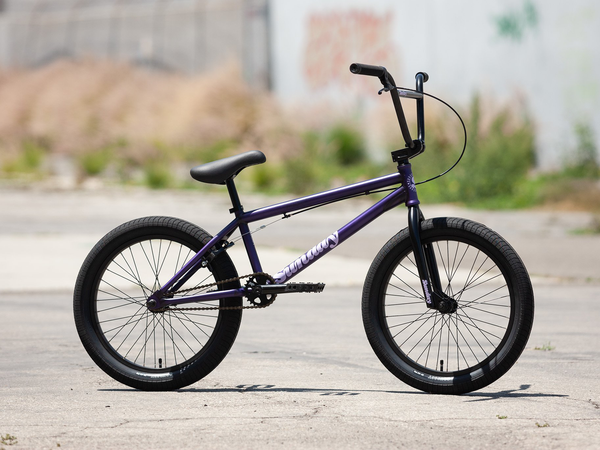

Sunday Scout 20" 2022 (Matte Translucent Purple)
Regular price $799.99
Unit price per
SUNDAY 20" Scout 2022 Bike
The 2022 Scout is a great bike for dedicated riders on a budget.
The Scout line is built with more aftermarket parts than ever before, including the Odyssey Twisted Pro pedal and Path Pro tire. Bike shops and riders will appreciate the fully sealed front and rear hubs, and awesome details like Odyssey signature grips and the Springfield Brake system.
Choose from two amazing colour finishes when you’re ready to rip.
Features
- Sunday Freeze Top Load Stem- Odyssey Springfield Brakes and Lever
- Odyssey Path Pro OEM 2.40" Tires
- Odyssey Twisted Pro Pedals
- Sunday Badge Pivotal Seat
- FSA Headset
- Sealed Front and Rear Hub
Specifications

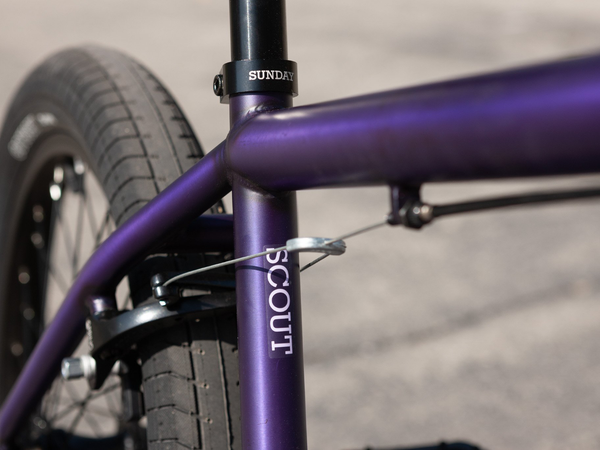

Frame - Sunday Scout, 20.75" top tube, integrated 1-1/8" head tube, chromoly down tube and dropouts
Fork - Sunday Scout, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar - Sunday, 2-piece
Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated, 1-1/8"
Alloy Cap - FSA aluminum cap
Brake Lever - Odyssey Springfield

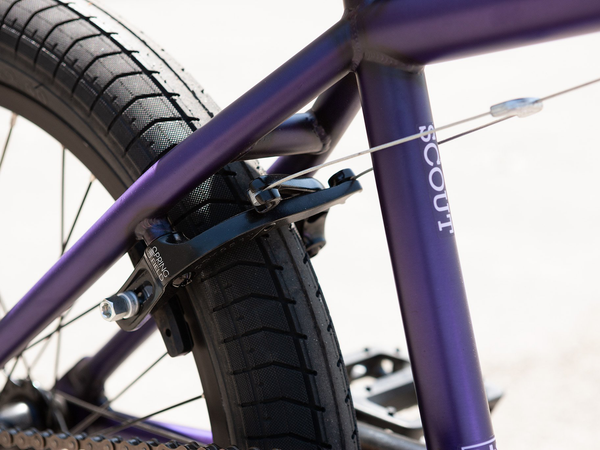

Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic

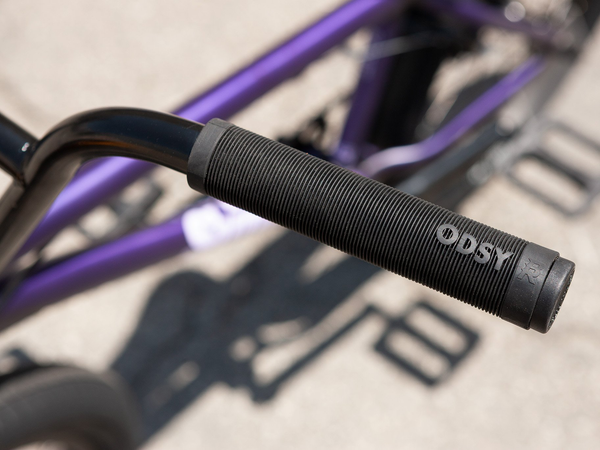

Grips - Odyssey Broc Raiford

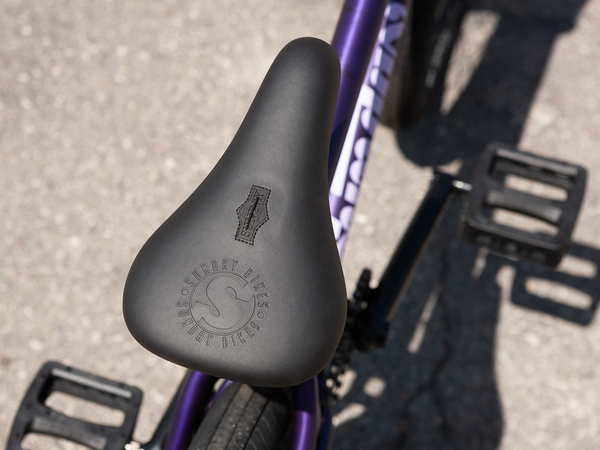

Seat - Sunday Badge, Pivotal
Seat post - Sunday, Pivotal
Seat Clamp - Sunday

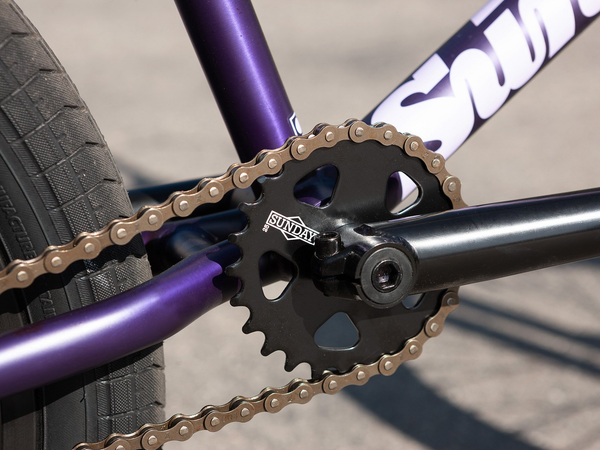

Sprocket - Sunday Sabertooth v2, 25T, steel
Cranks - 170mm, 3-piece, chromoly
BB Parts - Sealed, Mid, 19mm
Pedals - Odyssey Twisted PC Pro
Rims - P-7X aluminum, 20", 20H
Front Hub - Sunday, 36H, low-flange, sealed, 3/8" axle

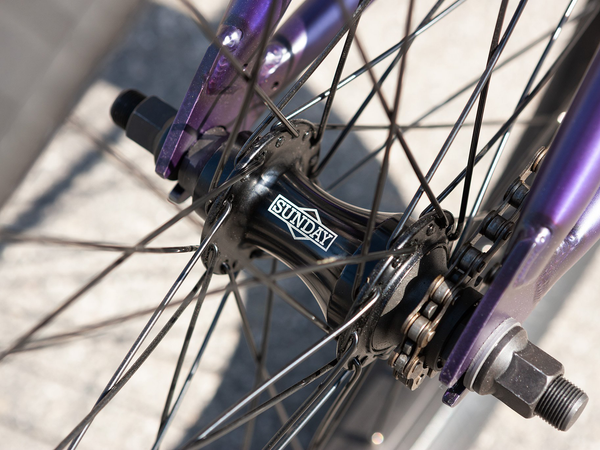

Rear Hub - Sunday 36H, sealed, 14mm axle w/ 9T Driver
Spokes - 14g steel, black
Tires - Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Frame Geometry
Top Tube Length - 20.75"
Head Tube Angle - 75.5°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 9”

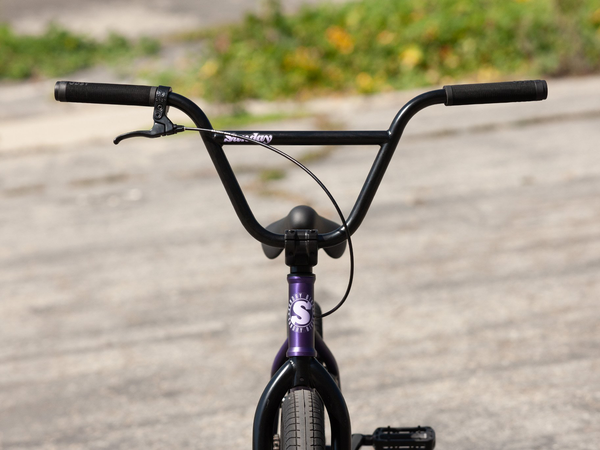

Handlebar Geometry
Rise - 9"
Width - 28.5"
Backsweep - 12°
Upsweep - 4°
